Polaris Sportsman 90 ATV Service Manual Set 2001–2012 (P/N 9916576)

916 Pages • ZIP Download: 7 Printable PDFs • 135.80 MB

5.0starstarstarstarstar(1)
$16.00 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Polaris Models Covered & Key Technical Specifications

Models: Sportsman 90, Scrambler 90, Scrambler 50, Predator 50, Predator 90, Outlaw 90

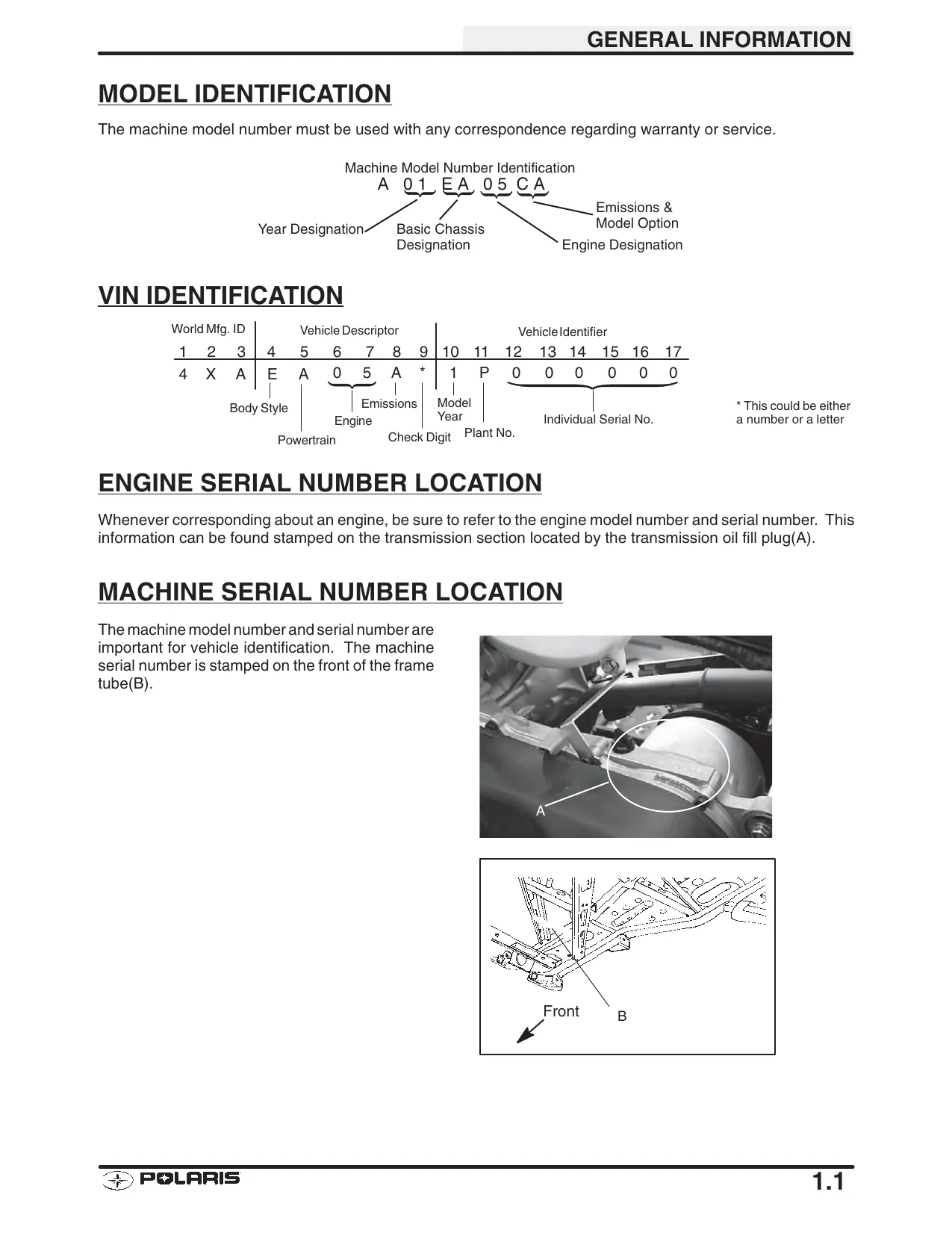

Models & Model Codes:

Sportsman 90 — A01FA09CA; A03FA09 (carburetor reference: A03FA09CA); A04FA09CA (engine AR07-01; forward-only transmission); A05FA09CA, A06FA09CA (engine AR07-01); A07FA09AA, A07FA09AB, A07FA09AC, A09FA09AA, A09FA09AB (engine H18S; integrated F/N/R transmission). Additional wiring-diagram variant: A04FA09CB.

Scrambler 90 — A01EA09CA, A03EA09.

Scrambler 50 — A01EA05CA, A03EA05 (carburetor reference: A03EA05CA).

Predator 50 — A04KA05CA, A05KA05CA, A06KA05CA (engine AR03-01; forward-only transmission); A07KA05CA, A07KA05CB, A09KA05AB, A09KA05AD (engine M10A; forward-only transmission).

Predator 90 — A03KA09; A04KA09CA (engine AR07-01; forward-only transmission); A05KA09CA (engine AR07-01); A06KA09CA (engine AR07-01; integrated F/N/R transmission). Additional wiring-diagram variants: A04KA09CB, A04KA09CC.

Outlaw 90 — A07KA09AA, A07KA09AB, A07KA09AC, A09KA09AB, A09KA09AD (engine H18S; integrated F/N/R transmission).

Sub-models / Variants: 2-Stroke Horizontal, SOHC 4-Stroke, Electric/Kick Start

Model Years: 2001–2012 (2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012)

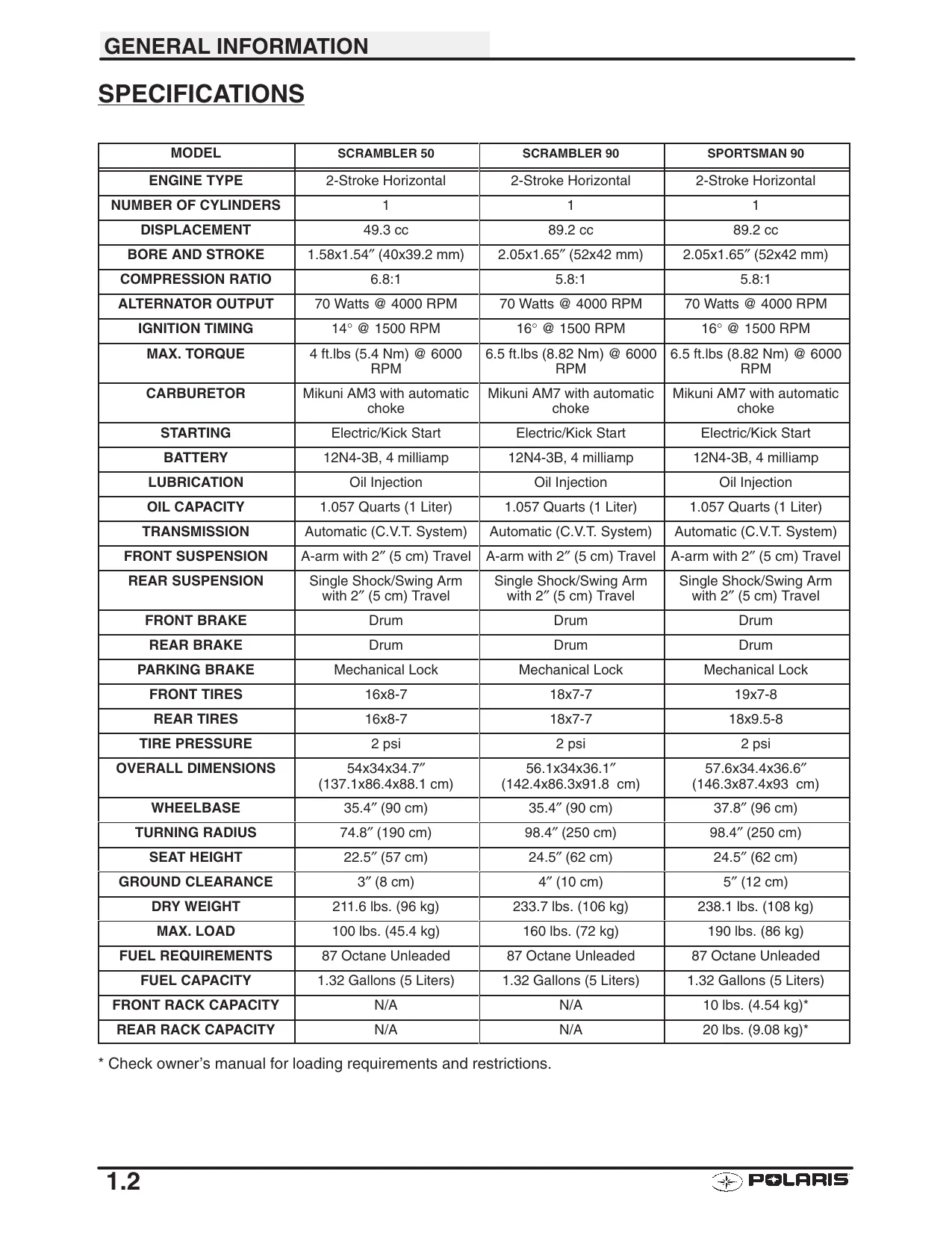

Specification applicability: The specifications below apply to the 2001 Scrambler 50, Scrambler 90, and Sportsman 90.


  • Engine displacement: 89.2 cc (Sportsman 90/Scrambler 90), 49.3 cc (Scrambler 50)

  • Engine type: 2-Stroke Horizontal, 1 cylinder

  • Compression ratio: 5.8:1 (90 cc), 6.8:1 (50 cc)

  • Fuel type: 87 Octane Unleaded

  • Fuel capacity: 1.32 Gallons (5 Liters)

  • Transmission type: Automatic (C.V.T. System)

  • Alternator output: 70 Watts @ 4000 RPM

  • Ignition timing: 16° @ 1500 RPM (90 cc), 14° @ 1500 RPM (50 cc)

  • Dry weight: 238.1 lbs. (108 kg) (Sportsman 90)

Polaris Manual Features & Selected Content Preview

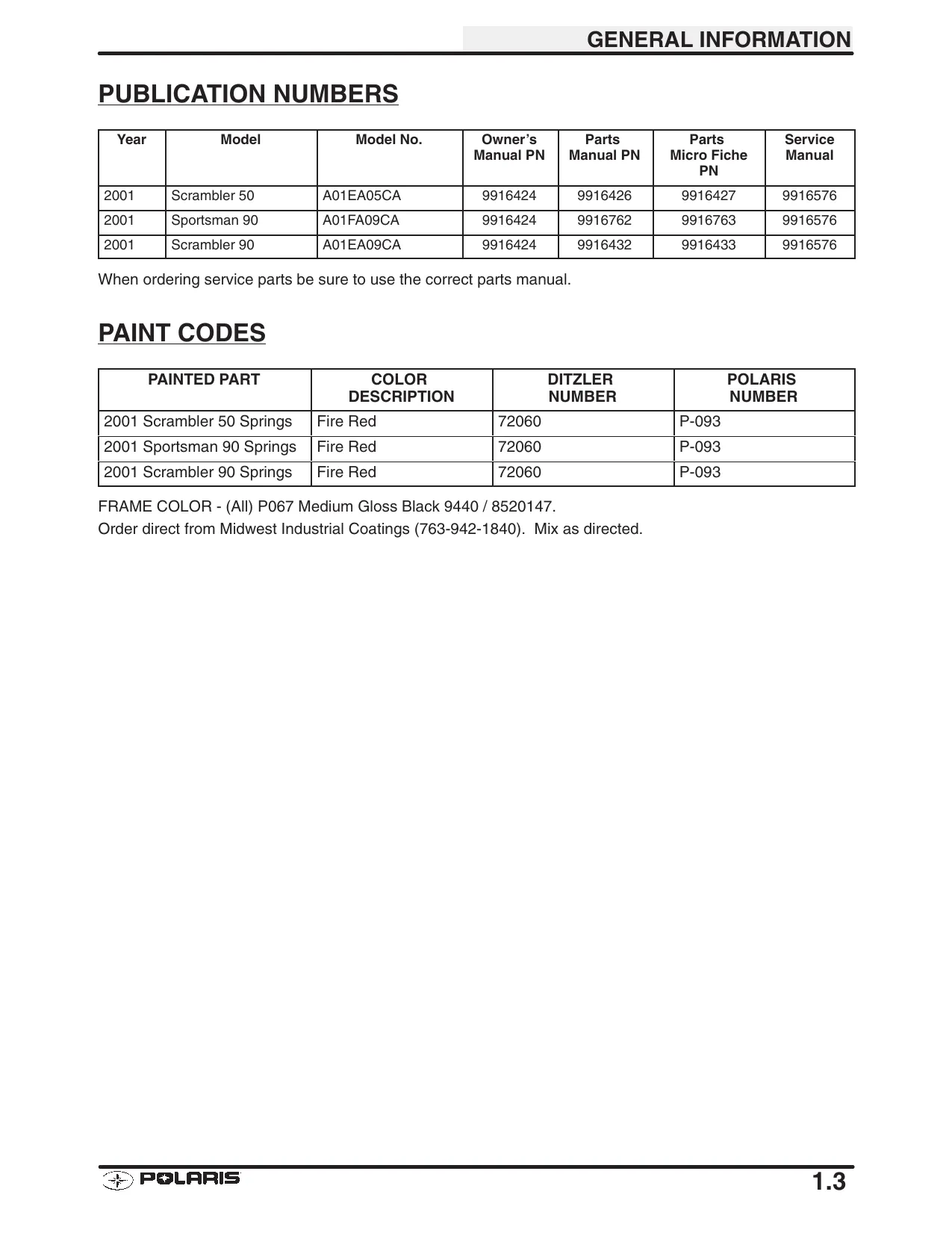

Publication Pages
2001 Polaris Youth ATV Service Manual — Scrambler 50, Scrambler 90, Sportsman 90; P/N 9916576 125
2003 Polaris Youth ATV Service Manual — Scrambler 50, Scrambler 90, Sportsman 90, Predator 90; P/N 9918068 109
2004 Polaris Youth ATV Service Manual — Predator 50, Predator 90, Sportsman 90; P/N 9918782 103
2005 Polaris Youth ATV Service Manual — Predator 50, Predator 90, Sportsman 90; P/N 9919532 113
2006 Polaris Youth 2-Stroke Service Manual — Predator 50, Predator 90, Sportsman 90; P/N 9920234 126
2007 Polaris Youth 4-Stroke Service Manual — Predator 50, Outlaw 90, Sportsman 90; P/N 9920848 170
2009 Polaris Youth 4-Stroke Service Manual — Predator 50, Outlaw 90, Sportsman 90; P/N 9921800 170

Use the matching edition for the ATV's model code and engine family. The collection separates oil-injected two-stroke service from four-stroke valvetrain and wet-sump repair.

The files labeled 2001–2002, 2007–2008, and 2009/2010–2012 contain the 2001, 2007, and 2009 workshop editions, respectively. The first file also includes a wiring diagram for the 2002 Scrambler 90 and Sportsman 90. Separate 2008 and 2010–2012 supplements are not included. These are service manuals; the parts manuals referenced in their publication tables are separate publications.

PDF Search, Bookmarks and Diagram Detail

Search and navigation: Service text is searchable, but wiring-diagram labels and some text within illustrations and flowcharts are not. The 2001–2002 file has no embedded bookmarks; the other six have chapter bookmarks, with topic-level navigation in the 2004–2009 editions. The 2005 “Introduction” bookmark has no destination. Small wiring labels require zooming, particularly on the fine-line drawings in the 2005 and 2007 editions.

The ZIP contains seven printable PDFs totaling 916 pages. That total includes 31 blank or notes pages, seven preliminary or cover pages, and 12 index pages.


Youth ATV Engine, Drivetrain and Electrical Service

The following selected coverage highlights are not a complete contents list. Other topics include paint codes and unit-conversion charts.

  • Engine repair: Step-by-step removal, disassembly, inspection, reassembly and installation procedures for the two-stroke and SOHC four-stroke engines.

  • Transmission and CVT: Gearcase, final-drive, kick-start and starter-drive service, plus drive and driven clutch repair, belt inspection and overheating diagnosis.

  • Fuel and speed controls: Carburetor service, oil-injection checks, Electronic Throttle Control, CDI speed limiting, tether-switch testing and reverse-limiter diagnosis where fitted.

  • Chassis and brakes: Model-specific body, steering, suspension, axle and drum-brake service, with wheel alignment, toe setting and brake-cable adjustments.

  • Electrical diagnosis: Battery, charging, ignition, stator, coil and starter-motor tests, supported by troubleshooting charts and model-specific wiring diagrams.

  • Workshop references: Component-specific torque tables, wear and clearance data, exploded views and special-tool listings.

These manuals suit experienced ATV technicians with a properly equipped shop; the four-stroke CVT chapters expressly require trained, certified Polaris Master Service Dealer technicians.

Two-Stroke and Four-Stroke Engine Work

Two-stroke service: The engine chapters detail compression testing, oil-pump adjustment and bleeding, crankcase separation, cylinder and piston inspection, crankshaft checks and final assembly. Tool references include Flywheel Puller PA-45153 and Crankcase/Crankshaft Separating Tool PV-46087.

Four-stroke service: The M10A and H18S sections add leakdown testing, camshaft and rocker-arm service, cylinder-head and valve work, cam-chain tensioner inspection and timing checks. The same sections cover piston-ring, crankshaft, crankcase, oil-pump and strainer service, with an Oil Flow Diagram showing the lubrication path.

Cylinder-head work references Cylinder Leakdown Tester PV-35667-A, Valve Spring Compressor PA-46502 and Adaptor PA-48701. The manuals warn that an overly long compression-test adaptor can damage the cylinder head, and that pulling the crankshaft out with the right case half can damage the cam chain.

Transmission, Clutch and Final Drive

The 2006 edition separates CVT and final-drive/transmission service into dedicated chapters, with distinct transmission procedures for the two engine sizes. The four-stroke books distinguish the forward-only gearbox from the integrated forward/neutral/reverse unit.

CVT exploded views support component identification, while clutch inspection covers rollers, bushings, sheave faces and friction shoes. The overheating discussion links restricted cooling ducts to elevated CVT temperatures, giving technicians a specific system to inspect when diagnosing belt and clutch problems. The instructions also address matched roller replacement and clutch-component selection.

Carburetors and Oil Injection

The early fuel chapters explain pilot, needle-jet and main-system operation, with carburetor exploded views, float and inlet-needle checks, oil check-valve testing and troubleshooting. The four-stroke editions distinguish the Predator 50's Mikuni VM12H from the Keihin PTE16 used on the Outlaw 90 and Sportsman 90.

Carburetor disassembly, adjustment and leakage-test material includes Mity Vac Pressure Test Tool 2870975. Circuit explanations connect throttle position with fuel delivery, supporting diagnosis of lean running, rich mixtures and poor idle.

Chassis, Brakes and Electrical Fault Finding

Body sections distinguish model-specific panels, racks and tanks. Engine-mounting and brake exploded views accompany frame, handlebar, steering-post, tie-rod, control-arm, shock, swingarm and rear-axle service.

Electrical coverage extends to CDI peak-output checks using Peak Reading Adaptor PV-39991, transmission-switch diagnosis and daytime-running-light circuits. Starter-system and no-spark flowcharts organize fault checks, while the wiring diagrams identify connections and wire colors.

Fuel, ignition, brake, and rotating-CVT repair should be performed by trained personnel with the ATV securely supported and the electrical system isolated as required.

A Preview of Valve and CVT Inspection Data

For the 2007 M10A and H18S engines, the valve-adjustment section specifies 0.002 in. (0.06 mm) intake and exhaust clearance at compression-stroke TDC.

The same edition gives a CVT drive-belt width service limit of 0.626 in. (15.9 mm), alongside separate inspection limits for the driven clutch hub, friction shoes and spring.
