Polaris Predator 50/90, Sportsman 90 ATV Owner's Manual 2004 (P/N 9918778)
188 Pages • Printable PDF • 17.97 MB • Download
Polaris Models Covered & Key Technical Specifications
Models: Predator 50, Predator 90, Sportsman 90
Sub-models / Variants: 50cc Youth ATV, 90cc Youth ATV
Model Year: 2004
-
Engine displacement: 49 cc (Predator 50), 89 cc (Predator 90 / Sportsman 90)
-
Fuel capacity: 1.0 gallon (3.8 liters) for Predator 50, 1.3 gallons (5.0 liters) for Predator 90, 1.32 gallons (5.0 liters) for Sportsman 90
-
Front tire pressure: 3 psi
-
Rear tire pressure: 3 psi
-
Rider weight limit: 90 lbs. (Predator 50)
-
Ground clearance: 4 inches (10 cm) for Predator 50, 5 inches (12.7 cm) for 90cc models
-
Oil tank capacity: 20 oz. (0.6 liter) for Predator 50, 1.1 quarts (1 liter) for Predator 90 / Sportsman 90
-
Transmission: Automatic CVT (all models)
Polaris Manual Features & Selected Content Preview
Polaris factory owner’s manual P/N 9918778 Rev. 02 covers the 2004 Predator 50, Predator 90, and Sportsman 90 youth ATVs, with operating guidance, scheduled maintenance, adjustments, and basic repair procedures.
PDF Text Search, Navigation, and Pages
Search and navigation: The manual’s body text is searchable; the front and back covers are not. There are no embedded PDF bookmarks. A printed table of contents and index provide section references.
One printable PDF contains 188 pages, including the front cover, opening warning page, and back cover.
Youth ATV Operation and Owner Maintenance
These selected topics show the manual’s coverage. Other included subjects include emission-control information and vehicle-transport preparation.
-

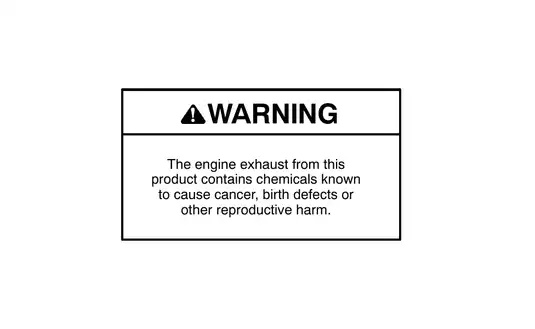

Safety and controls: Separate Youth and Adult sections cover safety decals, pre-ride checks, rider controls, the tether switch, parking brake, and Electronic Throttle Control.
-
Starting and break-in: Electric-start and kick-start instructions, cold-start operation, fuel-valve use, initial fuel preparation, and oil-injection checks.
-
Brakes and steering: Front and rear brake adjustment, freeplay and lever-travel tables, steering inspection, toe-alignment checks, and handlebar adjustment.
-
Routine service: Step-by-step procedures for PVT filter cleaning, air-cleaner service, spark-plug replacement, and gearcase oil changes, supported by maintenance and lubrication charts.
-
Battery and lighting: Sealed-battery care, removal and installation procedures, storage guidance, and brakelight lamp replacement.
-
Suspension and final drive: Rear spring adjustment, wheel removal and installation, axle and wheel torque references, and model-specific drive-chain inspection and adjustment.
-
Troubleshooting: Cause-and-solution charts address no-start, no-crank, knocking, backfiring, stalling, misfiring, power loss, and lean or rich fuel mixtures.

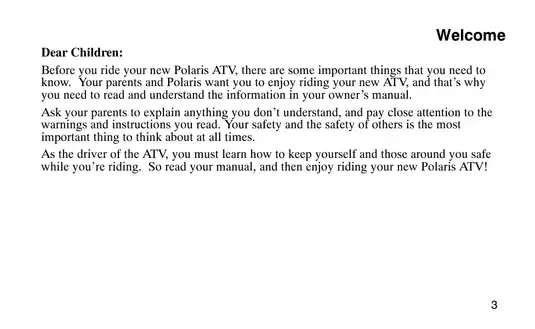

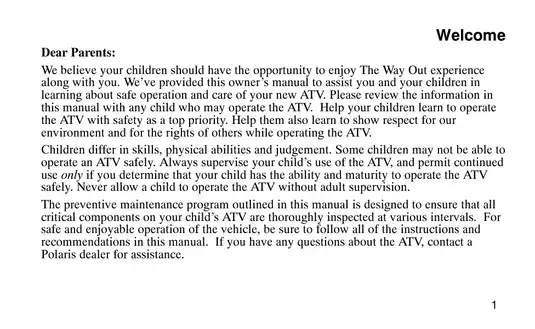

Written for parents and young riders, the manual distinguishes adult-supervised operation from maintenance tasks designated for an authorized Polaris dealer.
Repair scope: This is an owner’s manual for operation, maintenance, adjustment, and basic repair. It does not contain full engine or PVT teardown procedures or electrical wiring schematics.
Controls, Starting, and Break-In
Labeled control drawings identify the ignition and engine-stop switches, throttle, brake levers, choke, horn on the 90cc models, starter button, fuel valve, and parking-brake lock. Identification pages show the model-specific VIN locations and engine-number location.
The Electronic Throttle Control section explains how the engine shuts down if the throttle cable sticks open after the lever is released. Because the PVT transmission is always in forward, the starting guidance emphasizes parking-brake use during starting and warm-up.
Break-in coverage addresses initial fuel/oil preparation and the follow-up oil-tank check that indicates whether the oil pump is delivering lubricant. If the level does not drop after the first break-in fuel supply, the manual calls for dealer oil-pump bleeding.
Speed Controls and Model Differences
The speed-control section explains the CDI jumper system and mechanical throttle stop, with separate access illustrations and delivered versus unrestricted speed limits for the two engine classes.
Predator 50 footwell-riser removal and installation has its own illustrated procedure. Sportsman 90 cargo guidance covers rack loading, weight distribution, load security, and the effects of cargo on braking and handling.
Separate model tables distinguish the air-cooled Predator 50 from the fan-cooled Predator 90 and Sportsman 90. They also cover carburetion, suspension travel, tire sizes, dimensions, dry weight, and rack capacities.
Maintenance Planning and Service Limits
The maintenance charts distinguish owner checks from dealer service and identify work due by operating hours, mileage, or calendar interval. Together with the daily pre-ride checklist, they help adults organize routine care and identify checks needed before returning the ATV to a young rider.
Lubrication references identify Polaris VES II and Premium Gold two-cycle oils, AGL Synthetic Gearcase Lubricant, chain lubricant, and grease points. Gearcase and front A-arm illustrations locate the relevant service points.
The toe-alignment string diagram supports inspection, while tie-rod adjustment is reserved for the dealer. The manual also identifies nonadjustable camber and caster and dealer-only front wheel hub service.
Drive-Chain Checks and Engine Troubleshooting
The 90cc chain illustration shows the compressed-suspension geometry used to establish the tightest chain position. Incorrect slack can damage transmission and drive components; the adjustment section also warns that the adjuster stud can break during final tightening.
Carburetor guidance explains how altitude and temperature affect jetting requirements. Spark-plug descriptions distinguish normal and wet-fouled conditions and relate them to carburetion, choke use, oil choice, and overheating.
The troubleshooting charts separate fuel, ignition, battery, and ETC-related possibilities and identify conditions requiring dealer attention. Air-filter and oil-compatibility cautions address causes of engine damage, while storage guidance covers fuel stabilization and engine fogging.
Selected Throttle and Brake Freeplay Specifications
The throttle-cable section specifies 1.5–3.2 mm of freeplay. For the Predator 50, the brake table gives 2.5–9.9 mm at the front lever and 3.8–7.6 mm at the rear.
For the Predator 90 and Sportsman 90, brake freeplay is 10–20 mm at both levers. These freeplay specifications are separate from the brake-lever travel thresholds used to determine when service is due.
