Polaris Predator 50, Outlaw 90, Sportsman 90 Youth ATV 2008 Factory Service Manual (P/N 9921487)

• Official OEM publication PN 9921487 covering the 2008 model year
• Serves as the primary 178-page factory reference for M10A and H18S engine variants
• Details specs and teardowns for the Predator 50, Outlaw 90, and Sportsman 90 youth ATVs

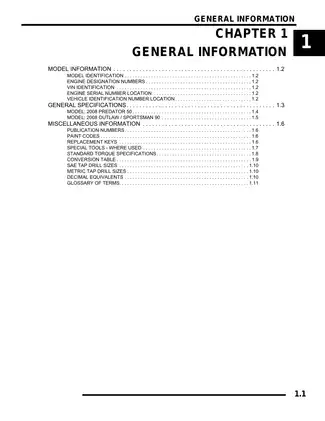

• Contains 3 full-page exploded-view engine/transmission diagrams and over 20 torque-specific assembly charts
• Includes specific clearance specifications for rocker arms, pistons, and valve seats for both 50cc and 90cc models
• Provides comprehensive troubleshooting guides, electrical diagnostic parameters, factory Wiring diagrams, and a digital PDF format
• Covers complete CVT overhauls, Electronic Throttle Control (ETC) testing, Mikuni and Keihin carburetor tuning, stator checks, and A-arm suspension service

Engine and Transmission Specifications

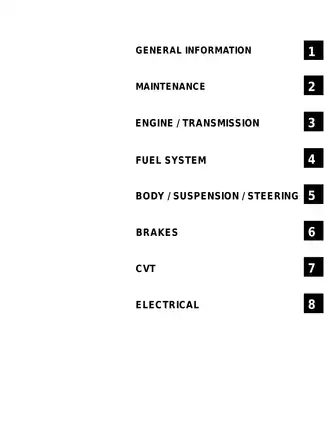

This service manual documents the technical parameters and maintenance requirements for the 4-stroke youth model lineup. It contains detailed chapters on general information, maintenance routines, engine overhauls, fuel system adjustments, bodywork, steering, suspension, brakes, and electrical systems. The data focuses entirely on component identification, inspection parameters, and the precise torque specifications necessary for keeping these ATVs in optimal condition. Visualizing the component layout is streamlined through highly detailed illustrations, including the internal Oil Flow Diagram, the Steering Assembly Exploded View, the Fuel Tank Exploded View, the Control Arm Exploded View, and the E-Clip Position vs. Fuel Flow chart. Proper maintenance and component replacement on youth vehicles demand strict adherence to factory torque values and established safety procedures to prevent mechanical failure during operation. Working around vented fuel systems and lead-acid batteries poses inherent chemical and fire hazards; always ensure proper ventilation and disconnect the negative battery cable first to mitigate electrical arcs. Whether you are a professional technician or a dedicated DIY mechanic, having accurate reference data streamlines any repair process. Bringing this specific information directly to the workbench minimizes shop downtime and eliminates costly trial-and-error when tracking down elusive electrical faults or tuning small-displacement powerplants.

Step-By-Step Service and Model-Specific Pitfalls

Instead of relying on expensive dealership visits, technicians and DIYers can utilize the step-by-step instructions for labor-intensive tasks. The manual outlines the exact procedures for complete CVT drive and driven clutch rebuilds, precise valve clearance adjustments, steering toe alignments, and full carburetor teardowns.

When servicing these specific 4-stroke youth models, mechanics should be aware of a few critical repair pitfalls outlined in the documentation. For instance, utilizing a compression tester adapter longer than the 1/2-inch spark plug thread length will physically strike and severely damage the cylinder head. Furthermore, an improperly adjusted Electronic Throttle Control (ETC) micro-switch is often misdiagnosed as a faulty CDI or stator, because it automatically limits engine RPM if the throttle cable lacks the required 1/16 in. to 1/8 in. freeplay. Additionally, attempting to reuse deformed piston pin circlips during a top-end rebuild frequently leads to catastrophic cylinder wall scoring.

Critical Specifications and Reference Data

The engine section provides detailed clearance specs for the 49.5cc and 89.9cc powerplants. Cylinder compression for the 50cc engine is documented at 115–155 psi, while the 90cc variants are rated for 135–175 psi. Intake valve clearance for the Sportsman 90 is specified at 0.002 in. (0.06 mm) in the valvetrain table. The carburetor specification section provides pilot air screw settings of 2.5 turns out for the 50cc models and 2.25 turns out for the 90cc versions. Torque values for crankcase assembly fasteners are established at 87 in. lbs. (10 Nm) across the specified pattern.
