Samsung SCX-5835FN / SCX-5935FN (2008) Laser Printer Service Manual Set (P/N 5x35-00000E)

312 Pages • ZIP Download: 5 Printable PDFs • 43.99 MB

5.0starstarstarstarstar(1)
$5.67 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Samsung Models Covered & Key Technical Specifications

Models: SCX-5835FN, SCX-5935FN

Sub-models / Variants: 5x35 Series

Model Year: 2008


  • Print engine speed: Up to 33 ppm (A4) simplex, 17 ipm (A4) duplex

  • Processor: Chorus3 360 MHz

  • Memory (Standard/Max): 256 MB / 512 MB

  • Storage: 80 GB HDD

  • Print resolution: 600 x 600 dpi (Optical), 1200 dpi (Enhanced)

  • DADF capacity: 50 sheets

  • Standard cassette capacity: 500 sheets

  • Toner cartridge yield: 4,000 pages (Initial/Sales), 10,000 pages (Sales)

Samsung Manual Features & Selected Content Preview

Publication Pages

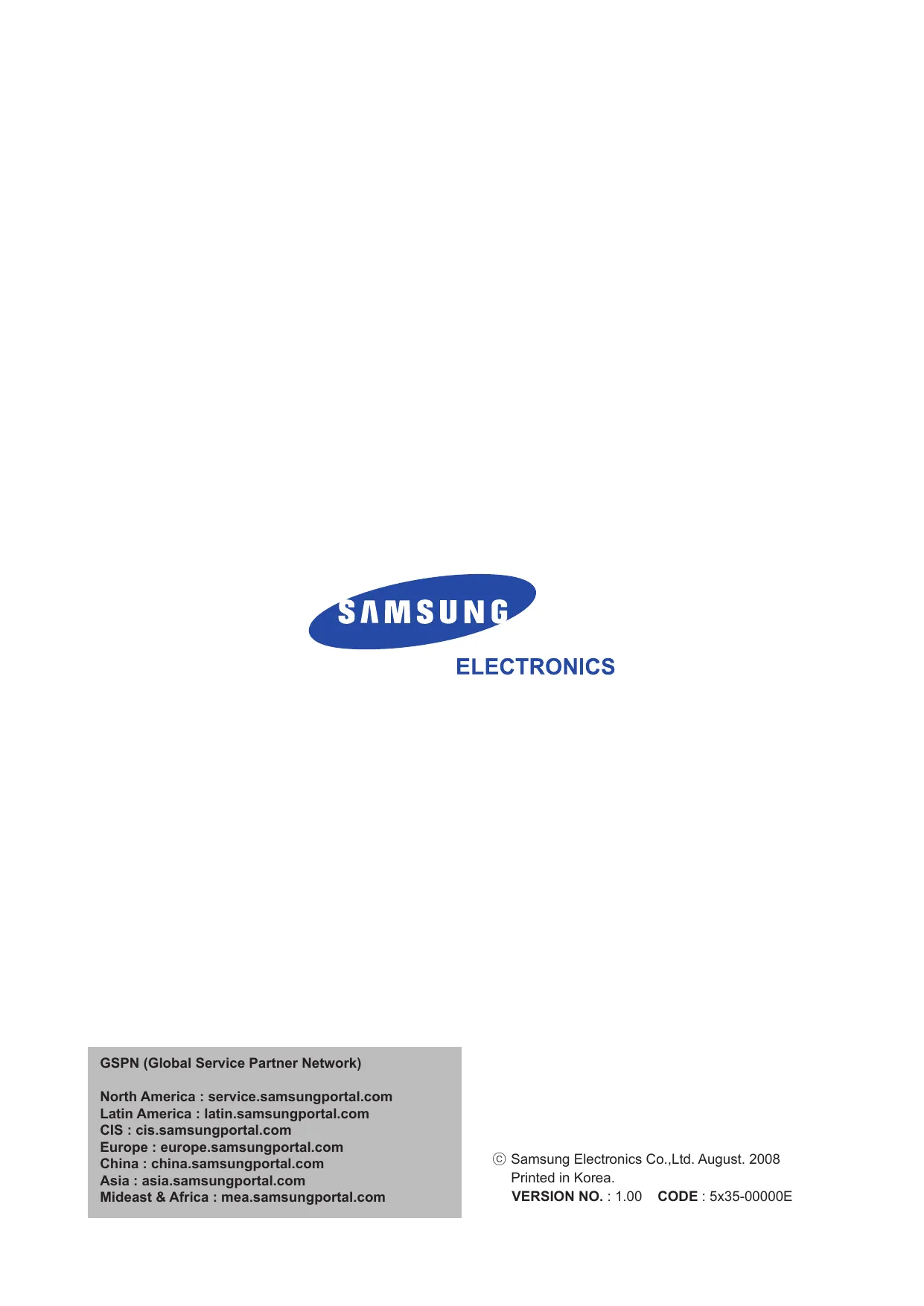

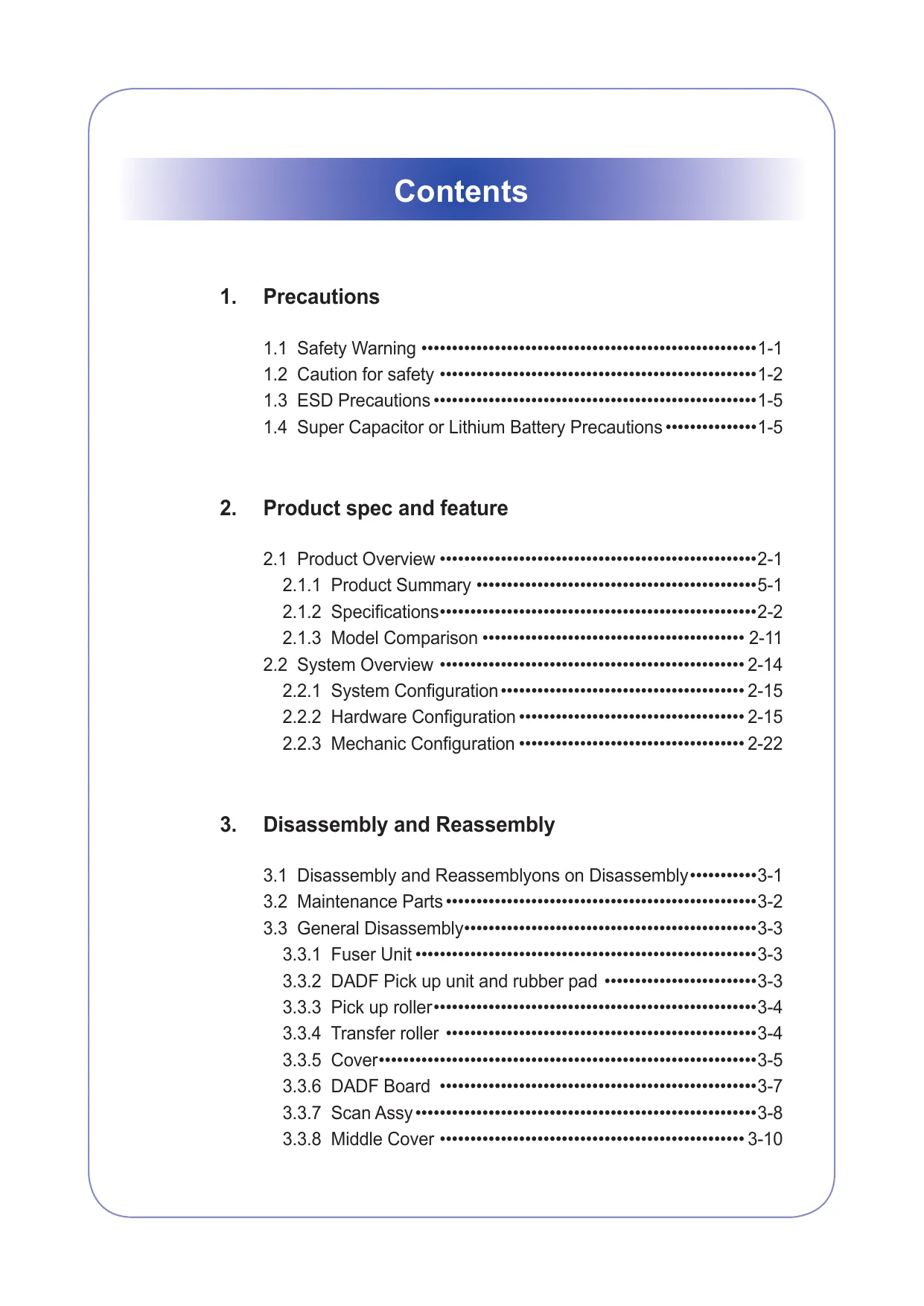

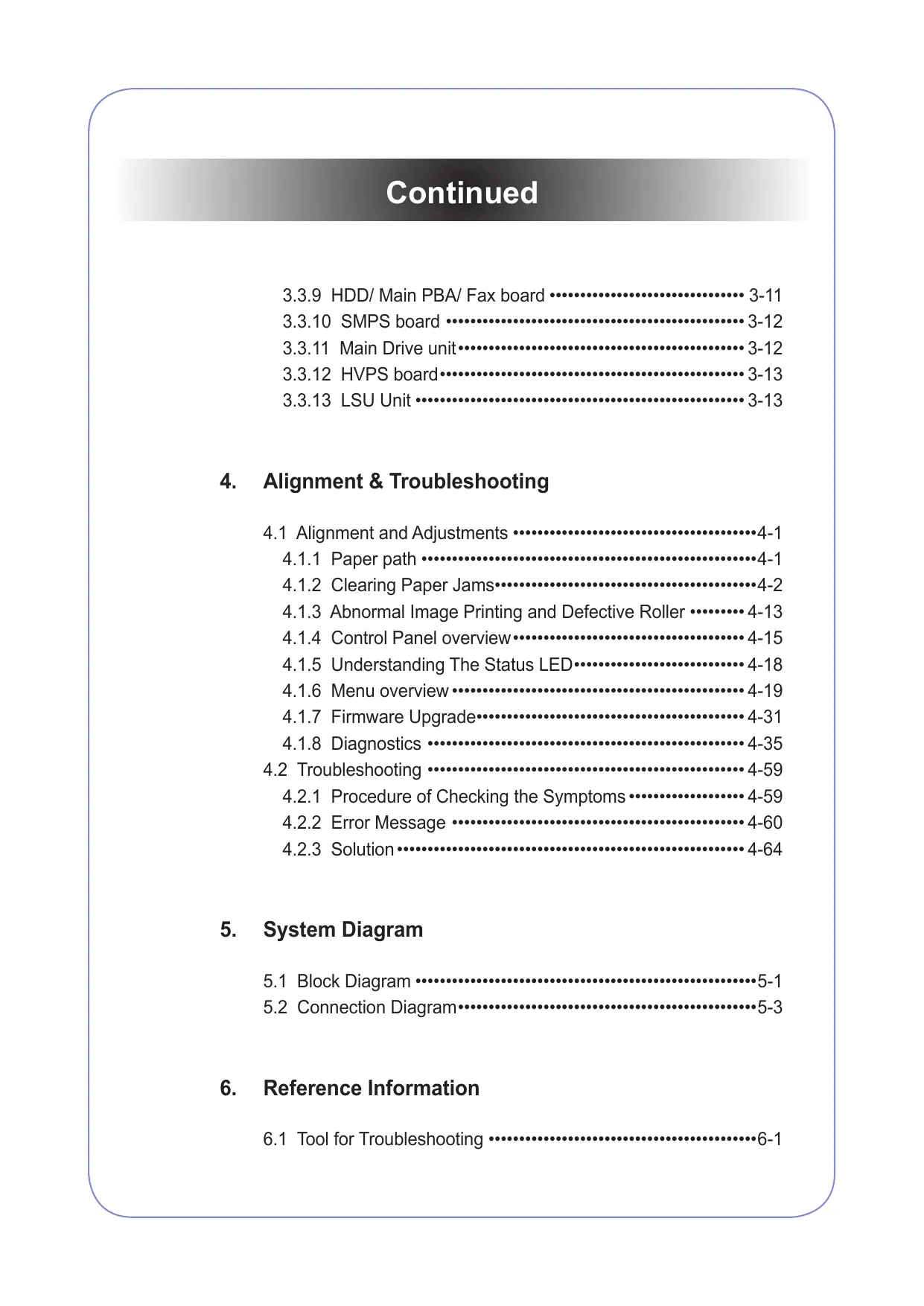

Samsung SCX-5835_5935 Series Service Manual — SCX-5835FN and SCX-5935FN, Version 1.00, August 2008 (P/N 5x35-00000E) 156

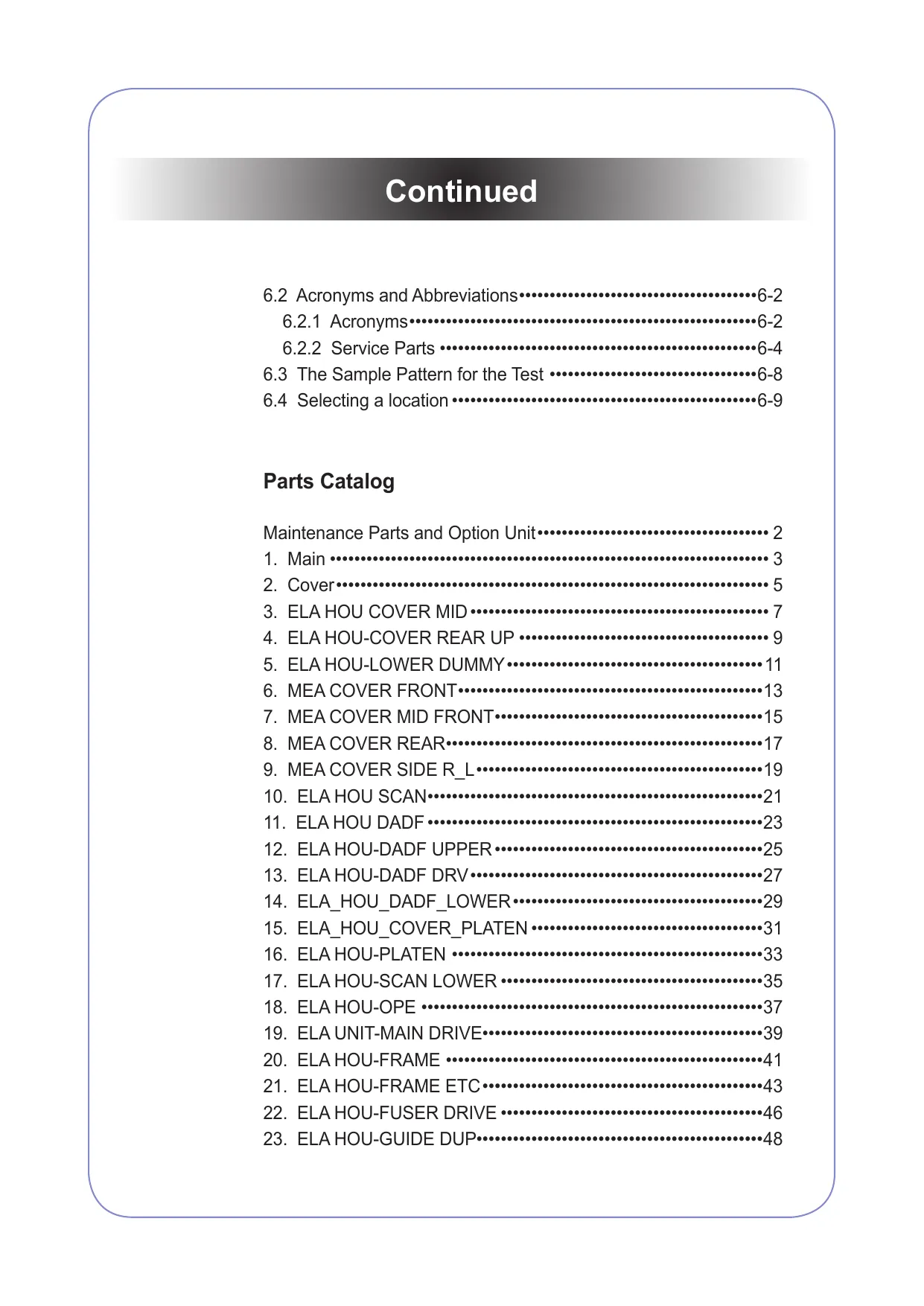

Samsung SCX-5835_5935 Series Parts Catalog — SCX-5835FN and SCX-5935FN, Version 1.01 74
Samsung SCX-5835FN (Elbert-II) Training Manual — Rev. 0.1, August 2008 67
Samsung Service Bulletin 2009-MLBP-007 — Windows Vista 64-bit driver installation 1
Windows Vista Driver Removal Instructions — two identical copies 14

The service manual helps isolate a fault, and the exploded parts catalog helps identify the assembly and order the correct replacement. The training manual explains how the SCX-5835FN feeds, images, and fuses a page. The Vista documents address a separate driver installation issue across Samsung laser and multifunction printers.

Hardware repair coverage focuses on assembly removal and replacement. Electrical documentation goes to the board-interface and connector-pin level, with targeted voltage checks.

PDF Search, Bookmarks, and ZIP Contents

Search and diagram detail: The service manual and Vista documents have searchable text. The training PDF is partly searchable because several disassembly pages carry the instructions inside images. The service manual PDF has bookmarks for its chapters and the parts catalog. Zooming makes the small connector labels legible. The training voltage map has clear callouts, although some markings on board photos remain soft when enlarged.

The ZIP contains five printable English PDFs totaling 312 pages, of which 305 are unique. The parts catalog is appended to the service manual in the same PDF. The Vista documents and driver cleaner utility are in a separate archive inside the ZIP. Cover and front-matter pages are included in the totals.


Fuser Service, Paper Jams, and Fault Diagnosis

These selected topics highlight the repair and diagnostic coverage. The service manual also includes installation clearances and a troubleshooting tool list.

  • Assembly removal: Step-by-step, photo-guided procedures cover the fuser, duplex automatic document feeder (DADF) pickup unit and pad, pickup and transfer rollers, and scanner assembly.

  • Boards and drives: Removal procedures cover the hard drive, main PBA, fax board, power-supply boards, main drive, laser scanning unit (LSU), and control-panel USB port.

  • Service diagnostics: Diagnostic mode provides high-frequency service item (HFSI) life counters, fault history, copier and fax NVM functions, and dedicated engine, DADF, and fax test routines.

  • Fault isolation: Paper-path drawings distinguish cassette, duplex, and document-feeder jams. Error tables and flowcharts address print defects, scanner and PC-scan faults, fax problems, no-power conditions, and fuser errors.

  • Electrical reference: Block diagrams and connector pinouts trace the controller, operator panel (OPE), scanner, power supplies, engine, and optional second cassette feeder (SCF).

  • Parts identification: The parts catalog has 31 exploded assembly sections with Samsung SEC codes, quantities, service-availability grades, and voltage- or country-specific parts.

The set is suited to printer service technicians familiar with electrical isolation and electrostatic discharge precautions during internal repairs.

Controller, Power, and Fuser Checks

The system chapter explains the CHORUS3 / ARM 926EJS controller, flash, system memory, and expansion slot. The Elbert2 Block Diagram (Main I/F) and Elbert2 Block Diagram (SUB B’d) map board interfaces. Elbert2 Engine Connection and Elbert2 Scanner Connection show pin assignments for the engine, CCD scanner, and DADF.

The training manual’s Applied Voltage & Measurement map identifies measurement points around the toner cartridge and transfer system. The service manual describes heater control and DC outputs at the switching power supply, the high-voltage supply’s imaging functions, and the fax board’s PSTN/PABX interface. Fuser procedures cover unit removal and thermostat and thermistor checks.

Service Mode and Firmware

Fault counters group events by subsystem, including feeder, fuser, motor and fan, LSU, option interface, consumables, finisher, and DADF. Service tests include print patterns, CCD shading, scan-edge checks, and fax protocol reports. The manual also covers software versions, usage counters, administrator password reset, and firmware updates via USB or SyncThru Web Admin Service.

Copier, fax, and network NVM initialization can reset stored machine values. Memory Clear restores defaults and erases user settings. Separate troubleshooting sections cover software and print spool failures.

Parts Selection and Handling

The parts catalog separates SCX-5835FN and SCX-5935FN cover and lower-housing parts. It lists fuser assembly JC96-05063A for 110 V and JC96-05064A for 220 V, along with regional fax-board, line-cord, and power-cord selections.

Light exposure or contact can damage the OPC drum’s photosensitive surface. During reassembly, displaced harnesses can be pinched by moving parts. The HVPS shield procedure flags the cassette-sensor harness in particular. Samsung’s safety section covers AC isolation, ESD, the hot fuser, rotating parts, and the laser unit’s protective cover.

Sample Repeat Distances for Print Defects

The repetitive-defect chart associates black spots recurring every 37.7 mm with the charge roller. It lists a 77.8 mm repeat interval for black spots or fuser ghosting associated with the heat roller.

For back-side contamination or transfer faults, the chart gives a 47.1 mm repeat interval for the transfer roller. These distances help narrow down the suspect part before disassembly.
