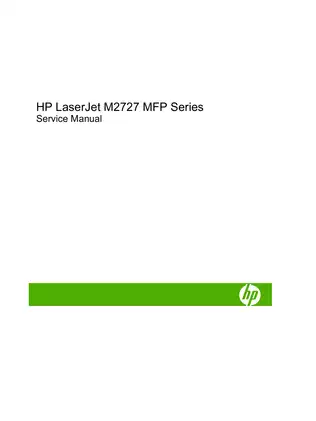

HP LaserJet M2727nfs / M2727nf Service Manual, 2007 (P/N CB532-90946)

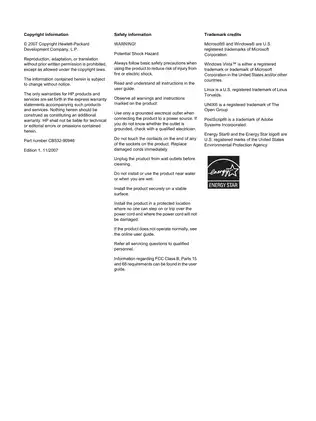

HP factory service publication P/N CB532-90946, Edition 1 (11/2007) covers the HP LaserJet M2727nf MFP and M2727nfs MFP. The M2727nfs coverage includes its standard tray 3 and convenience stapler; tray 3 is optional on the M2727nf.

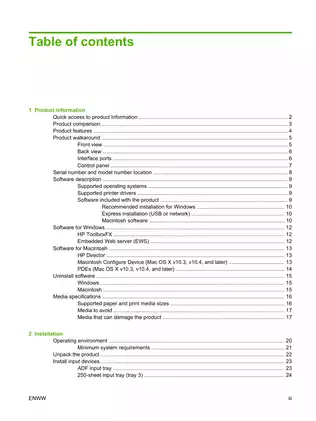

PDF Search, Bookmarks, and Diagram Detail

Text search and circuit labels: The body text is searchable, with embedded PDF bookmarks for chapters and subsections. Small connector and pin labels on the two circuit diagrams require zooming for comfortable reading. Some diagram labels are not included in the searchable text.

One printable, English-language PDF with 370 pages total: 18 preliminary pages, 350 numbered pages covering the chapters, appendices, and index, one trailing blank page, and the back cover. The preliminary material includes another blank page; all are included in the total.

Print Engine, Scanner, and Fax Service

The following selected service topics show the manual’s repair and diagnostic coverage. Other included material addresses memory-DIMM installation and embedded Web server configuration.

• Print-engine repair: Illustrated, step-by-step FRU removal and replacement for the formatter, laser/scanner, fuser, and engine controller assembly (ECU).

• Scanner and ADF service: Scanner/ADF assembly and control-panel removal, ADF scanner-glass replacement, pickup-roller replacement, and scanner calibration.

• Paper-handling repairs: Duplex assembly and drive gears, main motor, transfer and registration rollers, pickup solenoids, and main-drive components.

• Fault isolation: Alert and critical-error tables, jam diagnosis, print/scan/copy/fax troubleshooting, functional checks, and post-repair quality tests.

• Service functions: NVRAM and Super NVRAM initialization, secondary-service and developer menus, formatter and telecom tests, control-panel tests, and firmware updating.

• Diagrams and parts: System and circuit diagrams, connector identification, component-location drawings, exploded assembly views, and itemized replacement-part tables.

Its FRU-level procedures, ESD requirements, and powered diagnostic checks make this manual best suited to qualified service personnel and experienced printer technicians.

FRU Access, Maintenance, and Reassembly

Repair scope: HP limits the repair chapter to field-replaceable units and does not support repair of individual subassemblies or component-level troubleshooting. The parts-removal tree, disassembly order, reinstallation notes, and post-service tests support planning component access and checking print, copy, and fax operation after reassembly.

Routine service procedures cover the print cartridge and staple cassette, tray 2 pickup roller, tray 2 and tray 3 separation pads, scanner glass and backing, ADF pickup-roller assembly, and paper-path cleaning.

Additional removal procedures address exterior panels, the complete ADF, bezel, speaker, power-switch PCA, memory-tag reader, fan, and interlock. Separate M2727nfs procedures cover the convenience stapler, its power supply, AC inlet cable, bracket, and strap.

Cable and gear handling: Partly seated FFCs can short a PCA, and loose or incorrectly routed harnesses can be pinched or broken by adjacent assemblies. Cable-handling and reinstallation notes also cover pre-folded FFCs, noncaptive duplex-drive gears, and loose solenoid levers.

The required-tool list includes Phillips and flat-blade screwdrivers, T8/T10 Torx drivers, and needle-nose pliers, together with ESD protection. Disconnect power for parts removal, and never service the laser/scanner with its protective cover removed; the manual identifies the limited functional checks that require power.

Print-Engine and Image-Quality Diagnosis

The theory section follows the base unit through WAIT, STBY, INTR, PRINT, and LSTR, explaining how the formatter and DC controller coordinate the engine, laser/scanner, paper path, and image formation. It traces primary charging, laser exposure, developing, transfer, separation, fusing, and drum cleaning.

Fault separation: The engine test bypasses formatter processing while still requiring the formatter’s connection to the ECU. The half self-test helps distinguish image-formation and development faults from transfer or fusing problems before replacement parts are selected.

Further checks address drum rotation, the heating element, and high-voltage contacts. A repetitive-image-defect table links the spacing between repeated marks to the charging, registration, developing, transfer, fuser, and drum components.

Scanner, ADF, and Fax Diagnostics

Scanner coverage explains the LED, mirror-and-lens path, CCD raster-line acquisition, home-position calibration, and the different motion used for flatbed and ADF scans. ADF material traces pickup and feeding, paper-present and form-sensor logic, door detection, and mispick, long-document, and stall-jam conditions.

Fax coverage explains PSTN signaling, hook and ring detection, line-current control, downstream-device sensing, safety isolation, and flash fax-page storage. Regional fax-card versions are distinguished by their telephone-jack systems.

T.30 protocol tracing and fax reports support investigation of transmission and reception faults. Separate discussions address VoIP, DSL, and PABX limitations. NVRAM initialization clears stored faxes and programmed fax entries; the service sections explain the affected settings.

Circuit References, Parts, and Regional Configurations

The manual contains 176 uniquely numbered figures and 60 listed tables. Representative references include the HP LaserJet M2727 MFP System Block Diagram, Optical System, ADF Paper Path, Engine-Control-System Circuit Diagram, Pickup/Feed/Delivery System, and the two-part Circuit Diagram.

The parts chapter combines exploded views with itemized part numbers for scanner and ADF assemblies, stapler components, formatter and fax hardware, engine-controller and drive assemblies, duplexing hardware, tray cassettes/feeders, and the fuser. Formatter and fax-card connector views support component identification.

Whole-unit replacement tables and control-panel bezel listings distinguish localized configurations. Paper trays are replaced as complete units rather than repaired internally. Electrical-component listings distinguish voltage-specific parts, while reference tables cover supported media, physical and environmental specifications, power consumption, and acoustic emissions.

Selected Fuser Resistance Check Values

The heating-element check lists normal resistance of 25 ohms ±10 ohms for the 110 V product and 80 ohms ±20 ohms for the 220 V product. These specifications belong to the check performed with the product unplugged for at least 10 minutes.

For the thermistor check, normal resistance is 370 kΩ ±50 kΩ at 20°C (68°F), measured between J206 pins 1–2 and between pins 3–4.
