VTX 1300S, VTX 1300R / The Honda Motor Company, Ltd
Production year(s): 2002, 2003, 2004, 2005, 2006
2002-2006 Honda VTX 1300 S, VTX 1300 R service manual
Models covered in this manual:
File specifications
File type: PDF
Language: English
Printable: Yes
Estimated download time: 5.32 Minutes
$18.99
Pay with Bitcoin
Product Information
Table of Contents

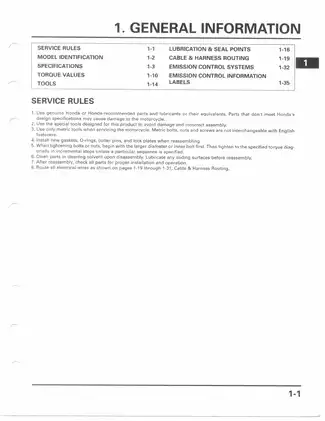

1. General Information
- Service Rules

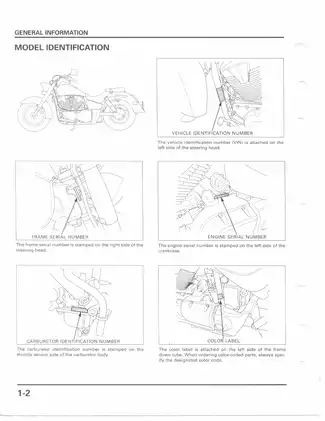

- Model Identification
- Specifications
- Torque Values
- Tools
- Lubrication & Seal Points
- Cable & Harness Routing
- Emission Control Systems
- Emission Control Information
- Labels
2. Frame/Body Panels/Exhaust System
- Frame
- Body Panels
- Exhaust System
3. Maintenance
- Maintenance Schedule
- Maintenance Procedures
- Tools
4. Lubrication System
- Engine Oil
- Oil Filter
- Oil Pump
- Oil Cooler
5. Fuel System
- Fuel Tank
- Fuel Pump
- Carburetor
- Fuel Lines
- Fuel Filter
6. Cooling System
- Radiator
- Water Pump
- Thermostat
- Cooling Fan
7. Engine Removal/Installation
- Engine Removal
- Engine Installation
- Engine Mounts
- Special Tools
8. Cylinder Head/Valve
- Cylinder Head
- Valves
- Valve Springs
- Camshaft
9. Cylinder/Piston
- Cylinder
- Piston
- Piston Rings
- Connecting Rods
10. Clutch/Gearshift Linkage
- Clutch
- Gearshift Linkage
- Clutch Cable
- Clutch Lever
11. Crankshaft/Transmission
- Crankshaft
- Bearings
- Transmission Gears
- Shift Mechanism
12. Final Drive
- Drive Shaft
- Universal Joint
- Differential
13. Front Wheel/Suspension/Steering
- Front Wheel
- Front Suspension
- Steering System
- Forks
- Bearings
14. Rear Wheel/Suspension
- Rear Wheel
- Rear Suspension
- Swingarm
- Shock Absorbers
15. Hydraulic Disc Brake
- Front Brake
- Rear Brake
- Brake Pads
- Brake Discs
- Brake Lines
16. Battery/Charging System
- Battery
- Charging System
- Alternator
- Voltage Regulator
17. Ignition System
- Ignition Coil
- Spark Plug
- Ignition Timing
18. Electric Starter/Starter Clutch
- Starter Motor
- Starter Clutch
- Starter Relay
19. Lights/Meters/Switches
- Headlight
- Taillight
- Turn Signals
- Speedometer
- Switches
20. Wiring Diagrams
- Wiring Diagrams
21. Troubleshooting
- Engine Troubleshooting
- Electrical Troubleshooting
- Mechanical Troubleshooting
22. Index
- Index
