1985 Bombardier Ski-Doo Formula, Safari, Skandic, Elan, Citation, Tundra, Alpine, and Mirage III Snowmobile Shop Manual (P/N 484 0503 00)
500 Pages • 1 Printable PDF (English) • Download
Ski-Doo Models Covered & Key Technical Specifications
Models & Model Codes:
Formula SS — 3613, Rotax 462
Formula SP — 3614, Rotax 462
Formula MX — 3720, Rotax 467
Formula Plus — 3721, Rotax 537
Safari 377 — 3609, Rotax 377
Safari 377E — 3610, Rotax 377
Safari 447 — 3611, Rotax 447
Safari Grand Luxe LC — 3612, Rotax 532
Skandic 377 — 3198, Rotax 377
Skandic 377R — 3199, Rotax 377, two-speed planetary gearbox
Elan — 3042, Rotax 247
Citation LS — 3206, Rotax 253
Citation LSE — 3207, Rotax 253
Tundra — 3208, Rotax 253
Tundra LT — 3209, Rotax 253
Alpine 503 — 3341, Rotax 503, three-speed gearbox
Mirage III — 5147, Rotax 377
-
Engine Mounting Torque: 38 N·m (28 lbf·ft) is specified for the 247 engine mount nuts.
-
Engine Support Nut Torque: The 247 engine support nuts require 31 N·m (23 lbf·ft).
-
Cylinder Head Torque: The 247 engine cylinder head nuts require cross-tightening to 21 N·m (15 lbf·ft).
-
Crankshaft End Play: The 247 engine crankshaft end-play specification is 0.20–0.40 mm (0.0079–0.0158 in).
-
Piston Ring End Gap: New piston ring end gap measures 0.20–0.35 mm (0.0079–0.0138 in).
-
Crankcase Screw Torque: The 253 engine crankcase screws require 9 N·m (80 lbf·in).
-
Chaincase Serial Numbers: Safari 377: 3609 03336–3609 04402; Formula SP: 3614 00003–3614 01547; Mirage III: 5147 00003–5147 00502. These vehicles use inch-thread TAPTITE screws instead of metric screws in the chaincase assembly.
-
Rear Axle Serial Numbers: Alpine up to 00502 and Elan up to 02102 have rear axle bearings assembled with Loctite. The manual specifies Loctite 601 for reassembly of these bearing fittings.
Ski-Doo Manual Features & Selected Content Preview
This 1985 Bombardier Ski-Doo Snowmobile Shop Manual (P/N 484 0503 00) covers Formula SS, SP, MX and Plus, Safari 377, 377E, 447 and Grand Luxe LC, Skandic 377 and 377R, Elan, Citation LS and LSE, Tundra and Tundra LT, Alpine 503, and Mirage III.
PDF Navigation and Included Pages
Text search and wiring detail: PDF text search and embedded bookmarks are unavailable. Use the printed contents and section numbers to find procedures. The wiring diagrams are sideways. Rotate and zoom to read the small wire-color codes and connector numbers. Some labels remain difficult to make out.

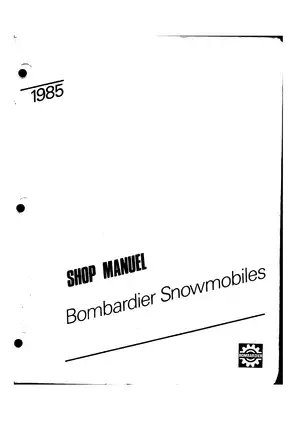

The download contains 500 pages in one printable English PDF. The total includes the front cover, title page, back cover, 31 blank pages, three duplicate content pages, and three pages of original warranty information.
Engine Overhaul, Drivetrain Service, and Electrical Diagnosis
Here are selected workshop topics from the manual. It also covers drive-chain link configurations and Bosch and NGK spark plug cross-references.
-
Engine overhaul: Step-by-step engine removal and reassembly procedures are supported by exploded views, torque specifications, and inspection limits for pistons, cylinders, and crankshafts. The Type 253 chapter starts at printed page 02-02-2.
-
Fuel and starting: Mikuni carburetor identification and synchronization, fuel pump valve testing, air intake silencer service, and rewind starter repair.
-
Clutch and drivetrain: Drive and driven pulley service, drive belt diagnosis and deflection adjustment, brake adjustment, chaincase repair, and gearbox overhaul.
-
Electrical diagnosis: Ignition timing, spark plug analysis, coil testing, battery checks, and electric starter troubleshooting, with model-specific wiring diagrams.
-
Suspension and steering: Bogie wheel, slide, TRS 6, and PRS suspension service, plus axle work, track alignment, and steering and ski adjustments. The Formula SP suspension section jumps from printed page 05-04-1 to 05-04-6. The remaining pages cover shock inspection, spring replacement, and ride adjustment.
-
Chassis and shop references: Hood and frame repair, paint codes, and routing diagrams for fuel lines, wiring harnesses, and control cables, with special-tool listings and model-specific technical data.
Bombardier wrote this manual for snowmobile mechanics familiar with its service procedures and equipped with the specified hand and special tools.
Engine Measurements and Carburetor Setup
Wear-limit tables help determine which parts can be reused during overhaul. The engine chapters cover crankshaft end-play measurement and shimming, rotary-valve timing, and oil-injection pump synchronization where applicable.
The Formula MX and Plus carburetor tables distinguish magneto-side and PTO-side jetting so the carburetors can be matched to the correct cylinders. On the applicable liquid-cooled engines, installing the water-pump seal in the wrong orientation can expose the spring to coolant and cause corrosion and pump damage.
Pulley Alignment and Gearbox Overhaul
Drive belt wear charts link visible damage to likely causes, and pulley alignment drawings show where to measure. Drive pulley service covers Duralon bushings and governor-cup seating. Improper shaft seating in the governor cup can bend the crankshaft.
The Alpine and Skandic 377R have separate gearbox overhaul procedures. The Skandic section includes a shim selection table for planetary gear end play. The chaincase section identifies which vehicles use inch-thread fasteners so mechanics can select the correct replacements.
Ignition and Starter Testing
Nippondenso CDI test charts distinguish generator-coil, control-unit, and diode faults. The tool listings identify the Nippondenso electronic ignition tester, P/N 419 008 400. The 247 breaker-point ignition has its own timing procedure, and starter service includes armature, commutator, and brush inspections.
Suspension Setup and Body Repair
Formula MX and Plus steering instructions cover ski alignment and camber. Chassis repair covers fiberglass and R.I.M. urethane panels. The manual applies to original production configurations and directs parts orders to the separate parts catalog.

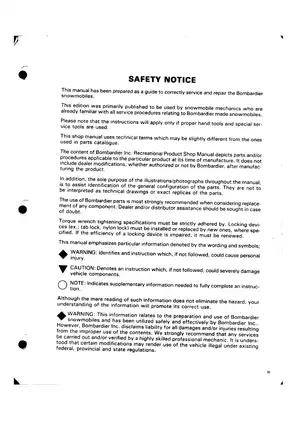

Follow the manual’s safety instructions and use the specified tools, especially around rotating pulleys and tracks.
Track Tension Examples for Elan and Alpine
The bogie-wheel procedures use different measurement points. The Elan calls for 35 mm (1 3/8 in) from the top inside edge of the track to the bottom of the footboard. On the Alpine, the specification is 57 mm (2 1/4 in) per track, measured to the center bogie-wheel retaining bolt.
