1999–2005 Moto Guzzi V11 Sport Workshop Manual (P/N 01 92 01 31)

This Moto Guzzi V11 Sport workshop manual covers maintenance, diagnosis, and mechanical repair. Publication P/N 01 92 01 31 carries the issue marking 03/01 and includes English, German, and Dutch text.

• Engine repair: Engine removal and installation, cylinder-head overhaul, valve and guide inspection, timing checks, piston inspection, and crankshaft service.

• Clutch and gearbox: Dry-clutch disassembly, component inspection, shaft and selector overhaul, transmission reassembly, and dedicated service-tool references.

• Fuel injection diagnosis: Throttle-body synchronization, potentiometer adjustment, CO setting, sensor-circuit checks, and injector, ignition-coil, and fuel-pump relay tests.

• Brakes and suspension: Brembo brake service, hydraulic brake and clutch bleeding, Marzocchi fork overhaul, and Sachs-Boge or White Power rear-shock adjustments.

• Chassis and shaft drive: Wheel-bearing inspection, steering service, half-handlebar removal, rear transmission overhaul, universal-joint maintenance, and bevel-gear contact checks.

• Electrical references: Main wiring diagram, connector views, fuse assignments, charging-system tests, and alternator/regulator circuit schematics.

The manual is intended for trained technicians; its engine section expressly requires acquired technical knowledge and special tools for maintenance and repair.

Engine Inspection and Lubrication

The engine chapters cover the oil pump, pressure-regulating valve, thermostatic valve, oil radiator, and flywheel-side oil-leak checks. Cylinder-head work includes valve-seat inspection, valve-guide replacement, spring testing, and rocker-and-pin measurements.

Component matching: Cylinder and piston selection tables distinguish grading groups, while connecting rod tables separate earlier and later chassis configurations. These references help identify the matching components before selecting replacements or assessing an engine rebuild.

Valve-timing diagrams accompany the timing-setting checks. The special-tool references include the timing index plate, valve-removal tool, flywheel locking tool, and clutch assembly tool, with their identifying codes.

Gearbox, Clutch, and Rear Drive

The gearbox section follows the main shaft, both secondary shafts, transmission shaft, and pre-selector through disassembly and reassembly. Shaft drawings identify component positions and dimensions, alongside instructions for retaining washers, bearings, sliding sleeves, and selector forks.

Clutch inspection covers driven disks, springs, the pressure plate, flywheel teeth, and the internal clutch body. Rear-drive coverage adds pinion-and-crown shimming, contact-impression illustrations, and backlash checks.

Driveline alignment: The transmission-shaft section warns that incorrect alignment of the shaft and joint reference marks can damage the universal joints.

Injection Tests and CO Adjustment

The fuel-system chapters explain the Weber-Marelli injection strategy and the diagnostic functions of the Motorbike Diagnostic Software Tool. Dashboard Monitor and Active Test references distinguish stored faults from current faults and describe checks for sensors, injectors, coils, and the fuel-pump relay.

Throttle-body balancing and CO adjustment require the specified diagnostic software, a PC connection, and appropriate measuring equipment. The software has its own separate user manual; this workshop manual supplies the vehicle-specific diagnostic and adjustment information.

Suspension, Brakes, and Chassis

Marzocchi fork coverage includes oil replacement, seal work, and separate compression and rebound adjustment. Rear-shock information distinguishes Sachs-Boge settings from the White Power unit fitted to a limited series.

The chassis section includes NiCrMo frame dimension drawings, steering-bearing work, and first- and second-series half-handlebar details. Brake-system and engine-internal work requires the experience and equipment specified in the manual; inexperienced users should refer these jobs to a qualified technician.

Electrical Fault Finding

Charging-system coverage includes winding continuity, insulation-to-ground checks, alternator output tables, and regulator checks. The main wiring diagram is accompanied by a numbered component legend and connector views.

Regulator protection: The charging chapter specifically warns that reversed connections can permanently damage the regulator.

A Preview of Valve and Ignition Specifications

The following are a small selection of the manual’s maintenance specifications.

Cold valve-clearance specifications, with the piston at compression TDC and both valves closed, are 0.10 mm for the intake and 0.15 mm for the exhaust.

For the specified NGK BPR 6ES spark plugs, the electrode gap is 0.7 mm. Other reference sections provide fluid capacities, component tightening torques, inspection dimensions, and electrical test values.

PDF Navigation and File Contents

Text search and diagram viewing: The manual’s text sections are searchable, and 15 embedded bookmarks link to the section index and major sections. The main wiring diagram is image-based; its small wire codes and connector labels require zooming.

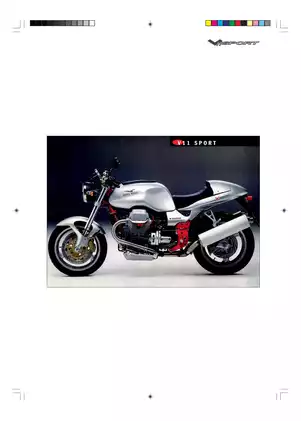

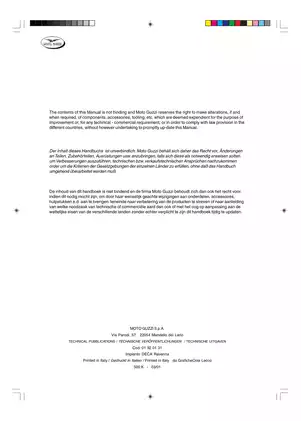

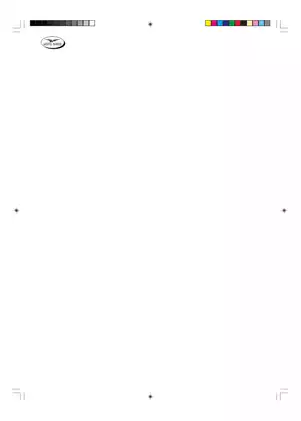

One printable PDF contains 412 pages in total, including the opening title, publication, model-photo, and logo pages, the section index, and section divider or blank pages. These pages are already included in the total; no separate supplement is added.
