2005–2006 Yamaha Bruin 250 YFM250BT Owner's Manual (P/N LIT-11626-18–41, 4XE-F8197-13)

• Covers the Yamaha Bruin 250 YFM250BT, with the service supplement identifying model code 1P01. The supplied Yamaha publications do not state a serial-number range or a separate later model designation, so fitment should be confirmed by the YFM250BT/model-code identification.

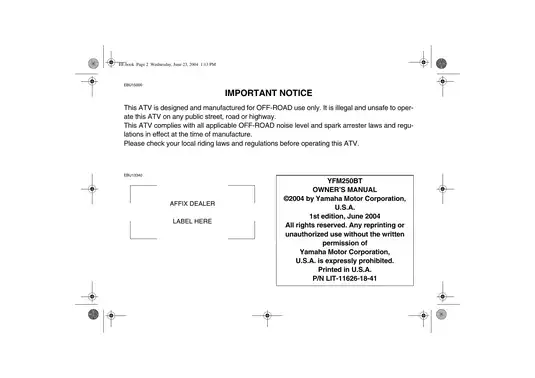

• Includes two Yamaha publications in PDF format: the 174-page Owner’s Manual, P/N LIT-11626-18-41 (1st edition, June 2004) and a 444-page service PDF led by the YFM250BT Supplementary Service Manual, P/N LIT-11616-18-41 / 4XE-F8197-13 (1st edition, July 2004). Total supplied page count is 618 pages.
• The 444-page service PDF also contains the earlier manuals that Yamaha specifically requires for complete YFM250BT service information: YFM250XL(C) Service Manual LIT-11616-12-01 (4XE-F8197-10), YFM250XN Supplementary Service Manual LIT-11616-14-17 (4XE-F8197-11), and YFM250XP Supplementary Service Manual LIT-11616-15-03 (4XE-F8197-12).
• Factory specification coverage includes the 229.6 cc air-cooled SOHC engine, wet centrifugal automatic clutch, five-speed constant-mesh transmission with reverse, shaft drive, Mikuni BSR33 carburetor, brake settings, electrical test values, torque specifications, wear limits, and gear-lash data.

Operational, Safety, and Routine Maintenance Coverage

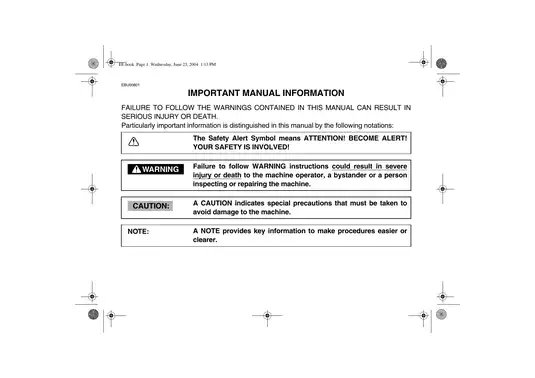

The 174-page Owner’s Manual covers machine identification, warning and specification labels, control functions, pre-operation inspection, cold- and warm-engine starting, drive-select operation, shifting, parking, loading, riding technique, and the full 20-hour engine break-in period. It also documents the maintenance schedule by months, distance, and operating hours, beginning at 1 month/320 km (200 mi)/20 hours and continuing through the regular 6- and 12-month intervals.

Baseline machine data identifies a 229.6 cc, air-cooled four-stroke SOHC single with a 71.0 × 58.0 mm bore and stroke, 8.70:1 compression ratio, wet-sump lubrication, and electric plus recoil starting. Driveline specifications cover the wet centrifugal automatic clutch, five forward gears plus reverse, and shaft final drive. Routine service data includes 1.50 L engine-oil capacity without filter-element removal, 1.60 L with filter removal, and 0.25 L of SAE 80 API GL-4 hypoid oil for the final gear case.

The Owner’s Manual also gives the setup numbers that matter before the ATV is put back into service: 20 kPa (2.9 psi) front and 25 kPa (3.6 psi) rear recommended tire pressure, 12.0 L total fuel capacity with a 1.6 L reserve, and a 165 kg (364 lb) total vehicle loading limit. Carrier limits are 30 kg front and 45 kg rear, while the trailer-hitch figures are 330 kgf pulling load and 15 kgf tongue weight.

Repair and Diagnostic Coverage

The service PDF goes well beyond routine ownership maintenance. It covers valve-clearance adjustment, timing-chain tensioner adjustment, ignition-timing checks, compression testing, carburetor service and fuel-level setting, engine removal, cylinder-head and valve work, piston and crankshaft inspection, primary and secondary clutch repair, oil-pump service, transmission and shifter repair, and complete engine reassembly data.

Drive-train repair includes middle-gear and final-drive disassembly, shim selection, and gear-lash measurement and adjustment. The base specifications call for 0.10–0.20 mm middle-gear backlash in forward and 0.10–0.20 mm final-gear backlash. Chassis procedures cover front hydraulic brake repair, master-cylinder and caliper work, brake bleeding, rear drum brake and axle service, steering-stem and tie-rod work, front suspension, rear shock absorber, and swingarm repair. Electrical chapters provide component checks and fault tracing for starting, ignition, charging, lighting, and signal systems.

The BT-specific supplement is important because some older base-manual values are superseded. For example, the YFM250BT pages specify a Mikuni BSR33/1 carburetor with ID 1P01 00, a #93.8 main jet, 12.0–14.0 mm float height, 4.0–5.0 mm fuel level, and 1,400–1,500 rpm idle speed. The BT electrical data identifies the F4T259 Mitsubishi magneto, F8T38683 Mitsubishi CDI unit, 5XG Moric Taiwan 0.4 kW starter motor, and MS5F-721 Jideco 180 A starter relay, with resistance and wear-limit values for testing.

Factory tool references include the YM-08035 3 mm valve-adjusting tool, YU-33223 compression gauge with YU-33223-3 adapter, YU-01135-A crankcase separating tool, and YM-01231 gear-lash measurement tool. Equivalent 90890-series tool numbers are listed where Yamaha provides them.

Diagrams, Schematics, and Repair Notes

Electrical and layout references include the YFM250BT Wiring Diagram, Ignition System Circuit Diagram, Electric Starting System Circuit Diagram, Charging System Circuit Diagram, Lighting System Circuit Diagram, and detailed cable-routing views. Exploded diagrams and job charts accompany major removal and disassembly sections, with tightening torques, lubricant symbols, replacement-part markings, and inspection limits tied to the illustrated assemblies.

Several manual-specific cautions matter during repair. Yamaha warns against striking the rear axle directly with a hammer because the axle threads and splines can be damaged. During bearing service, the manual warns not to spin bearings dry with compressed air and specifies that installation force be applied to the correct race rather than the center race or balls. Rear-brake service also cautions against greasing the axle-shaft spline, since excess grease can contaminate the brake shoes.

Working on the brake system, drivetrain, engine internals, or electrical system can create serious hazards if procedures are performed incorrectly. Follow the Yamaha warnings, specified limits, and service precautions in these publications, and use a qualified technician when the repair is beyond your experience.
