Yamaha PW80 2001–2006 Owner's Service Manual Set (P/N 3RV-28199-8A)

These are separate annual editions. Match the year, model suffix and regional model code to the machine before selecting parts, fluids, adjustment data or torque specifications; the editions contain technical changes as well as revised publication details.

Repair scope: The engine chapters cover top-end and clutch work, with crankcase and transmission exploded drawings. They do not provide complete bottom-end or gearbox overhaul procedures. Yamaha refers crankshaft repair, steering-head disassembly and wheel-bearing replacement to a dealer.

Rear-brake specification conflict: The PW80(R), PW80(S), PW80(T) and PW80(V) editions contain conflicting rear-brake pedal free-play figures. That setting needs clarification before adjustment.

PDF Search, Bookmarks and File Contents

Search and section access: The 2001–2004 files offer searchable cover/publication text only. Search is limited to selected passages in 2005 and mainly German text in 2006. Bookmarks in 2001–2005 mostly open contents pages; the 2002 labels are garbled. The 2006 file adds working subsection links. Small wiring and cable-routing labels are readable when enlarged.

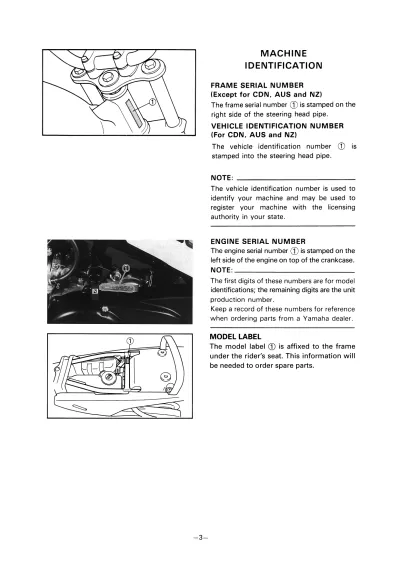

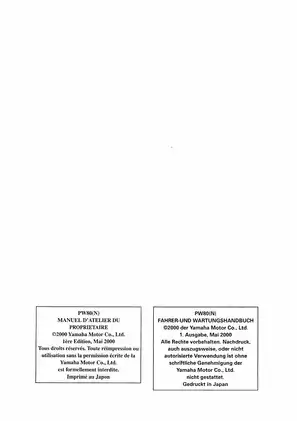

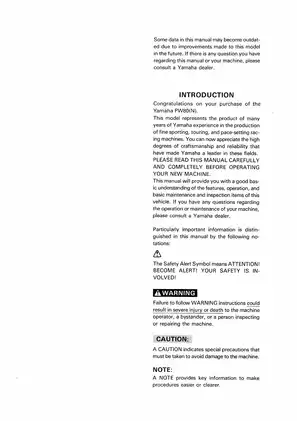

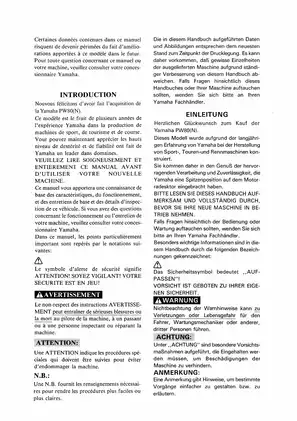

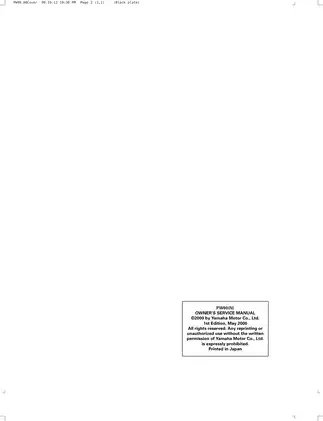

The ZIP contains six printable PDFs in English, French and German, totaling 1,144 pages. This includes all original covers and front matter, 12 memo pages and 10 blank pages.

Two-Stroke Engine, Autolube and Chassis Service

The following selected coverage highlights show the main workshop topics. Further sections include operating controls, engine break-in and storage preparation.

• Engine and clutch repair: Step-by-step cylinder-head, cylinder and piston removal, clutch disassembly and inspection, kickstarter service, shift-mechanism checks and exhaust maintenance.

• Carburetor and Autolube: Main-jet replacement, float-height and needle settings, reed-valve and intake-manifold inspection, oil-pump cable and stroke adjustment, and bleeding.

• Routine adjustments: Spark-plug service, ignition-timing checks, idle settings, drive-chain alignment, drum-brake adjustment, air-filter care, and control-cable and throttle lubrication.

• Wheels and brakes: Front and rear wheel removal and installation, brake-shoe and drum inspection, tire/tube repair, wheel-bearing checks and rim-runout measurement.

• Steering and suspension: Steering-bearing inspection and adjustment, front-fork oil replacement, swingarm checks, rear-shock removal and Monocross spring-preload adjustment.

• CDI fault finding: Wiring and wire-color identification, spark-gap testing, engine-stop-switch continuity, ignition-coil and magneto charge-coil testing, and fuel/compression/ignition troubleshooting.

The operating sections suit adults supervising young riders; internal repair work calls for mechanical experience, precision measuring tools and the specified workshop equipment.

Engine Inspection and Repair Limits

The inspection pages give cylinder-bore and piston measurement criteria, piston-ring end-gap and groove-clearance limits, reed-stop checks, and clutch-plate and spring limits. Connecting-rod measurements identify conditions requiring crankshaft repair.

An illustrated section explains the original power reduction plate in the cylinder exhaust port for beginner use. The covered engine uses reed-valve induction and Yamaha Autolube, with an automatic centrifugal wet clutch.

Yamaha warns that hammering out a stuck piston pin can damage the connecting rod, piston and bearing. The nitrogen-charged Monocross De Carbon damper must not be opened, heated or deformed; its service coverage concerns removal and spring preload.

Ignition Diagnosis, Tools and Drawings

Ignition flowcharts connect spark tests with coil measurements, helping trace poor running or a weak spark before the CDI unit is considered for replacement. The electrical tables distinguish Mitsubishi components in the N/P/R editions from SHY 4BC-00 components in S/T/V.

Engine tools: The Dial Gauge 90890-03097 / YU-3097 supports Autolube stroke measurement; the Inductive Timing Light 90890-03141 / YM-33277-A supports timing checks. The Rotor Holding Tool 90890-01235 / YU-1235 is specified for flywheel and clutch work.

Chassis and electrical tools: The Ring Nut Wrench 90890-01268 / YU-1268 is used for steering adjustment. Electrical testing calls for the Yamaha Pocket Tester 90890-03112 / YU-3112-C, Ignition Checker 90890-06754 or Dynamic Spark Tester YM-34487. Yamaha assigns 90890-series numbers outside Canada and YU/YM numbers to Canada.

Visual references include the Lubrication Chart; CDI magneto, crankcase, transmission and kickstarter exploded assemblies; wheel/brake exploded views; the Electrical Components and Wiring Diagram; the Troubleshooting Chart; and Cable Routing diagrams. Component torque tables, capacities, wear limits and clearances accompany the service material.

Selected Autolube and Ignition Test Values

The Autolube adjustment procedure specifies a minimum plunger stroke of 0.40–0.45 mm with the engine idling.

At 20°C (68°F), primary ignition-coil resistance is 0.26–0.36 Ω for PW80(N), PW80(P) and PW80(R), compared with 0.32–0.48 Ω for PW80(S), PW80(T) and PW80(V). These edition-specific limits illustrate why electrical test data should stay with the matching publication.
