1998-2005 Yamaha PW80(L) Owner's Service Manual

Repair guide for all PW80(L) configurations. This manual details features, operation, and inspection items for your vehicle, referencing part number 3RV-28199-8A.

4.6starstarstarstarstar_half(5)
visibility Preview Available
Yamaha 1998-2005 Yamaha PW80(L) Owner's Service Manual manual page preview - page 1 of Yamaha PW80 L 1998 190 pages Yamaha PW80 N 2000 191 pages Yamaha PW80 P 2001 193 pages Yamaha PW80 R 2002 191 pages Yamaha PW80 T 2004 191 pages Yamaha PW80 V 2005 193 pages

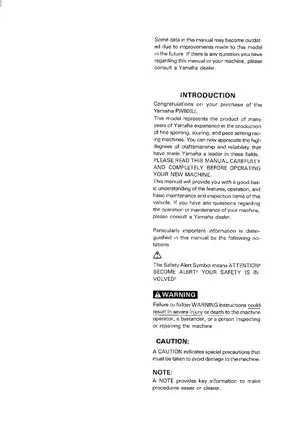

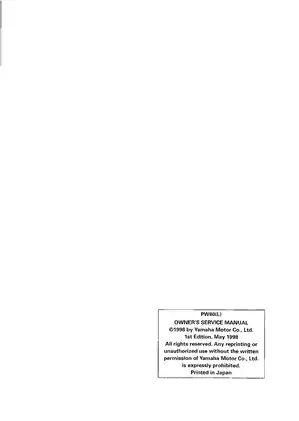

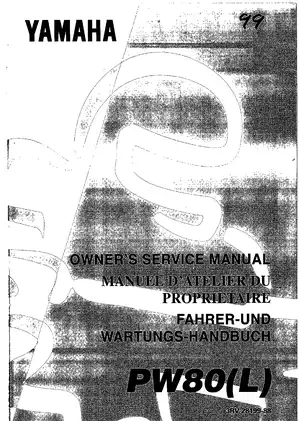

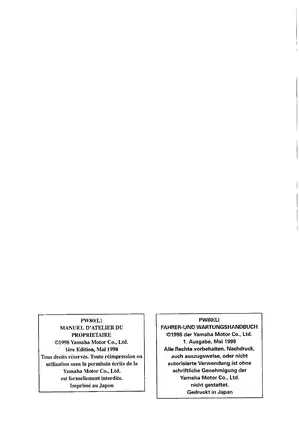

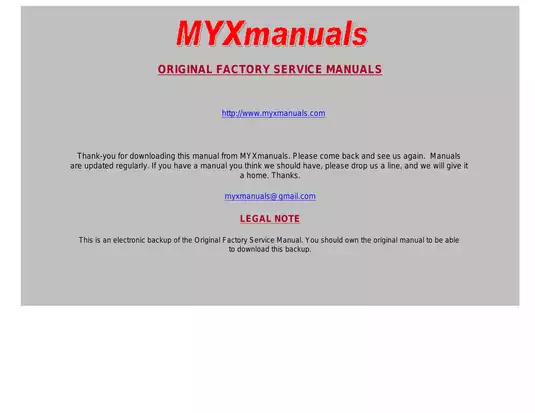

Sample pages from the 1998-2005 Yamaha PW80(L) Owner's Service Manual manual

Yamaha 1998-2005 Yamaha PW80(L) Owner's Service Manual manual preview page 2 - thumbnail
info_outline Click thumbnails to preview different pages
$17.15 (incl. VAT) Original OEM Factory Manuals & Data Instant Download / No Shipping Fees
OR BUY NOW
verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal
Technical Safety Notice
keyboard_arrow_down

This official OEM document is intended for professional technicians and skilled operators. Performing service on mechanical equipment involves inherent risks. By purchasing, you acknowledge that RepairLoader provides original manufacturer data for informational purposes. Always prioritize safety: use correct tools, wear protective gear, and consult a certified professional if you are uncertain of any procedure.

Yamaha Models Covered & Key Technical Specifications

Models: Yamaha PW80(L)
Build Years: 1998–2005
Technical Data:

  • Engine displacement: 79 cc (implied by model identification)
  • Transmission: 3-speed constant mesh
  • Ignition timing: 20.6° at 4,000 r/min
  • Spark plug gap: 0.6–0.7 mm (0.024–0.028 in)
  • Fuel tank capacity (total): 4.9 L (1.08 Imp gal, 1.29 US gal)
  • Oil tank capacity: 0.95 L (0.84 Imp qt, 1.00 US qt)
  • Front brake free play: 5–8 mm (0.20–0.31 in)
  • Rear brake free play: 20–30 mm (0.8–1.2 in)
  • Drive chain slack: 15–20 mm (0.6–0.8 in)
  • Rear wheel travel: 95 mm (3.7 in)
  • Fork oil quantity (per leg): 60 cm3 (2.1 Imp oz, 2.0 US oz)
Technical Specifications
keyboard_arrow_down
Document Number / Seller:
24438 / Rebecca Moore
File Size:
103.57 MB
File Type:
ZIP
Language:
English, French, German
Pages:
Yamaha PW80 L 1998 190 pages , Yamaha PW80 N 2000 191 pages , Yamaha PW80 P 2001 193 pages , Yamaha PW80 R 2002 191 pages , Yamaha PW80 T 2004 191 pages , Yamaha PW80 V 2005 193 pages ,
Printable:
Yes
Category:
Motorbike
Last updated / verified
Jan 11, 2026

Yamaha Manual Features & Content Preview

1998–2005 Yamaha PW80(L) Service Coverage

  • Fits the 1998–2005 Yamaha PW80(L) youth off-road motorcycle with 3-speed transmission
  • Official Yamaha publication P/N 3RV-28199-88, 1st Edition dated May 1998
  • Contains 47 labeled technical illustrations and 14 detailed torque/specification tables
  • File delivered as a direct download the moment payment clears
  • Laid out for standard letter and A4 printing
  • Indexed PDF search covers every chapter and appendix
  • This 1st Edition documentation serves as the factory-authorized reference for the PW80(L) build range

Technical and Maintenance Documentation

This factory service publication provides the foundational mechanical data required for maintaining the Yamaha PW80(L). The document structure addresses general machine identification, control functions, and the required pre-operation checks for ensuring rider safety. The text details the proper storage, fuel and oil mixtures, and initial break-in sequences necessary for long-term engine durability.

Specifications and Component Data

Maintenance intervals and lubrication requirements are clearly defined within the scheduled maintenance chart. The manual provides extensive technical data, including transmission oil capacities, front fork oil volumes, and carburetor settings. Spark plug gap is specified at 0.6–0.7 mm in the engine adjustment data. Fuel tank capacity for the 1998–2005 Yamaha PW80(L) is documented at 4.9 liters total. The steering shaft bolt torque is 40 Nm (29 ft-lb) as listed in the technical data section. This 193-page OEM service publication is the authoritative source for the 1998–2005 Yamaha PW80(L), documenting frame, engine, chassis, and suspension maintenance for the specified youth motorbike.

Manual FAQ, Purchase & Download Details

What chapters and sections are contained in this service document? keyboard_arrow_down

Manual includes comprehensive sections covering the Yamaha PW80L, ranging from initial safety information to specific machine operation guidelines. It provides structured content for both maintenance awareness and general system overviews.

Is the original publication date and edition information for the Yamaha PW80L manual included in the PDF? keyboard_arrow_down

Document displays its status as the first edition published in May 1998.

Are specific technical data categories like ignition timing, clutch movement limits, or electrical resistance specifications listed in the manual? keyboard_arrow_down

Yes, the manual contains specification tables and reference data covering engine electrical timing, clutch assembly tolerances, and coil resistance values. These sections are intended to provide technical reference information for the specified model years.
