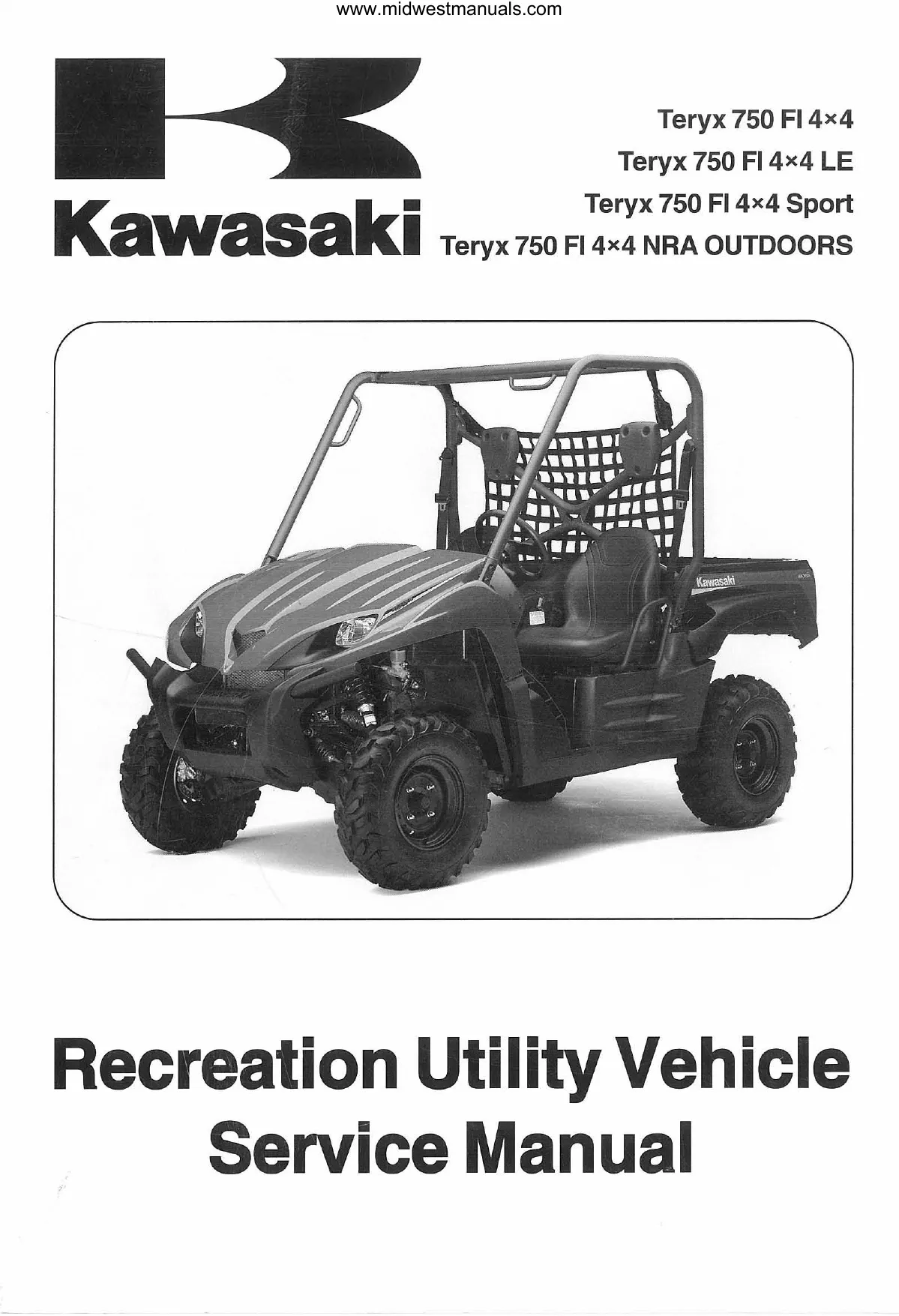

Kawasaki Teryx 750 FI 4x4 Series (2009) UTV Service & Repair Manual

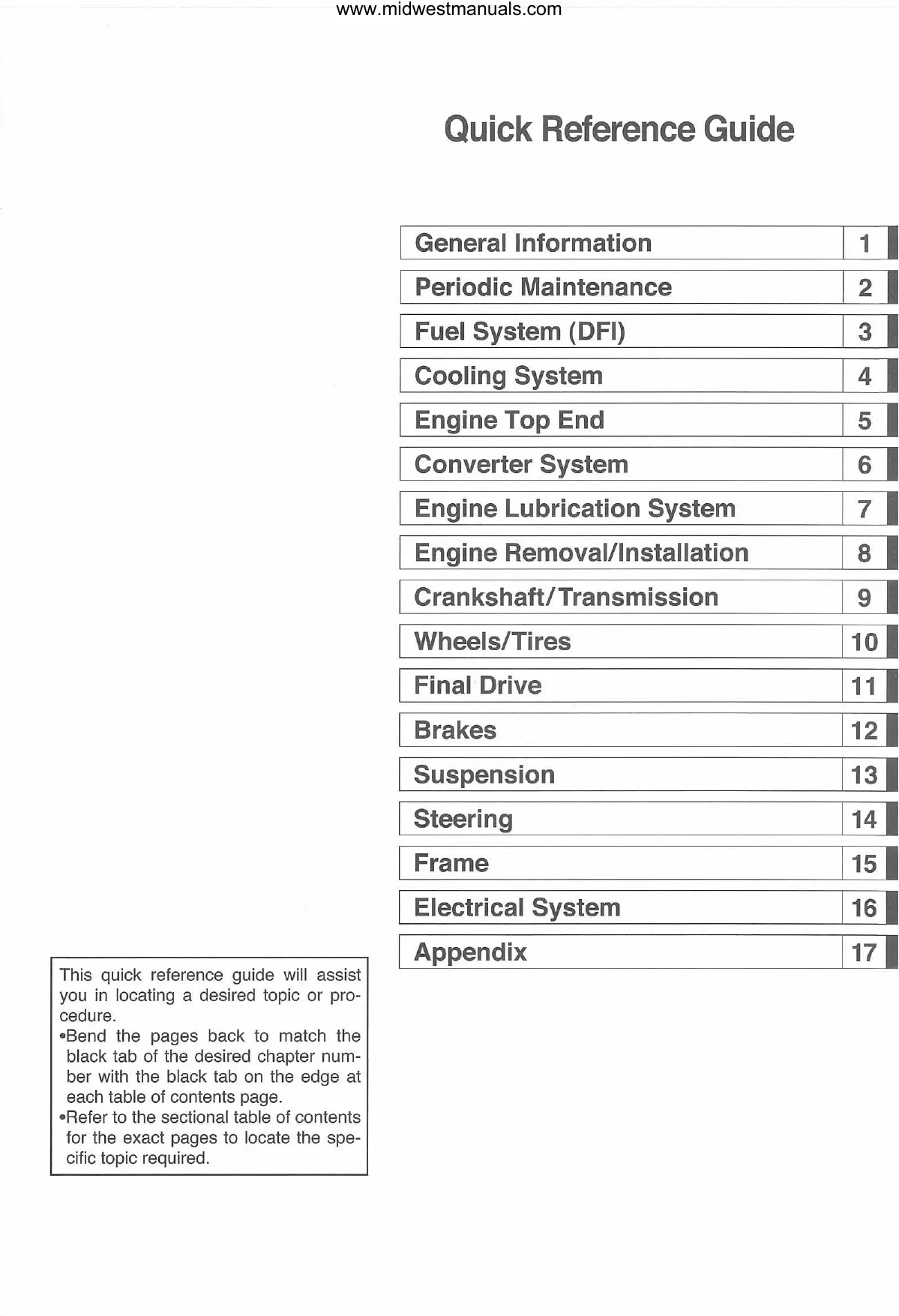

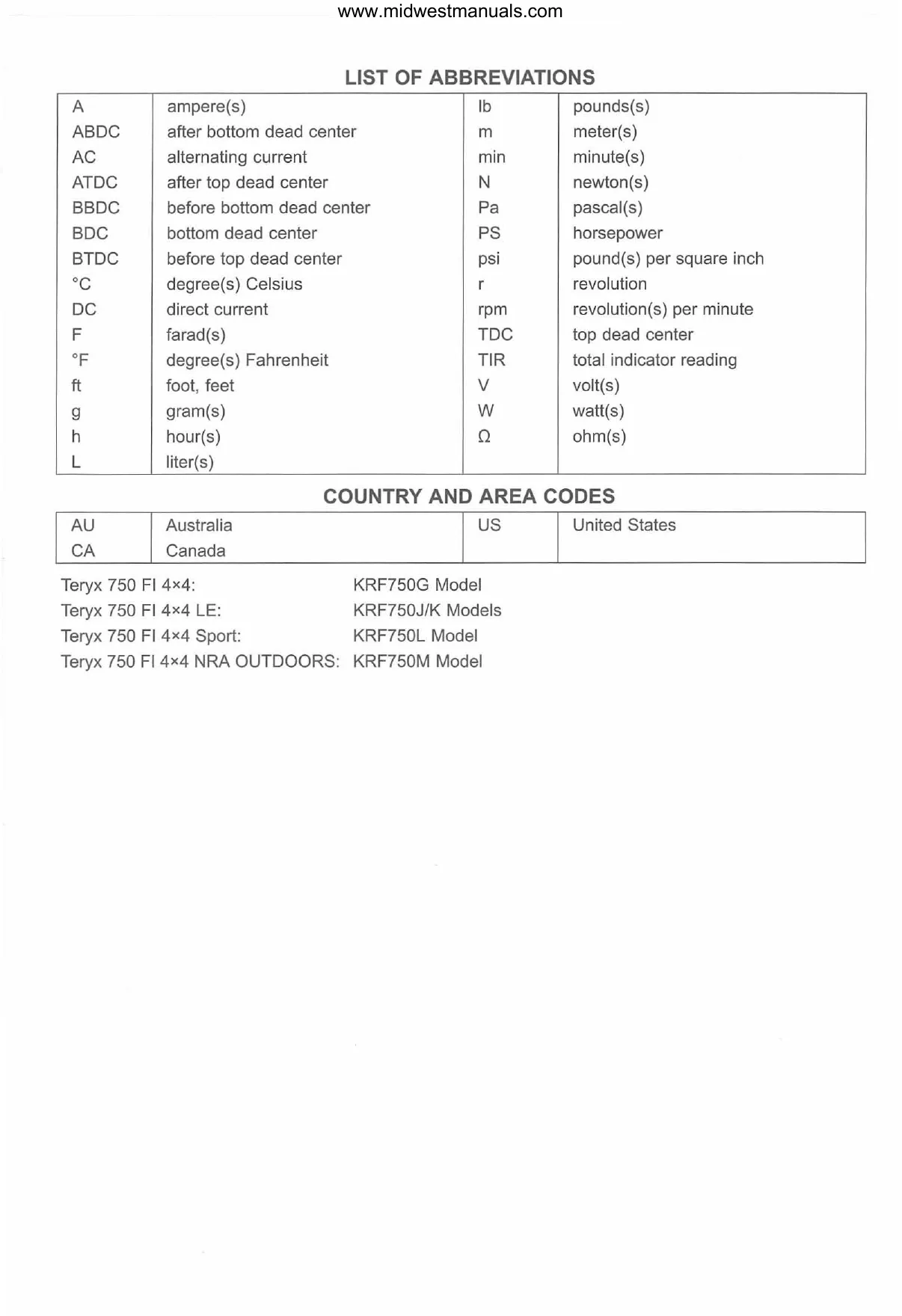

Kawasaki's 17-chapter service manual covers the 2009 Teryx 750 FI 4x4, LE, Sport, and NRA OUTDOORS, with procedures for KRF750G/J/K/L/M configurations.

Searchable PDF, Bookmarks and Diagram Detail

Text search and circuit labels: The PDF has an embedded OCR text layer and chapter/section bookmarks. OCR errors can affect individual search terms. Small wire-color codes and connector numbers in dense wiring diagrams require zooming.

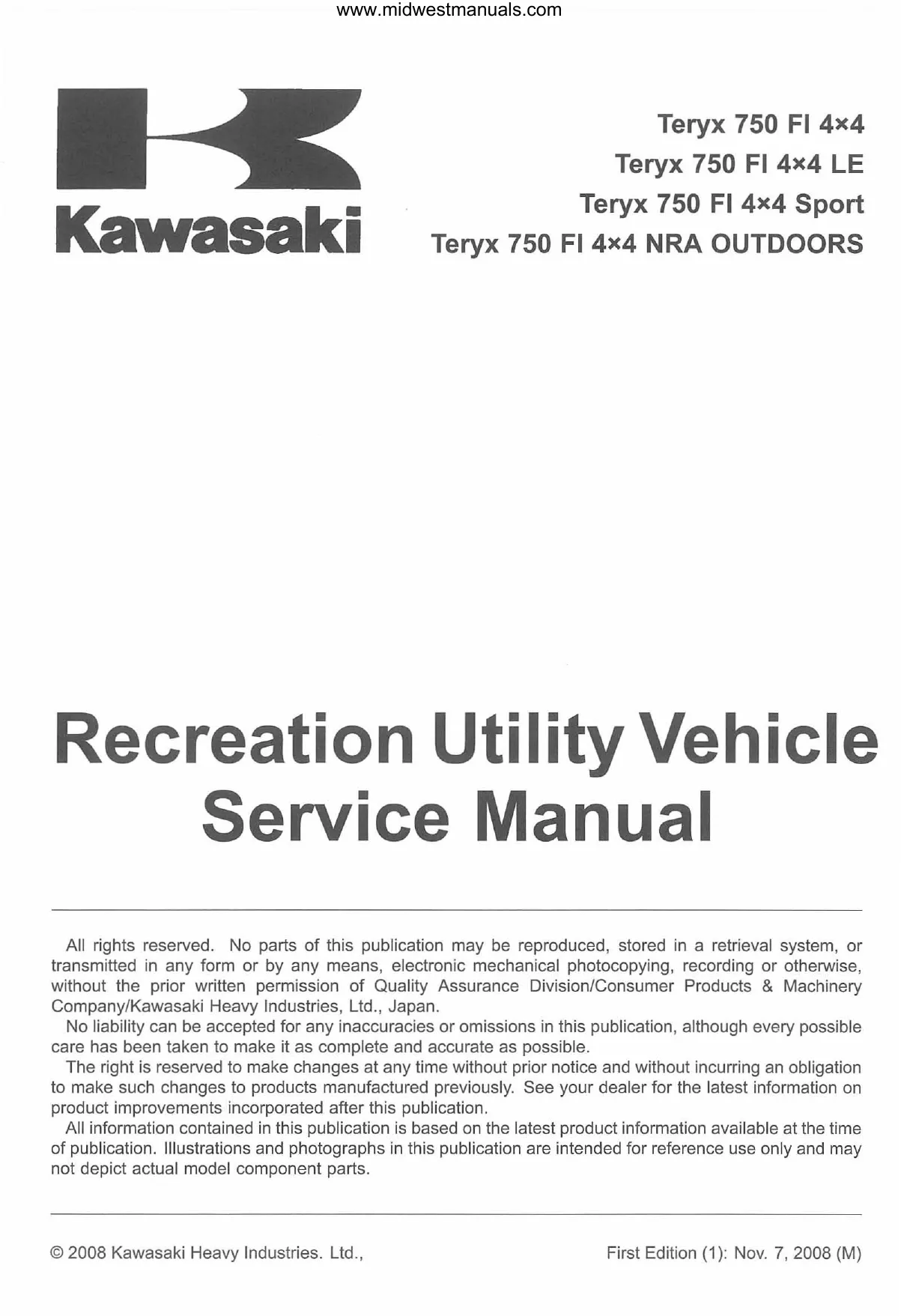

One printable, English-language 683-page PDF, including the covers and front matter, one added introductory page, and 12 blank divider/end pages.

DFI Diagnosis, Engine Repair and Drivetrain Service

These selected workshop topics preview the manual's contents; other examples include spark-arrester cleaning and seat-belt inspection.

• DFI diagnosis: FI service codes, sensor and injector tests, ECU power/ground checks, fuel-pressure and flow testing, and throttle-body vacuum synchronization.

• Engine repair: Step-by-step procedures for engine removal and installation, camshaft-chain timing, cylinder-head and valve work, piston inspection, and crankcase disassembly.

• Converter and transmission: Drive and driven pulley overhaul, drive-belt inspection and deflection adjustment, transmission removal, and shift-mechanism inspection.

• Final drive: Output, front and rear bevel-gear service, axle and propeller-shaft work, variable-differential controls, LSD clutch inspection, and backlash/tooth-contact adjustment.

• Cooling and lubrication: Cooling-system pressure testing and air bleeding, radiator and thermostat checks, water-pump mechanical-seal replacement, oil-pressure testing, and oil-pump service.

• Brakes and chassis: Brake bleeding, master-cylinder/caliper repair, internal wet-brake service, shock adjustment, steering work, and cargo-bed/body removal.

• Electrical troubleshooting: Charging, ignition, starter and multifunction-meter tests, engine-brake actuator checks, wiring diagrams, connector views, and circuit-level fault tracing.

Written primarily for trained mechanics in a properly equipped shop, the manual also supports basic owner maintenance and repair where mechanical knowledge, proper tools, and workshop procedures are understood.

Periodic Maintenance and Internal Engine Work

The maintenance chart separates initial 20-hour and 50-hour services from recurring intervals. Related procedures cover throttle and cable checks, air-cleaner and fuel-hose service, engine and final-drive oil changes, brake-fluid and seal replacement, joint-boot inspection, lubrication, and chassis fastener checks.

Internal engine coverage adds compression diagnosis, rocker and camshaft measurements, Kawasaki Automatic Compression Release (KACR) inspection, valve-guide and valve-seat repair, and piston, ring, and cylinder wear checks. Crankshaft and connecting-rod sections include bearing selection and clearance inspection.

Torque and locking-agent tables accompany service limits, capacities, pressure-test data, and electrical specifications.

Fuel Injection Fault Isolation and Repair Limits

User and dealer self-diagnosis modes, stored service codes, ECU backup strategies, KDS connector use, and ECU terminal numbering support circuit diagnosis. Individual tests address the throttle, inlet-air pressure, inlet-air temperature, water-temperature, crankshaft, speed, and vehicle-down sensors.

Both ignition coils, injectors, the fuel-pump relay, and ISC valve receive dedicated checks. These procedures help distinguish component faults from wiring or ECU power/ground problems before replacement decisions.

Factory-set components: The throttle sensor is not intended for removal or adjustment; dropping the throttle-body assembly can damage it. The pressure regulator is built into the fuel pump and is not separately removable.

Converter Overhaul and Bevel-Gear Setup

Pulley repair includes bushing inspection, assembly checks, and installation measurements. Transmission procedures address gears, shift forks, shifter grooves, and the shift mechanism.

The drive-pulley bolt and spider use left-hand threads, making thread direction an important distinction during disassembly. Bevel-gear sections specify backlash adjustment before tooth-contact checks when related parts are replaced; incorrect setup can cause gear noise and damage.

Front final-drive coverage also includes 2WD/4WD cables, the vacuum actuator, differential controls, and LSD clutch torque inspection. Shim tables and drive/coast contact-pattern illustrations support gear setup.

Suspension Variants, Steering and Body Hardware

The KRF750K shares the KRF750J's controls, features, and specifications except for camouflage finish. The KRF750L9FA differs from the KRF750L9F only in graphics.

Sport suspension: KRF750L procedures separate rebound damping, compression damping, and spring-preload adjustment from the shock absorbers fitted to the other models.

Rack-and-pinion steering, wheel alignment, and hub service have their own procedures. Internal wet-brake work is documented through the rear final gear-case section.

Frame procedures identify the KRF750M gun-case holder and the windshield and sun-top hardware used on KRF750J/K/M configurations.

Circuit References and Workshop Tools

Named references include the DFI System Wiring Diagram, DFI Diagnosis Flow Chart, Coolant Flow Chart, Engine Oil Flow Chart, two-page Electrical System Wiring Diagram, and Actuator Control System Wiring Diagram.

ECU and controller pin information, individual sensor and relay circuits, component-location photos, and cable/wire/hose routing drawings support these references. Exploded views identify lubrication points, replacement parts, sealants, tightening sequences, and locking-agent requirements.

Diagnostic equipment: The Needle Adapter Set 57001-1457, Sensor Harness Adapter 57001-1561, and Fuel Pressure Gauge Adapter 57001-1593 identify equipment used for connector testing and fuel-pressure diagnosis.

The Drive Pulley Holder 57001-1620 and Belt Deflection Gauge 57001-1713 help plan repairs that depend on pulley removal or repeatable belt measurement.

Fuel-system work, pressurized cooling-system service, brake bleeding, lifted-vehicle procedures, and nitrogen-charged Sport shock absorbers require the isolation, support, pressure-release, and disposal precautions specified in the manual.

A Preview of Valve-Clearance and Fuel-Pressure Data

Cold valve-clearance specifications for the covered engine are 0.10–0.15 mm at the inlet and 0.20–0.25 mm at the exhaust, with separate front- and rear-cylinder checking instructions.

The fuel-pressure inspection specifies 294 kPa (43 psi) with the engine idling. Accompanying troubleshooting notes distinguish excessive pressure from low pressure and address the regulator, leakage, and delivery-flow checks.
