Kawasaki KLF-400 Bayou 4x4 Supplemental OEM Service Manual 1993–1999

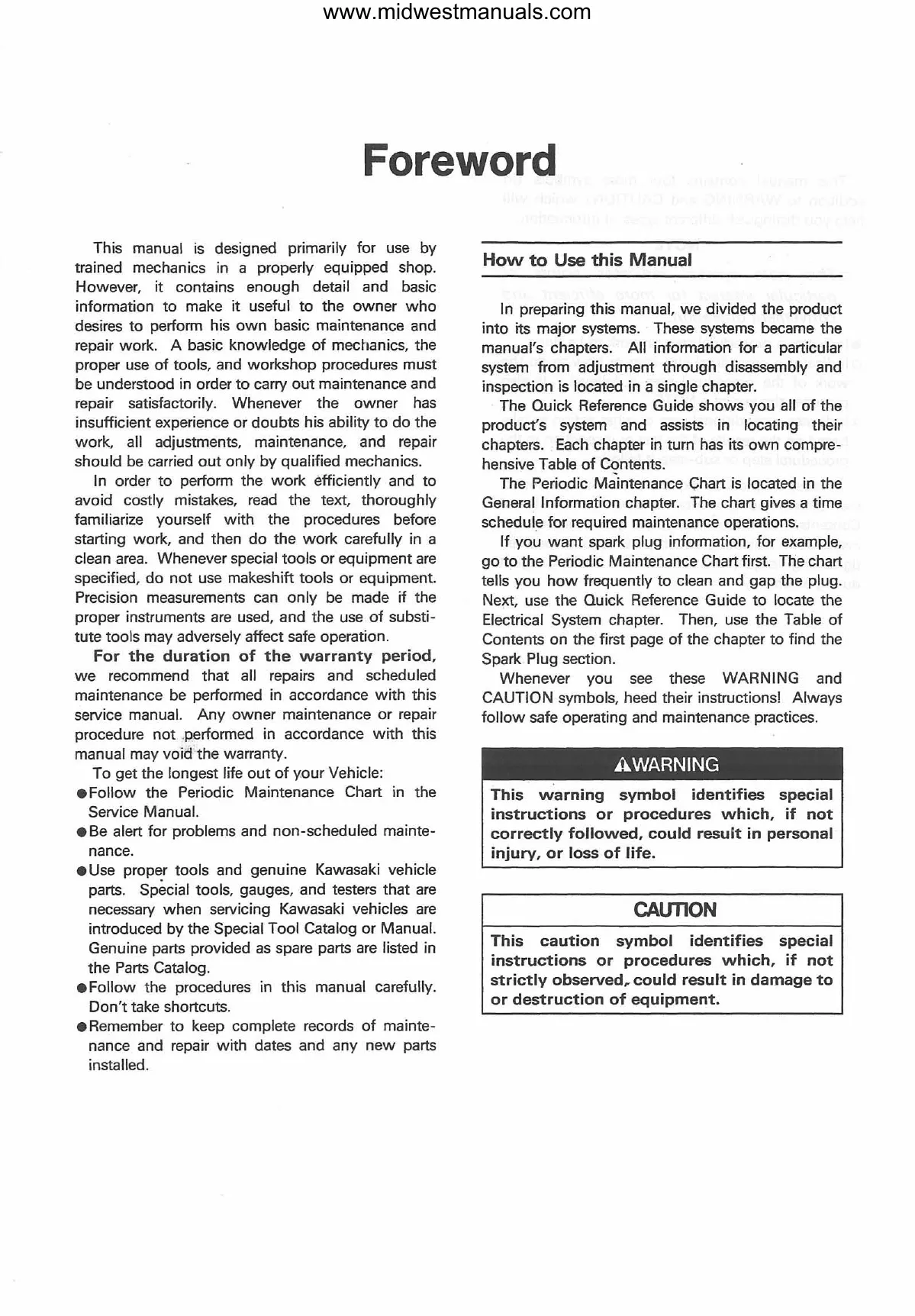

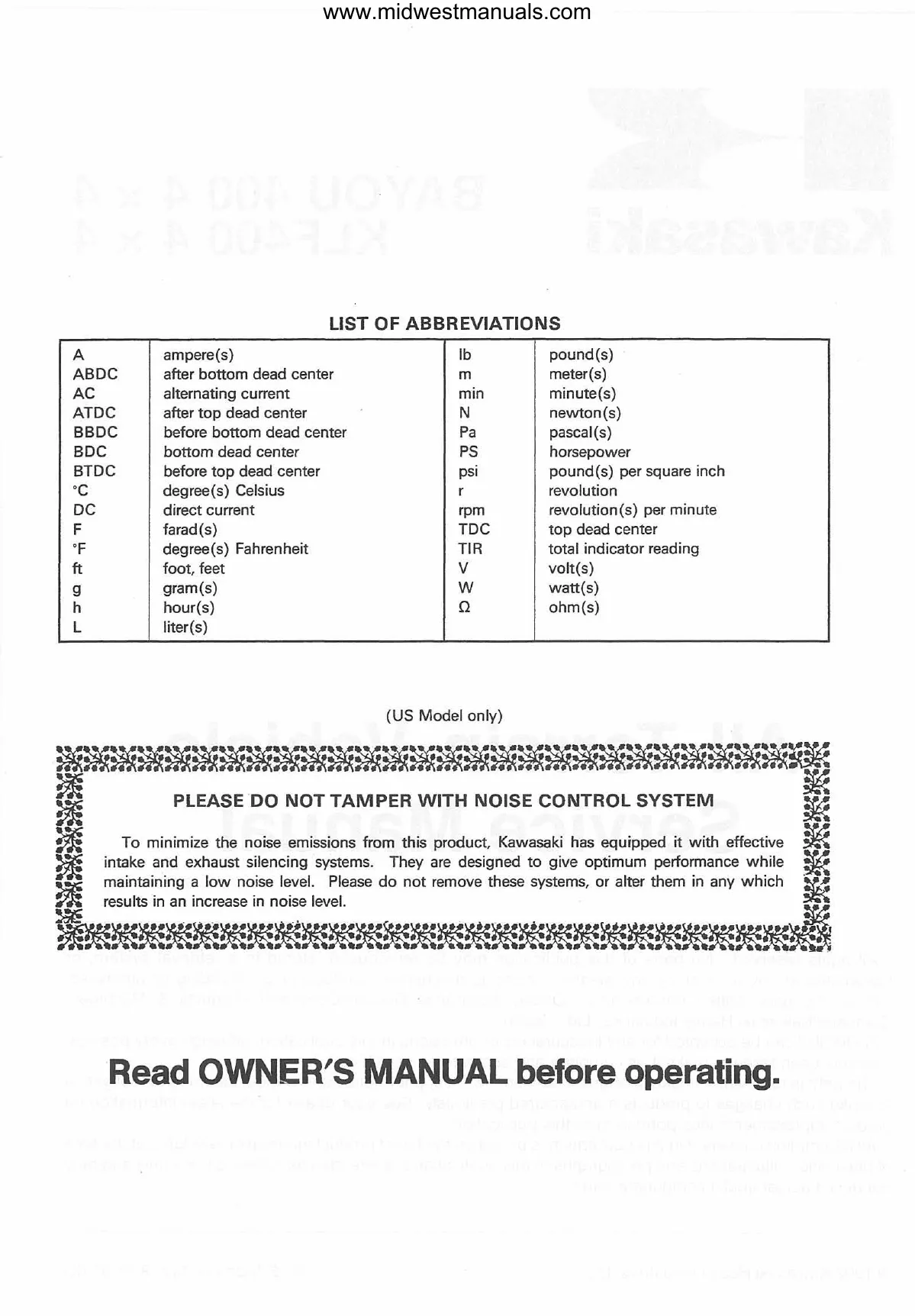

This 340-page PDF covers the 1993-1999 Kawasaki Bayou 400 4x4/KLF400-B series. Kawasaki describes the manual as designed primarily for trained mechanics in a properly equipped shop. It is also useful to experienced owners handling basic maintenance and repair when they already understand mechanical work, proper tool use, and standard shop procedures.

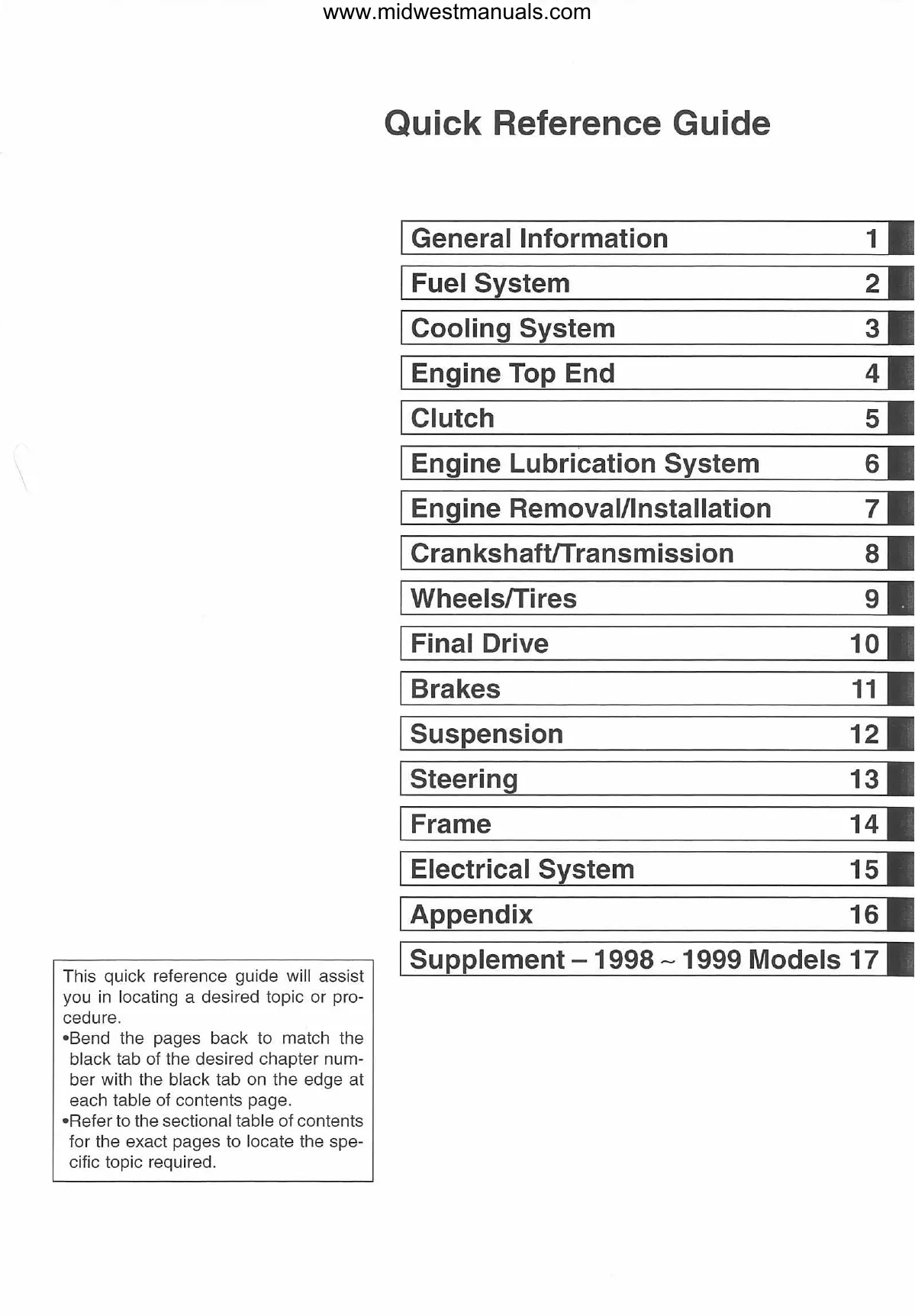

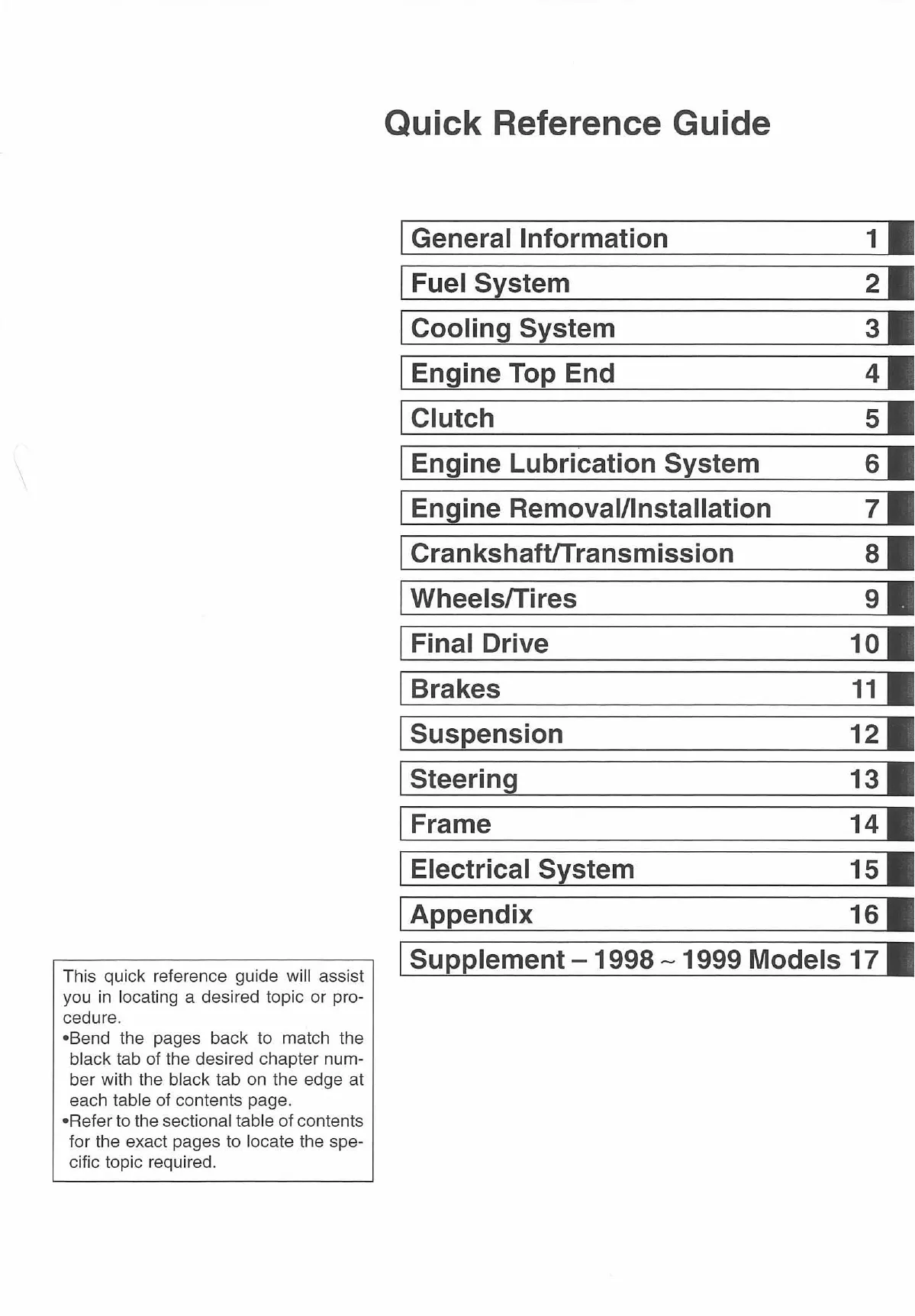

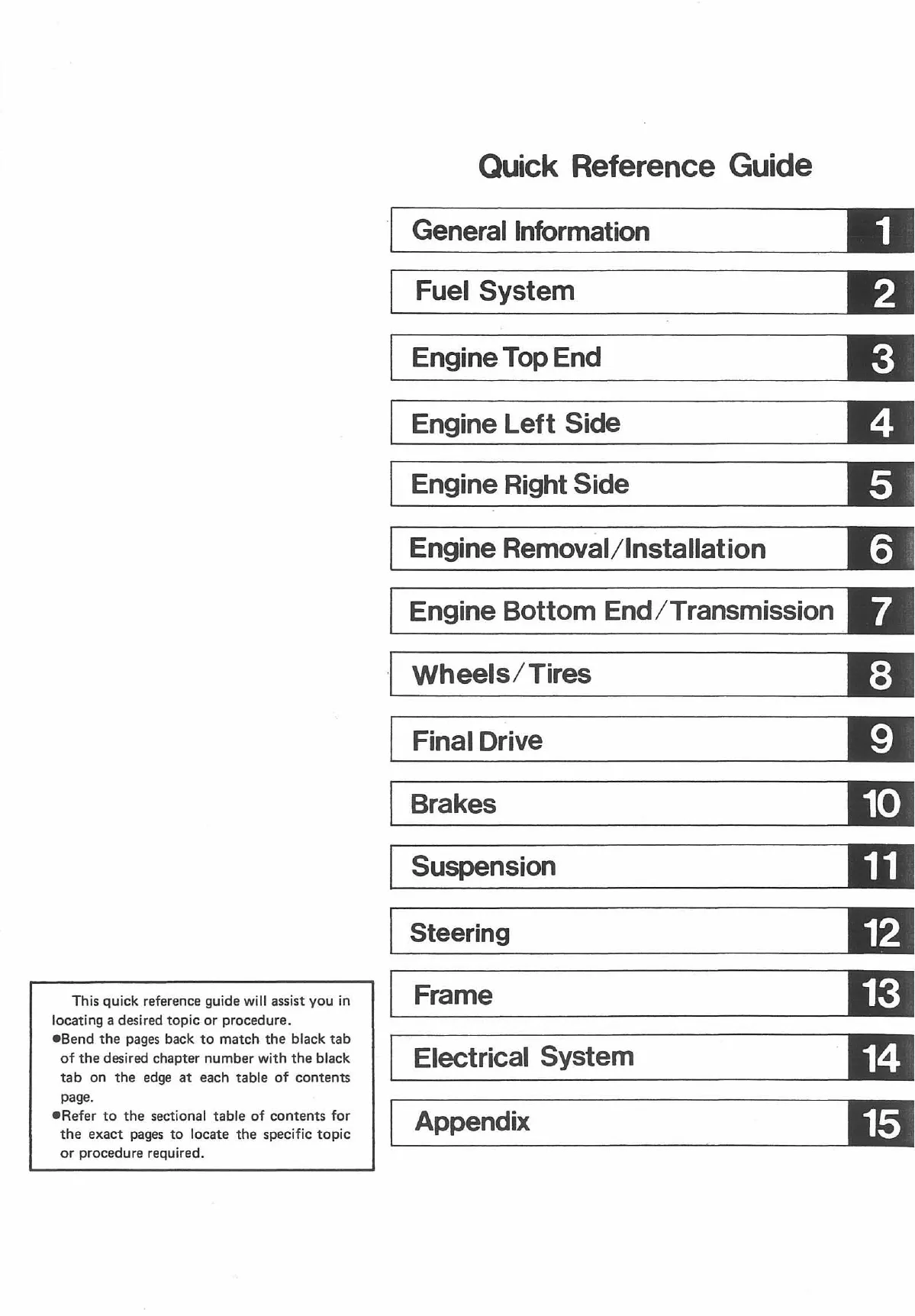

• Model coverage runs from KLF400-B1 through B7, including the late-1995 European B3A specification. Chapters 1-16 carry the base service information; integrated Chapter 17 covers the changes unique to the 1998-1999 B6 and B7 models and is meant to be used with those base chapters.
• Engine and fuel-system work covers the liquid-cooled SOHC powerplant and its open-top-deck cylinder design, Keihin CVK32 carburetor, throttle and choke controls, fuel-level testing and adjustment, cylinder compression diagnosis, engine removal, cylinder-head and valve service, camshaft-chain work, piston inspection, and valve-seat repair.
• Cooling-system procedures include coolant draining and filling, pressure testing, water-pump and mechanical-seal service, radiator and cap inspection, thermostat testing, and checks of the fan and water-temperature switches.
• Clutch, transmission, and full-time 4WD repair extends from both clutch assemblies and crankcase splitting to transmission-shaft service, reverse controls, balancer and output bevel gears, propeller shafts, front LSD differential, axles, and front and rear final-drive setup.
• Chassis coverage documents wheel alignment and toe-in, tire and hub service, front hydraulic-disc brake bleeding and overhaul, rear mechanical-drum repair, suspension-arm work, and steering-stem, tie-rod, and knuckle-bearing service.
• DC-CDI and electrical diagnosis includes battery and charging tests, alternator and regulator/rectifier checks, ignition timing, coil, pickup-coil and CDI testing, starter-motor and starter-clutch repair, fan-circuit checks, switch testing, fuses, and market-specific wiring diagrams.

Maintenance and Technical Documentation

The engine chapters go well beyond tune-up data. They cover KACR automatic-compression-release diagnosis, rocker-arm and camshaft inspection, valve-guide removal and installation, valve-seat cutting and lapping, cylinder boring and honing, piston-ring measurements, and cam-chain tensioner service. The clutch and transmission sections include clutch-cover disassembly, centrifugal and wet multi-disc clutch inspection, shift-mechanism and transmission-shaft teardown, crankshaft alignment, and crankcase reassembly.

Final-drive repair receives the same depth. The manual explains output-bevel-gear adjustment, front LSD clutch torque inspection, ring-and-pinion tooth-contact and backlash checks, bearing-preload setup, propeller-shaft boot service, rear-axle disassembly, and axle runout inspection. Brake coverage includes caliper and master-cylinder disassembly, seal and piston checks, disc wear and warp inspection, line bleeding, and rear brake-panel overhaul.

The frame exploded view separates B1/B2 components from B3-and-later parts and records a production break for the illustrated frame pieces: JKALFKB10PB500001-505879 or LF400B-600001-600442, followed by JKALFKB10PB505880 and later or LF400B-600443 and later.

1998-1999 Supplement Coverage

Chapter 17 is not a standalone replacement for the earlier material. It records B6/B7-specific torque and locking-agent data, cable and hose routing, California fuel-system and carburetor differences, cooling and engine-top-end changes, crankshaft/transmission and final-drive exploded views, regional frame details, and separate B6/B7 wiring diagrams for United States, Canada, Australia, and UK/Europe models.

Fitment must be checked by KLF400-B model code rather than a VIN table because the PDF omits the Model Identification pages numbered 1-4, 1-5, and 17-3.

Diagrams, Diagnostics, and Special Tools

Named visual references include the Coolant Flow Chart, Engine Oil Flow Chart, Full-Time 4-Wheel-Drive Mechanism, cable/wire/hose routing views, system exploded views, and model- and market-specific wiring diagrams. The appendix provides cause-and-condition troubleshooting for starting faults, low- and high-speed running problems, overheating, clutch and shifting faults, abnormal engine or driveline noise, handling complaints, brake problems, and battery charging issues. It is presented as a guide to common faults, not an exhaustive diagnostic tree.

Factory tool callouts identify the equipment expected for deeper repair work. Examples include the Pilot Screw Adjuster 57001-1239, Fuel Level Gauge 57001-1017, Clutch Puller & Driver 57001-1356, Crankcase Splitting Tool Assemblies 57001-1098, Pinion Gear Holder 57001-1281, and Hand Tester 57001-1394.

Specification Previews and Shop Cautions

Reference data is organized by system and includes general and component-specific torque tables, locking-agent and sealant notes, fluid types and capacities, carburetor settings, compression test ranges, clearances, wear and service limits, wheel-alignment data, brake inspection limits, gear-adjustment specifications, and electrical test values. Exploded views mark replacement parts, lubrication points, sealants, locking compounds, and tightening locations used during assembly.

The engine-top-end section flags two costly repair traps: an incorrectly positioned crankshaft during rocker-case work can allow the rocker arms to bend the valves, while mishandling the non-return cam-chain tensioner after its bolts have been loosened can damage the tensioner or chain. ATV service also involves fuel, hot coolant, brake fluid, electrical components, and heavy assemblies; support the machine securely and follow the manual's safety instructions before beginning repair work.
