Aficio TH-C1 3224C, Aficio 3232C / Ricoh Company, Ltd
- Themis-C1, TH-C1 (B156/B220), Aficio 3224C/Aficio 3232C, DSc424/DSc432, C2410/C320e, ISC 1024c/ISC 1032c, LD124c/LD132c
Ricoh Aficio TH-C1, 3224C, 3232C printer service manual
Models covered in this manual:
File specifications
File type: PDF
Language: English
Number of pages: 433
Printable: Yes
Estimated download time: 0.2 Minutes
$4.99
Pay with Bitcoin
Product Information

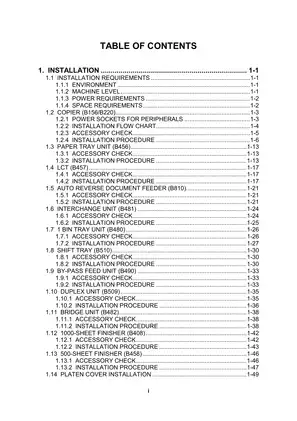

Table of Contents
TABLE OF CONTENTS
1. INSTALLATION
1.1 INSTALLATION REQUIREMENTS
1.1.1 Environment
1.1.2 Machine Level
1.1.3 Space Requirements
1.1.4 Power Requirements
1.2 COPIER (B156/B220)
1.2.1 Power Sockets for Peripherals
1.3 INSTALLATION PROCEDURE
1.3.1 Accessory Check
1.3.2 Installation Procedure
1.4 LCT (B351)
1.4.1 Accessory Check
1.4.2 Installation Procedure
1.5 ADF UNIT (B863)
1.5.1 Accessory Check
1.5.2 Installation Procedure
1.6 PLATEN COVER (B801)
1.6.1 Accessory Check
1.6.2 Installation Procedure
1.7 HANDSET (B640)
1.7.1 Accessory Check
1.7.2 Installation Procedure
1.8 FACSIMILE UNIT (B616)
1.8.1 Accessory Check
1.8.2 Installation Procedure
1.9 TWO-TRAY PAPER TRAY UNIT (B703)
1.9.1 Accessory Check
1.9.2 Installation Procedure
1.10 ONE-TRAY PAPER TRAY UNIT (B707)
1.10.1 Accessory Check
1.10.2 Installation Procedure
1.11 PRINTER OPTIONS
1.11.1 PostScript3 (B769)
1.11.2 File Format Converter (B690)
1.11.3 IEEE 1394 Interface (B764)
1.11.4 IEEE 1284 Interface (B751)
1.11.5 IEEE 802.11b Interface (B751)
1.11.6 Bluetooth Interface Unit (B820)
1.11.7 SD Card (B735)
1.12 HDD OVERWRITE SECURITY UNIT (B735)
1.12.1 Accessory Check
1.12.2 Installation Procedure
1.13 KEY COUNTER (B818)
1.13.1 Accessory Check
1.13.2 Installation Procedure
1.14 ANTI-CONDENSATION HEATER (B818)
1.14.1 Accessory Check
1.14.2 Installation Procedure
1.15 TRAY HEATER (B703)
1.15.1 Accessory Check
1.15.2 Installation Procedure
2. PREVENTIVE MAINTENANCE
2.1 PM Table
2.2 Replacing the Drum
2.3 Replacing the Developer
2.4 Replacing the Fusing Unit
3. REPLACEMENT AND ADJUSTMENT
3.1 General
3.2 Exterior Covers
3.3 Scanner Unit
3.4 Printer Unit
3.5 Development Unit
3.6 Photoconductor Unit (PCU)
3.7 Transfer Unit
3.8 Fusing Unit
3.9 Paper Feed Unit
3.10 Transport Unit
3.11 Electrical Components
3.12 Printer Options
4. ADJUSTMENTS
4.1 Image Adjustment
4.2 Printer Adjustment
4.3 Scanner Adjustment
4.4 Facsimile Adjustment
5. TROUBLESHOOTING
5.1 Error Codes
5.2 Jam Codes
5.3 Troubleshooting Procedures
6. SERVICE TABLES
6.1 PM Counter
6.2 SC Code List
6.3 Jam Code List
6.4 Tool List
7. SERVICE PROGRAM MODE
7.1 Service Program Mode List
7.2 Service Program Mode Procedures
APPENDICES
- Circuit Diagrams
- Parts Catalog
- Firmware Update Procedures
- Technical Bulletins
- Glossary
- Index
