Canon imagePRESS C1 Factory Service 2006 (P/N DU7-1199-010)

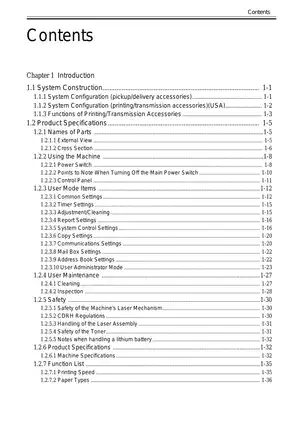

• Canon factory imagePRESS C1 Service Manual, document number DU7-1199-010, September 2006, Revision 0. This is a 990-page PDF covering the console/main unit.
• Maps the main and DC controllers, HDD and SRAM, reader/CCD, dual-beam laser scanner, developing rotary, photosensitive drum, intermediate transfer belt, pickup/duplex path, decurler, and fixing system.
• Provides factory removal and replacement procedures for the controller box, PCBs, reader and laser components, process and developing assemblies, drum and transfer units, feed components, and the fixing belt, roller, web, heaters, thermistors, and sensors.
• Covers required work after major repair, including data backup and restoration, RAM clearing, software reload, CCD and copyboard-glass correction, potential and patch-sensor setup, drum and ATR procedures, automatic gradation correction, fixing-nip checks, and registration adjustments.
• Supports fault isolation with six engine test-print patterns, image-defect charts, error/jam/alarm codes, electrical component and connector lists, and the DISPLAY, I/O, ADJUST, FUNCTION, OPTION, TEST, and COUNTER service-mode reference.
• Includes installation, relocation, scheduled maintenance, special tools, mono/full-color timing charts, signal lists, and 24 pages of General Circuit Diagrams in the appendix.

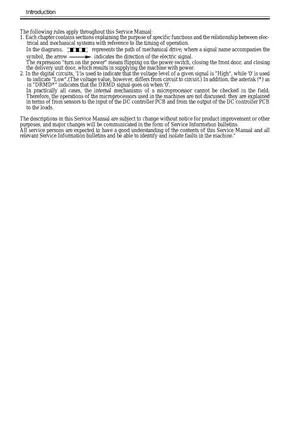

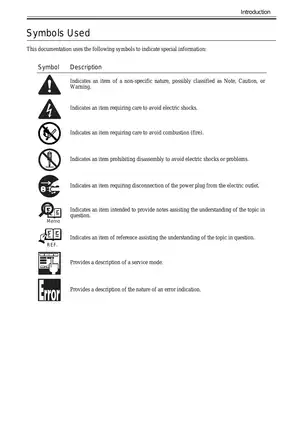

Internal System Documentation

Understanding the architectural layout of the imagePRESS C1 is critical for efficient troubleshooting. Canon divides the machine into reader, printer, and system assemblies, then traces the electrical and image-data relationships between them. The main-controller chapter follows data through Copy, BOX, SEND, Fax Receive, and PDL functions. Startup coverage shows how the boot program, HDD, image memory, scanner, and printer come online, while PCB connection drawings trace signals between controllers, sensors, driver boards, and loads.

The image-formation material goes well beyond a generic process overview. It explains dual-beam exposure, main- and sub-scan synchronization, laser APC and PWM control, the four-color developing rotary, drum charging and cleaning, primary transfer to the ITB, secondary transfer to the sheet, and the related cleaner and waste-toner systems. Potential, ATVC, ATR, and ACVC are covered alongside D-max/D-half, ARCDAT, PASCAL, and Auto Carrier Refresh for density and color stabilization. Paper-management and operating sections address plain, heavy, coated, recycled stock, transparencies, and other supported media.

Factory Repair, Diagnostics, and Specifications

Illustrated repair coverage reaches the copyboard glass, white plate, xenon lamp, CCD unit, reader controller, scanner drive, laser scanner, process and developing units, drum, ITB, transfer rollers, pickup and registration components, fixing assemblies, power supplies, high-voltage boards, and driver PCBs. The manual also identifies the follow-up work needed after replacement: service-label data, controller backups, post-RAM-clear adjustments, matched potential-sensor/control-board replacement, patch-sensor correction values, post-drum and post-ATR replacement procedures, waste-toner counters, HDD formatting, Safe Mode software installation, and paper registration.

The diagnostic chapters link the 16-gradation, full-area halftone, grid, MCYBk Horizontal Line, 64-gradation, and full-color gradation patterns to likely faults in the laser, developing, drum, ITB, transfer, and registration systems. Service Mode adds live status, sensor I/O, high-voltage and density monitoring, operation checks, adjustments, test prints, and counters. Error tables cover fixing, laser, ATR, transfer, controller, HDD, feeder, finisher, and ADF faults. Electrical reference pages identify motors, solenoids, fans, sensors, switches, heaters, and PCBs by function, part number, connector, I/O location, and related code.

Canon calls out repair traps that are easy to miss without the factory material. Rotating the developing rotary in the wrong direction with a developing assembly installed can pull the toner-blocking sheet loose through contact with the drum. Excessive use of the fixing-roller refresh operation can abrade the roller and shorten its service life.

Installation coverage includes site, power, grounding, environment, clearance, unpacking, process-unit preparation, developing-assembly balancing, fixing-system preparation, control-panel installation, toner supply, cassette setup, image checks, network testing, and relocation. Scheduled-service tables organize cleaning, lubrication, adjustment, inspection, and replacement work for charging, transfer, developing, feeding, fixing, filtration, and waste-toner areas. Specifications cover power variants, media sizes and types, simplex/duplex limits, print speed, image margins, resolution, dimensions, and component standards.

Key drawings include the Function Configuration block diagram, Main PCB Connection diagram, Laser Exposure Control System Configuration, image-stabilization flowcharts, pickup sensor and paper-path maps, fixing-belt control diagrams, and the appendix timing and circuit diagrams. Special-tool listings include mirror positioning tool FY9-3009-040, potential-sensor checking electrode FY9-3057, electrical test probes, image-checking tools, approved lubricants, and cleaning materials.

This is the main-unit manual. It identifies supported DADF, finisher, puncher, side-paper-deck, fax, send, security, and printing options and includes selected installation, setup, and accessory-related diagnostic information, but it does not replace the separate internal service manuals for those accessories. Because the imagePRESS C1 contains high-voltage circuits, a laser exposure system, heated fixing components, and heavy assemblies, repair work should follow Canon’s isolation, handling, and safety instructions.
