Canon imageRUNNER ADVANCE C9075 PRO Series Service Manual

This service manual covers the Canon imageRUNNER ADVANCE C9075 PRO Series with detailed procedures for maintenance, repair, and operation. It includes part numbers for quick reference. Ref: C8049A

4.6starstarstarstarstar_half(5)
visibility Preview Available
Canon Canon imageRUNNER ADVANCE C9075 PRO Series Service Manual manual page preview - page 1 of 1821

Sample pages from the Canon imageRUNNER ADVANCE C9075 PRO Series Service Manual manual

Canon Canon imageRUNNER ADVANCE C9075 PRO Series Service Manual manual preview page 1 - thumbnail

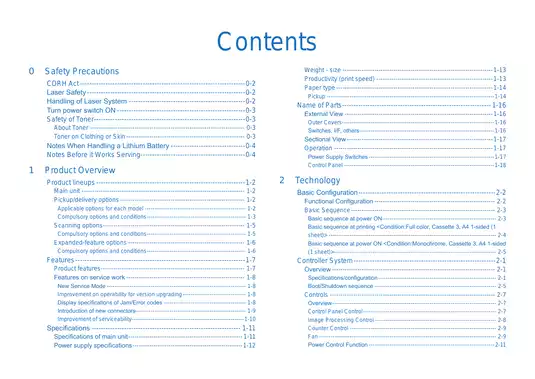

Canon Canon imageRUNNER ADVANCE C9075 PRO Series Service Manual manual preview page 5 - thumbnail
info_outline Click thumbnails to preview different pages
$3.80 (incl. VAT) Original OEM Factory Manuals & Data Instant Download / No Shipping Fees
OR BUY NOW
verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal
Technical Safety Notice
keyboard_arrow_down

This official OEM document is intended for professional technicians and skilled operators. Performing service on mechanical equipment involves inherent risks. By purchasing, you acknowledge that RepairLoader provides original manufacturer data for informational purposes. Always prioritize safety: use correct tools, wear protective gear, and consult a certified professional if you are uncertain of any procedure.

Canon Models Covered & Key Technical Specifications

Models: Canon imageRUNNER ADVANCE C9075 PRO, Canon imageRUNNER ADVANCE C9070 PRO, Canon imageRUNNER ADVANCE C9065 PRO, Canon imageRUNNER ADVANCE C9060 PRO, Canon imageRUNNER ADVANCE C7065, Canon imageRUNNER ADVANCE C7055
Sub-models / Variants: 9075 PRO, 9070 PRO, 9065 PRO, 9060 PRO, C7065, C7055
Build Years: 2009
Technical Data:

  • Print speed: Up to 75 ppm
  • Print resolution: 1200 x 1200 dpi
  • Warm-up time: 5ā€“6 minutes
  • HDD capacity: 80 GB (1TB option available)
  • Power supply: 200Vā€“240V configurations
  • Memory capacity: Up to 1.5GB
  • System type: Console, color multifunctional office and light-production printer
Technical Specifications
keyboard_arrow_down
Document Number / Seller:
27755 / Elizabeth Lewis
File Size:
75.95 MB
File Type:
PDF
Language:
English
Pages:
1821
Printable:
Yes
Category:
Copier
Last updated / verified
Sep 11, 2025

Canon Manual Features & Content Preview

Canon imageRUNNER ADVANCE C9075 PRO Series Technical Documentation

  • Covers the 2009 Canon imageRUNNER ADVANCE C9075 PRO, C9070 PRO, C9065 PRO, C9060 PRO, C7065, and C7055 high-production office printers
  • Official OEM publication Revision 0, dated October 27, 2009
  • Documents the complete machine architecture across 1,821 pages of technical theory, installation, and component maintenance data
  • Accessible from your device as soon as the order is placed
  • Full-text search finds any part number in seconds
  • This primary reference document for the 2009 imageRUNNER ADVANCE launch build provides the foundational specifications for the entire C9000/C7000 production series.

Component and System Architecture

This manual provides a detailed technical walk-through of the machine systems, beginning with critical safety information regarding laser exposure and high-voltage power distribution. The content is organized by functional block, detailing the controller system, image formation, laser exposure, and the complex fixing and pickup mechanisms. Each section bridges electrical signals with mechanical timing, providing the technical basis for fault isolation.

Technical Preview and Specifications

The documentation features comprehensive specification tables for print resolution, memory configurations, and energy requirements across global power standards. Key reference data includes: the main controller CPU speed is documented at 1.2 GHz; the primary charging bias is specified within the range of -600V to -1000V; the developing bias is listed at 1600Vpp fixed. Cylinder head bolt torque values are not applicable here, however, the manual contains specific data on toner density detection, laser beam output ratings, and drum cleaning tolerances. A 1821-page Canon OEM service manual covering the 2009ā€“2009 imageRUNNER ADVANCE C9075 PRO, C9070 PRO, C9065 PRO, C9060 PRO, C7065, and C7055, documenting comprehensive electrical, mechanical, and diagnostic specifications for the multi-format production series.

Manual FAQ, Purchase & Download Details

Are wiring diagrams and connector pinout references included in the electrical sections of this service manual? keyboard_arrow_down

Document contains comprehensive wiring diagrams, signal input/output lists, and connector lists to provide technical reference for electrical systems.

Does the manual contain technical reference data for the print engine and paper feed system? keyboard_arrow_down

Yes, this manual includes detailed sections on the pickup and feed system, including paper path diagrams and timing charts for various print conditions. It also features exploded views and technical descriptions of the image formation process.

Can I find technical specification tables and service adjustment parameters within this document? keyboard_arrow_down

Manual provides extensive specification tables covering the main unit, power supply, and productivity parameters. It also references major adjustment procedures and service mode menu descriptions for technical reference.

Is there chapter coverage for the image formation system, fixing system, and main controller in this service manual? keyboard_arrow_down

1821-page document covers the full scope of the image formation system, fixing system, main controller, and various other hardware components for the Canon imageRUNNER ADVANCE C9075 PRO series.
