Yamaha 2–250 HP Outboard Service Manual 1984–1996 (P/N 1701)

630 Pages • ZIP Download: Printable PDF • 147.80 MB

5.0starstarstarstarstar(1)
$14.97 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Yamaha Models Covered & Key Technical Specifications

Models: 2 HP, 3 HP, 4 HP, 5 HP, 6 HP, 8 HP, 9.9 HP, 15 HP, 20 HP, 25 HP, 28 Jet, 30 HP, 35 Jet, 40 HP, 45 HP, 48 HP, 50 HP, 55 HP, 60 HP, 65 Jet, 70 HP, 75 HP, 80 HP, 80 Jet, 85 HP, 90 HP, 105 Jet, 115 HP, 130 HP, 140 HP, 140 Jet, 150 HP, 175 HP, 200 HP, 220 HP, 225 HP, 250 HP.

Models & Model Codes:

2 HP

3 HP

4 HP

5 HP

6 HP

8 HP

9.9 HP — 4-stroke variants: 9.9 A, F9.9, F9.9A, F9.9B, FT9.9, T9.9.

15 HP

20 HP

25 HP — C25.

28 Jet — 28J; Jet Drive model Z.

30 HP

35 Jet — 35J; Jet Drive model Z.

40 HP — C40, 40M, 40E, 40TLH.

45 HP — 4-stroke: F45A.

48 HP

50 HP — 2-stroke variants: 50ETMLD, 50TLHP, PRO 50; 4-stroke variants: F50A (F50), F50B (T50).

55 HP — C55, 55B, CV55E, C55ER, C55TR, 55BE, 55BEM, 55BET, E55C, 55BM.

60 HP — C60, E60, PRO 60.

65 Jet — 65J; Jet Drive model Y.

70 HP

75 HP — C75, E75, P75, PRO 75.

80 HP — C80.

80 Jet — 80J; Jet Drive model AA4.

85 HP — C85.

90 HP

105 Jet — 105J; Jet Drive model AA6.

115 HP — C115.

130 HP

140 HP

140 Jet — 140J; Jet Drive model AA6.

150 HP — C150, D150, L150, P150, 150 GETO, PRO V 150.

175 HP — P175, 175AET, 175DET, 175 FETO, S175DETO.

200 HP — L200, S200, P200, ProV200, 200FETO, L200FETO, S200FETO, SL200FETO, 200GETO.

220 HP

225 HP — YMIS diagnostic reference: 225L.

250 HP

Sub-models / Variants: 1-cylinder, 2-cylinder, 3-cylinder, 4-cylinder, V4, V6, 4-stroke, Enduro, Inshore, Pro-Series, V-Max, EFI (identification and reference material), HPDI (identification and reference material), Saltwater Series, Jet Drive, standard-rotation and counter-rotating gearcases. Fuel-system repair covers carbureted models.

Model Years: 1984–1996 (1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996)


  • Wiring Diagram Serial References: 65J–90 HP (1140cc), through 1991, with remote control and power trim/tilt: 6H1 L350401 and later or 6H1 UL850151 and later.

Yamaha Manual Features & Selected Content Preview

Seloc's aftermarket service and repair manual, P/N 1701, covers the Yamaha 2–250 hp outboards listed in its Engine Finder for 1984–1996. Coverage includes 2-strokes, Jet Drive models, and the listed 9.9, 45, and 50 hp 4-strokes.

PDF Search, Bookmarks and Diagram Detail

Search and navigation: PDF text search is unavailable. Three embedded bookmarks provide limited navigation: one has no jump target, while two open mid-chapter pages. Small wiring labels require zooming, and some closely packed wire codes remain difficult to distinguish.

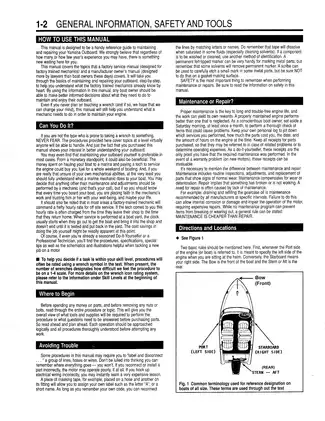

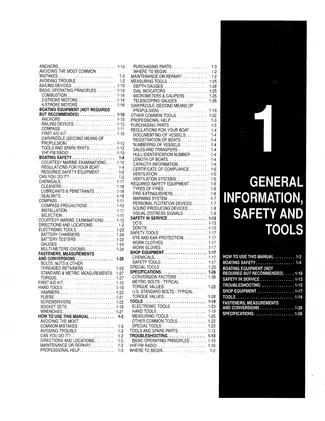

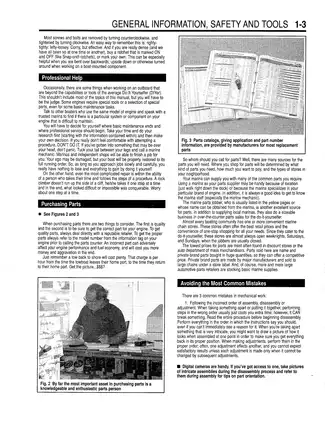

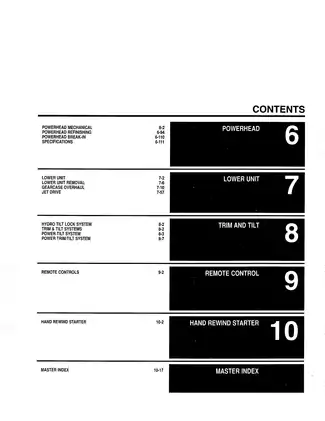

The ZIP contains one printable, 630-page PDF. That total includes two contents pages, ten section-index pages, a four-page master index, the one-page Engine Finder, and one additional catalog page.


Outboard Tune-Up, Powerhead and Drive Repair

The following selected repair topics outline the manual's coverage. Further subjects include winter storage and spring recommissioning.

  • Maintenance and tune-up: Compression tests, breaker-point and CDI tune-up, ignition timing, carburetor synchronization, valve-clearance service, maintenance schedules, gearcase lubrication, propeller and anode care, and submerged-motor recovery.

  • Carburetors and fuel supply: Carburetor removal, disassembly, cleaning, inspection, float and mixture adjustments, fuel-pump pressure and vacuum tests, and reed-valve service.

  • Lubrication and cooling: Precision Blend oil-injection testing and bleeding, 4-stroke oil-pump service, water-pump repair, cooling-system checks, and thermostat diagnosis.

  • Powerhead overhaul: Step-by-step removal, teardown, inspection, refinishing, piston and crankshaft work, cylinder-head and valve-train service, reassembly, and break-in.

  • Lower units and Jet Drive: Non-reversing and reversing gearcases, standard and counter-rotation, inline/V4/V6 units, bearing and seal replacement, pinion-depth adjustment, gear-backlash setup, and final checks.

  • Ignition and electrical diagnosis: Ignition-component tests, YMIS self-diagnosis and sensors, charging and cranking circuits, CDI test charts, and model-specific wiring diagrams.

  • Trim, controls and rewind starters: Hydro Tilt Lock, power tilt/trim electrical and hydraulic tests, air purging, remote-control repair, and hand-rewind starter overhaul.

Written for owners who service their own outboards, seasoned DIY mechanics, and professional technicians, the manual uses one-to-four-wrench difficulty ratings to distinguish routine work from repairs requiring stronger mechanical experience, special tools, and test equipment.

Engine Matching and Fuel-System Scope

4-stroke coverage: The listed 9.9 hp models span 1984–1996; the 45 hp model is covered for 1996, and 50 hp models for 1995–1996. Powerhead procedures distinguish one- through three-cylinder engines, the 45/50 hp 4-strokes, V4s, and V6s.

The Yamaha Model Identification Decoder explains the pre-1991 and later code formats, including shaft length, starting, trim/tilt, counter-rotation, and series identifiers. Horsepower, cylinder count, displacement, and configuration groupings help match the applicable procedure and tools before dismantling an engine.

Carbureted fuel-system repair: EFI and HPDI appear in identification and reference material, but the fuel-system repair chapters address carburetors. Injector and fuel-injection control diagnosis require a model-specific fuel-injection manual.

Fuel-Supply and Precision Blend Troubleshooting

Fuel-pump tests distinguish air leaks, restricted lines, and inadequate delivery from carburetor faults. Carburetor sections separate engine families and their adjustment requirements rather than applying one setup across the range.

The Oil Transfer Pump Troubleshooting Chart and Oil Warning System Operation Chart address differences between inline and V4/V6 Precision Blend installations, including remote-tank transfer and warning-system behavior.

YMIS Tests and Wiring References

YMIS Sensor Characteristics and 3.1L diagnosis-code tables connect sensor faults with operating symptoms. Wiring references distinguish breaker-point and 1995-and-later CDI ignition on 2 hp engines, serial-split 65J–90 hp circuits, and C115 wiring from other V4 configurations.

Exploded views identify carburetor, fuel-pump, powerhead, gearcase, remote-control, and rewind-starter components. The 45/50 hp 4-stroke valve-train views and power trim/tilt hydraulic cutaways provide assembly-specific references.

Specification Tables and Special Tools

Model-specific tables cover component torque, fluid capacities, fuel/oil ratios, carburetor setup, and valve clearances. Inspection and testing data include piston/cylinder wear limits, gearcase shims and backlash, ignition resistance and output, cooling checks, and trim/tilt hydraulic tests.

The procedures flag cast-in torque markings and give emissions-label tune-up specifications priority over printed tables. Tool callouts include the YB-06139 flywheel holder, YM-08035 valve adjuster, YB6228 and YB6079 driveshaft tools, and YB6078 pinion nut wrench, plus bearing drivers, seal installers, pullers, and hydraulic gauges.

Fuel-Pump, Gearcase and Flywheel Cautions

Fuel-pump check-valve orientation affects fuel delivery, while horsepower-specific bearing-carrier seal direction affects water exclusion. Flywheel cautions address damage from perimeter pullers or heavy blows, and stator/pulser coils and wiring can be destroyed by contact with the flywheel.

Some fuel-pump tests are performed with the engine running, and the manual warns that cooling water must continue circulating while the powerhead operates. Its cautions for open fuel systems, high-voltage ignition, rotating flywheels, hydraulic trim/tilt service, and spring-loaded rewind starters should be followed before repair work begins.

Selected Valve-Clearance and Float-Setting Data

For the 232cc 9.9 hp 4-stroke, the valve-lash section specifies intake clearance of 0.15–0.20 mm and exhaust clearance of 0.20–0.25 mm, measured on an overnight-cold engine at approximately 20°C (68°F).

For the 3130cc 250 hp 2-stroke, the 1994–1996 carburetor table lists a float-drop setting of 15–16 mm.
