Yamaha YZ450F(W) 2006 Owner’s Service Manual (P/N 2S2-28199-81)
650 Pages • 1 Printable PDF (EN, FR, DE) • Download
Yamaha Models Covered & Key Technical Specifications
Model: YZ450F(W)
Sub-models / Variants: YZ450FW (USA, CDN: 2S27; AUS, NZ: 2S2A), YZ450F (Europe: 2S28; ZA: 2S2A)
Trade Names: YZ450F, YZ450FW
Model Years: 2006
-
Engine displacement: 449 cm3
-
Engine type: Liquid cooled 4-stroke, DOHC, single cylinder
-
Bore × stroke: 95.0 × 63.4 mm (3.74 × 2.50 in)
-
Compression ratio: 12.3:1
-
Engine idle speed: 1,900 ~ 2,100 r/min
-
Transmission type: Constant mesh, 5-speed
-
Coolant system capacity: 0.99 L (1.05 US qt)
-
Engine oil capacity: 1.2 L (1.27 US qt) total amount
-
Tire pressure: 100 kPa (15 psi)
-
Radiator core width: 120.2 mm (4.73 in)
-
Caster angle: 26.8° (USA, CDN, ZA, AUS, NZ and Europe except F); 26.9° (F)
Yamaha Manual Features & Selected Content Preview

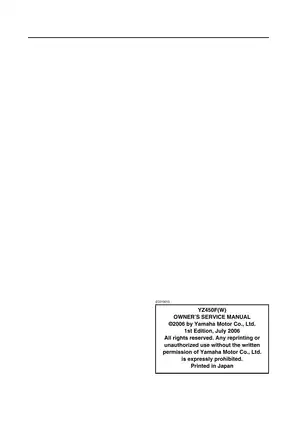

Yamaha’s YZ450F(W) Owner’s Service Manual, publication 2S2-28199-81, first edition July 2006, covers the 2006 YZ450FW for the U.S., Canada, Australia, and New Zealand and the YZ450F for Europe and South Africa.
PDF Search, Bookmarks, and Wiring Detail
Finding service information: The PDF has searchable text and bookmarks grouped by language. Chapter links can open the relevant contents page, while individual procedure bookmarks jump to their sections. Zoom in to read the small connector labels and wire-color codes in the wiring diagram.

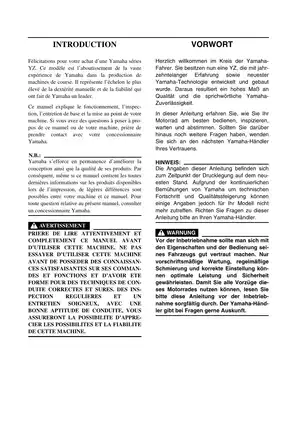

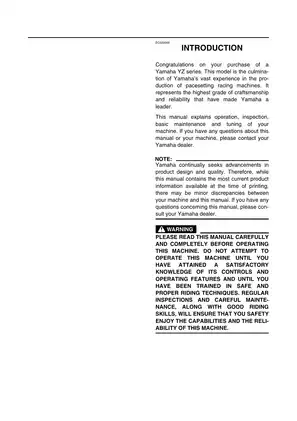

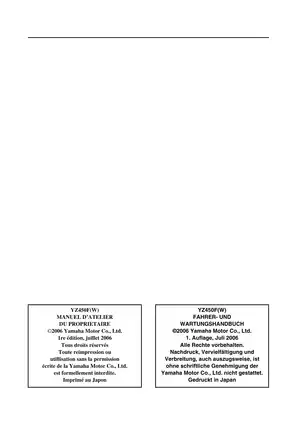

The download contains one printable PDF in English, French, and German. The 650 pages include the front and back cover pages, five memo pages, and two blank pages.
Engine, Chassis, and Ignition Service for Race Use
These selected service topics show the scope of the manual. Other procedures cover steering-head bearing service and drive-chain inspection and adjustment.
- Engine repair: Engine removal, camshaft and cylinder-head removal, valve and piston inspection, crankcase separation, crankshaft installation, and cam timing during reassembly.
- Clutch and shifting: Wet-clutch disassembly and inspection, transmission gear checks, shift-cam and shift-fork service, and inspection of the kick-start mechanism.
- Carburetor and cooling: Keihin FCR MX39 disassembly, accelerator-pump timing adjustment, radiator removal, radiator-cap pressure testing, cooling-system leak checks, and water-pump service.
- Suspension and brakes: Telescopic fork disassembly and damper bleeding, Monocross linkage service, brake-caliper and master-cylinder inspection and reassembly, and brake bleeding.
- Ignition and TPS: A wiring diagram with connector layouts and wire-color codes, ignition fault-finding charts, coil and neutral-switch checks, and throttle position sensor replacement and adjustment.
- Race setup: Carburetor setting examples, suspension troubleshooting charts, spring identification, and part numbers for optional jets, springs, and sprockets.
Owners get operating and routine-maintenance guidance, while the internal repair procedures are suited to mechanics familiar with the specified service tools.
Valve Adjustment, Wear Limits, and Lubrication
Valve-pad selection tables use the measured clearance and the installed pad to identify the replacement pad. Cylinder-head procedures cover valve sealing, stem-to-guide clearance, valve-seat inspection, and guide replacement. The manual identifies valve spring compressor YM-4019/90890-04019.
Exploded views and job instruction charts show which parts must come off for a given repair. Torque-check diagrams identify inspection points, while the specifications give wear limits for camshaft runout, piston-ring end gap, and clutch friction-plate thickness.
Dry-sump lubrication diagrams trace the oil paths through the pump, filter, tank, and engine. Routine service guidance covers break-in checks, air-filter care, oil changes, cleaning, and storage preparation.
Carburetor Tuning and Cooling-System Checks
Carburetor tuning examples relate the pilot circuit, main jet, jet needle, and accelerator-pump leak jet to symptoms at different throttle openings. The procedures also cover float-height inspection and specify that the TPS mounting screws should be disturbed only when replacing a failed sensor.
Water-pump procedures cover the impeller, bearings, and seals. Separate radiator and radiator-cap checks help distinguish a system leak from a cap that opens at the wrong pressure.
CDI Diagnosis and Cable Routing
The ignition fault-finding charts cover the wiring, ignition coil, magneto pickup and source coils, engine-stop button, and neutral switch before CDI replacement. Yamaha specifies the 2S2-80 CDI unit for Europe and the 2S2-70 for other markets.
The illustrative 3-D ignition map explains how engine speed and throttle position affect CDI timing. Cable-routing diagrams show where the harness, hoses, and control cables run during reassembly.
Fork Service and Rear Shock Limits
Fork procedures cover seals, sliding parts, the base valve, damper bleeding, and oil filling. The manual identifies cap bolt ring wrench YM-01501/90890-01501 and explains how incorrect locknut removal can trap the damper rod and how careless damper insertion can damage the internal valve. Yamaha recommends having the front fork serviced by a dealer.
Rear suspension coverage includes swingarm and linkage bearings, shock removal, spring service, and external adjustments. Keep the pressurized nitrogen cylinder and reservoir closed. Yamaha assigns shock disposal to its dealers.
Examples of Valve Clearance and Electrical Test Values
For cold intake-valve adjustment, Yamaha specifies a clearance of 0.10–0.15 mm. The valve-pad tables use the measured clearance to guide pad selection.
The ignition section specifies 248–372 ohms at 20°C (68°F) for the CDI magneto pickup coil. After TPS replacement, the adjustment procedure specifies an output of 0.58–0.78 V DC with the engine idling.
