1986–1999 Honda XR200R Factory Service Manual (P/N 61KT011)

• Fits 1986-1999 Honda XR200R off-road motorcycles equipped with the 195 cc air-cooled, two-valve SOHC single-cylinder engine, wet multi-plate clutch, and six-speed constant-mesh transmission. Supplied as a 177-page PDF.
• Documents major engine repair work, including engine removal and installation, cylinder-head and valve service, valve-seat inspection and refacing, cylinder and piston repair, crankcase separation, and crankshaft, transmission, and kick-starter overhaul.
• Covers the PD97A fuel system and dry-sump lubrication system, with carburetor removal and overhaul, float and pilot-screw adjustment, temperature/altitude jetting data, oil-pump inspection, oil-filter rotor service, clutch repair, and gearshift-linkage work.
• Takes chassis repair beyond routine maintenance through front and rear wheel service, drum-brake overhaul, fork disassembly, steering-stem bearing work, remote-reservoir rear-shock rebuilding, and swingarm and Pro-Link inspection.
• Supports electrical and mechanical fault isolation with CDI ignition tests, lighting-system checks, ignition-timing procedures, a complete color-code-labeled wiring diagram, section-specific troubleshooting, and five system-level diagnostic charts.

This Honda service manual is arranged for bench use, with assembly illustrations, service data, troubleshooting, and repair procedures grouped by motorcycle system. Because the internal engine and gas-charged shock sections assume metric measuring equipment, special tools, and established workshop practice, it is suited to experienced DIY owners and professional technicians rather than first-time mechanics.

Manual Content

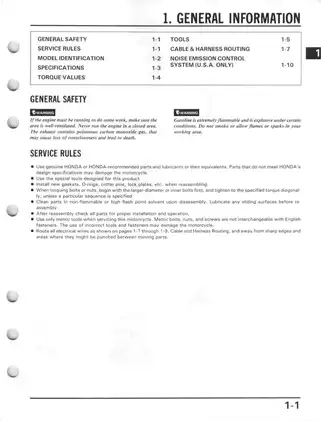

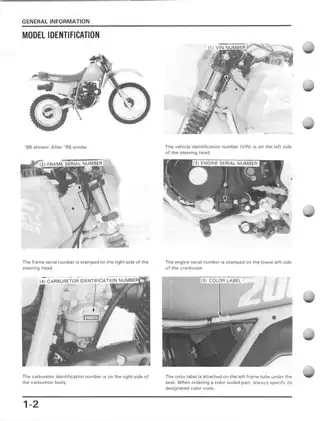

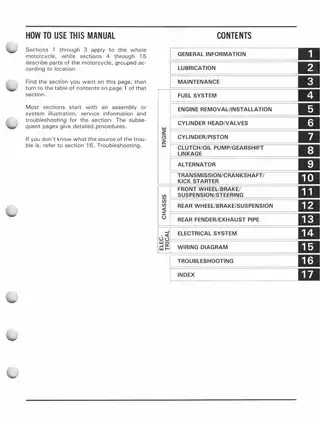

Sections 1 through 3 cover the motorcycle as a whole: identification, cable and harness routing, lubrication, scheduled maintenance, and a separate competition-inspection checklist. The identification pages show where to find the VIN, frame and engine serial numbers, carburetor identification, and color code. The remaining chapters move through the machine by location, from the fuel system and top end to the gearbox, running gear, and electrical system.

Coverage is model-year specific. The manual flags 1986 components separately where needed and distinguishes later machines in the air-cleaner arrangement and kick-starter gear configuration. That detail matters when identifying parts before transmission or intake-system repair.

Engine and Chassis Repair

The top-end material covers camshaft and rocker-arm inspection, valve-guide replacement, valve-seat cutting and refacing, cam timing, cylinder-head installation, valve adjustment, and compression testing. The cylinder-head cover uses a numbered multi-stage tightening pattern, while the cylinder and piston chapter supplies inspection points and service limits for bore condition, piston fit, ring clearance, and warpage.

Bottom-end coverage includes the clutch, oil pump, filter rotor, shift mechanism, alternator and flywheel, crankshaft, six-speed transmission, and kick-starter assembly. The manual shows crankcase separation and reassembly, bearing replacement, shaft and gear inspection, and final operational checks rather than stopping at engine removal.

Chassis chapters address wheel bearings, spokes and rim runout, brake shoes and drums, fork seals and bushings, steering-head bearings, rear-shock damping components, reservoir service, shock bleeding and nitrogen charging, and the swingarm linkage. One manual-specific repair trap is the cylinder-head oil-control passage: blockage or misplaced O-rings can interrupt camshaft lubrication. The shock chapter also warns that damper-rod burrs can damage the piston ring and that the damping valves must retain their correct arrangement.

Rear-shock work involves high-pressure nitrogen, and the drum-brake chapters include asbestos-dust precautions. Those procedures call for the correct suspension equipment and controlled brake-cleaning methods.

Specifications, Tools, Diagrams, and Diagnostics

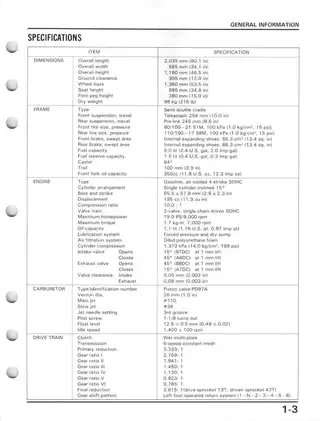

Section-level tables provide component torque specifications, fluid capacities, wear limits, clearances, runout limits, carburetor settings, ignition data, and electrical resistance and voltage checks. The tool listings identify Honda service tools by number, including clutch center holder 07923-9580000, fork seal driver 07947-2730100, damping-valve wrench 07920-KA30001, and valve-guide reamer 07984-0980000.

Useful visual references include cable and harness routing views, a lubrication-point layout, carburetor exploded assemblies, the transmission and kick-starter gear layout, rear-shock damping-valve stack views, and the full wiring diagram. Electrical diagnosis covers the ignition coil, alternator exciter and lighting coils, pulse generator, spark advancer, engine-stop switch, AC regulator, headlight, and taillight. The final troubleshooting charts trace hard starting, power loss, poor low- or high-speed performance, and handling complaints to likely fuel, compression, ignition, drivetrain, or chassis causes.
