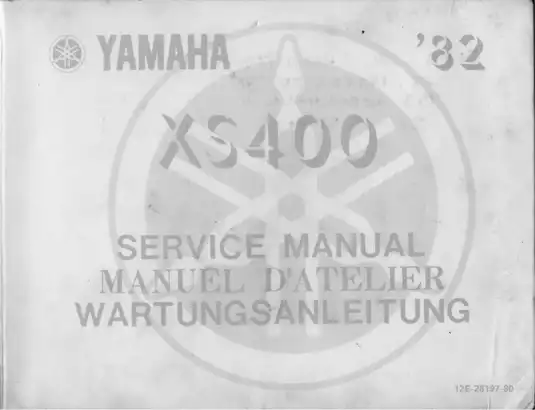

1982 Yamaha XS400 12E/12F Service Manual (P/N 12E-28197-80)

This Yamaha workshop manual (publication 12E-28197-80) covers maintenance, diagnosis, and repair of the 1982 Yamaha XS400, including 12E models and 12F models for Germany with the air-cooled DOHC twin engine.

PDF navigation and wiring detail: Embedded bookmarks link to chapters and individual procedures, but PDF text search is not available. Small wiring labels require zooming.

• Engine repair: Engine removal and reinstallation, cylinder-head service, piston and cylinder inspection, crankcase separation, and crankshaft and balancer-shaft bearing selection.

• Valve train and maintenance: Valve-clearance adjustment, intake and exhaust shim-selection charts, compression testing, ignition-timing checks, and periodic maintenance and lubrication schedules.

• Carburetion: Mikuni BS34 disassembly, diaphragm and float-valve inspection, fuel-level adjustment, carburetor synchronization, and market-specific jet specifications.

• Clutch and transmission: Wet-clutch inspection and repair, primary-drive checks, transmission gear and shift-fork inspection, shift-shaft installation, and starter-drive service.

• Chassis and brakes: Front-fork overhaul, steering-head adjustments, wheel-bearing replacement, swingarm inspection, front caliper and master-cylinder repair, and rear drum-brake service.

• Electrical diagnosis: A.C. generator, regulator and rectifier tests; T.C.I. ignition troubleshooting; starter-circuit checks; and wiring diagrams with lighting and signal-system tests.

The bearing measurements, valve-seat work, and electrical testing make this manual suited to mechanics with engine-rebuilding experience and the specified measuring and diagnostic equipment.

Engine Overhaul and Valve Adjustment

When a major project hits the bench, the guide outlines complete engine tear-downs, including piston, cylinder, and camshaft removal. Cylinder-head work extends to valve-guide replacement, valve-seat cutting and lapping, and camshaft bearing-clearance checks.

Valve adjustment: Separate intake and exhaust charts support shim selection, with the tappet adjusting tool identified as 90890-01245. The section warns that contact between a cam lobe and the adjusting tool can fracture the cylinder head.

Bottom-end repair: Crankshaft and connecting-rod bearing selection uses stamped size codes and color-coded shells, with Plastigage clearance checks. Further procedures cover oil-pump rotor inspection, balancer-shaft timing, and the HY-VO chain and starter clutch.

The crankcase assembly notes explain how incorrect sealant placement can reduce oil pressure and cause crankshaft seizure.

Mikuni BS34 Carburetors and Market Differences

The carburetor section includes a sectional view, vacuum-piston diaphragm inspection, float-valve service, and fuel-level measurement using a gauge and adapter. Its specifications distinguish left- and right-hand main jets and the separate German configuration.

Germany-specific electrical data identifies the Hitachi TID 12-07 ignition unit instead of TID 12-08, different ignition-advance specifications, and a flasher system without self-canceling. These distinctions help match replacement components and test specifications to the correct version.

Brakes, Steering and Suspension

Front-fork oil changes and overhaul procedures are supported by assembly illustrations and seal-inspection guidance. Steering-head bearing service, wheel-bearing checks, drive-chain alignment and tension adjustment, and swingarm side-clearance measurement are covered, including thrust-washer selection.

Rear shock absorber: Coverage is limited to removal, inspection, replacement, and spring-preload adjustment.

Brake procedures cover caliper and master-cylinder disassembly, inspection and reassembly, hydraulic bleeding, rear brake-shoe inspection, and rear-pedal height and free-play adjustment. Follow the manual's brake-service precautions and motorcycle-support requirements when carrying out brake or suspension repair.

Electrical Troubleshooting and Workshop References

The Electric Starting System, Charging System, and Ignition System circuit diagrams accompany component tests. A headlight troubleshooting chart traces switch, fuse, and supply faults; the full wiring diagram adds connector layouts and wire-color codes.

Starter-motor repair covers the commutator, armature, brushes, and brush springs. Lighting and signal checks include headlight beam adjustment and the self-canceling flasher where fitted.

Charging coverage distinguishes battery charging and electrolyte checks from generator-output and field/stator-coil resistance tests.

Electrical testing specifies the Yamaha Pocket Tester 90890-03104 and Electro Tester 90890-03021. The manual notes that some continuity readings depend on the tester used.

Reference material includes component-specific torque tables, fluid capacities, wear limits, electrical test specifications, lubrication diagrams, cable-routing drawings, and exploded clutch, transmission, wheel, and brake illustrations.

Printable PDF and Included Pages

Supplied as one printable PDF with English, French, and German repair text and English specification tables. The 317-page PDF includes one cover page, contents pages, appendices, wiring diagrams, and six blank pages; these are already included in the total.
