2008 Kawasaki KLR650 (KL650E8F) Factory Service Manual (PN 99967-1232-01 first edition)

• Covers the 2008 Kawasaki KLR650 (KL650E8F) motorcycle, documenting mechanical and electrical specifications for the 651 cm3 single-cylinder 4-stroke powerplant

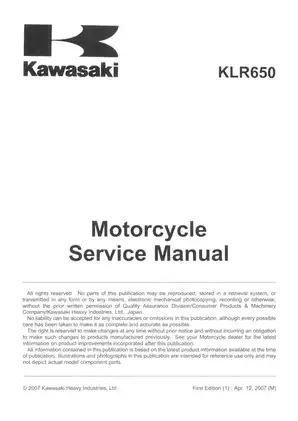

• Official Kawasaki publication, PN 99967-1232-01 first edition dated April 12, 2007 (M)
• Contains 56 specific torque tables, 2 major exploded-view system diagrams, and detailed periodic maintenance charts for service intervals
• Provides the baseline factory parameters for the 2008 KL650E8F model build, including specific carburetion and emission-system documentation for US, CA, CAL, and AU market variants

Technical Overview and Maintenance Routine

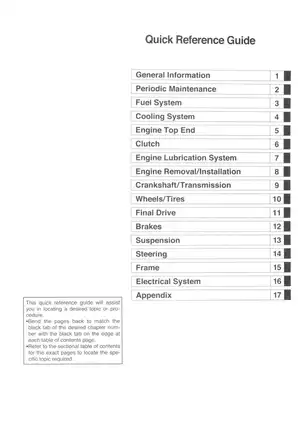

Spanning 462 pages, this official OEM workshop manual serves as the definitive technical reference for the 2008 Kawasaki KLR650. The content is logically organized by major motorcycle systems. You will find complete specification breakdowns for the fuel system, cooling network, engine top end, clutch, and electrical components. It clearly documents the standard factory procedures for performing routine service and identifying component wear limits. Managing critical adjustments—such as valve clearance, throttle cable free play, and balancer chain tension—requires strict adherence to the factory safety protocols outlined in the text to prevent personal injury or mechanical failure. The structural layout directly mirrors official Kawasaki service training materials. This provides technicians, mechanics, and serious owners with the exact baseline data needed to maintain the engine, chassis, and drivetrain efficiently.

Specifications and Reference Values

Reviewing the KL650E8F variant, the publication lists exact factory tolerances. For example, intake valve clearance sits right at 0.10–0.20 mm according to the engine top end specification tables. The cooling system capacity is confirmed at 1.55 liters. For tuning the Keihin CVK40 carburetor, you get the exact baseline settings, including a float height of 17.5 ±2 mm. Cylinder head bolt torque values are mapped out in a strict multi-stage sequence. The final-stage torque reaches exactly 65 N·m as noted in the periodic maintenance schedules. Diagnostic troubleshooting is supported by dedicated reference values for the electrical systems, covering both alternator output and battery capacity. Please note that this product description serves purely as a technical contents overview of the publication, not as a substitute for the step-by-step repair and diagnostic instructions found within the manual itself.
