Kawasaki Models Covered & Key Technical Specifications

Models: VN2000, Vulcan 2000, Vulcan 2000 Limited, Vulcan 2000 Classic, Vulcan 2000 Classic LT

Sub-models / Variants: A1 (VN2000-A1), A2 (VN2000-A2), D1 (VN2000-D1), A6F (VN2000A6F), D6F (VN2000D6F), E6F (VN2000E6F), F6F (VN2000F6F), A7F (VN2000A7F), E7F (VN2000E7F), F7F (VN2000F7F), US Model, Canada Model, Australia Model, Europe Model, California Model, Malaysia Model, WVTA (Full Power), GB WVTA (FULL H, left-side traffic)

Model Years: 2004–2007 (2004, 2005, 2006, 2007)

Beginning Frame Numbers:

  • VN2000-A1: JKBVNMA1□4A000001, JKBVNW00AAA000001, or VNW00A-000001

  • VN2000-A2: JKBVNMA1□5A006001, JKBVNW00AAA006001, or VNW00A-006001

  • VN2000-D1: JKBVNMD1□5A000001

  • VN2000A6F: JKBVNMA1□6A010001 or JKBVNW00AAA010001

  • VN2000D6F: JKBVNMD1□6A003001

  • VN2000E6F: JKBVNME1□6A000001

  • VN2000F6F: JKBVNMF1□6A000001

  • VN2000A7F: JKBVNMA1□7A012001

  • VN2000E7F: JKBVNME1□7A002001

  • VN2000F7F: JKBVNMF1□7A004001

□ represents a frame-number digit that varies between individual machines.

Coolant-Bleeding Engine References: Before Engine No. 006705: air-bleeder-bolt type; after Engine No. 006706: non-air-bleeder-bolt type.

Water Pump Air Bleeder Bolt: Before Engine No. 006704.


  • Engine: 4-stroke, OHV, V2-cylinder, 2 053 cm³ (125.3 cu in.)

  • Cooling: Liquid-cooled

  • Maximum Power: 76 kW (103 PS) @ 4 800 rpm — WVTA (FULL H), GB WVTA (FULL H); 76 kW (103 PS) @ 5 100 rpm — Australia and Malaysia models

  • Maximum Torque: 177 N·m (130.6 ft·lb) @ 3 200 rpm — WVTA (FULL H), GB WVTA (FULL H); 177 N·m (130.6 ft·lb) @ 3 000 rpm — Australia and Malaysia models

  • Compression Ratio: 9.5:1

  • Transmission: 5-speed, constant mesh, return shift

  • Final Drive: Belt drive

  • Fuel System: Digital Fuel Injection (DFI)

  • Electrical: 12 V 18 Ah battery; quartz-halogen headlights: A/D-series — separate 12 V 65 W high-beam and 12 V 55 W low-beam bulbs; E/F-series — 12 V 60/55 W bulb

Kawasaki Manual Features & Selected Content Preview

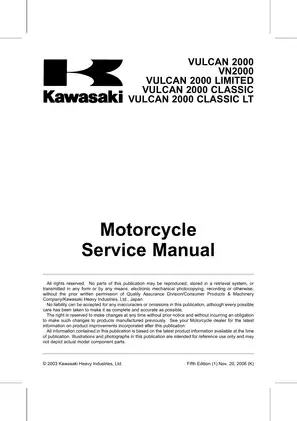

This Kawasaki factory service manual covers the 2004–2007 VN2000 family, including the Vulcan 2000, Vulcan 2000 Limited, Vulcan 2000 Classic, and Vulcan 2000 Classic LT. Part No. 99924-1320-05, Fifth Edition (1), dated November 20, 2006, documents maintenance, diagnosis, and repair, with model and market differences identified throughout.

Searchable Text, Bookmarks, and Wiring Detail

Text search and diagram access: Body text is searchable, and embedded bookmarks provide access to procedures and reference tables. Text within many illustrations is not searchable. Small wiring labels require zooming for comfortable reading.

The ZIP download contains one printable, English-language 661-page PDF, including 11 blank pages and one placeholder page.


DFI Diagnosis and Engine-to-Chassis Repair

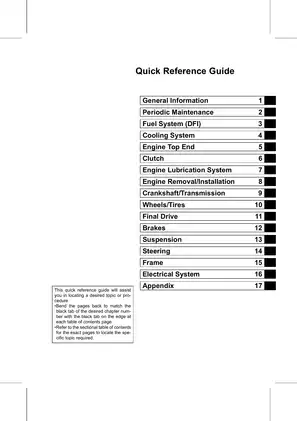

These selected service topics outline the repair coverage. Additional subjects include fuel-tank cleaning and air-cleaner housing service; this overview is not the complete table of contents.

  • DFI diagnosis: FI self-diagnosis, service-code reading and clearing, sensor and actuator circuit tests, injector and fuel-pump checks, and ECU power/ground inspection.

  • Engine repair: Step-by-step engine removal and installation, rocker-case and camshaft service, cylinder-head work, piston inspection, and crankcase disassembly and assembly.

  • Clutch and transmission: Clutch removal, plate-assembly adjustment, starter-clutch inspection, and transmission teardown and reassembly.

  • Drivetrain and chassis: Belt alignment and pulley service, wheel and tire work, brake hydraulic repair and bleeding, fork and swingarm service, and steering-stem bearings.

  • Cooling and lubrication: Cooling-system pressure testing and flushing, water-pump service, mechanical-seal replacement, thermostat testing, oil-pump service, and oil-pressure measurement.

  • Diagnostic drawings: DFI System Wiring Diagram, DFI Diagnosis Flow Chart, Coolant Flow Chart, Engine Oil Flow Chart, model-specific Wiring Diagrams, and Cable, Wire, and Hose Routing layouts.

  • Maintenance and reference data: Periodic inspection and replacement charts, special-tool lists, torque tables, fluid-capacity data, wear limits, adjustment specifications, and electrical test values.

Written primarily for trained mechanics in a properly equipped shop, this manual also supports owners performing basic maintenance and repair who understand mechanics, proper tool use, and workshop procedures.

Model and Build Differences

Regional coverage distinguishes US/Canada and other-market wiring, European/WVTA and California oxygen-sensor systems, and California evaporative-emissions equipment. Matching these sections to the motorcycle’s configuration helps identify the applicable wiring and test procedures before diagnosis begins.

Equipment-specific procedures include E/F-series headlight arrangements, VN2000F6F rear footboards, and F-series windshields and saddlebags. Coolant filling and bleeding also differ between engines with an air bleeder and later engines without one.

HLA, Decompression, and Internal Engine Work

Valvetrain service: Hydraulic lash adjusters maintain zero valve clearance, so routine valve-clearance inspection and adjustment are unnecessary. The repair procedures cover HLA removal, air bleeding, and installation, together with rocker-arm assemblies and the Electric Solenoid Operated Decompressor.

Cylinder-head coverage extends to compression testing, valve-guide replacement, and valve-seat repair. Cylinder and piston sections include inspection limits and piston-ring checks.

Crankshaft and balancers: Internal engine work includes connecting-rod and crankshaft inspection and factory indexing of the Dual Balancer Shaft System chain and sprockets. Transmission procedures address shift-drum and shift-fork inspection; clutch coverage adds starter torque-limiter checks and friction- and steel-plate inspection.

Semi-dry-sump lubrication: The oil-level section explains why dipstick readings vary with motorcycle position and shutdown conditions. Oil-pressure diagnosis relates abnormal readings to pumps, the relief valve, oil passages, and bearing wear.

DFI Fault Isolation

The DFI chapter combines a sample diagnosis sheet, self-diagnosis modes, a service-code table, and circuit checks. Throttle, pressure, and temperature inputs are covered alongside crankshaft, camshaft, speed, gear-position, vehicle-down, and oxygen-sensor circuits.

Actuator testing includes injectors, the fuel pump, relays, the subthrottle actuator, air switching valve, and decompression solenoid. Fuel-pressure and delivery checks help separate fuel-supply faults from problems requiring further electronic diagnosis.

Incorrect vehicle-down sensor installation can cause sudden loss of engine power; the manual identifies its required mounting orientation.

Electrical and Chassis Service

Electrical testing: Procedures extend to charging and alternator tests, ignition peak-voltage diagnosis, starter-motor overhaul, automatic turn-signal canceling, meter and indicator checks, radiator-fan operation, switches, the relay box, diodes, and fuses.

Dedicated wiring diagrams distinguish A1 US/Canada and other-market versions, A2/D1/A6F/D6F US/Canada versions, A2/A6F/D6F other-market versions, and E6F/F6F equipment.

Brakes and suspension: Hydraulic repair includes caliper and master-cylinder disassembly, seal and piston inspection, hose replacement, fluid change, and line bleeding. Suspension procedures cover fork-oil service and disassembly, rear-shock adjustment and removal, swingarm bearings, steering adjustment, and steering-stem bearing replacement.

Aggressive bending, twisting, or solvent contamination can damage the drive belt before installation. The final-drive chapter explains these handling risks alongside belt and pulley inspection.

Special Tools and Repair Scope

Kawasaki tools are identified by part number, including Throttle Sensor Setting Adapter #1 57001-1400, Peak Voltage Adapter 57001-1415, Fuel Pressure Gauge Adapter 57001-1593, Clutch Holder 57001-1243, and Pulley Holder 57001-1572.

Exploded views carry component-specific torque references, tightening sequences, replacement-part marks, sealant and locking-agent notes, and lubrication callouts. Spare-parts identification uses the separate Kawasaki Parts Catalog.

Fuel-pressure testing and brake hydraulic repair require suitable test equipment. Engine removal also requires proper support and electrical isolation; work beyond the owner’s experience should be handled by qualified mechanics.

Examples of DFI Fuel-System Test Data

The fuel-line section specifies standard high-pressure fuel pressure of 304 kPa (44 psi) with the engine idling. Its pump-delivery test specifies at least 67 mL over three seconds with the test hose filled with fuel.

For the front and rear injectors, the resistance-inspection section gives a standard range of 11.7–12.3 Ω at 20°C (68°F), alongside injector signal and operating checks.
