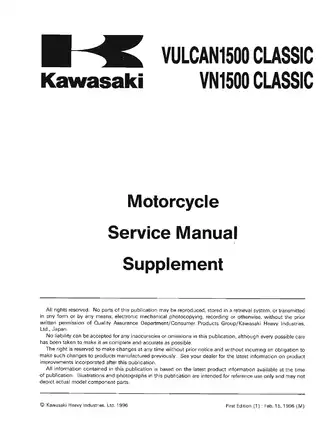

1996 Kawasaki VN1500 Factory Service Manual Set — A/B Base Manual + D1 and E/F Classic Supplements (P/N 99924-1078-08)

The E/F supplement refers to the D1 supplement, which in turn requires the VN1500 base manual. Keeping all three documents together puts the model-specific changes alongside the shared repair procedures referenced throughout the supplements.

The Classic supplements cover carbureted models. Match the model code and regional application before selecting specifications or procedures.

OCR Search, Bookmarks and Wiring Readability

Search and diagram detail: OCR text search is available in all three PDFs, with recognition errors and gaps. The base manual has no searchable text on PDF pp. 219–255. Embedded bookmarks link to chapters and selected wiring diagrams; the E/F file also bookmarks both later-model addenda. Small wiring labels require zooming. Some base-manual diagrams are sideways, and the D1 wiring sheets have lighter lines and visible reverse-side show-through.

The ZIP contains three printable English-language PDFs totaling 722 pages. The totals include eight opening pages and one final model-application page per file. The E/F file’s opening pages include one blank page; its 55-page 1999–2001 addendum and 28-page 2002–2004 addendum are also included in its stated page count.

V-Twin Repair, Carburetor Service and Electrical Tests

The coverage highlights below are a selection from the manuals. Additional topics include clutch-lever position adjustment and fuel-tank cap inspection.

• Fuel system: Carburetor removal, disassembly, cleaning, fuel-level and float adjustment, fuel-pump and fuel-tap checks, air-cleaner service, and evaporative-emission components.

• Engine repair: Engine removal and installation, compression diagnosis, cylinder-head and valve service, hydraulic lash-adjuster bleeding, KACR inspection, and cam-chain timing.

• Crankshaft and transmission: Crankcase separation, crankshaft and connecting-rod inspection, balancer timing, starter-clutch service, transmission disassembly, and shift-mechanism repair.

• Clutch and shaft drive: Hydraulic-clutch service, deceleration torque-limiting clutch inspection, propeller-shaft checks, and model-specific front and final bevel-gear adjustment.

• Cooling system: Coolant draining, filling, air bleeding and flushing, pressure testing, water-pump seal replacement, radiator and fan checks, and thermostat testing.

• Chassis and brakes: Wheel and hub service, brake hydraulics and bleeding, fork overhaul, rear-shock inspection, swingarm bearings, and steering-head service.

• Electrical diagnosis: Regional wiring diagrams, ignition and charging tests, starter circuits, fuel-gauge checks, and later-model warning-light and turn-signal-canceling diagnosis.

Written primarily for trained mechanics in a properly equipped shop, these manuals also support owners performing basic maintenance and repair who already understand mechanics, tool use, and workshop procedures.

Engine Internals and Model-Specific Timing

Factory technical sections explain the four-valve, twin-spark-plug cylinder layout, gear-driven single-shaft balancer, hydraulic lash-adjuster operation, coasting enricher, and deceleration torque-limiting clutch.

Top-end procedures cover rocker shafts and arms, camshaft installation, valve guides and seats, cylinder and piston inspection, and exhaust-system removal. The cylinder head and rocker case are factory-machined as a matched assembly. Hydraulic lash adjusters maintain valve clearance automatically; their inspection and air-bleeding procedures differ from conventional valve adjustment.

Lower-engine coverage includes the primary drive, starter torque limiter, transmission shafts, shift forks, shift drum, and external shift mechanism. The later E/F material includes five-speed transmission disassembly and assembly instructions. Timing information is also model-specific: the D1 supplement gives separate Swiss-model timing details, while the later supplement identifies the revised Swiss application.

Carburetor Variants and Cooling Repairs

The A/B base manual’s step-by-step carburetor procedures include synchronization of the twin Keihin CVK36 units. The Classic supplements use a single CVK40, with pilot and main-circuit information, high-altitude adjustment, throttle-sensor positioning, and electric fuel-pump diagnosis.

Later fuel-system sections add coolant-valve inspection and coolant-filter cleaning. California evaporative-emission coverage includes hose routing, separator checks, and canister inspection.

The D1 water-pump mechanical-seal replacement procedure involves crankcase separation and replacement of the associated bearings and seals. Cooling-system sections also distinguish leakage checks, radiator-cap testing, and thermostat inspection.

Charging Changes, Bevel Gears and Chassis

K-TRIC throttle-responsive ignition and KLEEN secondary-air and catalyst operation receive dedicated technical coverage. The 1999–2001 addendum documents the revised dual three-phase charging system, inside and outside stator service, IC-igniter testing, the oil-pressure-light delay unit, automatic turn-signal canceling checks, rear-caliper changes, and E2/E3/E4 market-specific wiring diagrams.

For VN1500-E6 and later applications within this set, the final-drive addendum provides step-by-step pinion removal and installation, bearing-preload adjustment, backlash measurement, shim selection, and tooth-contact correction.

Frame chapters cover seats, side covers, fenders, engine-mounting components, and the removable downtube.

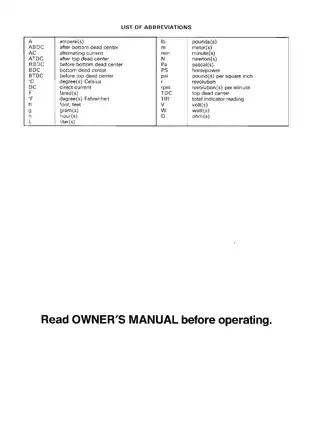

Factory References, Tools and Repair Cautions

Assembly-specific torque and locking-agent tables accompany clearances, wear limits, pressure-test specifications, fluid capacities, and charging and ignition test values. General fastener torque guidance is included.

Fuel and electrical tool callouts identify Carburetor Drain Plug Wrench 57001-1269, Throttle Sensor Setting Adapter 57001-1400, and Igniter Checker Assembly 57001-1378 with Harness Adapter #3 57001-1383. Final-drive setup specifies Pinion Gear Holder 57001-1165 and Final Gear Case Holder 57001-1250.

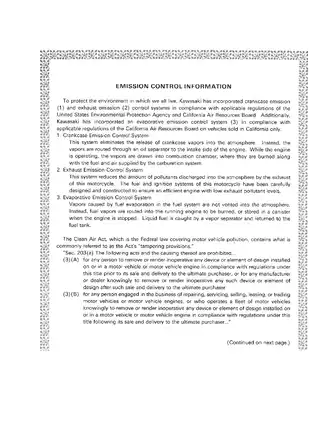

Visual references include K-TRIC control and KLEEN secondary-air/catalyst diagrams, an engine-oil flow chart, and hydraulic lash-adjuster operating views. Regional D1 and E1–E4 wiring diagrams accompany the circuit tests; E6 final-drive charts distinguish correct and incorrect tooth contact.

The non-return cam-chain tensioner warnings explain how partial loosening and retightening can damage the tensioner and chain, while crankshaft rotation with it removed risks valve damage. Incorrect final-drive backlash or tooth contact can damage the bevel gears.

Work in this set includes gasoline, hot pressurized coolant, brake fluid, electrical testing, a cooling fan that may operate unexpectedly, and complete engine removal. Support the motorcycle and engine correctly, isolate power where specified, and follow the factory warnings before beginning major repair work.

Examples of Carburetor Settings and Final-Drive Backlash

For the D1 CVK40 carburetor, standard service fuel level is 0–2 mm below the float-bowl mating surface. Specified float height is 19.0 ± 2 mm with the float-valve needle rod contacted but unloaded.

For VN1500-E6/E7 final-drive service, specified final bevel-gear backlash is 0.10–0.15 mm, measured at the gear-hub splines.
