Kawasaki W650/EJ650 1999–2006 Service Manual (P/N 99924-1245-08)

433 Pages • ZIP Download: 1 Printable PDF (English)

4.6starstarstarstarstar_half(5)
$18.09 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Kawasaki Models Covered & Key Technical Specifications

Models: W650

Models & Model Codes:

W650 — EJ650-A1, EJ650-A2, EJ650-A3, EJ650-A4, EJ650-A5, EJ650-C3, EJ650-C4, EJ650-C5, EJ650-C6P, EJ650-C7, EJ650C6F

Sub-models / Variants: USA Model, California (CAL) Model, Australia (AU) Model, France (FR) Model

Model Years: 1999–2006 (1996, 1997, 1998, 1998, 2000, 2001, 2002, 2003, 2004, 2005, 2006)

Beginning Frame Numbers:

  • EJ650-A1: JKAEJ650AAA000001 or JKAEJEA1□XA000001

  • EJ650-A2: JKAEJEA1□YA015001

  • EJ650-A3: JKAEJEA1□1A030001 or JKAEJ650AAA030001

  • EJ650-A4: JKAEJEA1□2A037001 or JKAEJ650AAA037001

  • EJ650-A5: JKAEJEA1□3A041001 or JKAEJ650AAA041001

  • EJ650-C3: JKAEJ650ACA030001

  • EJ650-C4: JKAEJ650ACA037001

  • EJ650-C5: KAEJ650ACA041001

  • EJ650-C6P: JKAEJ650ACA046001

  • EJ650-C7: JKAEJ650ACA049001

  • EJ650C6F: JKAEJ650ACA053001

□ denotes the variable digit shown in the manual's frame-number table.


  • Engine: 4-stroke, 2-cylinder, SOHC, 4-valve, air-cooled

  • Displacement: 675 cm³ (41.2 cu in.)

  • Compression Ratio: 8.6:1

  • Maximum Power: 37.0 kW (50 PS) @ 7,000 r/min (EJ650-A1–A5, except US; EJ650-C3–C5); 35 kW (47.6 PS) @ 6,500 r/min (EJ650-C6P, EJ650-C7, EJ650C6F)

  • Maximum Torque: 56 N·m (41 ft·lb) @ 5,500 r/min (EJ650-A1–A5, except US; EJ650-C3–C5, except FR); 54 N·m (40 ft·lb) @ 4,500 r/min (EJ650-C6P, EJ650-C7, EJ650C6F, except FR)

  • Carburetion: Keihin CVK 34 x 2

  • Transmission: 5-speed constant mesh, return shift

  • Drive System: Chain drive

  • Engine Oil Capacity: 3.0 L (3.2 US qt) (when engine is completely dry)

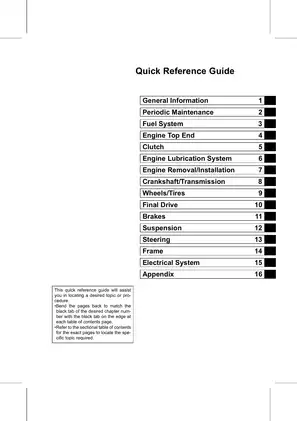

Kawasaki Manual Features & Selected Content Preview

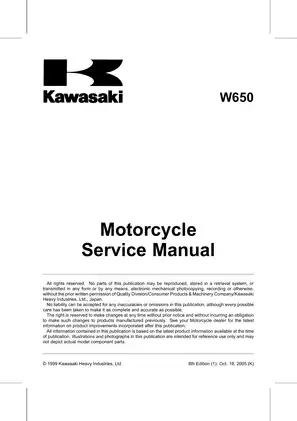

Kawasaki's W650 Motorcycle Service Manual, P/N 99924-1245-08, covers the 1999–2006 EJ650-A and EJ650-C model sequence through EJ650C6F. This is 8th Edition (1), dated October 18, 2005.

PDF Search, Bookmarks and Wiring Detail

Text access and diagram labels: The main text is searchable, and embedded bookmarks provide access to chapters, procedures and tables. Labels within the wiring-diagram images are not searchable; small wire codes and connector details require zooming.

The ZIP download contains one printable English PDF with 433 pages, including the covers, introductory material, closing model-application page, 13 blank pages and one labeled placeholder page.


Bevel-Drive Repair, Engine Work and Electrical Diagnosis

These selected content highlights outline the main workshop coverage. Additional topics include exhaust-system removal and installation, and seat, fender and battery-case service.

  • Bevel camshaft drive: Camshaft- and crankshaft-side case service, drive/driven gear replacement, backlash adjustment and tooth-contact checks, supported by the Bevel Gear Adjustment Flowchart.

  • Engine and transmission: Engine removal, camshaft and rocker-arm service, cylinder-head and valve-seat repair, cylinder and piston inspection, clutch work, crankcase separation, crankshaft, connecting-rod, balancer, transmission, shift-drum and kick-starter service.

  • Fuel and emissions: Keihin CVK34 synchronization and service fuel-level tests; carburetor removal, separation, disassembly, joining and inspection; clean-air-system testing and California/Taiwan evaporative-emissions checks.

  • Chassis and brakes: Wheel and hub-bearing service, spoke and rim inspection, tire replacement and balancing, chain and sprocket work, front-disc and rear-drum brake repair, bleeding, fork overhaul, swingarm bearings and steering-stem service.

  • Engine lubrication: Oil-pressure measurement, relief-valve inspection, oil-pump removal and installation, oil-screen service, and oil-pipe and fitting procedures, with a Lubrication System Chart.

  • Electrical diagnosis: Market-specific wiring diagrams, charging and ignition tests, starter-motor repair, meter and sensor checks, junction-box circuit tests, and symptom-based troubleshooting.

  • Workshop reference data: Component torque and locking-agent tables, fluid capacities, wear limits, clearance specifications, electrical test values and special-tool references.

Kawasaki wrote this manual primarily for trained mechanics in a properly equipped shop; owners with basic mechanical knowledge and the correct tools can also use it for basic maintenance and repair.

Market and Production Differences

Separate maintenance charts distinguish U.S./Canada applications from other markets. Further notes identify California, Australia, Europe/Norway/Spain, Taiwan and France applications, allowing the relevant specifications and electrical arrangements to be matched to the motorcycle.

Production changes include revised fork data beginning with EJ650-A3/C3, the battery change beginning with A5/C5, and joint-type drive-chain replacement procedures for C6P/C7/C6F. The model-application chart provides beginning frame numbers for matching the model designation to the appropriate production entry.

Bevel-Gear Setup and Internal Engine Repair

Shim-selection tables and machinist's-dye contact patterns support bevel-drive setup after component replacement. The manual distinguishes cold-engine whine from gear lash at operating temperature and reserves bevel-gear adjustment for properly trained service technicians; incorrect backlash or tooth contact can damage the gears.

The internal-engine chapters contain step-by-step procedures for valve-guide replacement and valve-seat repair. Crankshaft, connecting-rod and balancer sections include bearing-insert selection and clearance checks, rather than removal instructions alone.

Fuel-System Tests and Electrical Fault Isolation

Carburetor-heater diagnosis covers the PTC sensor, atmospheric-temperature sensor, relay and control unit on applicable models. Carburetor-service cautions explain how compressed air applied to an assembled carburetor can crush the floats and damage the vacuum-piston diaphragms.

The Charging System Circuit and Starter System Circuit diagrams support tracing faults through the related components. Alternator-output and regulator/rectifier checks are distinguished from ignition-coil and crankshaft-sensor peak-voltage tests, while interlock checks address the side-stand switch, starter lockout switch and gear-position sensor.

Brake and Wheel Inspection

Brake procedures include checks for braking effectiveness, drag and fluid leakage before riding. Wheel and final-drive sections also address axle runout, sprocket-coupling bearings and rubber-damper condition, connecting handling or driveline symptoms with component inspection.

A Preview of Valve-Clearance and Synchronization Data

For the covered EJ650-A/C engines, cold-engine valve clearance is specified at 0.08–0.13 mm for inlet valves and 0.14–0.19 mm for exhaust valves, measured between rocker arm and shim. Separate inlet and exhaust Valve Clearance Adjustment Charts support shim selection.

Carburetor synchronization data specify an intake-vacuum difference of 2.7 kPa or less between cylinders at idle.
