1997–2000 Kawasaki ZRX 1100 Service & Repair Manual

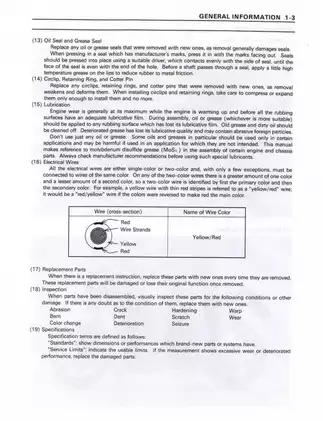

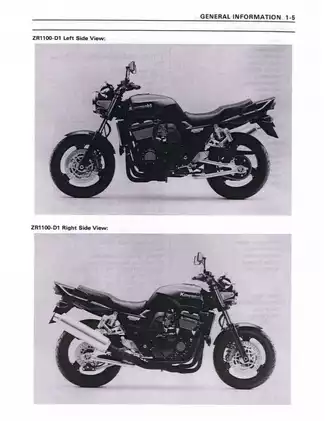

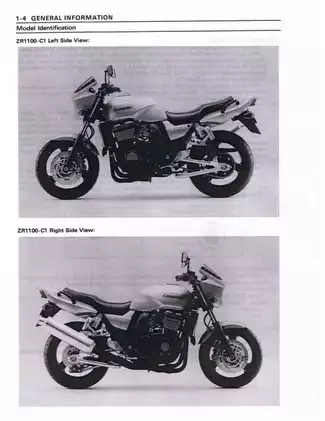

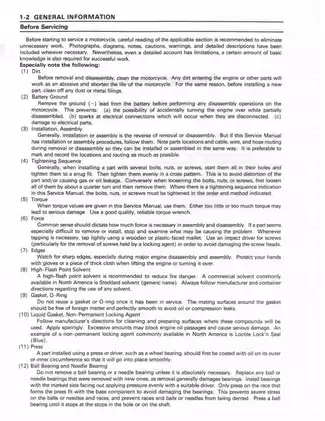

• A 319-page PDF scan of Kawasaki’s factory service manual for the ZRX 1100, ZR1100-C1–C3 and ZR1100-D1–D3.
• Engine repair coverage runs from removal and cylinder-head disassembly to camshaft timing, valve-clearance adjustment, and crankcase separation.
• Keihin CVK36 carburetor service covers cleaning, bank separation and reassembly, synchronization, and service fuel-level and float-height adjustment.
• The hydraulic clutch chapter details master- and slave-cylinder service, bleeding, and clutch-pack inspection; transmission sections cover shaft assembly and shift-mechanism inspection.
• Brake repair procedures include caliper and master-cylinder overhaul, disc inspection, and hydraulic bleeding.
• Chassis work extends to front-fork disassembly, seal replacement, oil-level setting, and steering- and swingarm-bearing service.
• K-TRIC digital ignition diagnosis is supported by throttle-sensor checks, IC igniter troubleshooting, and market-specific wiring diagrams.

Engine and Fuel-System Documentation

The engine chapters cover internal repair of the liquid-cooled 1,052 cc DOHC inline-four. Engine sections include compression diagnosis, valve-guide replacement, valve-seat repair, and piston-ring inspection. Crankshaft and connecting-rod bearing-selection tables support bottom-end assembly. Balancer adjustment and alternator-chain and starter-clutch service are covered separately.

The connecting-rod section explains plastic-region fastening by bolt-length measurement or rotation angle. It also warns that reusing stretched rod bolts can cause breakage.

Fuel-system material explains coasting-enricher operation during engine braking. The carburetor coolant circuit has separate filter-cleaning and valve-test procedures for markets outside the US and Canada. Fuel Level Gauge 57001-1017 is specified for service fuel-level checks. A carburetor cleaning caution identifies the risk of crushed floats and damaged vacuum-piston diaphragms when compressed air is applied to an assembled unit.

Cooling and Lubrication

The documentation also outlines the cooling system—highlighting radiator maintenance, water pump service, and thermostat testing procedures. Pressure testing and coolant air bleeding are covered, too. The Coolant Flow Chart traces coolant circulation, while the Engine Oil Flow Chart accompanies oil-pump and relief-valve service and oil-pressure diagnosis.

Transmission, Final Drive, and Suspension

Final-drive material covers chain wear, wheel alignment, sprocket replacement, and rear-coupling inspection. The five-speed constant-mesh transmission section also addresses the positive neutral finder. Rear-shock coverage consists of preload and damping adjustments, removal, installation, and disposal—not internal damper rebuilding.

Electrical Testing and Wiring Diagrams

Electrical repair extends to alternator and starter-motor testing, junction-box relay and diode checks, and cooling-fan circuits. The IC Igniter Troubleshooting chart organizes ignition fault checks. Throttle-sensor inspection and position adjustment specify the Throttle Sensor Setting Adapter 57001-1400.

Full wiring diagrams are labeled ZR1100-C Wiring Diagram (US and Canada), ZR1100-C/D Wiring Diagram (Europe), and ZR1100-C Wiring Diagram (Australia). Switch-connection tables and separate cable, wire, and hose-routing illustrations support harness reinstallation. Headlight and routing material distinguishes the C and D models.

Specification and Reference Data

Technical data is organized into structured tables listing clearances for camshaft journals, piston rings, and valve guides, with standard and service limits. Component-specific torque tables include staged cylinder-head tightening specifications. Valve-shim selection charts, radiator-cap and thermostat test criteria, and electrical test values accompany the relevant procedures.

Fluid specifications distinguish oil-change fills from dry-engine capacity and give coolant capacity. Exploded assembly views accompany the engine, clutch, brake, and other repair sections. The appendix adds symptom-based troubleshooting for starting and running problems, overheating, shifting faults, handling, and brake complaints.

When servicing pressurized cooling components, handling fuel systems, or performing heavy engine disassembly, always adhere to proper shop safety protocols and utilize appropriate tooling.
