2004–2005 Kawasaki Ninja ZX-10R Service & Racing Kit Manual Set (P/N 99924-1322-02, Doc No. 99929-1870-01)

Kawasaki’s Ninja ZX-10R Motorcycle Service Manual, P/N 99924-1322-02, covers the 2004 ZX1000-C1 and 2005 ZX1000-C2. This set pairs it with the 2005 Racing Kit Manual, Doc No. 99929-1870-01, including the ZX1000-CR2 racing parts list.

The two English PDFs total 681 pages, including the service correction and racing parts-list pages, with searchable body text and image-based diagrams.

• Engine repair: Engine removal and installation, internal overhaul, compression testing, camshaft and cylinder-head work, valve service, crankcase splitting, and crankshaft, connecting-rod, and piston inspection.

• DFI diagnosis: Self-diagnosis, sensor and actuator tests, injector signal testing, fuel-pressure and flow inspection, throttle-body synchronization, and ECU power-supply diagnosis.

• Clutch and transmission: Back-torque limiter setup, clutch plate and retainer selection, spring-plate stroke measurement, racing gear combinations, transmission shimming, and gear-dog engagement correction.

• Cooling and lubrication: Water-pump service, thermostat testing, oil-pressure inspection, coolant and engine-oil flow charts, kit radiator plumbing, and oil catch-tank installation.

• Brakes and chassis: Master-cylinder and caliper repair, front-fork overhaul, rear-suspension service, swingarm and steering-head work, plus wheel and final-drive repair.

• Electrical troubleshooting: Charging and ignition tests, starter repair, meter diagnosis, immobilizer key registration on equipped models, and region-specific wiring diagrams.

• Competition engine setup: Manual cam-chain tensioner adjustment, adjustable cam-sprocket timing, valve-to-piston and squish checks, cylinder-head finishing, and kit connecting-rod bolt stretch control.

The base manual is written primarily for trained mechanics in a properly equipped shop; owners with basic mechanical and workshop knowledge can use its basic maintenance and repair coverage, while difficult kit work calls for a tuning shop.

Frame Numbers and Kit Applicability

C1 starting frames: JKAZXCC1□4A000001, JKAZXT00CCA000001, or ZXT00C-000001.

C2 starting frames: JKAZXCC1□5A020001, JKAZXT00CCA020001, or ZXT00C-020001. The square represents a character that varies by machine.

The racing publication contains kit information only and directs original-model work back to the included base service manual. Its parts list is marked for the 2005 ZX1000-CR2, an important distinction when selecting kit information for a 2004 motorcycle.

With both PDFs present, a technician can move from standard disassembly, inspection, and reassembly procedures into the kit-specific installation, selection, and tuning data.

Engine Repair and Competition Setup

C2 parts matching: The November 20, 2006 Technical Newsflash supplies a matching table for crankcases, crankshafts, clutch housing gears, and alternator gear assemblies. This helps identify compatible replacement parts before a C2 engine rebuild.

Camshafts and compression: The racing manual identifies standard and kit camshafts, explains round-hole versus slotted cam-sprocket use, and documents clearance checks after timing changes, thinner gaskets, or cylinder-head machining. It covers combustion-chamber finishing and four head-gasket thickness choices.

The parts-selection data covers kit pistons, rings, pins, connecting rods, rod bolts, and color-coded crankpin bushings, tying each choice to inspection or matching information.

The manual warns that forcing the manual cam-chain tensioner can increase friction and damage its guide, while inadequate valve-to-piston clearance after timing, head, or gasket changes can cause direct contact.

Clutch and Transmission Setup

The clutch section relates clutch-pack length to three spring-retainer heights and explains how effective spring-plate stroke is measured and tracked as the friction plates wear.

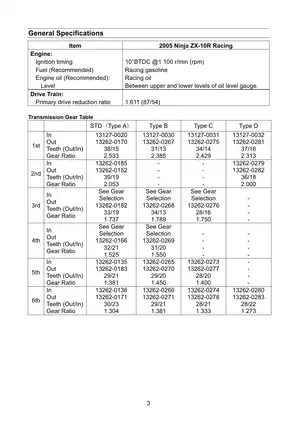

Transmission tables identify standard Type A and racing Type B, C, and D ratios, individual gear P/Ns, identification slits, and compatible 3rd/4th input gears. Shim choices and dog-length adjustment guidance supplement the base manual’s transmission disassembly and shift-mechanism repair procedures.

Cooling and Race Alternator Installation

Cooling pages distinguish the kit main radiator from the main-plus-sub-radiator configuration, show the water-pipe changes and additional temperature sensor, and state that the original radiator cannot be combined with the kit sub-radiator. Oil catch-tank mounting and hose routing are illustrated as well.

The kit alternator chapter covers the reduced-inertia alternator, matching regulator and sub-harness, starter-retention and starter-delete arrangements, and the parts used to seal the original generator openings.

DFI Circuits and Race Wiring

The DFI chapter explains service-code reading and fault-memory behavior after repair. The DFI Diagnosis Flow Chart and Terminal Numbers of ECU Connectors support circuit-level fault tracing.

Regional wiring separates United States, Canada, and Kuwait models from other versions. Immobilizer diagnosis and key registration apply to equipped models.

Kit electronics: The ECU section identifies auto-shift, pit-lane engine-speed limiter, and shift-indicator functions. Electrical installation material maps compatible main harnesses, throttle-body sub-harnesses, relay boxes, original or kit meters, switch wiring changes, and auto-shifter connections.

The Wiring Diagram (with Original Meter) and Wiring Diagram (with Kit Meter) document the two arrangements. ECU function setup is covered by the separate Kawasaki FI Calibration Tool Instruction Manual, which is not included in this set.

Chassis Adjustments and Race Hardware

Front-fork service distinguishes C1 and C2 oil capacities and levels. Race chassis sections cover quick-action throttle reels, #520 final-drive components, racing brake-pad choices, Öhlins SD2005 steering-damper installation, seat-height spacers, and multiple fork-spring rates.

Installation cautions address the steering damper acting as the steering stop and radiator contact with the tire, fork, or exhaust manifold at full fork compression.

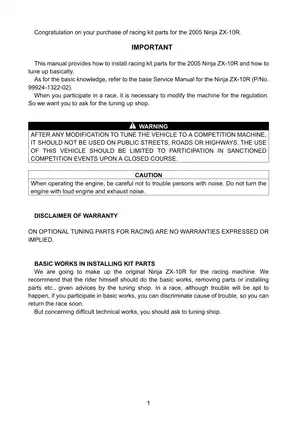

Kawasaki specifies these modifications for sanctioned closed-course competition, not public-road use. Cylinder-head machining, rotating-assembly clearances, clutch setup, transmission shimming, and final electrical configuration should be verified by an experienced racing technician before the motorcycle returns to the track.

Service Data, Tools, and Parts Identification

The manuals provide component-specific torque tables, fluid capacities, wear limits, clearance specifications, electrical test values, and adjustment data. Named Kawasaki tools include the Hand Tester 57001-1394, Clutch Holder 57001-1243, Engine Mount Nut Wrench 57001-1450, and Key Registration Unit 57001-1582.

The Coolant Flow Chart and Engine Oil Flow Chart accompany system descriptions. The appendix adds cable, wire, and hose routing views plus symptom-based troubleshooting.

Illustrated parts plates link Kawasaki part numbers to Camshaft(s)/Tensioner, Crankshaft/Piston(s), Clutch, Transmission Type B/C/D, Generator, Radiator, and Meter(s) assemblies. Clutch and alternator installation drawings and radiator plumbing layouts support the kit procedures.

File Format and Readability

Page breakdown: The service manual is a 600-page PDF, including the one-page Technical Newsflash, 14 blank pages, and one DFI exploded-view placeholder marked “Dummy Page.” Covers and introductory pages are included.

The racing kit manual is an 81-page PDF: 57 numbered manual pages, 19 illustrated parts-list pages, one parts-list divider, two cover pages, and two blank pages. All of these pages are included in the 681-page total.

Text search: Both files contain native PDF text. Diagram lettering embedded in images is not searchable.

Navigation: Service-manual bookmarks cover chapters, procedures, and tables; the inserted Newsflash has no separate bookmark. The racing kit PDF has no bookmarks.

Wiring readability: Small labels in the DFI, U.S./Canada/Kuwait, and original/kit meter wiring diagrams are readable when enlarged; page-fit views make dense wire codes difficult to read.
