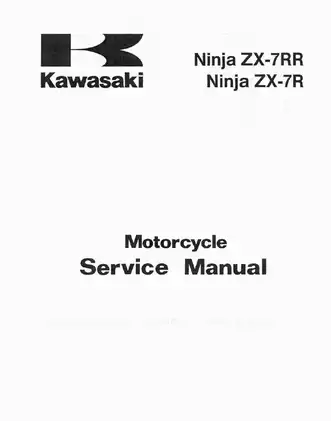

1996–2003 Kawasaki Ninja ZX-7RR / ZX-7R (ZX750) Service Manual (P/N 99924-1193-03)

The Kawasaki Motorcycle Service Manual, Part No. 99924-1193-03, covers the 1996–1999 Ninja ZX-7RR (ZX750-N1/N2) and Ninja ZX-7R (ZX750-P1/P2/P3/P4), with US, Canadian, European, Australian, California, and other regional configurations identified where applicable.

This is a 364-page scanned PDF, including covers, introductory material, the appendix, and blank pages. The page text is not searchable.

• Carburetor service: Separate Keihin FVK-D41 and CVK-D38 synchronization, service fuel-level, cleaning, inspection, and adjustment procedures.

• Engine repair: Compression testing, camshaft and cam-chain service, cylinder-head removal, valve-clearance adjustment, valve-seat repair, piston inspection, and engine removal and installation.

• Clutch and transmission: Hydraulic clutch service, torque-limiter spring-plate free-play measurement and adjustment, crankcase splitting, crankshaft and connecting-rod work, six-speed transmission disassembly, and starter-clutch repair.

• Cooling and lubrication: Cooling-system pressure testing and bleeding, water-pump and thermostat inspection, oil-pressure measurement, and dual-pump lubrication-system service.

• Brakes and running gear: Caliper repair, brake bleeding, wheel-bearing replacement, final-drive service, steering adjustment, N/P fork procedures, and Uni-Trak rear suspension work.

• Electrical diagnosis: Charging, ignition, and starting tests; fuel-pump and radiator-fan fault tracing; junction-box checks; and regional ZX750N/ZX750P wiring diagrams.

• Factory reference data: Chapter-opening exploded views, troubleshooting charts, torque tables, fluid capacities, wear limits, pressure-test data, electrical test values, and specified service tools.

Written primarily for trained mechanics in properly equipped shops, the manual also supports basic owner maintenance and repair where mechanical knowledge, proper tool use, and workshop practices are understood; work beyond the owner's experience is directed to qualified mechanics.

Model Codes and Beginning Frame Numbers

The model-application table gives these starting references; □ represents a variable digit. Alternate regional frame-number formats are also tabulated.

Model coverage ends with the 1999 ZX750-P4.

N- and P-Series Carburetor Service

The N-series flat-slide carburetors use accelerator pumps; the P-series constant-vacuum units use vacuum pistons. Their separate synchronization and fuel-level procedures help prevent applying one carburetor's setup method to the other.

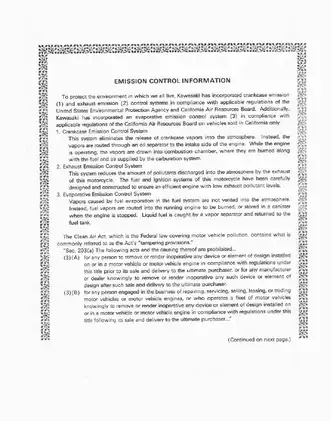

Fuel-system repair extends to throttle and choke cables, carburetor removal and separation, pilot settings, US high-altitude specifications, fuel-pump testing, filters, tank and tap inspection, and California evaporative-emission equipment.

The cleaning cautions explain how compressed air applied to an assembled carburetor can crush floats and damage vacuum-piston diaphragms.

Engine Internals and Transmission Repair

Top end: Cam timing, valve-guide replacement, and seat cutting are supported by valve-clearance shim-selection charts, piston-ring checks, and cylinder measurements. The cam-chain section warns that crankshaft rotation with the tensioner removed can disturb timing and damage valves.

Lower end: Crankcase assembly covers bearing selection and clearance checks, connecting-rod installation, and the alternator-shaft drive. Transmission work includes the shafts, shift drum and forks, external shift mechanisms, and final operating checks.

Cooling and Oil-System Service

Water-pump coverage addresses removal, installation, and inspection; a damaged mechanical seal calls for pump-unit replacement. Thermostat test specifications distinguish ZX750-P2 models for Germany, France, Italy, Switzerland, and the U.K.

Oil-system repair covers the cooler, pan, relief valves, and main and sub-oil-pump rotors. The Coolant Flow Chart and Engine Oil Flow Chart show the associated circuit paths.

Brake Hydraulics, Forks, and Uni-Trak

Hydraulic clutch and brake procedures cover fluid replacement, line bleeding, master-cylinder disassembly, and clutch slave-cylinder disassembly. Brake coverage extends to caliper repair, pad replacement, and disc inspection.

Separate ZX750N and ZX750P fork disassembly and assembly sections provide oil-level, damping, and preload data. Rear-shock coverage addresses adjustment, removal, and installation rather than internal overhaul. Swingarm bearings, tie rods, and the rocker arm have their own service procedures.

Electrical Tests, Diagrams, and Special Tools

Alternator and battery diagnosis includes charging-fault tests and internal alternator inspection. Pickup and ignition coils, the IC igniter, starter motor, gauges, switches, relays, diodes, and fuses have component-specific checks.

ZX750N throttle-switch and fuel-enricher solenoid-valve tests address its additional fuel-control hardware. The Fuel Pump Circuit, IC Igniter Troubleshooting chart, and Junction Box Internal Circuit supplement the regional wiring diagrams.

The appendix's symptom-based troubleshooting covers starting, ignition, carburetion, overheating, clutch and transmission faults, abnormal noise, handling, braking, and battery problems.

Specified tools include Fuel Level Gauge 57001-1017, Clutch Holder 57001-1243, Fork Oil Level Gauge 57001-1290, Crankcase Splitting Tool Assembly 57001-1362, and Hand Tester 57001-1394. Replacement-part listings belong to the separate Parts Catalog.

Follow Kawasaki's safety procedures and protective-equipment requirements for fuel-system work, pressurized cooling tests, hydraulic brakes, engine handling, and electrical diagnosis.

File Format and Readability

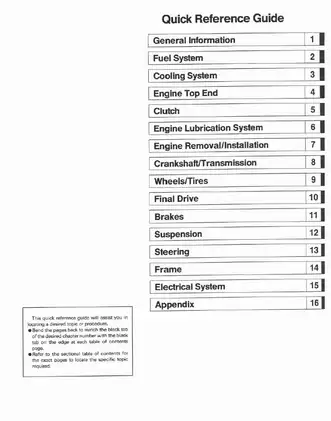

Included pages: 331 technical service pages, a 10-page appendix, eight pages of covers and introductory material including the model-application table, and 15 pages blank apart from headers or print-through. All count toward the 364-page total. The unnumbered ZX750N exploded-view page and the Additional Standard Tires (ZX750P) sheet are already included in the technical pages.

Navigation: All 364 PDF bookmarks use numbered image filenames rather than chapter or component names.

Wiring diagrams: The full wiring diagrams span paired pages. Small wire codes need enlargement, and the finest lettering is pixelated. Some scans show print-through from the reverse side.
