Kawasaki EN450 / 454LTD 1984–1990 Factory Service Manual (P/N 99924-1056-02)
234 Pages • ZIP Download: 1 Printable PDF (English)
Kawasaki Models Covered & Key Technical Specifications
Models & Model Codes: EN450 / 454LTD (EN450A-A1, EN450A-A2), EN400 (EN400A-A2)
Model Years: 1984–1990 (1984, 1985, 1986, 1987, 1988, 1989, 1990)
-
Engine oil refill (no filter change): 2.8 L
-
Engine oil refill (with filter change): 3.0 L
-
Front fork oil capacity: 355 ± 2.5 mL (approx. 300 mL at oil change)
-
Idle speed: 1,200 ± 50 rpm
-
Cooling system capacity: 1.4 L
-
Radiator cap relief pressure: 73.5–103 kPa (11–15 psi)
-
Valve clearance (intake, cold): 0.13–0.18 mm
-
Valve clearance (exhaust, cold): 0.18–0.23 mm
-
Clutch lever free play: 2–3 mm
-
Swingarm pivot nut torque: 9.0 kg-m
Kawasaki Manual Features & Selected Content Preview

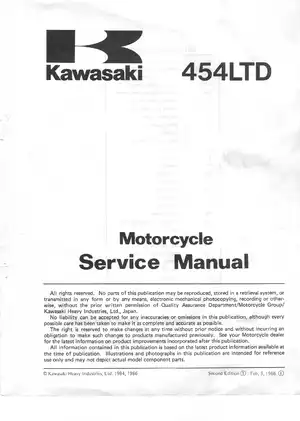

Kawasaki’s 454LTD Motorcycle Service Manual (P/N 99924-1056-02) is the second edition, dated February 3, 1986. It covers the EN450 and gives separate EN400 specifications where applicable, including EN400-A2 carburetor and compression data.
PDF Navigation and File Details
Bookmarks, text search, and wiring labels. Embedded bookmarks lead to the repair chapters and appendix. PDF text search is unavailable. The starter-circuit diagram has clear connector and wire-color labels. On the full-bike diagrams, small labels require zooming, and some remain faint.

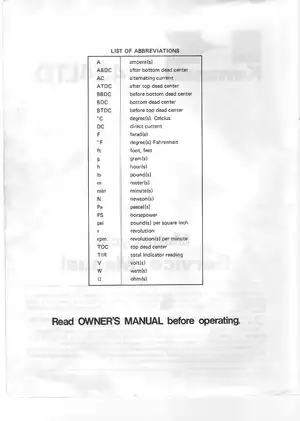

The ZIP contains one printable PDF with 234 pages, including seven front-matter pages and a ten-page appendix. The repair material runs from Chapter 2 through Chapter 16. The General Information chapter listed in the quick reference guide and later model-year supplements are outside the scope of this download.
Engine Overhaul, Belt Drive, and Electrical Diagnosis
The topics below are selected workshop procedures. The manual also covers fuel-tap inspection and headlight aiming.
- Carburetors and emissions. Remove, separate, and clean the Keihin CVK34 carburetors, adjust fuel level, and check vacuum and butterfly synchronization. U.S. high-altitude jetting, Clean Air System checks, and California evaporative-emissions tests are included.
- Cylinder head and pistons. Measure compression, check camshaft and cam-chain wear, set valve clearance, and inspect valve guides and seats. Procedures cover cylinder-head disassembly, cylinder inspection and reconditioning, and piston and ring service.
- Clutch, crankcase, and transmission. Remove and install the engine, split the crankcase, and service the clutch, starter clutch, and balancer. The manual covers crankshaft and connecting-rod inspection, bearing-insert selection, transmission shafts, and shift drums and forks.
- Cooling, lubrication, and final drive. Pressure-test and refill the cooling system, service the water pump and mechanical seal, and check oil pressure, the oil pump, and its relief valve. Belt-drive procedures cover tension, alignment, wear, pulleys, and the coupling.
- Wheels, brakes, and chassis. Service tubeless tires and wheel bearings, overhaul the front caliper and master cylinder, bleed the hydraulic brake, and inspect the rear drum brake, fork, rear shocks, swingarm, and steering-stem bearings.
- Starting, charging, and ignition. Use the circuit diagrams and test procedures to check the starter motor and relays, alternator, regulator/rectifier, ignition and pickup coils, and IC igniter. Separate diagrams cover the cooling fan, water-temperature gauge, and automatic turn-signal cancellation.
This manual is suited to experienced mechanics and technicians using precision measuring tools, electrical meters, pressure and vacuum gauges, and model-specific pullers and drivers.
Market-Specific Fuel and Wiring Details
The carburetor table distinguishes U.S., Canadian, U.S. high-altitude, and EN400-A2 settings. It also identifies the sealed U.S. pilot-screw setup. For California models, the manual includes hose and canister inspection and a vapor-separator operation test.
The electrical chapter provides separate full-bike wiring diagrams for U.S./Canadian models and other markets. For a no-crank fault, the starter schematic identifies the starter lockout switch, neutral switch, and relays, so you can trace the control circuit alongside the component tests.
Factory Tools, Assembly Notes, and Troubleshooting

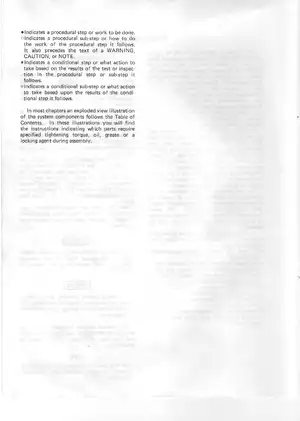

Chapter-opening exploded views identify torque points and where to use oil, grease, liquid gasket, or threadlocker. The appendix groups faults by symptom, including starting and running problems, overheating, shifting faults, abnormal noise, handling, charging, and braking. It also includes lubrication points, fastener checks, a standard torque table, and unit conversions.
Specified tools include Kawasaki Vacuum Gauge 57001-1198, Compression Gauge 57001-221 with Adapter 57001-1183, Valve Seat Cutter Set 57001-1110, Oil Pressure Gauge 57001-164 with Adapter 57001-1209, Belt Tension Gauge 57001-1155, and Hand Tester 57001-983.
Assembly notes identify the reset requirement for the non-return cam-chain tensioner after loosening its mount and the left-hand thread on the alternator rotor bolt. The rotor section also warns against striking the rotor or puller bar.
Brake hydraulic work, engine removal, and steering or suspension disassembly require secure support and careful observance of the manual’s warnings. Complete the specified post-assembly checks before returning the motorcycle to service.
Cam-Chain Wear and Oil Pressure Examples
The engine top-end table lists a standard cam-chain length of 127.0–127.4 mm across 20 links and a service limit of 128.9 mm. The lubrication chapter specifies an oil pressure of 275–335 kPa at 4,000 rpm with the oil at 90°C (194°F).
