Honda FL400R Pilot 1988 Service & Repair Manual

This Honda FL400R Pilot service manual covers maintenance, troubleshooting and repair across 22 numbered sections, from engine and drivetrain work to chassis and electrical diagnosis.

Printable PDF, Chapter Bookmarks and Wiring Detail

Search, navigation and diagrams: PDF text search is not available. Embedded bookmarks link to the contents and all 22 numbered sections. Small labels in the wiring diagram are readable with zoom.

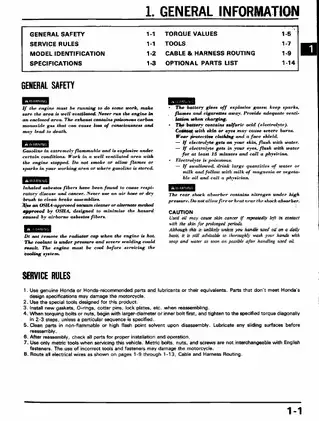

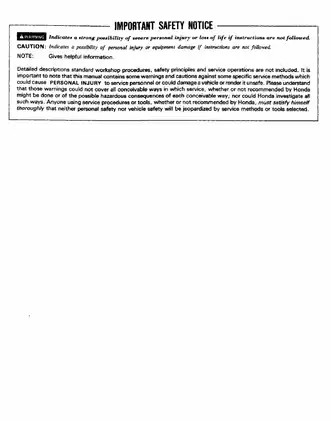

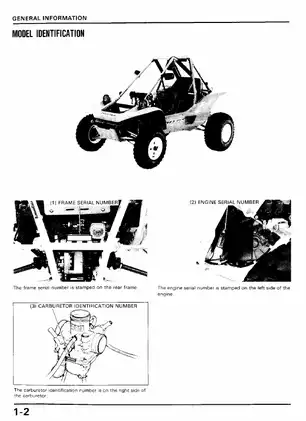

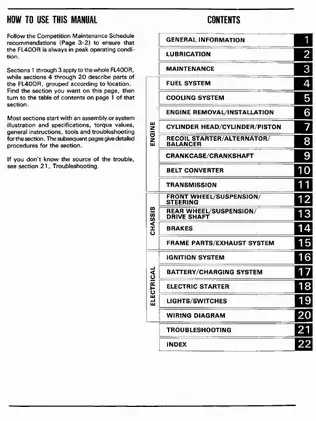

One printable English-language PDF contains 262 pages, including the cover, safety notice, contents page and eight memo pages.

Two-Stroke Engine, Belt Converter and Chassis Service

These selected service topics show the manual’s repair coverage rather than its full contents. Other documented work includes recoil-starter rebuilding and exhaust-system removal.

• Engine repair: Engine removal and installation, cylinder-head and piston servicing, crankcase separation, crankshaft inspection and balancer assembly.

• Fuel system: PE34A piston-valve carburetor disassembly, float-level adjustment, temperature and altitude settings, fuel-pump testing and reed-valve inspection.

• Cooling system: Radiator-cap and system pressure tests, coolant replacement and bleeding, cooling-fan service and water-pump mechanical-seal replacement.

• Belt converter: Drive-belt replacement, drive and driven pulley disassembly, spring and roller inspection, lubrication and reassembly.

• Transmission and torque limiter: Gearcase teardown, gear and bearing inspection, clutch-disc and plate checks, shift-lever service and control-cable adjustment.

• Suspension, steering and brakes: Double-wishbone suspension service, wheel-bearing replacement, steering alignment, hydraulic brake repair, bleeding and parking-brake adjustment.

• Electrical troubleshooting: DC-CDI ignition diagnosis, charging-system tests, starter-motor overhaul, switch checks and a complete wiring diagram.

This manual suits mechanically qualified owners and technicians with appropriate workshop equipment; Honda’s maintenance schedule reserves designated safety-related work for an authorized Honda dealer.

Engine Rebuilds and Assembly Details

Step-by-step instructions cover crankcase separation and reassembly, with crankshaft-bearing installation tools, connecting-rod checks and component-specific wear limits. Cylinder and piston selection charts distinguish matching size codes before replacement parts are chosen.

The balancer section identifies the drive-gear nut’s left-hand thread, which matters when avoiding thread damage. The cylinder-installation caution explains how rotating the cylinder can catch and break the piston rings.

Carburetor Settings and Cooling-System Diagnosis

Carburetor illustrations identify the jets, throttle valve and coolant connections. The float-level gauge view specifies tool 07401-0010000, while a separate chart relates jetting and needle settings to temperature and altitude.

The cooling-system flow diagram shows the radiator, reserve tank, fan and water-pump connections. Water-pump instructions distinguish mechanical-seal leakage from other coolant leaks and illustrate seal, bearing and oil-seal replacement.

Drivetrain, Suspension and Hydraulic Brakes

Torque-limiter coverage extends to clutch-disc thickness, plate warpage and spring condition. Transmission illustrations identify the forward and reverse gear components, shift fork and bearing arrangements. Lubrication guidance includes an oil-viscosity chart for the balancer and transmission.

Front suspension instructions cover shock-spring removal and spherical-bearing replacement. Rear drive-shaft procedures include inboard-joint and boot service; the outboard joint cannot be disassembled, and a worn or damaged joint requires drive-shaft replacement.

Front drum-brake details cover wheel cylinders and shoe adjusters. Rear-disc instructions address caliper rebuilding and the parking-brake shaft, with separate master-cylinder inspection and hydraulic bleeding procedures.

For safety, always ensure the machine is fully secured and stabilized prior to initiating any diagnostic work. Pulley disassembly also involves spring-loaded components and the specified holding or compression tools.

Electrical Fault Isolation and Harness Routing

The troubleshooting charts help trace starting and running complaints through fuel delivery, compression and ignition checks. Weak-spark diagnosis separates harness connections, the ignition coil, pulse generator and CDI unit, supporting fault isolation before replacement parts are selected.

Cable and harness routing drawings complement the circuit information. Electrical sections also address the starter’s neutral-switch circuit and the coolant/fuel warning system, including its sensors and timer unit.

Examples of Assembly Torques and Carburetor Settings

The engine assembly data specifies 27 N·m for the cylinder-head nuts and 55 N·m for the engine-transmission connecting bracket bolts. The left-hand-thread balancer drive-gear nut has a specified torque of 120 N·m.

For the PE34A carburetor, the float-level adjustment section specifies 16.0 mm (0.63 in), alongside the measuring illustration and gauge identification.
