Honda CBR1100XX FI 1998–2008 Service Manual Set (P/N 61MAT53)

The publications share the core service layout but differ in market equipment and electrical systems. Use the issue-specific procedures and diagrams for the motorcycle being serviced.

Later-model supplements are not included. This set should not be treated as blanket 2003–2008 coverage.

PDF Search, Bookmarks, and Wiring Detail

Search and diagram access: The service pages in both PDFs lack text search. Both have chapter bookmarks, although the October 1998 file also contains legacy menu/setup entries without usable page targets. Small wiring labels require zooming; the 1999–2002 wiring diagrams have faint detail in places.

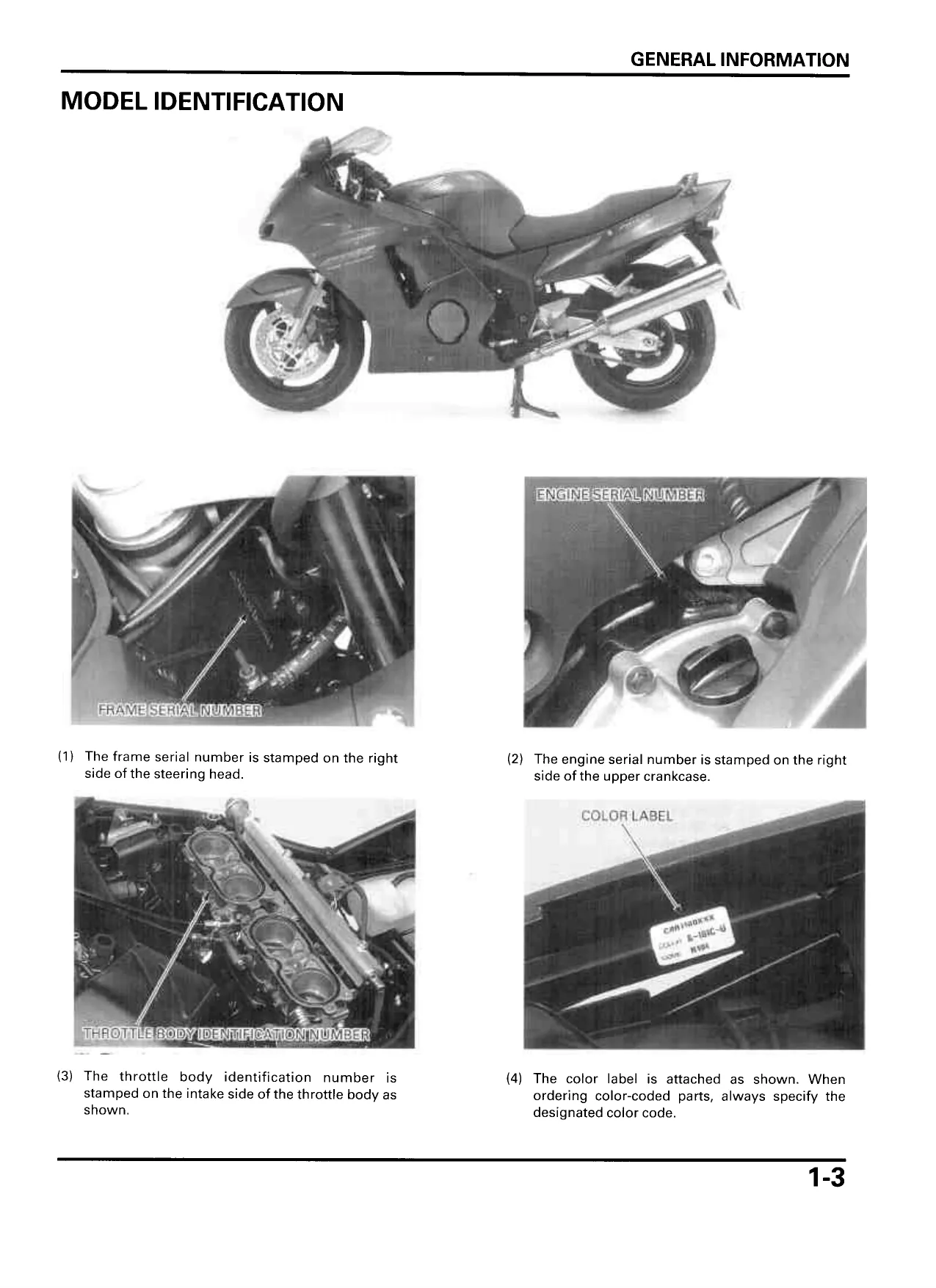

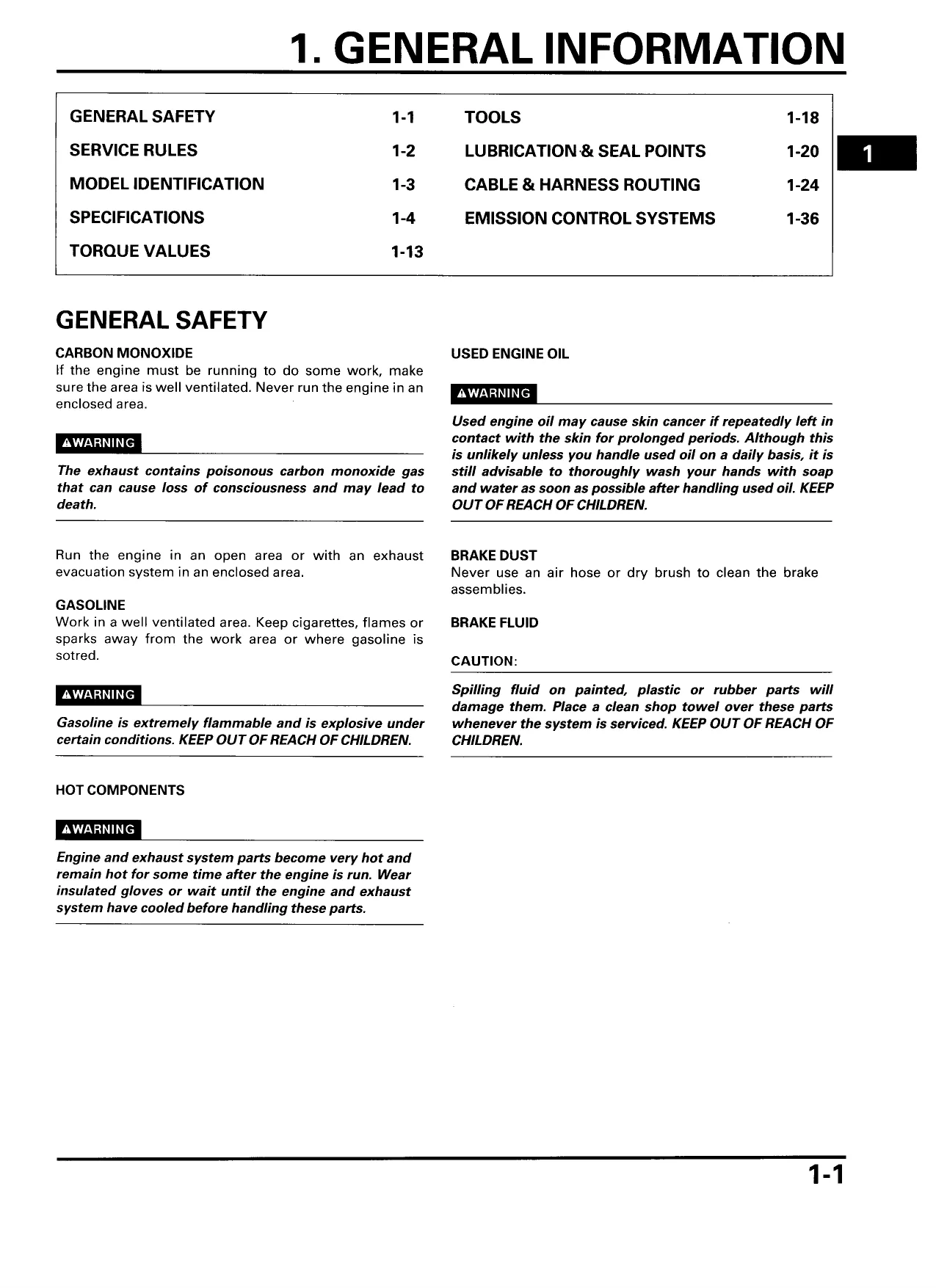

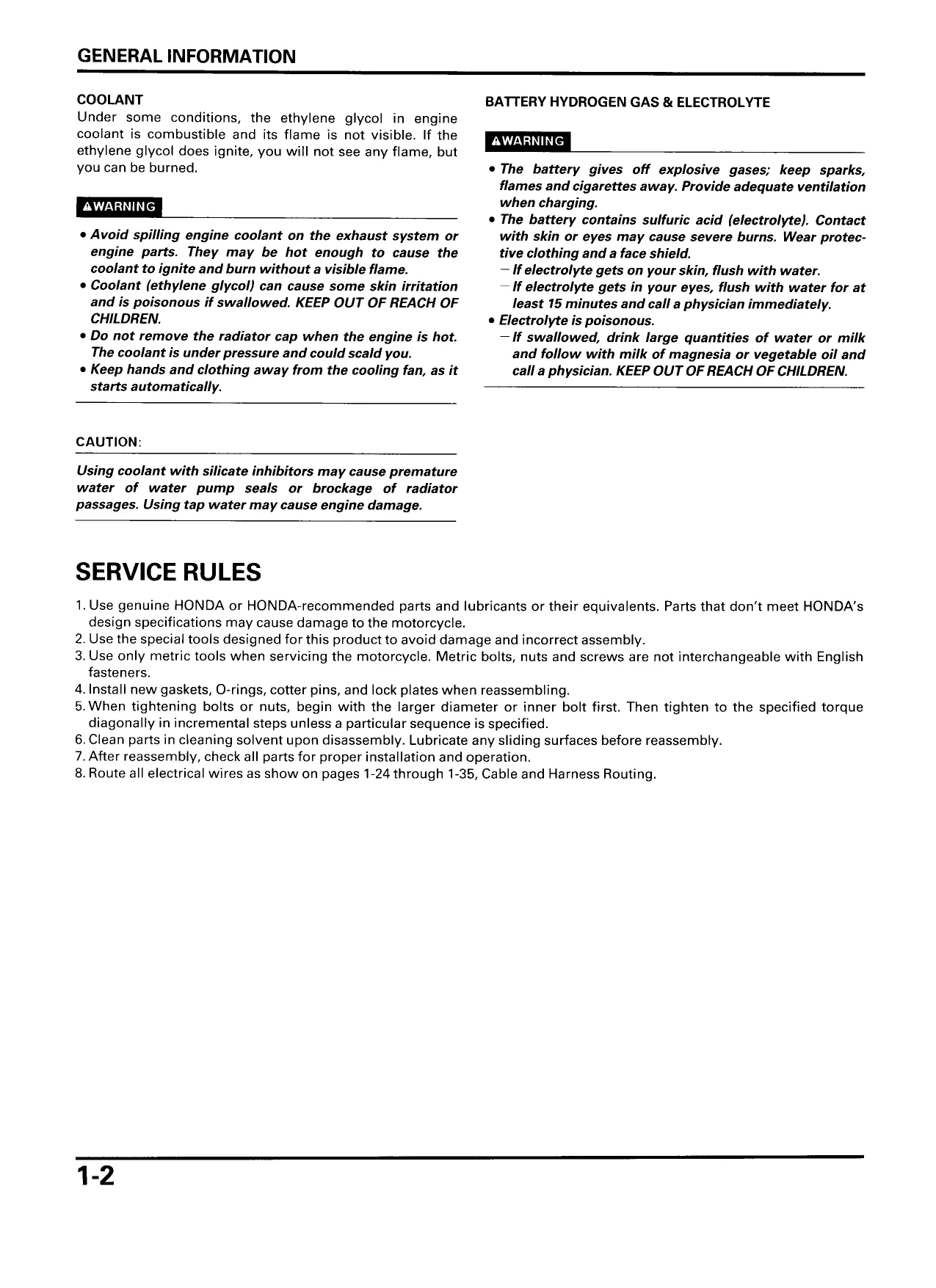

The ZIP contains two printable English PDFs totaling 1,076 pages. That total includes two introductory pages and a one-page printing guide in the October 1998 file, plus the cover, one introductory page, one blank page, and six memo pages in the 1999–2002 file.

Engine, PGM-FI, and Linked-Brake Repair

The following selected coverage highlights major workshop tasks rather than reproducing the complete contents. Other topics include body-panel and exhaust-system removal, plus drive-chain replacement and riveting.

• Engine repair: Engine removal, cylinder-head and camshaft work, valve-guide and valve-seat repair, crankcase separation, pistons, transmission, shift forks, balancers, clutch hydraulics, alternator, and starter clutch.

• PGM-FI diagnosis: Warning-code fault charts, fuel-pressure and pump tests, injector and throttle-body service, starter-valve synchronization, fast-idle wax-unit checks, and ECM, relay, and sensor testing.

• Lubrication and cooling: Oil-pressure testing, oil-pump inspection, cooling-system pressure tests, thermostat inspection, coolant replacement, radiator service, and water-pump removal and installation.

• Chassis and linked brakes: Fork and steering repair, rear suspension and swingarm work, plus dedicated bleeding, master-cylinder, proportional control valve, delay-valve, and caliper procedures.

• Electrical diagnosis: Wiring diagrams, connector and cable-routing views, charging, ignition and starter tests, lights/meters/switches coverage, and immobilizer diagnosis and key registration where applicable.

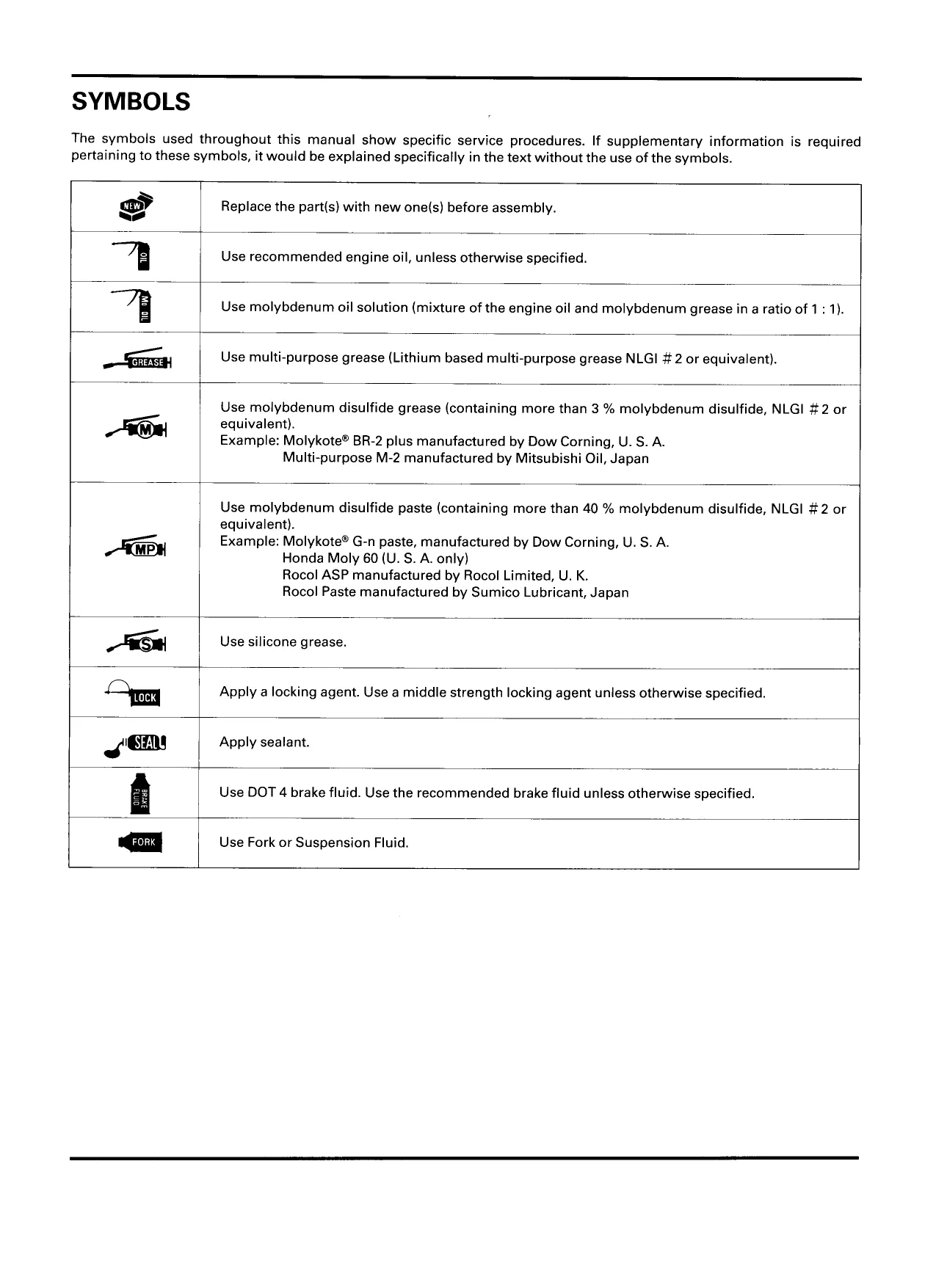

• Factory service data: Exploded views, torque tables, fluid capacities, standard and service limits, bearing-selection data, electrical specifications, and Honda special-tool numbers for inspection and reassembly.

This material is suited to readers with basic motorcycle-maintenance knowledge who can use the specified workshop tools and electrical test equipment.

Engine Access and Internal Repair

Step-by-step procedures cover camshaft timing, cam-chain tensioner service, cylinder and piston inspection, and crankshaft and connecting-rod bearing selection. Color-code tables and clearance checks support selection of replacement bearing inserts.

The manuals distinguish work that can be performed with the engine in the frame from work requiring removal. Camshaft service is separated from full cylinder-head removal; crankshaft/transmission, piston/cylinder, and rear-balancer repair are engine-out operations.

That distinction is useful when estimating labor, arranging engine support, and ordering parts before teardown.

PGM-FI Fault Isolation and Throttle-Body Service

Honda’s fault charts connect warning-indicator blink patterns with pressure and temperature inputs, throttle-position and bank-angle sensors, cam-pulse and knock-sensor circuits, ECM faults, and PAIR controls. System-location drawings and exploded views support vacuum routing, fuel-line service, and sealing-point inspection.

The throttle-body bores are molybdenum coated, and commercial carburetor cleaner can damage that surface. Disturbing factory-marked screws can upset throttle and idle-valve synchronization.

Market Equipment and Immobilizer Differences

North American configurations: The 1999–2002 publication distinguishes ’99 and After ’99 PGM-FI layouts, component locations, and vacuum-hose routing. It separates 49-state/Canada equipment from California EVAP controls and the After ’99 California O2-sensor and heater circuits.

Year-specific procedures also address combination meters, cooling-fan controls, fuel-level sensors, relays, fuse boxes, and harness routing. These distinctions help prevent selection of the wrong wiring diagram, connector test, throttle-body procedure, or replacement part.

Immobilizer coverage: The October 1998 issue contains transponder-key registration, diagnostic-code charts, ECM and receiver checks, and required-part combinations, excluding U and BR types. Its standalone wiring diagram is labeled U type.

Impact, heat, or prolonged water exposure can damage a transponder key. If every registered key is lost, the ECM and transponder keys must be replaced.

Linked Hydraulics, Suspension, and Electrical Testing

The Dual Combined/Linked Braking System sections distinguish lever, pedal, and secondary-master-cylinder circuits. Dedicated bleeding layouts accompany hose routing, pad and disc inspection, and operational checks. Disassembling the secondary master-cylinder pushrod can prevent correct brake operation.

Rear-shock work covers removal, external inspection, and replacement as an assembly, alongside linkage and swingarm bearing service. Wheel-bearing, tire, alignment, and steering-stem procedures support chassis inspection and reassembly.

Electrical coverage extends to alternator and regulator/rectifier testing, ignition peak-voltage checks, coils, pulse generators, starter-motor overhaul, starter relays and diodes, pressure switches, and control relays.

Visual references include PGM-FI location and circuit diagrams, lubrication routing, the cooling-system flow pattern, linked-brake hydraulic and bleeding layouts, and ignition and charging schematics.

Workshop Tools and Service Precautions

Honda tool references include fuel-pressure gauge 07406-0040002 and peak-voltage adapter 07HGJ-0020100. Mechanical work specifies valve-spring compressor 07757-0010000 with attachment 07959-KM30101 and steering-stem socket 07916-3710101; applicable immobilizer procedures use inspection adapter 07XMZ-MBW0100.

Fuel-pressure work, hot cooling-system service, engine support, linked-brake repair, and electrical testing carry real risk. Use the correct year and market section, Honda-specified tools and fluids, and complete the manual’s leak, brake-function, charging, and roadworthiness checks before returning the motorcycle to service.

Valve-Clearance and Thermostat Data Preview

For the covered CBR1100XX, valve-clearance specifications are 0.16 ± 0.03 mm intake and 0.22 ± 0.03 mm exhaust, checked with the engine cold, below 35°C (95°F). The maintenance section relates these measurements to shim selection.

The cooling-system inspection specifies that the thermostat begins opening at 80–84°C (176–183°F), alongside its condition and operating-response checks.
