Honda CBR900RR 1998 Service & Parts Manual Set (P/N 62MAS00)

The two service manuals overlap in their core mechanical chapters but retain different regional specifications, emissions systems, wiring, and update material. The parts file adds assembly-level identification and hardware references.

Coverage limits: No 1999-specific service edition or parts file is included. The W-model addendum supplements the base manual and also refers to Addendum 62MAS00Z for procedures and data it does not repeat. Its full-vehicle wiring coverage consists of the U-type sheet; it does not supply a complete collection of W-model regional wiring sheets.

PDF Search, Bookmarks, and File Contents

Finding text and diagram details: Text search is unavailable in both service PDFs. The North American manual has chapter bookmarks; the international manual has none. Parts lists support text search, while drawing callouts do not; the parts PDF has a cover bookmark only. Small wiring labels in both service PDFs require zooming.

The ZIP download contains three printable English PDFs totaling 965 pages: the North American service manual, the international shop manual with its embedded news bulletin and W-model addendum, and the parts file. Covers, introductory material, index pages, memo pages, and the two parts-file illustration placeholders are included in these totals.

Engine, Chassis, Electrical, and Parts Coverage

The following selected contents highlight the repair and reference material. Further topics include drive-chain replacement and body-panel/exhaust removal.

• Engine and valvetrain: Step-by-step procedures for engine removal and installation, cylinder-head disassembly, camshaft timing, valve-clearance and shim work, valve-guide replacement, valve-seat service, and compression testing.

• Internal engine and drivetrain: Crankcase separation, piston and cylinder inspection, crankshaft bearing selection, transmission repair, clutch and gearshift-linkage service, shift-drum/fork checks, and alternator/starter-clutch work.

• Carburetors and emissions: Carburetor-bank separation and assembly, float inspection, synchronization, pilot-screw adjustment, and PAIR/evaporative-emissions diagnosis where fitted.

• Lubrication and cooling: Oil-pressure testing, oil-pump and oil-cooler service, cooling-system pressure checks, thermostat inspection, radiator and water-pump work, coolant replacement, and air bleeding.

• Chassis and brakes: Front/rear wheel-bearing service, fork disassembly and seal replacement, steering-stem work, rear-shock spring removal, linkage/swingarm repair, brake bleeding, and front/rear caliper and master-cylinder overhaul.

• Electrical diagnosis: Charging-system checks, ignition peak-voltage testing, starter diagnosis, speedometer/tachometer inspection, switch and sensor tests, cable/harness routing, troubleshooting charts, and regional wiring diagrams.

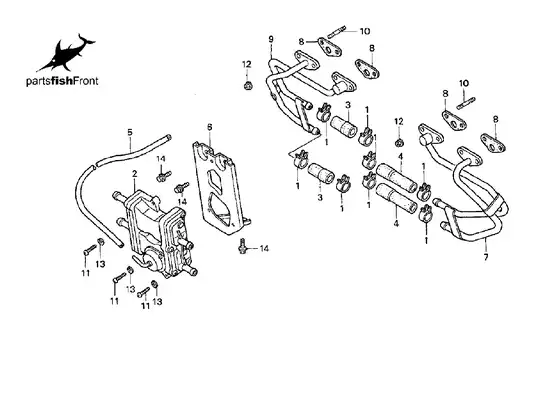

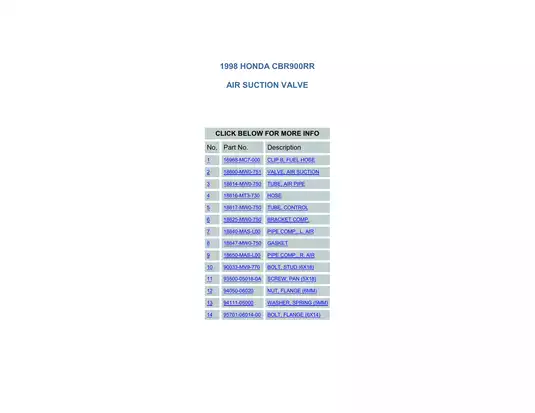

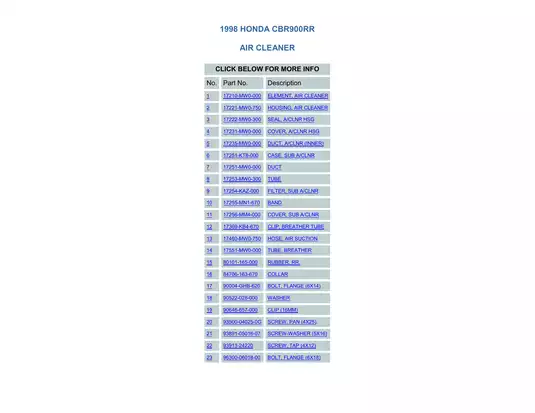

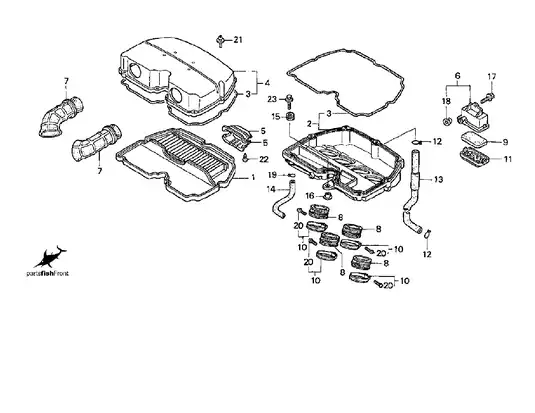

• Parts identification: 59 assembly groups with 57 exploded-view drawings, matching callouts, Honda part numbers, and component descriptions; both gasket-kit groups have lists without illustrations.

Honda states that the shop manuals are written for people with basic knowledge of Honda motorcycle maintenance. Because standard workshop methods and safety principles are not re-taught, the material is suited to experienced owners and technicians with metric tools, test equipment, and safe support arrangements.

Regional Specifications and Cooling Updates

The North American manual separates 1996–1997 data from after-1997 changes and distinguishes 49-state/Canada equipment from California versions. Differences affect carburetor identification and setup, PAIR and evaporative-emissions equipment, suspension data, instruments, and electrical components.

The international type tables distinguish the export configurations listed above. These regional distinctions help match carburetor settings, emissions checks, and electrical tests to the machine before procedures or replacement parts are selected.

The April 1997 Shop Manual News covers the cooling layout fitted with a bypass tube between the water-pump cover and cylinder head. It supplies the related routing and cooling-flow drawings plus water-pump and cylinder-head service information.

Engine Access and Workshop Tools

Cylinder-head, valve, and camshaft service can be performed with the engine in the frame. Crankshaft/transmission and piston/cylinder work requires engine removal; internal repair includes bearing-selection tables and Plastigauge clearance checks.

Honda special tools are identified throughout the procedures. Examples include vacuum gauge set 07LMJ-001000A, engine-hanger locknut wrench 07HMA-MR70200, fork seal driver 07KMD-KZ30100, and ignition peak-voltage adapter 07HGJ-0020100.

A dimensioned drawing also supports making the cam-chain tensioner stopper tool used during camshaft work.

Diagrams, Test References, and Parts Detail

Visual references include the cooling-system flow pattern, lubrication-system diagram, battery/charging-system and ignition-system diagrams, regional wiring sheets, and exploded transmission views.

Specification tables cover component-specific torque values, fluid capacities, clearances, wear limits, suspension setup, carburetor data, and electrical test values. Charging diagnosis separates regulated-voltage, current-leakage, alternator-coil, and regulator/rectifier checks.

The parts lists distinguish fastener sizes, clips, collars, washers, and color/type variants. Their drawings show hardware placement alongside the service procedures.

Repair Cautions

The manual warns that mixing up the right and left front engine-hanger bolts can damage the cylinder head. Uneven loading of the camshaft-holder bolts can break a holder.

Its safety sections address gasoline, hot coolant, brake-fluid contamination, battery electrolyte, secure motorcycle support, and the nitrogen-charged rear shock. Use the specified support equipment and follow the manual’s cautions before engine, brake, wheel, suspension, cooling-system, or fuel-system work.

Valve Clearance and Synchronization Preview

For the 1998 North American model, the maintenance chapter specifies intake valve clearance of 0.13–0.19 mm and exhaust clearance of 0.22–0.28 mm, checked with the engine cold, below 35°C/95°F. Shim-selection guidance relates measured clearance to replacement-shim thickness.

Carburetor synchronization uses the No. 3 carburetor as the reference, with the other intake-vacuum readings within 20 mm (0.8 in) Hg of that reference at normal engine operating temperature.
