2000 Honda 929RR Fireblade CBR929RR Parts List & Diagrams Manual (P/N 61MCJ01)

• 606 PDF pages across two files — a 488-page English service manual for the 2000–2001 Honda CBR929RR Fireblade and a 118-page parts-reference catalog labeled specifically for the 2000 CBR929RR.
• Engine repair coverage addresses engine removal and installation, compression testing, camshaft and cylinder-head work, valve-guide replacement and seat refacing, cam timing, crankcase separation, piston and connecting-rod inspection, bearing selection, and crankshaft/transmission service.
• PGM-FI and H-VIX diagnosis covers MIL fault-code flowcharts, fuel-pressure and flow testing, injector and sensor checks, starter-valve synchronization, ECM circuits, servo-motor inspection, and EGCV/intake-valve cable adjustment.
• Chassis and brake procedures detail fork disassembly and assembly, wheel- and steering-bearing replacement, swingarm and suspension-linkage service, brake-fluid replacement and bleeding, and master-cylinder and caliper repair.
• Electrical test material covers the battery and charging system, ignition, starter, meters, switches, and sensors, supported by cable and harness routing, system diagrams, connector checks, and component-specific test specifications.

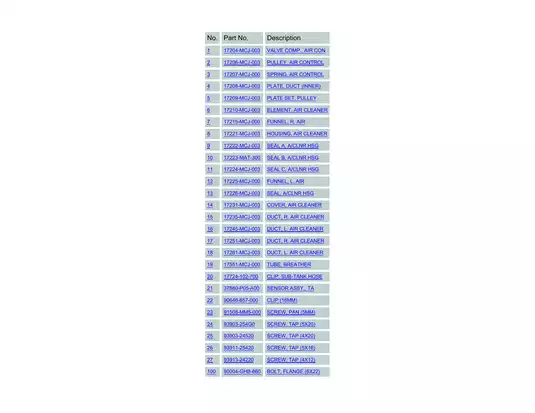

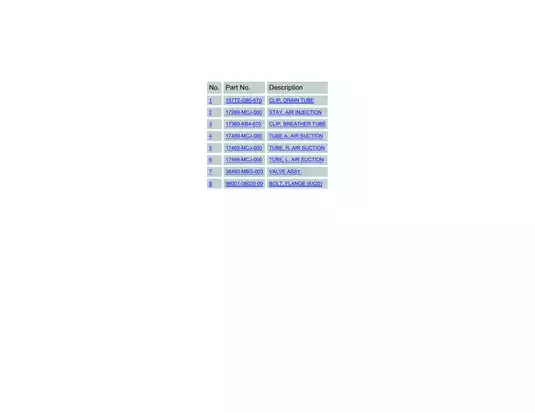

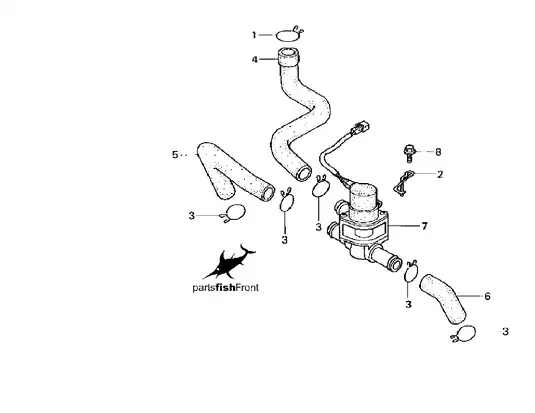

• 58 exploded parts views with matching part-number tables identify engine, fuel, cooling, frame, control, suspension, brake, bodywork, and electrical assemblies down to seals, bearings, fasteners, and subcomponents.

This set pairs workshop repair procedures with the component identification needed for the 929cc liquid-cooled inline-four. It is suited to professional technicians and mechanically qualified owners who are comfortable with metric service tools, precision measurement, pressure testing, and electrical diagnosis. The service manual supplies the repair methods and specifications; the parts PDF is an identification reference, not an assembly guide.

Workshop Scope

The manual identifies which repairs can be completed in the frame and which require engine removal. The alternator, camshafts, clutch, gearshift linkage, oil pump, shift drum and forks, and water pump can be serviced with the engine installed. Crankshaft and transmission work, cylinder-head and valve service, and piston/cylinder repair require the engine to come out.

The internal-engine chapters document cam-chain tensioner service, cylinder-head disassembly and assembly, valve and guide inspection, valve-seat cutting, select-fit connecting-rod and main-journal bearing tables, Plastigage clearance verification, piston and cylinder inspection, and transmission shaft assembly. General and section-specific data provide torque specifications, capacities, pressures, clearances, wear limits, adjustment data, and electrical test values.

Fuel-system material follows the PGM-FI self-diagnostic process from MIL failure codes through circuit and component checks. Separate procedures address the throttle body, injectors, pressure regulator, fast-idle wax unit, starter valves, fuel pump, ECM, and the servo-operated H-VIX intake/exhaust control system. California-only oxygen-sensor and evaporative-emissions components are distinguished from the 49-state/Canada version.

The manual warns that commercial carburetor cleaner can damage the molybdenum coating inside the throttle bores. It also explains that incorrectly positioned crankcase bearing inserts can block oil passages and lead to engine seizure.

Diagrams, Tools, and Scope Limits

Reference drawings include cable and harness routing views, the lubrication-system diagram, PGM-FI layout, cooling-system flow pattern, electrical system diagrams for charging/ignition/starting, and H-VIX operating views. Although those system diagrams are present, the 488-page PDF does not contain a complete machine-wide wiring schematic; buyers who need the full wiring diagram will need it separately.

The special-tool tables identify the fuel-pressure gauge 07406-0040002, clutch-center holder 07724-0050002, fork-damper holder 07YMB-MCF0101, and ECU test harness 07YMZ-0010100, among other application-specific tools. Number 07749-0010000 is listed as a bearing driver for the front- and rear-suspension sections; it is not the publication number of either PDF.

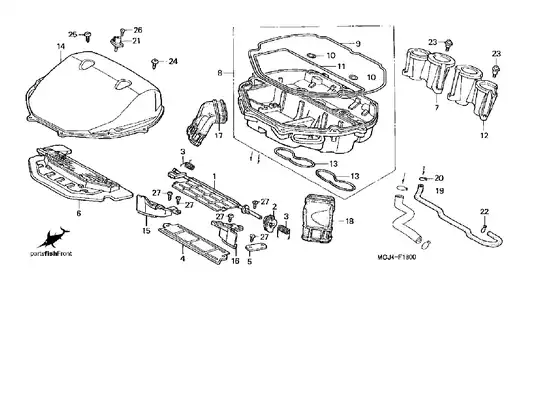

The parts reference adds exploded layouts for assemblies such as the crankcase, cylinder head, clutch, transmission, throttle bodies, fuel pump, radiator, forks, brakes, swingarm, bodywork, and wire harness. Use its tables to identify component and fastener part numbers for the 2000 model, then follow the service manual's torque sequences, safety precautions, and final operational checks during repair. Fuel-system, brake, cooling-system, and engine-support work requires the correct workshop equipment and procedures before the motorcycle is returned to service.
