Honda PC800 Pacific Coast Service Manual | 1989–1990, 1994–1998 (P/N 61MR506)
281 Pages • ZIP Download: Printable PDF • 26.25 MB

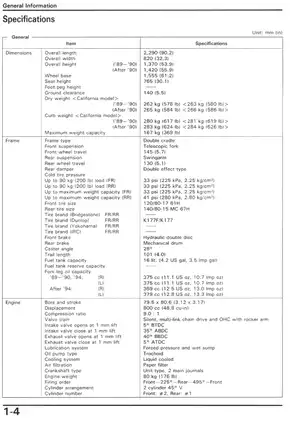

Honda Models Covered & Key Technical Specifications
Model & Model Code: Pacific Coast (PC800)
Sub-models / Variants: Non-California (carburetor ID VDGTA), California (carburetor ID VDGUA)
Model Years: 1989–1990, 1994–1998 (1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998)
-
Engine: 800 cc, 45° V-twin, liquid-cooled
-
Transmission: 5-speed, wet multi-plate clutch
-
Final Drive: Shaft drive
-
Dry Weight: 262–265 kg (non-California models), 263–266 kg (California models), depending on model year
-
Tire Size: 120/80-17 (Front), 140/80-15 (Rear)
-
Idle Speed: 1,200 ± 100 rpm
-
Fuel Tank Capacity: 16 liters (4.2 US gal)
Honda Manual Features & Selected Content Preview
Honda’s PC800 Pacific Coast Service Manual (P/N 61MR506) covers the 1989–1990 and 1994–1998 model years, with separate specifications and procedures where the design changed.
PDF Navigation and Wiring Detail
Finding pages and reading diagrams: The PDF has no text search or embedded bookmarks. Chapter opening pages and the printed index help you find procedures. Small wire codes and connector labels require zooming, and some remain hard to distinguish on the earlier wiring sheets.
The ZIP download contains one printable, 281-page PDF. The original cover is included in that page count.
Engine, Chassis, and Electrical Service
The selected topics below cover major workshop jobs. The manual also covers trunk release cable service and rear shock absorber disassembly.
- Engine removal and top-end repair: Step-by-step procedures cover engine heat cover and subframe removal, engine removal and installation, and work on the cylinder head covers, camshafts, valves, cylinders, and pistons. The manual also covers hydraulic tappet inspection, bleeding, and shim selection.
- Clutch, transmission, and final drive: Service procedures cover the clutch master and slave cylinders, gearshift linkage, crankcase separation, connecting rods, and transmission shafts and gears. The output gear case and shaft final drive have their own disassembly, setup, and reassembly procedures.
- Body, suspension, and brakes: Removal and installation procedures cover the body panels, trunk, fuel tank, and exhaust. Chassis work includes the wheels, fork and anti-dive unit, steering stem, swingarm, front hydraulic brakes, and rear drum brake.
- Fuel, cooling, and lubrication: The manual covers carburetor removal, separation, disassembly, and synchronization, plus U.S.-market pilot screw and high-altitude adjustments. It also details radiator, water pump, thermostat, and oil pump service.
- Electrical testing and repair: Check coverage for the alternator, regulator/rectifier, digital ignition control module, and ignition pulse generator. The manual also covers starter and starter clutch repair, lighting and meter service, switch checks, the fuel pump circuit, and cooling fan controls.
The manual is suited to mechanics and experienced owners who are comfortable with electrical testing and have the measuring equipment and special tools required for their work.
Panel Access and Model-Year Differences

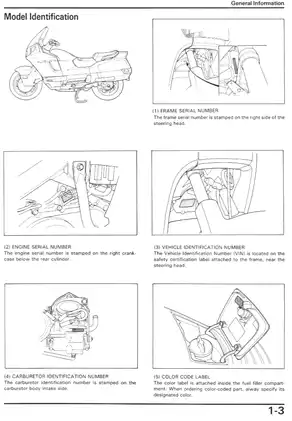

The frame cover removal chart and maintenance service access guide show which panels need to come off for a job. Use them to plan access around the interlocking tabs, grooves, and collars on the windshield and inner panels. Identification drawings show the frame and engine serial number locations, VIN label, carburetor ID stamp, and color-code label.
The manual calls out 1989-specific body and exhaust hardware, changes to fork specifications and gearshift pedal torque after 1994, and changes to fork protectors, swingarm pivot torque, and front brake disc bolt torque after 1996. California models have separate evaporative emissions coverage with canister and numbered vacuum hose routing.
Wiring, Troubleshooting, and Workshop Data
Three main wiring diagrams cover 1989, 1990 and 1994–1996, and after 1996. They include switch continuity tables. The earlier models also have a separate self-canceling turn signal diagram and angle sensor service information. Troubleshooting flowcharts address hard starting or no-start, power loss, poor low- or high-speed performance, handling complaints, and hydraulic tappet faults.
The lubrication system diagram, carburetor vacuum routing, cable and harness layouts, and sealed engine cover airflow view show how the systems fit together. Exploded views and service tables identify seals, lubricants, fastener torques, fluid capacities, wear limits, and electrical test values.
Bearing Selection, Shims, and Special Tools
Honda’s color-code tables identify replacement crankshaft bearings. The output gear chapter covers shim selection and backlash checks after specified parts are replaced. Reusing an old shim combination can leave incorrect backlash, and compressed-air cleaning can damage carburetor diaphragms left in place.
The two-page tool list gives Honda numbers and U.S. alternatives where applicable. It lists hydraulic tappet bleeder 07973-MJ00000, clutch center holder 07923-MB00000, steering stem socket 07916-3710100, and rotor puller 07933-3950000.
Companion Manual and Workshop Safety
For battery testing and charging, oil pressure testing, certain switch checks, and the gear tooth contact check method, Honda refers to the separately available Common Service Manual.

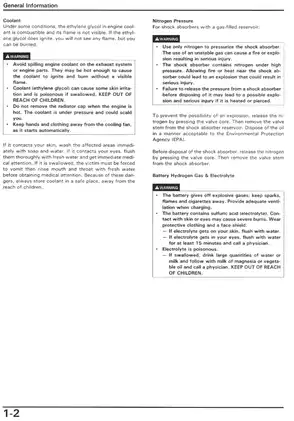

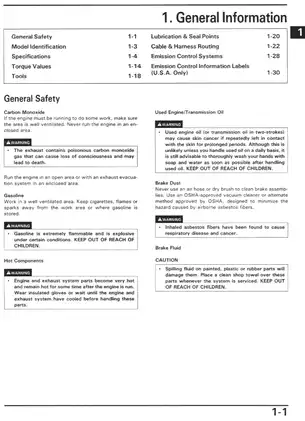

Gasoline, hot pressurized coolant, brake and clutch fluid, heavy assemblies, and live battery circuits require proper workshop precautions. Use secure support for the motorcycle and engine, follow the manual’s electrical isolation instructions, and consult a qualified technician for work beyond your equipment or experience.
Tappet and Charging Test Examples
For hydraulic tappet inspection, Honda specifies a compression stroke of 0–0.2 mm (0–0.008 in) after priming the tappet. The inspection includes a dial gauge setup for measuring that travel.
In charging system diagnosis, the ignition-off current leakage check specifies a maximum of 10 µA. The manual uses that limit to help trace excessive current draw to a circuit.
