Honda VF500C V30 Magna 1984–1985 Service Manual (P/N 61MJ801)

Honda shop manual P/N 61MJ801 covers the 1984–1985 VF500C V30 Magna for the U.S. market, including the California evaporative-emissions configuration. The base issue is dated July 1984, with incorporated revised pages dated through April 1987.

PDF Search, Bookmarks, and Wiring Detail

Search and diagram access: PDF text search is unavailable. Five embedded bookmarks have generic file names and provide only coarse navigation, with some destinations inside chapters. Small labels on the main wiring diagram require zooming; the inspected enlarged areas show readable component names, connector markings, and wire-color codes.

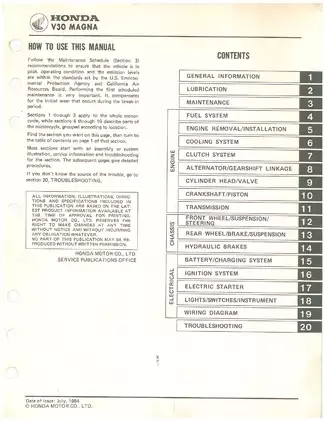

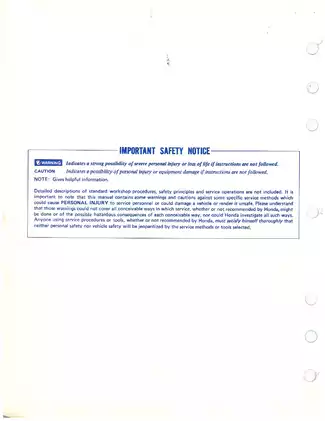

The ZIP contains one printable, English-language PDF with 305 pages, including the cover, safety-notice page, contents page, one blank page, and 11 memo pages. Revised service pages are incorporated into the same file.

V4 Engine, Carburetor, and Chassis Service

The following is a selection of covered work, rather than a complete contents list. Additional topics include headlight aiming and clutch-diode testing.

• Engine repair: Engine removal and installation, cylinder-head disassembly, valve-guide replacement, valve-seat refacing, crankcase separation, piston and connecting-rod service, and crankshaft work.

• Clutch and transmission: Hydraulic clutch bleeding, master/slave-cylinder repair, clutch-pack and starter-clutch service, gearshift-linkage repair, and internal transmission inspection and assembly.

• Fuel and emissions: Carburetor overhaul and synchronization, pilot-screw and high-altitude adjustments, fuel-pump testing, and California purge-control-valve inspection.

• Cooling and lubrication: Cooling-system pressure tests, coolant replacement, thermostat checks, radiator/fan removal, water-pump replacement, and oil-pressure and oil-pump inspection.

• Chassis and brakes: Front-fork overhaul, steering-bearing service, rear-shock and swingarm repair, rear drum-brake service, and front hydraulic-brake overhaul.

• Electrical diagnosis: Charging, transistorized ignition, starter and lighting diagnostics, instrument/switch tests, wiring diagrams, and system-specific troubleshooting charts.

Suited to mechanics and mechanically qualified owners with proper tools and service data; Honda recommends dealer-only service for wheels and steering-head bearings.

Repair Planning and Engine Access

The manual is organized into 20 sections. Its maintenance schedule links scheduled checks to the relevant factory procedures, making it usable as a repair-planning index.

Cylinder heads, carburetors, clutch components, alternator, gearshift linkage, and starter motor are addressed as in-frame operations where applicable. Internal transmission repair requires crankcase separation.

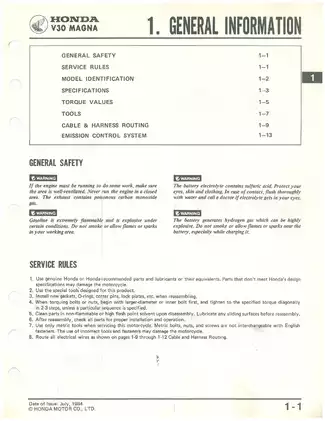

Factory safety notes address gasoline, pressurized coolant, battery gas, hydraulic brake and clutch fluid, and proper support of the motorcycle and engine during major repair.

Cylinder Heads, Bearings, and Transmission

Step-by-step procedures cover cylinder-head disassembly, valve-guide replacement, valve-seat refacing, crankcase disassembly, and piston/rod installation. Timing-mark references, camshaft and valve-train inspection limits, compression data, piston/ring specifications, and crankshaft/connecting-rod clearances support this work.

Color-coded bearing-selection tables are backed by Plastigage verification. Valve-seat refacing is covered, but the manual specifies replacement of damaged or improperly contacting valve faces rather than grinding the valves themselves.

Missing procedure pages: Printed pages 9-20–9-21 are absent from the camshaft-installation sequence. Printed pages 11-6–11-7 are also absent from the shift-fork/shift-drum section. These procedures are incomplete in this PDF.

Carburetor Versions and California Equipment

Revised fuel-system data distinguishes the 1984 VD58A standard and VD59A California carburetors from the “After ’84” VD58C and VD59B versions. On later units, the No. 1 and No. 4 jet needles differ from those in No. 2 and No. 3.

Carburetor separation instructions warn that incorrect separation direction can damage the joint pipes. California coverage includes charcoal-canister plumbing, vacuum-hose routing, and purge-control-valve tests associated with difficult hot restarting.

Cooling, Suspension, and Brake Limits

Water-pump coverage includes leakage checks and assembly replacement; further internal pump disassembly is outside the documented procedure.

Chassis chapters provide wheel and axle limits, fork and steering data, and rear-shock and swingarm specifications. Brake references distinguish disc, caliper, master-cylinder, drum, and lining inspection limits, with assembly-specific torque information.

Steering coverage gap: Printed pages 12-24–12-25 are absent between front-fork installation and steering-bearing replacement. The steering-stem removal sequence is incomplete.

Tubeless-tire repair is referred to a separate Honda Tubeless Tire Manual, which is not included.

Electrical Tests and Workshop Drawings

Electrical diagnosis includes resistance, continuity, output, and circuit-test specifications for charging, starting, ignition, fan control, the fuel-pump relay, and warning circuits. Temperature-gauge testing includes a warning that prolonged grounding of the sensor lead can damage the gauge.

Reference drawings include cable/harness routing, lubrication flow, California vacuum-hose routing, the electric-starter circuit, and the complete wiring diagram. Exploded views cover cylinder heads, crankshaft/pistons, transmission shafts, carburetors, clutch components, front forks, rear suspension, and hydraulic brakes.

Factory Tool References

Tool tables identify vacuum gauge tester 07404-0020000, carburetor synchronization wrench 07908-KE70000, flywheel puller 07733-0020001, valve-guide driver/remover 07942-MA60000, and fork-seal driver 07947-3710101. These references are especially useful when planning a repair that depends on a factory fixture or an equivalent commercial tool.

Examples of Brake and Ignition Test Data

Front-disc inspection: The brake table lists 4.8–5.2 mm as standard disc thickness and 4.0 mm as the service limit. It also supplies the related inspection procedure and separate limits for the hydraulic components.

Cold-coil testing: Revised ignition-coil data specifies 12.6–15.4 kΩ secondary resistance with the coil cold, alongside primary-resistance and insulation checks.
