1983–1984 Honda VF750F Interceptor V45 Shop Manual (P/N 61MB201)

• Official Honda shop manual 61MB201 — a 288-page PDF covering the 1983–1984 V45 Interceptor VF750F, including the RC15E engine and model-year updates.

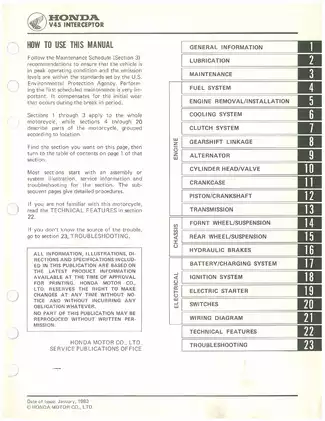

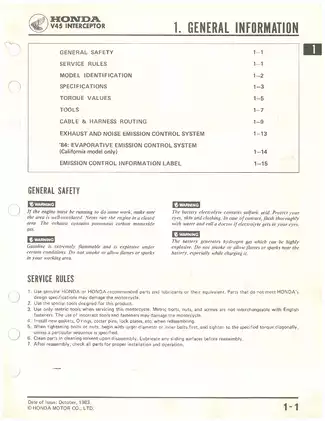

• Covers engine, fuel, cooling, clutch, transmission, chassis, suspension, hydraulic brakes, controls, and electrical-system service in Honda’s original section order.
• Follows factory repair sequences for engine removal and installation, top-end and bottom-end work, carburetor service and synchronization, cooling-system checks, clutch bleeding, and brake overhaul.
• Distinguishes the 1983 VD52B and 1984 VD52C carburetor applications and includes the 1984 California evaporative-emission system, inspection points, labels, and hose routing.
• Supplies maintenance schedules, troubleshooting charts, tightening data, wear limits, inspection criteria, and Honda special-tool references for workshop planning.
• Includes separate 1983 and 1984 foldout-style wiring diagrams; see the electrical scan-coverage note below before purchasing for charging, ignition, or starter diagnosis.

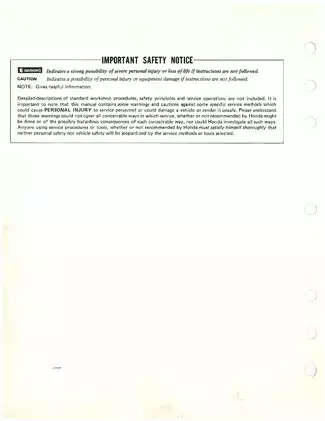

This is Honda’s January 1983 base-issue shop manual, updated with October 1983 replacement pages for 1984 information. It identifies the covered machines from frame number JH2RC150*DM000001 and engine number RC15E-2000001. The material is best suited to professional technicians and experienced owners already comfortable with standard motorcycle workshop practice, since Honda states that general workshop procedures and basic safety principles are not taught in the manual.

Manual Coverage and System Architecture

Engine repair coverage begins with removal and installation, then moves through the cooling and hydraulic clutch systems, gearshift linkage, alternator, cylinder heads and valves, crankcase, pistons, crankshaft, and transmission. The procedures show component orientation, removal order, inspection areas, assembly relationships, and tightening locations without reducing the work to a generic tune-up guide. Valve-guide and valve-seat work, bearing selection, crankcase separation, shift-drum and fork service, and starter-clutch inspection are all addressed.

The fuel-system section covers the four Keihin VD carburetors, including vacuum chambers, float chambers, pilot screws, carburetor separation and assembly, installation, idle-drop adjustment, and synchronization. It also addresses the fuel tank, air cleaner, fuel pump, U.S. high-altitude adjustment, and the 1984 California canister and purge-control arrangement. One important repair trap is Honda’s warning not to interchange vacuum-chamber covers, springs, pistons, or jet needles among carburetors; mixing those matched parts can alter calibration. The pilot screws are factory-set, and careless plug removal or overtightening can damage the pilot-screw seat and create additional repair work.

Chassis, Brakes, and Electrical Reference

Chassis repair sections cover the front and rear wheels, forks, steering stem, rear shock, swingarm, handlebars, instruments, and related controls. Hydraulic-brake material includes fluid replacement and bleeding, pad and disc inspection, front and rear master-cylinder service, and caliper work. Protect painted and plastic surfaces during clutch or brake hydraulic service, because spilled brake fluid can damage finishes and components.

The illustrations are especially useful for understanding assemblies and routing. Examples include cable and harness routing views, the 1984 California evaporative-emission and vacuum-hose layout, the lubrication-circuit schematic, a V-4 engine cutaway, one-way-clutch power-flow drawings, and separate full-page 1983 and 1984 wiring diagrams with connector and wire-color information.

Specification, Tool, and Scan-Scope Notes

Factory reference data is integrated with each system: capacities, pressure checks, clearances, wear limits, torque values, maintenance intervals, and diagnostic flowcharts for hard starting, low power, poor low- or high-speed performance, and handling complaints. Listed Honda tools include oil-pressure gauge attachment 07510-4220100, compression-gauge attachment 07510-MB00101, carburetor pilot-screw wrench 07908-4220201, and steering-stem driver attachment 07946-MB00000.

Buyer note: this 288-page scan jumps from section page 16-18 to 19-5. The Battery/Charging System and Ignition System sections, plus Electric Starter pages 19-1 through 19-4, are not present. The later switch-testing section and both year-specific wiring diagrams are included, but this PDF should not be treated as complete electrical repair coverage.
