Honda VT750C/CA Shadow Aero Shop Manual | 2004–2009

Honda Motor Co., Ltd.’s shop manual for the VT750C/CA Shadow Aero, issued by the Service Publication Office in November 2003. This file contains the base manual without later model-year supplements.

Text Search and Wiring-Sheet Readability

Search, navigation, and diagram detail: The shop-manual pages do not support PDF text search; only the added title page has searchable text. There are no embedded PDF bookmarks. Small labels in the charging, ignition, and starter diagrams require zooming. The Chapter 21 wiring sheet has cropped edges.

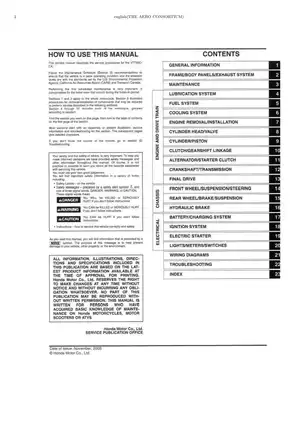

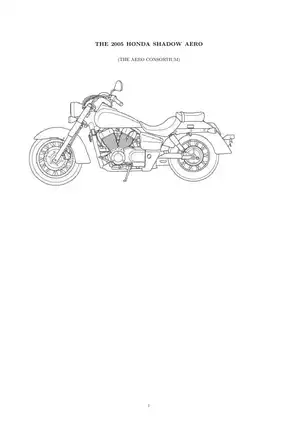

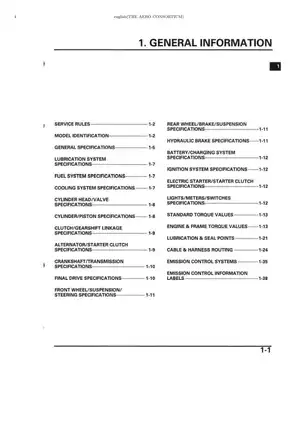

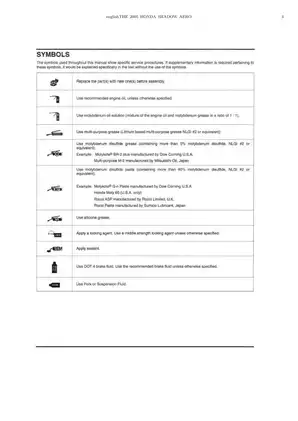

The ZIP contains one printable, 463-page PDF: 461 pages from the introductory notes through the index, plus one cover and one added 2005 Shadow Aero title page. The total includes 14 memo pages.

Engine, Shaft-Drive, and Electrical Service

The following selected topics highlight the main repair areas. Other covered work includes sub-air-cleaner maintenance and headlight-aim adjustment.

• Engine repair: Engine removal and installation, cylinder-compression testing, camshaft and cylinder-head service, valve-guide replacement, valve-seat inspection and refacing, cylinder/piston inspection, piston-ring installation, and valve-train setup.

• Fuel and emissions: Carburetor removal, disassembly, inspection and assembly; pilot-screw and high-altitude adjustments; intake-manifold removal and installation; PAIR checks and California EVAP procedures.

• Lubrication and cooling: Oil-pressure checks and oil-pump service, cooling-system testing, coolant replacement, thermostat inspection, radiator/fan service, and water-pump replacement.

• Clutch and driveline: Clutch and gearshift-linkage repair, flywheel and starter-clutch service, crankcase separation, transmission inspection, output-gear setup, and final-drive bearing, seal, and shim work.

• Chassis and brakes: Wheel inspection and balancing, fork disassembly and seal replacement, handlebar and steering-stem service, rear drum-brake work, swingarm service, and hydraulic-brake overhaul.

• Electrical diagnosis: Charging-system inspection, regulator/rectifier and alternator checks, ICM and ignition-coil testing, ignition timing inspection, throttle-position sensor checks, and starter-motor and relay diagnosis.

• Service references: Standard and component-specific torque tables, fluid capacities, wear limits, running clearances, adjustment data, electrical test specifications, and symptom-based troubleshooting charts.

Written for readers who already have basic maintenance knowledge of Honda motorcycles, motor scooters, or ATVs; major repairs require the specified measuring equipment and special tools.

Engine and Driveline Repair Planning

The publication is arranged in 23 chapters. Step-by-step procedures extend through cylinder-head disassembly and assembly, camshaft installation, and internal transmission service. Crankshaft and connecting-rod work includes color-code selection of crankpin and main-journal bearing inserts, followed by oil-clearance verification.

Engine-out work: Cylinder-head, cylinder/piston, crankshaft, transmission, output-gear-case, and oil-pump service require engine removal. Camshaft, carburetor, water-pump, clutch/gearshift-linkage, alternator/starter-clutch, and electric-starter work can be performed with the engine in the frame.

Factory tool tables identify the 070MF-MEG0100 57 mm driver, 070MF-MEG0200 metal installer set, and 07964-ME90000 damper spring compressor. Final-drive work references the 07924-ME40010 pinion holder plate and 07924-ME40020 collar set.

These references are especially useful when planning transmission, output-gear, or ring-and-pinion repair before the motorcycle is disassembled. The output-gear and final-drive chapters document tooth-contact patterns, backlash inspection, shim selection, bearing replacement, and reassembly.

The engine-removal notes warn that supporting the engine by its oil filter can damage the filter.

Carburetor Variants and Cooling-System Work

Fuel-system data distinguishes VE5BA carburetors for 49-state/Canada machines from VE5BB carburetors for California machines. California-only coverage includes the evaporative-emission canister, purge and carburetor-air-vent control valves, numbered EVAP hoses, and the vacuum-hose routing label.

Cooling-system procedures include coolant testing with a hydrometer, radiator-cap pressure testing, and water-pump mechanical-seal inspection. Pump leakage is addressed through pump replacement.

Fuel-system work requires a well-ventilated area away from ignition sources. The relevant chapters also address hot coolant, brake fluid, battery electrolyte, and safe support of the motorcycle and engine.

Body, Suspension, and Brake Details

Body sections address the seat, side covers, fuel tank, fenders, and exhaust. Brake coverage includes brake-pedal service, front brake-fluid replacement and air bleeding, master-cylinder repair, and caliper service.

Rear-suspension procedures cover shock-absorber removal, inspection, and replacement as an assembly, together with swingarm and pivot-bearing service.

Electrical Fault Finding and Wiring Coverage

Lighting, meter, and switch sections include vehicle-speed-sensor, fan-switch, and warning-indicator tests. Chapter 22 charts address hard starting, power loss, poor low-speed or high-speed performance, and poor handling.

Reference drawings include Cable & Harness Routing, the Vacuum Hose Routing Diagram, the Lubrication System Diagram, and the cooling System Flow Pattern. Identification pages illustrate VIN, frame-number, engine-number, carburetor-ID, and color-label locations.

Wiring coverage: The full-page Chapter 21 sheet is labeled for the 1998–2000 Honda VT750C/CD ACE and should not be treated as a Shadow Aero wiring diagram. Aero-specific connector-routing pages, individual charging, ignition and starter system diagrams, component-location views, and Chapter 20 component-test pages remain part of the manual.

The ignition section warns that disconnecting the ICM connector while current is flowing can damage the module.

Float-Level and Final-Drive Specification Examples

The carburetor section specifies an 18.5 mm (0.73 in) float level with the float valve seated and the float arm just touching it. The float is identified as nonadjustable.

Final-drive gear backlash is specified at 0.05–0.15 mm (0.002–0.006 in), with a 0.30 mm (0.012 in) service limit. These figures accompany the ring-and-pinion inspection and shim-selection procedures.
