1979–1985 Honda XL 125S Service Manual (P/N P-6643701)

• Document coverage: A 192-page PDF with 177 pages covering 17 numbered XL125S service sections under Honda Shop Manual No. 6643701, a 14-page XL185S Supplement, and one separate navigation/printing page. The supplement relies on the XL125S material for procedures it does not repeat.
• Engine repair: Covers engine removal and installation, camshaft and cylinder-head service, valve-guide replacement and seat refacing, cylinder and piston inspection, piston-ring fitting, and cam-timing setup.
• Clutch and transmission work: Details clutch removal, inspection, and assembly; oil-filter rotor and oil-pump service; gearshift linkage repair; crankcase separation; and crankshaft, transmission, and kick-starter disassembly and reassembly.
• Chassis service: Provides front- and rear-wheel repair, drum-brake inspection and assembly, front-fork overhaul, steering-stem bearing service, rear shock spring work, and swingarm removal and inspection.
• Electrical diagnosis: Includes charging-system output tests, alternator and rectifier checks, CDI, ignition-coil and pulse-generator testing, switch continuity charts, cable and harness routing, and separate XL125S and XL185S wiring diagrams.
• Regional configurations: Distinguishes UK, French, Swiss, European, Canadian, Australian, South African, and General-market equipment, including PD21A and PD21C carburetor applications, lighting differences, spark-plug specifications, final-drive variations, and market-specific chassis details.

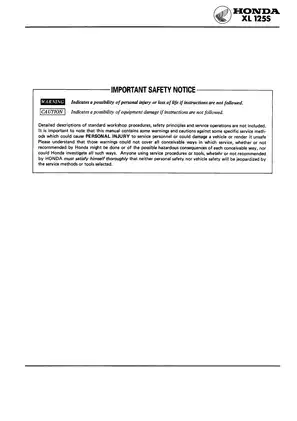

The base material covers the Honda XL125S, while Section 21 adds the specifications, service data, torque information, harness routing, and wiring diagram unique to the XL185S. Because Honda states that detailed explanations of standard workshop procedures and safety principles are not included, this publication is best suited to mechanically qualified owners and technicians who already understand routine motorcycle service and have the proper tools.

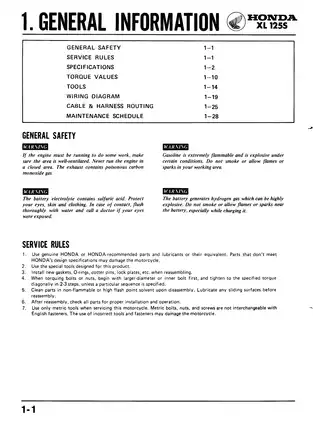

The XL125S General Information section is abridged: its internal page sequence jumps from 1-3 to 1-10, then to 1-14 and 1-23. Only the South African/Australian/General XL125S wiring sheet appears, so other regional XL125S wiring sheets should not be assumed to be part of this PDF.

XL125S Base Manual and XL185S Differences

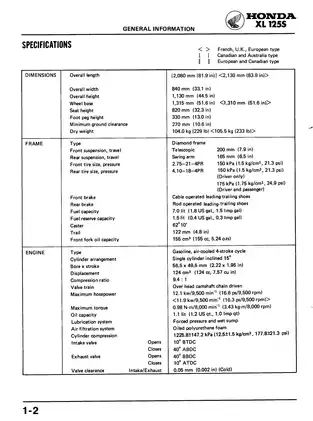

The XL125S material applies to the air-cooled 124cc OHC single with a six-speed constant-mesh transmission. The XL185S supplement identifies a 180cc engine, five-speed transmission, PD15B carburetor, different ignition and charging test data, revised torque specifications, and model-specific cable routing. It is not a stand-alone XL185S repair manual: work not described in the supplement must be performed with the XL125S procedures in the first 177 pages.

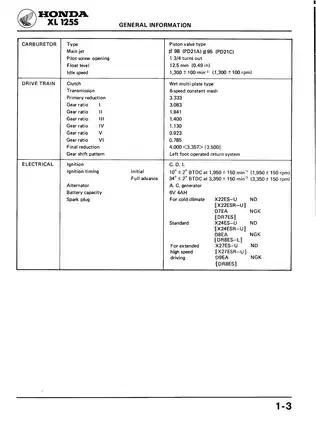

Regional notes go beyond a generic market label. The carburetor table assigns PD21A to UK, French, Swiss, European, and Australian types and PD21C to South African and General types. Other pages identify Canadian headlight adjustment and rear-fender details, Swiss crankcase-breather equipment, Canadian and Swiss side-stand parts, and market-dependent bulbs, position lights, spark plugs, and final-drive ratios.

Engine and Drivetrain Repair Depth

The engine chapters take the job from supported engine removal through top-end and crankcase work. Procedures cover rocker arms and camshaft bearings, valve and guide inspection, valve-seat correction with Honda cutters, piston and cylinder measurements, clutch-pack inspection, oil-pump rotor clearances, transmission gear and shift-fork checks, crankshaft runout and connecting-rod inspection, and kick-starter indexing. Section troubleshooting traces hard starting, low power, poor high- or low-speed performance, abnormal engine noise, shifting faults, clutch problems, and low oil pressure.

Honda tool references include the clutch outer holder 07923-1070001, valve-guide reamer 07984-0980000, ball-race driver 07945-3330100, and shock-absorber compressor 07959-3290001. CDI checks call for a specified Sanwa tester P/N 07308-0020000 or Kowa TH-5H so the resistance table is interpreted with the intended meter characteristics.

Chassis, Electrical, and Diagram Coverage

Chassis procedures address wheel-bearing replacement, rim and axle runout checks, drum and lining inspection, brake-panel assembly, fork seal and spring service, steering races, shock springs, and swingarm bushings. Electrical chapters cover the battery, charging output, alternator windings, silicon rectifier, CDI unit, ignition coil, pulse generator, ignition timing, and handlebar, ignition, lighting, engine-stop, and brake-light switches.

Illustration coverage includes the XL125S South African/Australian/General Types wiring diagram, the XL185S wiring diagram, XL125S and XL185S cable-and-harness routing views, the mainshaft/countershaft gear layout, and the exploded front-fork assembly. Section-level tables supply torque values, capacities, wear limits, clearances, service limits, and electrical test specifications without forcing the user to infer them from illustrations.

Two repair cautions are especially important. A blocked cylinder-head oil-control orifice, or displaced O-rings and dowels at assembly, can interrupt camshaft and rocker-arm lubrication. The rear shock procedure covers spring service only; Honda warns against disassembling the gas-filled damper, and the spring must be handled with the specified compressor. Fuel-system, battery, brake, and suspension work should be carried out with the motorcycle securely supported and with the manual's safety warnings observed.
