Honda XL/XR/TLR 125–200 Clymer Repair Manual 1979–87

This Clymer repair manual covers Honda XL125S, XL185S, XL200R, XR185, XR200, XR200R, and TLR200 models within the 1979–1987 range. It combines routine maintenance and troubleshooting with engine, transmission, electrical, and chassis repair procedures.

PDF Layout, Search and Diagram Detail

Search, bookmarks and wiring labels: PDF text search is not available. Embedded bookmarks link to individual pages using image filenames rather than chapter titles. Small wiring labels are readable when enlarged; several diagrams need rotating for comfortable viewing.

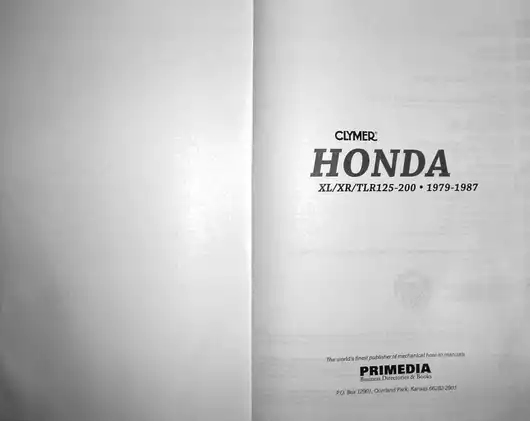

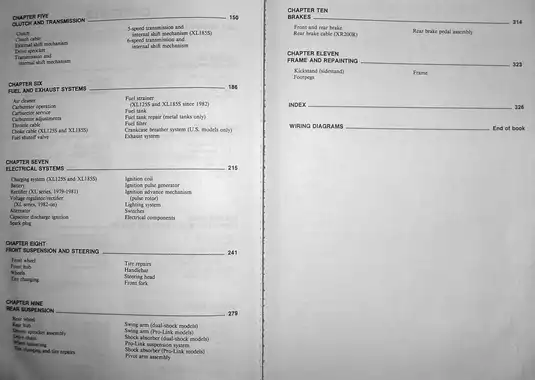

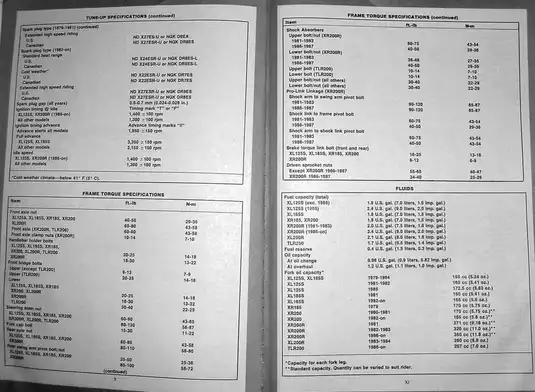

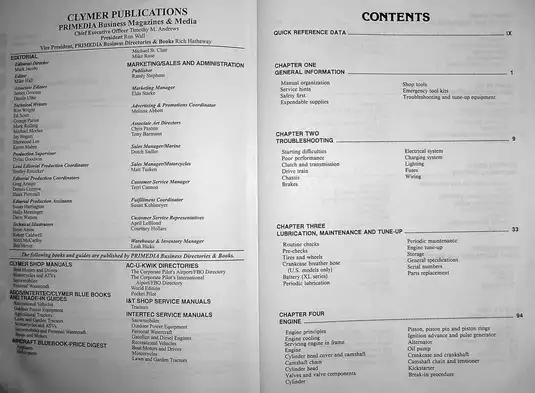

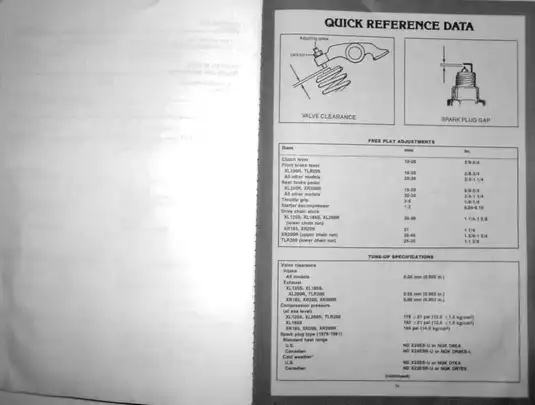

The ZIP download contains one printable English PDF with 179 pages, mostly arranged as facing-page spreads. This total includes eight opening pages containing title material, contents, quick-reference data and the introduction, plus a repeated engine-service spread.

Engine Overhaul, Carburetion and Chassis Repair

These selected repair topics outline the manual’s coverage. Additional subjects include storage preparation and frame stripping and repainting.

• Maintenance and tune-up: Oil-screen and centrifugal-filter cleaning, valve-clearance adjustment, cam-chain tensioning, compression testing, ignition timing, and starter-decompressor adjustment.

• Engine repair: Step-by-step procedures for engine removal, camshaft and cylinder-head service, piston and ring inspection, oil-pump disassembly, crankcase separation, and kickstarter repair.

• Clutch and transmission: Wet-clutch inspection and assembly, external shift-mechanism service, and separate procedures for transmission shafts, shift forks, and shift drums.

• Fuel and exhaust: Keihin carburetor disassembly, float and mixture adjustments, altitude-related settings, fuel-valve service, exhaust removal, and TLR200 chain-to-muffler clearance correction.

• Electrical diagnosis: Charging-system output tests, rectifier and regulator checks, stator-coil testing, CDI circuit diagnosis, ignition-pulse-generator checks, and model-specific wiring diagrams.

• Suspension, wheels and brakes: Fork disassembly and seal replacement, steering-bearing service, wheel truing and balancing, swingarm and Pro-Link linkage work, and drum-brake repair.

Clymer wrote these procedures for owners and home mechanics with some mechanical ability, while identifying jobs that require dealer service, specialized equipment, or machine-shop skills.

Internal Engine Work and Repair Limits

Planning the teardown: The engine chapter distinguishes work possible with the engine installed from jobs requiring removal. Cylinder-head, cylinder, and piston removal require the engine out of the frame; clutch and external shift-mechanism service can be performed in place. This distinction helps owners assess the work and equipment involved before disassembly.

Inspection sections explain cylinder measurement, piston-to-cylinder clearance, ring checks, camshaft wear, and crankshaft-bearing assessment. The crankshaft assembly is treated as a replacement unit, while valve-guide replacement and valve-seat reconditioning are referred to suitably equipped specialists.

The Cam Chain Assembly drawing supports tensioner and guide identification. The camshaft section warns that a slack chain can kink during crankshaft rotation and damage the chain and timing sprocket. Valve lapping or grinding can remove the valve-face coating and cause rapid valve failure.

Carburetor Variants and Electrical Fault Isolation

Fuel-system differences: A separate TLR200 Carburetor Assembly view accompanies its disassembly instructions. Adjustment sections distinguish XR200R altitude and temperature settings from other carburetor applications, with jetting tables and a temperature/altitude chart.

Electrical coverage separates battery-equipped XL/TLR systems from XR arrangements. The Charging System diagrams and XR200R Ignition Circuit drawing connect component tests to the relevant wiring, supporting fault isolation before a suspected ignition or charging component is replaced.

The manual also identifies equipment needed for particular jobs, including the Honda flywheel puller and locknut wrench used during rotor, clutch, and oil-filter-rotor service.

Fork, Pro-Link and Drum-Brake Service

Separate fork procedures address XR200R/XL200R construction. Steering-head instructions distinguish loose-ball and roller-bearing assemblies, while rear-suspension sections separate dual-shock swingarms from Pro-Link designs. The Pro-Link Swing Arm Assembly drawing supports pivot-collar, bearing, and seal identification.

Shock-service boundary: Home service of the pressurized Pro-Link shock is limited to spring removal and installation; the damper is replaced as a unit. Brake, steering, and suspension repairs require the specified tools and qualified help when the work exceeds the owner’s experience.

Examples of Piston and Oil-Pump Wear Data

For the XL125S, the engine specification table lists standard piston-to-cylinder clearance of 0.010–0.040 mm and a wear limit of 0.10 mm.

Oil-pump inspection data distinguish inner-to-outer rotor-tip clearance from outer-rotor-to-body clearance. Their respective wear limits are 0.20 mm and 0.40 mm, illustrating the component-specific inspection data supplied alongside the repair procedures.
