Honda Z50A / Z50R Factory Shop Manual Set, 1969–1999

175 Pages • ZIP Download: 3 Printable PDFs (English)

4.7starstarstarstarstar_half(3)
$13.90 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Honda Models Covered & Key Technical Specifications

Models: Z50A, Z50R, Z-50

Sub-models / Variants: General Export Type, U.S.A. Type, Canada Type, Mini Trail

Model Years: 1969–1999 (1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999)

Serial Numbers: Z50A U.S.A. Type: from F. No. 120001; from F. No. 270236


  • Engine: 49 cc, 4-stroke OHC, single cylinder, 10-degree inclined

  • Compression Ratio: 8.8:1 (Z50A; 1979–1981 Z50R), 9.5:1 (1982 Z50R)

  • Bore and Stroke: 39.0 x 41.4 mm

  • Transmission: 3-speed constant mesh, automatic centrifugal clutch

  • Ignition: Flywheel magneto

  • Valve Clearance: 0.05 mm (0.002 in) IN/EX (Z50R, cold)

  • Engine Oil Capacity: 0.8 liters

  • Fuel Tank Capacity: 2.5 liters (Z50A), 4.5 liters (1979 Z50R), 5.0 liters (1980–1981 Z50R)

  • Tire Size: 3.50-8

Honda Manual Features & Selected Content Preview

Publication Pages

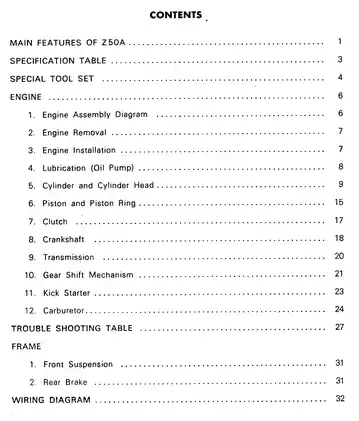

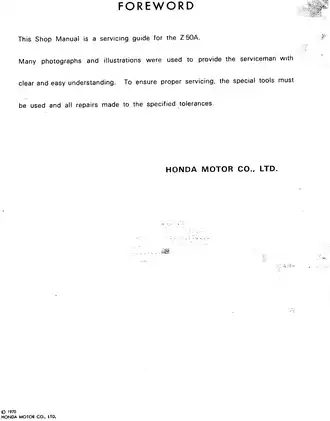

Honda Z50A Shop Manual, ©1970: General Export and frame-specific U.S.A. configurations; supplied in two versions 75 (38 + 37)
Honda Z50R Shop Manual: 1979 base service information, with base sections dated September 1978 82
Honda Z50R 1980–1981 Addendum, issued September 1980 12
Honda Z50R 1982 Addendum, issued September 1981 6

The Z50A files provide alternate versions of the early publication. For the later Z50R, use the applicable addendum alongside the base manual; the addenda supply changes rather than repeat all service procedures.

Coverage limit: The Z50A material addresses the rigid-frame General Export and listed U.S.A. configurations. Z50R coverage consists of the 1979 base manual and the 1980–1981 and 1982 updates; this is not continuous service coverage for every model year from 1969 through 1999.

PDF Files, Navigation, and Wiring Detail

Search, bookmarks, and diagram detail: PDF text search is unavailable in all three files. The 37-page Z50A file and the Z50R file have embedded section bookmarks; the 38-page Z50A file has none. Small Z50A wiring labels require zooming, and some General Export wiring lines remain faint in both versions. The checked Z50R wiring labels are readable at normal page size.

The ZIP download contains three printable English PDFs totaling 175 pages. The totals already include the Z50A title and introductory pages, ten Z50R memo pages, and both Z50R addenda.


Engine, Drivetrain, and Chassis Service

The following selected topics outline the repair content rather than reproduce the complete contents list. Further examples include spark-arrester servicing and fuel-tank, strainer, and breather inspection.

  • Engine repair: Step-by-step procedures for engine removal and installation, oil-pump service, cylinder-head work, piston and ring service, and cam timing.

  • Clutch and transmission: Automatic centrifugal-clutch disassembly and inspection, gearshift-spindle service, transmission and crankshaft repair, and kick-starter assembly.

  • Fuel-system service: Carburetor removal, float inspection, mixture adjustment, fuel-system troubleshooting, and model-specific carburetor information in the Z50R addenda.

  • Wheels, brakes, and suspension: Drum-brake and wheel service, steering-stem inspection, fork disassembly, swingarm removal, and rear shock-absorber disassembly.

  • Ignition and fault tracing: Contact-breaker adjustment, ignition-coil and condenser tests, wiring diagrams, harness routing, and symptom-based troubleshooting charts.

Routine maintenance sections accommodate mechanically qualified owners with proper tools; the internal engine, valve-seat, transmission, and suspension work calls for experienced mechanics with the specified tools and measuring equipment.

Configuration Differences and Addenda

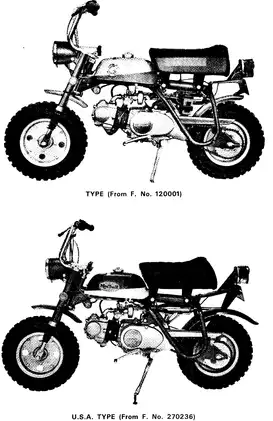

The Z50A tables distinguish General Export specifications from two U.S.A. production configurations, identified from frame No. 120001 and from frame No. 270236. Dimensions, secondary reduction, lighting equipment, and wiring differ between configurations.

Z50R carburetor identification changes from PA03B (A) in the base information to PA03C for 1980–1981 and PA03D for 1982. Keeping these sections together helps match fuel-system data and service instructions to the correct version.

The earlier addendum updates the spark arrester, harness routing, maintenance schedule, A.C. generator, wheels, brakes, and handlebar. The 1982 material adds lubrication, final-drive, ignition, cylinder-head, camshaft, and valve changes, along with high-altitude carburetor adjustment information.

Engine Inspection and Drivetrain Repair

The Z50A lubrication section explains the trochoid pump and its two oil routes. Cylinder-head coverage extends to valve-seat cutting and lapping, valve-guide replacement and reaming, and cylinder inspection and reboring.

Piston and ring measurements, crankshaft checks, transmission gear inspection, shift-drum and fork inspection, and clutch adjustment are supported by standard dimensions and service limits. Z50A carburetor information separates idle, intermediate, and high-speed operation.

For the Z50R, the manual distinguishes in-frame work from repairs requiring engine removal. Oil-pump, clutch, and A.C. generator service can be performed in the frame; internal transmission and crankshaft repair requires crankcase separation.

Troubleshooting charts connect hard starting, poor output, smoke, engine noise, clutch slip or drag, shifting faults, and transmission jump-out with component-level causes.

Chassis, Ignition, and Illustrations

Z50R chassis instructions cover wheel bearings, drum-brake components, steering-stem bearing races, fork internals, swingarm components, and rear shocks. Ignition coverage includes coil-output and continuity tests, condenser testing, and the engine-stop-switch circuit, with U.S.A. and Canada spark-plug entries where applicable.

Illustrations include the Z50A Engine Assembly Diagram, configuration-specific wiring diagrams, the Z50R oil-flow schematic, cable and harness routing views, the transmission/crankshaft/kick-starter assembly view, and wheel/brake/suspension exploded views.

Special Tools and Assembly Cautions

Z50A tool set 07000-04511 includes flywheel puller 07016-00102 and clutch disassembly/assembly tool 07038-01101. Z50R references include clutch outer holder 07923-0400000, flywheel puller 07933-0010000, and shock absorber compressor 07959-3290001.

The 1982 valve section specifies pilot bar 07781-0010100 and grinding stones 07780-0010100 and 07780-0014000.

The manual warns that rotating the Z50R gearshift spindle during installation can damage the oil-seal lip. The 1982 carburetor section cautions against damaging the air screw and seat through overtightening, and against engine overheating and damage when high-altitude jetting is used below its intended elevation range.

Work involving gasoline, a hot exhaust, running-engine tests, or raised wheels should follow the manual's ventilation, fire, eye-protection, and secure-support precautions.

Examples of Camshaft and Valve-Spring Inspection Data

For the 1982 Z50R intake camshaft lobe, the addendum lists a standard height of 27.945 mm and a service limit of 27.55 mm. These appear in the updated cylinder-head inspection specifications.

The same section gives an inner valve-spring free length of 25.1 mm, with a 23.9 mm service limit, distinguishing the standard dimension from the replacement threshold.
