2004–2010 Suzuki Swift RS415 Service & Repair Manual Set (P/N 99500-63J00-24E)

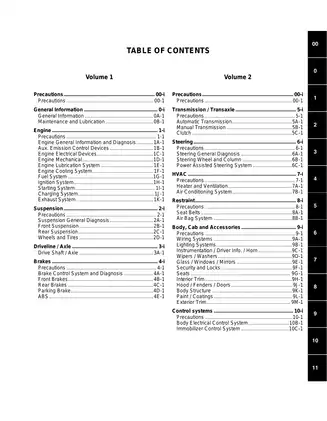

Volume 1 handles engine and chassis work, while Volume 2 extends the service information to transaxles, steering, HVAC, restraints, body systems, and electronic controls.

Ignition-key registration and replacement-ECM registration require a Suzuki scan tool. The registration sections refer to the separate SUZUKI Tech 2 Operator’s Manual for scan-tool operation.

Engine, Transaxle and Vehicle-System Service

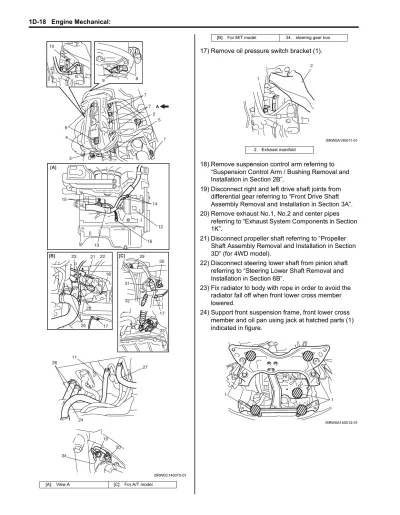

• Engine repair: Step-by-step procedures for engine removal, timing-chain and tensioner replacement, cylinder-head disassembly, piston inspection, and crankshaft bearing service.

• Engine diagnostics: Engine and emission-control checks, DTC troubleshooting, freeze-frame data, sensor tests, ECM circuit inspection, and reference waveforms.

• Transmission and clutch: Manual and automatic transaxle removal, internal disassembly, component inspection, clutch service, pressure testing, and automatic-transaxle learning-control initialization.

• Chassis and brakes: Suspension and wheel-bearing replacement, wheel-alignment checks, front disc and rear drum service, brake bleeding, and ABS hydraulic-unit testing.

• Electric power steering: EPS fault-code diagnosis, torque-sensor and motor checks, control-module circuit inspection, and steering gear service.

• Heating and air conditioning: HVAC component replacement, blower-circuit diagnosis, A/C performance testing, refrigerant charging procedures, and compressor clutch inspection.

• Body electronics and restraints: Body Control Module (BCM), Immobilizer Control System, and air bag diagnostics, supported by wiring diagrams and connector-location information.

Suzuki specifies this manual for authorized dealers and qualified service technicians with the proper tools and equipment.

Engine Repair and Maintenance

The maintenance sections distinguish normal and severe driving conditions and provide fluid specifications, service inspections, and component-specific tightening data. Engine mechanical coverage extends from compression testing and valve-shim selection to cylinder-head overhaul, piston and connecting-rod inspection, and main-bearing selection.

The timing-chain section identifies alignment marks and allowable shaft movement. It warns that excessive independent crankshaft or camshaft rotation with the chain removed can damage pistons and valves.

Cooling-system procedures cover thermostat testing, radiator and water-pump replacement, and flushing and refilling. The coolant specification calls for a mixture of 50% specified water and 50% antifreeze/anticorrosion coolant.

Transaxle Overhaul and Chassis Service

The automatic-transaxle section combines an Automatic Gear Shift Table with stall, time-lag, and line-pressure tests. Internal repair procedures cover the oil pump, clutch assemblies, brake assemblies, differential, and bearing-preload adjustment. The line-pressure test identifies gauge 09925-37811-001.

Valve-body disassembly is limited to the component operations Suzuki permits. Pressure-control and torque-converter-clutch pressure-control solenoids are specified for replacement with the valve-body assembly.

Manual-transaxle coverage includes step-by-step unit removal and installation, shaft disassembly, synchronizer inspection, and differential service. Clutch information extends to hydraulic bleeding, master and operating cylinders, and release-system inspection.

The ABS hydraulic unit/control module is covered for operation checks and assembly replacement, not internal overhaul. Suspension sections add strut disassembly, control-arm bushing work, and front and rear wheel-bearing procedures.

Electrical Diagnosis, HVAC and Body Work

The Engine and Emission Control System Diagram, Connector Layout Diagrams, System Circuit Diagrams, Power Supply Diagrams, and Air Bag System Wiring Circuit Diagram support circuit tracing. Pin assignments, wire colors, component locations, and diagnostic charts connect the fault-finding information to the vehicle.

These references let a technician compare scan data and circuit measurements before selecting a component repair. ECM connector precautions address damage to sealed terminals from improper probing; CAN communication checks cover faults involving the ECM, TCM, and BCM.

Replacing the ECM requires immobilizer transponder registration before the engine can start. The Immobilizer Control System section distinguishes key-registration work from replacement-ECM registration.

HVAC coverage includes refrigerant-pressure diagnosis and charging information. Body sections provide dimensional drawings, panel-clearance specifications, door and glass replacement procedures, and sealant application locations.

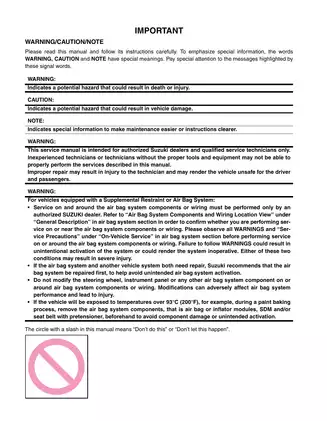

Always review the factory safety protocols and designated vehicle lifting points before diagnostic or teardown work. Air bag precautions address reserve energy before Sensing and Diagnostic Module (SDM) service.

Examples of Valve Clearance and Oil Pressure Data

For valve-clearance inspection with coolant at 15–25°C, the engine mechanical section specifies 0.18–0.22 mm for intake valves and 0.28–0.32 mm for exhaust valves. Shim-selection information accompanies the inspection procedure.

The lubrication section specifies oil pressure above 270 kPa at 4,000 rpm after the engine reaches normal operating temperature, alongside the gauge and adapter requirements.

Searchable Text, Bookmarks and PDF Contents

Text lookup and diagram detail: Searchable chapter text and embedded section and procedure bookmarks support navigation. Some illustration labels require visual lookup. Small wiring-diagram labels are clearest when zoomed.

One printable, English-language PDF combines both volumes in a 1,257-page file. The total includes six shared preliminary pages, including three blank pages, plus one edition page and two volume cover sheets.
