Yamaha XT600L / XT600LC 1984–1989 Factory Service Manual (P/N LIT-11616-04-22)

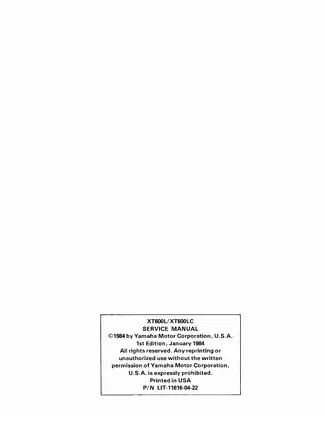

Yamaha factory service manual for the XT600L (49N) and XT600LC (49R), P/N LIT-11616-04-22, first edition, January 1984. Covers periodic maintenance, fault diagnosis, and engine and chassis repair, including California-only evaporative-canister checks and emission-hose routing.

PDF Bookmarks and Wiring Diagram Detail

Text search and diagram detail: PDF text search is not available. Embedded bookmarks provide access to the chapters and key service sections. Small wiring labels are best read with zoom.

A 202-page printable PDF, supplied in a ZIP download. The total includes the cover, four preliminary pages, the appendices, and the final wiring sheet.

Engine Overhaul, Carburetor Service, and Chassis Repair

These selected coverage highlights are not a full contents list. Other included topics range from fuel-cock cleaning to headlight-beam adjustment.

• Engine overhaul: Step-by-step removal, teardown, inspection, and assembly procedures for the cylinder head, valve train, cam drive, cylinder, piston, crankshaft, balancer, and oil pump.

• Clutch and drivetrain: Wet-clutch inspection and assembly, transmission-shaft and shift-component checks, kick-starter service, and drive-chain and sprocket inspection.

• Carburetor service: Teikei Y27PV primary-and-secondary carburetor disassembly, inspection, reassembly, fuel-level checks, full-open adjustment, and synchronization.

• Wheels and brakes: Wheel-bearing replacement, rim and spoke inspection, tire and tube work, front-disc and rear-drum brake repair, and hydraulic brake bleeding.

• Suspension and steering: Front-fork overhaul, steering-head bearing service, swingarm and relay-arm inspection and shimming, and rear-shock spring and damping adjustment.

• Electrical diagnosis: CDI ignition and AC charging tests, regulator/rectifier fault isolation, circuit-breaker checks, switch-continuity tests, and lighting and signal troubleshooting.

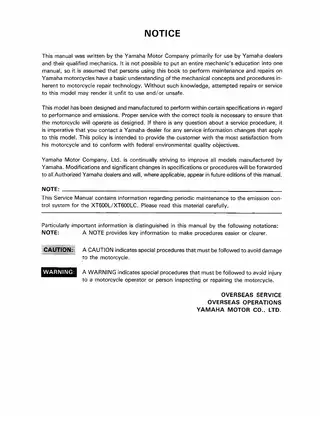

Yamaha wrote this manual primarily for its dealers and qualified mechanics. It suits technicians and experienced owners who already understand motorcycle repair practices and can use the specified measuring equipment and special tools.

Engine and Drivetrain Repair

The covered engine is the 595 cc SOHC four-valve single with dry-sump lubrication and kick starting. Internal repair coverage includes crankcase splitting, valve-guide and valve-seat repair, piston and ring inspection, crankshaft alignment, and oil-pump checks.

Assembly checks: Bearing and seal orientation, crankshaft installation, balancer and shift-shaft timing marks, and clutch plate order receive specific attention. The procedures also address transmission operation before crankcase tightening, cam timing, valve clearance, decompression-cable setup, and final engine installation.

The assembly notes identify crankshaft/crankpin oil-passage alignment and oil-pump/crankcase pre-lubrication as safeguards against oil-starvation damage. Oil-pressure verification and leak checks are included in the return-to-service work.

Primary and Secondary Carburetion

The labeled carburetor sectional view traces the pilot and starter systems, coasting enricher, primary fuel and air passages, and secondary main circuit. Separate jetting information identifies the primary and secondary components.

Adjustment coverage: Yamaha identifies the pilot screw as factory preset and warns against altering its setting. The service adjustments cover fuel level, reference float height, primary-carburetor full opening, and secondary-carburetor synchronization.

These component checks and adjustment references support diagnosis of fuel-delivery and throttle-transition problems without treating the linked carburetors as a single undifferentiated unit.

Chassis, Brakes, and Suspension

Wheels and brakes: The repair sections include axle inspection, wheel runout and balance checks, brake wear measurements, caliper and master-cylinder disassembly, and rear-brake camshaft inspection. The brake chapter explains that solvents can swell and distort hydraulic seals.

Front fork and swingarm: Fork procedures cover damper-rod service, guide-bush and oil-seal replacement, refilling, and air-pressure setup. The disassembly notes identify inner-tube bottoming as a cause of oil-lock-piece damage. Swingarm work includes needle bearings, bushings, side-clearance measurement, shim selection, and relay-arm lubrication.

Rear-shock scope: Coverage includes safe handling, removal, spring work, external inspection, adjustment, and disposal. The pressurized cylinder assembly is not covered as an internal-overhaul item.

Any opened brake connection requires bleeding before the motorcycle is returned to service, and Yamaha warns against opening the pressurized rear-shock cylinder.

Ignition, Charging, and Circuit Diagnosis

Electrical troubleshooting combines circuit diagrams with charging-output and charging-coil resistance tests, ignition spark-gap testing, pickup- and source-coil checks, and ignition-coil winding measurements.

Neutral- and sidestand-switch tests, switch-continuity tables, and lighting and signal checks help narrow faults to the affected circuit or component. The main circuit diagram is specifically labeled XT600L; the final wiring sheet also shows connector arrangements and switch contacts.

Factory Tools and Illustrated References

Engine tools: Named equipment includes the YU-90050 crankshaft installing set with YM-91044 crank pot spacer, YM-91042 clutch holding tool, and YU-90105 flywheel puller.

Fuel, chassis, and electrical tools: References include the YM-01312 fuel-level gauge, YM-08020 fork seal and guide-bush installer, and YU-03021 electro tester.

Visual references include cylinder-head/camshaft and clutch exploded views, the carburetor sectional view, four dry-sump lubrication diagrams, and charging and ignition troubleshooting charts. The appendix contains 16 exploded assembly plates, two electrical-component location plates, and three cable-routing sheets.

Engine and chassis torque tables, a general fastener chart, capacities, clearances, wear limits, and electrical test specifications support the documented repair and inspection procedures.

A Preview of Carburetor Measurement Data

The primary-carburetor fuel-level specification is 7 ± 1 mm below the carburetor body edge, with the carburetor vertical and the check made after brief engine operation.

Reference float height is 26.0 ± 1.0 mm, measured from the float-chamber gasket seat, with the gasket removed, to the top of the float. The measurement condition has the float resting on the inlet needle without compressing its spring.
