Porsche 911 Carrera 1984–1989 Service Manual — Coupe, Targa & Cabriolet (ISBN 0-8376-0291-2)

Bentley Publishers’ independent service manual covers the 1984–1989 Porsche 911 Carrera Coupe, Targa and Cabriolet, with the 3.2-liter air-cooled flat-six in 930/21 and 930/25 form. This is not a Porsche-issued factory workshop manual. Bibliographic identifiers are Bentley code P989 and softcover ISBN 0-8376-0291-2.

PDF Search, Bookmarks and Page Limitations

Navigation and legibility: Manual text cannot be searched. Embedded bookmarks provide access to major repair groups, but some destinations are incorrect or unusable. Small wiring-diagram labels require zooming. Portions of PDF pages 629, 710 and 714 are unreadable.

One printable 717-page PDF, including five duplicate pages in the Camshaft Timing Chains group. That group is incomplete: printed pages 152-1, 152-3, 152-5, 152-7 and 152-9 are missing.

Engine Rebuilding, DME Diagnosis and Carrera Chassis Repair

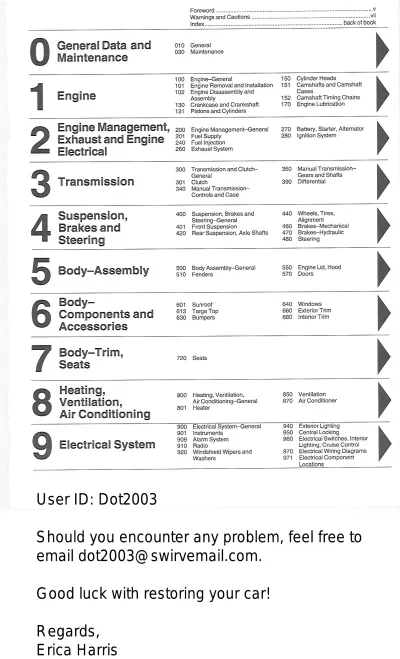

The following is a selection of the coverage, rather than a complete contents list. Other topics include cruise-control troubleshooting and factory-alarm testing.

• Engine repair: Step-by-step engine/transmission removal, engine teardown and reassembly, component reconditioning, camshaft work, timing-chain procedures and dry-sump lubrication diagnosis.

• DME and ignition: Bosch Motronic driveability troubleshooting, fuel-pressure and delivery tests, injector and sensor checks, ECM pin assignments, ignition diagnosis and emissions-system service.

• Transmission and clutch: Internal 915 transmission repair, synchronizer inspection, shifter service, cable-clutch adjustment and hydraulic-clutch bleeding and component replacement.

• Suspension, steering and brakes: Torsion-bar setup, ride-height adjustment, wheel alignment, wheel-bearing and CV-joint service, steering repairs and hydraulic and mechanical brake work.

• Body and trim: Targa-top handling and adjustment, door and window service, sunroof repairs, bumpers, mirrors, seats, dashboard and console trim.

• Heating and A/C: Automatic-heating troubleshooting, ventilation controls, R-12 system checks and replacement procedures for A/C components.

• Electrical reference: Battery, starter and charging-system tests, wiring diagrams, component-location tables, special-tool references and component-specific service specifications.

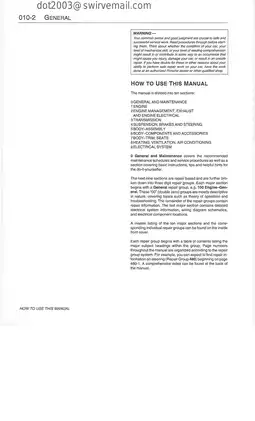

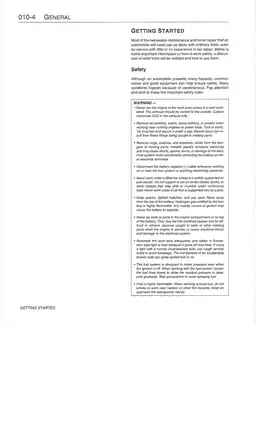

The general section introduces maintenance and minor repairs for DIY owners; the engine reconditioning chapters are intended for professional or experienced automotive technicians.

Identification and Maintenance Planning

Identification guidance covers the VIN, date-of-manufacture label, engine number, transmission code and paint code. These distinctions matter when selecting replacement parts or matching a procedure to the installed components.

Maintenance tables combine oil-service, mileage-based and time-based schedules with required tools, replacement parts and repair-group references. They help establish a job’s requirements before work begins. Procedures cover valve clearance, filters, spark plugs, V-belts, oxygen sensors, wheel bearings, brakes, clutch, suspension, fuel lines, wipers and body lubrication. Lubricant tables supply viscosity, specification and capacity information.

Engine Reconditioning and Lubrication

The engine chapters cover separation and rejoining of the engine/transmission assembly, crankcase and intermediate-shaft inspection, crankshaft gears and bearings, and piston/cylinder identification and wear checks. Cylinder-head material includes valve guides, seats and valve-spring setup.

Camshaft and rocker-shaft service extends to oil-spray tubes, chain tensioners and final timing adjustment. The manual distinguishes Mahle/Nikasil from KS/Alusil piston-and-cylinder combinations and requires used components to retain their original cylinder assignments.

Lubrication coverage includes oil-pressure and warning-system diagnosis, oil tanks, coolers, cooler lines and oil-return tubes. It also addresses lubrication-system flushing after bearing failure, where retained debris can damage rebuilt components.

Tool references include the P 238 a flywheel lock, 9191 camshaft-sprocket counterholding wrench and P 212 sprocket lockpin tool.

Motronic Fault Isolation and Exhaust Service

DME testing connects driveability symptoms with fuel delivery, residual pressure, ECM inputs and wiring checks. Coverage includes volume-air-flow and temperature sensors, reference/speed sensors, throttle-position switches, idle control, oxygen sensors and evaporative-emissions components.

The ECM harness test chart and pin-assignment tables support checking signals and wiring before condemning the control module. Electrical-testing cautions explain how oversized meter probes can spread connector contacts and introduce intermittent faults.

Ignition and exhaust chapters add distributor, rotor, plug-wire and crankshaft-sensor service, catalytic-converter checks, and muffler, heat-exchanger and catalytic-converter replacement.

915 Repair and Clutch-System Differences

The 915 material covers the case, input and output shafts, synchronizers, “dog” teeth, seals and reassembly. Internal G50 gear-and-shaft overhaul is not covered. Differential coverage is limited to troubleshooting and axle-flange seals; differential rebuilding and setup are outside the manual’s scope.

Clutch procedures distinguish the earlier cable-operated arrangement from the later hydraulic system, including pedal-cluster work, release adjustment, master/slave cylinders and the clutch cross-shaft bearing update. Referenced tools include P 370 for clutch-disc alignment and P 355 a for input-shaft mounting.

Chassis, Body and Climate Systems

Chassis chapters detail struts and cartridges, ball joints, control arms, torsion bars, steering rack and column, brake master cylinder and booster, pads, rotors and parking-brake components. Brake-caliper rebuilding is outside the scope.

Body procedures distinguish Coupe window adjustment from Targa/Cabriolet adjustment. Sunroof coverage includes emergency closing, panel height, cables, motor and guide rails; Targa-top material covers removal, folding and latch adjustment.

Heating diagnosis addresses sensors, blowers and control cables. A/C material covers pressure and electrical checks, compressor/clutch, receiver-dryer, condensers, expansion valve and evaporator housing. Detailed A/C diagnosis and refrigerant discharge, evacuation and recharge procedures are outside the repair coverage.

Wiring Diagrams and Component Locations

Group 970 occupies 92 PDF pages, with year-specific circuits for 1984, 1985, 1986–1987 and 1988–1989 as applicable. Examples include Power Distribution, Ground Distribution, Engine Management, Convertible Top, Air Conditioning and Heating, and Instrument Panel diagrams.

Separate reference tables identify fuses, relays, control modules, grounds and year-specific fuse assignments. Together with the circuit diagrams, these references support tracing electrical faults to the relevant connections and components.

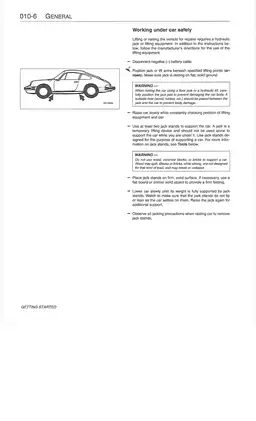

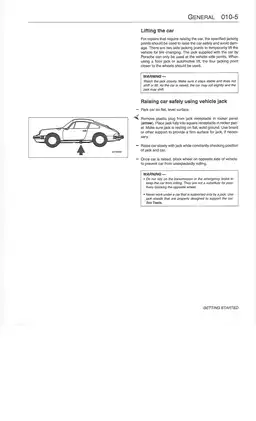

Engine/transmission removal calls for suitable lifting equipment. Brake hydraulic work and refrigerant handling require appropriate shop procedures, electrical isolation and experienced judgment.

Examples of Fuel-Pressure and DME Test Specifications

The fuel-pressure table specifies 2.5 bar (36 psi) with the engine off and the pump operated for testing, compared with 2.0 bar (29 psi) with the engine running.

The ECM harness chart lists 0.6–1.6 kΩ with the ignition off for the crankshaft-speed sensor at terminals 8 and 27, and the reference sensor at terminals 25 and 26. These entries illustrate the component, connection and test-condition detail provided.
