Buick Riviera 1995 Repair & Owner's Manual Collection (P/N 25604215 C)
4,782 Pages • ZIP Download: 179 Printable PDFs • 144.54 MB
Buick Models Covered & Key Technical Specifications
Models & Model Codes: Riviera (body code G) / Oldsmobile Aurora (body code G)
Sub-models / Variants: Riviera 3.8L (RPO L36; VIN character 8: K), 3.8L Supercharged (RPO L67; VIN character 8: 1); Oldsmobile Aurora 4.0L (RPO L47; VIN character 8: C)
Model Year 1995
-
Engine displacement: 231 cu. in. (3.8L; Riviera)
-
Bore: 3.80 in. (96.5 mm; Riviera 3.8L)
-
Stroke: 3.40 in. (86.4 mm; Riviera 3.8L)
-
Compression ratio: 9.0:1 (Riviera 3.8L Supercharged)
-
Horsepower: 225 hp @ 5000 RPM (Riviera 3.8L Supercharged)
-
Alternator code (RPO): KG9 (CS144; 3.8L, 3.8L Supercharged and 4.0L applications)
-
Oil pressure: 60 psi (4.2 kg/cm²) @ 1850 RPM (Riviera 3.8L, at normal operating temperature with 5W-30 or 10W-30 engine oil)
-
Main bearing oil clearance: 0.0008–0.0022 in. (0.020–0.055 mm; Riviera 3.8L engine articles)
-
Crankshaft end play: 0.003–0.011 in. (0.08–0.28 mm; Riviera 3.8L)
-
Transmission variants: Riviera: 4T60-E in the 1995 articles; 4T65-E (RPO MN7) in the later service articles. Aurora: 4T80-E (RPO MH1) in the later identification and servicing articles.
Buick Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|

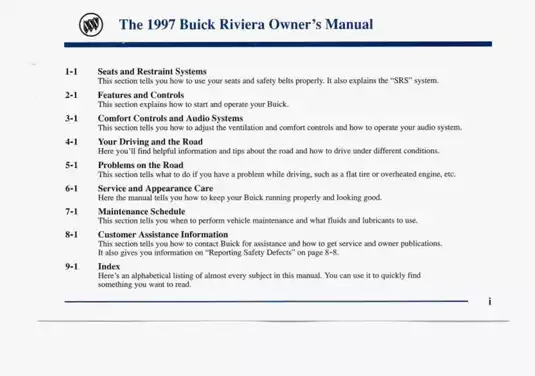

| 1995 Buick Riviera Owner’s Manual — First Edition, P/N 25604215 C | 339 |
| 1997 Buick Riviera Owner’s Manual — First Edition, P/N 25645980 B | 387 |
| 1999 Buick Riviera Owner’s Manual — First Edition, P/N 25685485 A | 368 |
| 1995 Mitchell repair-information compilation — 45 PDFs covering Riviera 3.8L engines and selected Riviera/Aurora systems | 1,246 |
| Additional Mitchell repair and reference compilation — 130 PDFs containing later Riviera/Aurora articles, general references, other vehicle applications and 32 article-availability notices | 2,428 |
| 1999 Aurora & Riviera DTC Index | 14 |
The owner’s manuals explain vehicle operation and maintenance. The Mitchell articles provide system-specific repair and diagnostic information, including GM-credited diagrams.
Coverage varies by article. Dedicated mechanical chapters cover Riviera 3.8L engines. The Aurora material includes electrical, chassis, body and engine-control information, with a substantial 4.0L diagnostic section; it does not include a dedicated 4.0L internal engine-overhaul chapter. Match the vehicle, engine and article year before selecting a procedure.
Text Search, Bookmarks and Diagram Detail
Search and diagram access: Repair-article text is searchable, but labels inside diagrams are not consistently included in text searches. The 1995 and 1997 owner’s manuals have partial OCR text and embedded bookmarks; some pages cannot be searched. The 1999 owner’s manual has searchable text and no embedded bookmarks. A few repair/reference PDFs have limited bookmarks, while most have none. Small wiring and hydraulic-diagram labels require zooming.
The ZIP contains 179 printable PDFs totaling 4,782 pages, including 32 one-page article-availability notices without repair content. The total also includes the two original cover pages, introductory material and indexes.
Engine, Transmission and Electrical Coverage
Selected contents: These highlights represent part of the collection. Additional references include drive-belt routing and computer relearn procedures.
-
Engine repair: Riviera L36 and L67 removal and installation, cylinder-head work, timing components, balance shafts, lubrication-system service and supercharger procedures.
-
Engine diagnostics: Riviera 3.8L self-diagnostics and Aurora 4.0L testing, with DTC charts, sensor checks, scan-data references and circuit fault isolation.
-
Automatic transmissions: Separate 4T60-E and 4T65-E electronic diagnosis and overhaul articles, including hydraulic testing, valve bodies, clutches, sprags and final drives.
-
Electrical systems: Riviera wiring packages, VIN-specific component locators, charging and starting tests, connector references, ground locations and harness-splice information.
-
Brakes and chassis: ABS/traction-control diagnosis, brake service, power and variable-effort steering, electronic level control, suspension repair and SIR air-bag service.
-
HVAC and accessories: Automatic climate-control diagnosis, cruise control, Pass-Key anti-theft, keyless entry, instrument panels and power-operated body equipment.
-
Owner information: Controls, restraint systems, roadside problems, routine care, maintenance schedules and recommended fluids in the three model-specific owner’s manuals.
The owner’s guides address vehicle operation and routine care; the repair articles are suited to professional technicians and experienced mechanics familiar with scan tools, electrical test equipment and shop-level procedures.
Engine Repair and Control-System Diagnosis
The Riviera mechanical articles separate the naturally aspirated L36 from the supercharged L67. They document front covers, timing chains and sprockets, rocker arms, lifters, camshafts, piston and connecting-rod assemblies, crankshafts, bearings and oil pumps. The L67 material adds dedicated supercharger and intake-manifold procedures.
Step-by-step instructions cover major removal, installation and component-service work. Inspection limits and component-specific torque tables accompany the relevant procedures. The balance-shaft section warns that improper installation tooling can damage the shaft.
Driveability diagnosis: The 3.8L material pairs DTC-specific circuit schematics with diagnostic flow charts. Examples include P0101 MAF diagnosis, P0171/P0172 fuel-trim faults, knock-sensor tests and cam/crank signal checks. IAT, coolant-temperature, throttle-position and oxygen-sensor circuits are also addressed.
Separate control-system service articles cover the PCM, ignition modules and coils, camshaft and crankshaft sensors, and throttle body. Fuel-system procedures address the pressure regulator, fuel rail and injectors, fuel pump, TP sensor and oxygen sensor, with application-specific supercharger information.
The later Aurora 4.0L articles add no-code troubleshooting, sensor operating-range charts, PCM connector information and system/component tests. These diagnostic procedures are distinct from the Riviera mechanical chapters.
4T60-E and 4T65-E Diagnosis and Overhaul
The transmission material combines electronic fault isolation with internal repair information. Exploded views and inspection references cover valve bodies, solenoids, clutch and sprag assemblies, servos, oil pumps, final drives and differentials.
The 4T60-E diagnostic article contains several GM applications; Riviera work follows the 3.8L G-body callouts. The later 4T65-E articles provide their own control-system tests, pressure references, assembly procedures and hydraulic diagrams. The line-pressure test section warns that prolonged testing in a driving range can damage the transaxle.
Aurora 4T80-E identification and servicing references should be distinguished from the dedicated Riviera transmission-overhaul articles.
Wiring, Charging and Vehicle Systems
The electrical references support repair planning by locating relays, modules, sensors, motors, solenoids, connectors, grounds and splices. This lets a technician relate a circuit fault to the relevant component and harness connections before selecting a test.
Diagram examples include 3.8L VIN 1 Engine Performance Circuits, Ground Distribution, Power Distribution, the Anti-Lock Brake System Wiring Diagram, Electronic Level Control, and the 4T65-E “P” Range—Park hydraulic diagram.
CS144 charging-system material covers charge-indicator and battery-charging faults, regulator operation, and rotor, stator and rectifier-bridge testing. Starter-system articles provide additional starting-circuit diagnosis and component-service information.
Steering and body equipment: The steering reference distinguishes Two-Flow Electronic and non-TFE pumps, which can look alike but are not interchangeable. Other articles address ABS/TCS functional checks, SIR diagnosis, rear level control and automatic HVAC. Accessory coverage extends to seats, windows, locks, mirrors, headlights, defoggers and wiper/washer systems.
SIR components, pressurized fuel and hydraulic systems, high-current charging circuits, and heavy drivetrain assemblies require the appropriate isolation, lifting, test-equipment and service precautions before physical repair work begins.
Selected Camshaft Bearing Clearances
The 1995 L36 and L67 engine articles specify camshaft oil clearance of 0.0005–0.0035 in. (0.013–0.089 mm).
The later 1998–99 3.8L engine article lists 0.0016–0.0047 in. (0.041–0.119 mm). These separate inspection references make engine and article identification important when assessing bearing clearance.
