Buick Rendezvous 2002–2007 Service & Owner's Manual Collection
17,318 Pages • ZIP Download: 144 Printable PDFs • 705.72 MB
Buick Models Covered & Key Technical Specifications
Models: Rendezvous (3.4L V6: LA1; 3.5L V6: LX9; 3.6L V6: LY7)
Sub-models / Variants: CX, CXL, CX Plus, CXL Plus, Ultra
Model Years: 2002–2007 (2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007)
-
Key System: PASS-Key III vehicle theft system
-
Safety Features: Frontal and side impact air bag modules, LATCH system for child restraints
-
Transmission Variants: 4T65-E four-speed automatic transaxle; 2003 application: FWD (M15), AWD (M76). Steyr transfer case for AWD applications.
-
Engine VIN Identification: Eighth VIN character identifies the engine: E = LA1, L = LX9, 7 = LY7.
-
Fuel-Level Sender Serial Break: 2004 3.4L instrument-panel diagnosis distinguishes vehicles prior to VIN 4S558922 (100 mm sender) from VIN 4S558922 and later (130 mm sender).
Buick Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|

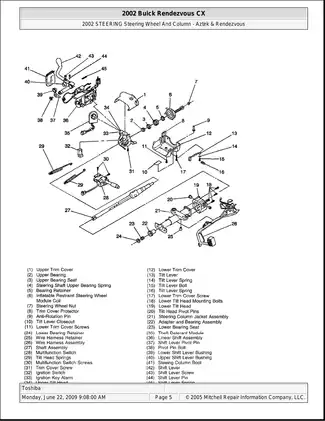

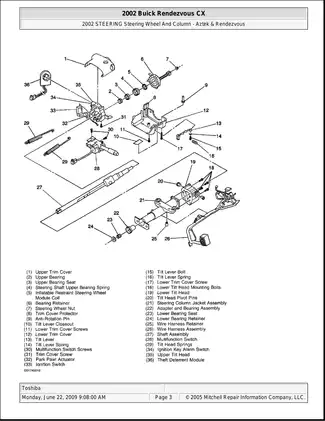

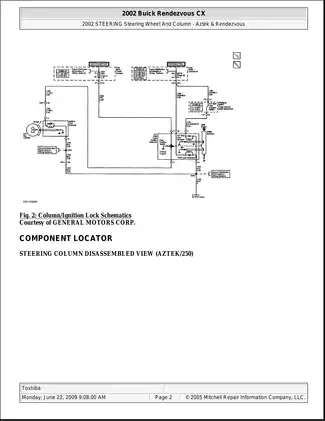

| 2002 Buick Rendezvous — Steering Wheel and Column | 80 |
| 2003 — Airbag Restraint Systems | 49 |
| 2003 — Antilock Brake System | 117 |
| 2003 — 4T65-E Transaxle Service | 85 |
| 2003 — Automatic Level Control | 82 |
| 2003 — Front Axle Shafts | 23 |
| 2003 — Rear Axle Shafts | 15 |
| 2003 — Basic Diagnostic Procedures | 13 |
| 2003 — Brakes | 114 |
| 2003 — Charging System | 16 |
| 2003 — Rear Differential | 21 |
| 2003–2004 — Drive Belt Routing | 3 |
| 2003 — Propeller Shaft | 13 |
| 2003 — Electrical Component Locations | 22 |
| 2003 — Engine Performance: Removal and Installation | 74 |
| 2003 — 3.4L LA1 Engine Mechanical | 615 |
| 2003 — Front Suspension | 65 |
| 2003 — Manual HVAC | 92 |
| 2003 — Automatic HVAC | 113 |
| General On-Vehicle Adjustment Reference | 2 |
| 2003 — Power Steering | 98 |
| 2003 — Rear Axle Controls | 18 |
| 2003 — Rear Suspension | 54 |
| 2002–2003 — Starter Diagnosis and Replacement | 16 |
| 2003 — Steering Column | 91 |
| 2003 — Engine System and Component Testing | 45 |
| 2003 — Vacuum Diagrams | 3 |
| 2004 — System Wiring Diagrams | 59 |
| 2004 — 3.4L LA1 Engine Mechanical | 583 |
| 2004 — 3.6L LY7 Engine Introduction | 135 |
| 2004 — Automatic Level Control | 86 |
| 2004 — Disc Brakes | 110 |
| 2004 — Drive Belt Routing | 3 |
| 2004 — Propeller Shaft | 13 |
| 2004 — Drum Brakes | 45 |
| 2004 — Electrical Component Locations | 68 |
| 2004 — Engine Cooling | 187 |
| 2004 — Engine Electrical | 153 |
| 2004 — Engine Exhaust | 62 |
| 2004 — Front Suspension | 65 |
| 2002–2004 — Fuses and Circuit Breakers | 15 |
| 2004 — Hydraulic Brakes | 151 |
| 2004 — Instrument Panel | 268 |
| 2004 — Locking/Limited-Slip Axle | 28 |
| 2004 — Rear Drive Axle | 89 |
| 2004 — Rear Suspension | 103 |
| 2004 — Steyr Transfer Case Overhaul | 161 |
| 2004 — Wheel Drive Shafts | 85 |
| 2005 — Ultra Wheel Drive Shafts | 83 |
| 2005 — Airbag Restraint Systems | 282 |
| 2005 — Antilock Brakes | 122 |
| 2005 — 4T65-E Transaxle Troubleshooting | 90 |
| 2005 — Automatic Level Control | 81 |
| 2005 — Body Front End | 85 |
| 2005 — Bumpers | 78 |
| 2005 — Cabin Air Filter | 3 |
| 2005 — Cruise Control | 55 |
| 2005 — Disc Brakes | 104 |
| 2005 — Doors | 330 |
| 2005 — Locking/Limited-Slip Axle | 21 |
| 2005 — Electrical Component Locations | 68 |
| 2005 — Engine Controls | 114 |
| 2005 — Engine Cooling | 137 |
| 2005 — Engine Electrical | 130 |
| 2005 — Entertainment | 168 |
| 2005 — Exterior Trim | 108 |
| 2005 — Frame | 39 |
| 2005 — Front Suspension | 62 |
| 2005 — Horns | 23 |
| 2005 — Automatic HVAC (second copy) | 121 |
| 2005 — Manual HVAC | 99 |
| 2005 — Automatic HVAC | 121 |
| 2005 — Instrument Panel | 230 |
| 2005 — Interior Trim | 80 |
| 2005 — Keyless Entry | 24 |
| 2005 — Lighting Systems | 300 |
| 2005 — Navigation System | 17 |
| 2005 — Parking Brakes | 82 |
| 2005 — Programming and Setup | 8 |
| 2005 — Rear Drive Axle | 86 |
| 2005 — Rear Suspension | 77 |
| 2005 — Roof | 88 |
| 2005 — Seats | 322 |
| 2005 — Steering Column | 82 |
| 2005 — Steyr Transfer Case Service | 67 |
| 2005 — Wheel Drive Shafts | 77 |
| 2005 — Stationary Windows and Defogger | 77 |
| 2005 — Wipers and Washers | 88 |
| 2006 — 3.5L LX9 Engine Mechanical | 658 |
| 2006 — 3.6L LY7 Engine Mechanical, Part 1 | 166 |
| 2006 — 3.6L LY7 Engine Mechanical, Part 2 | 246 |
| 2006 — 3.6L LY7 Engine Mechanical, Part 3 | 370 |
| 2006 — 3.6L LY7 Engine Mechanical, Part 4 | 262 |
| 2006 — 3.6L LY7 Engine Mechanical, Part 5 | 46 |
| 2006 — 3.6L LY7 Engine Diagnosis | 157 |
| 2006 — Automatic Level Control | 85 |
| 2006 — 4T65-E Transaxle Troubleshooting | 106 |
| 2006 — 4T65-E Transaxle Overhaul | 606 |
| 2006 — Cabin Air Filter | 3 |
| 2006 — Cruise Control | 59 |
| 2006 — Stationary Windows and Defogger | 65 |
| 2006 — Disc Brakes | 108 |
| 2006 — Doors | 307 |
| 2006 — Electrical Component Locations | 63 |
| 2006 — Engine Cooling | 172 |
| 2006 — Engine Electrical | 182 |
| 2006 — Engine Exhaust | 84 |
| 2006 — Entertainment | 165 |
| 2006 — Lighting Systems | 269 |
| 2006 — Frame and Underbody | 45 |
| 2006 — Front Suspension | 65 |
| 2006 — Garage Door Opener | 17 |
| 2006 — Horns | 25 |
| 2006 — Mechanical A/C and Heater Service | 369 |
| 2006 — Manual HVAC | 105 |
| 2006 — Hydraulic Brakes | 139 |
| 2006 — Instrument Panel | 219 |
| 2006 — Interior Trim | 65 |
| 2006 — Keyless Entry | 27 |
| 2006 — Locking/Limited-Slip Axle | 24 |
| 2006 — Maintenance and Lubrication Specifications | 2 |
| 2006 — Navigation System | 19 |
| 2006 — Object Detection | 49 |
| 2006 — Parking Brakes | 62 |
| 2006 — Power Steering | 151 |
| 2006 — Rear Drive Axle | 90 |
| 2006 — Rear Suspension | 65 |
| 2006 — Roof | 96 |
| 2006 — Seats | 312 |
| 2006 — Steering Column | 78 |
| 2006 — Wheel Drive Shafts | 109 |
| 2006 — Wipers and Washers | 97 |
| 2007 — Radio Wiring Diagrams (Part 3) | 5 |
| 2006 — Power Distribution Diagrams (Part 4) | 4 |
| 2007 — Exterior Lighting Diagrams (Part 5) | 3 |
| 2006 — Engine Performance Wiring Diagrams | 9 |
| 2006 — Airbag Restraint Systems | 259 |
| 2006 — Ground Distribution Diagrams (Part 2) | 4 |
| Generic OBD-II Code Reference | 33 |
| GM OBD-II Code Reference | 14 |
| 2002 Buick Rendezvous Owner’s Manual — P/N 10312928 A, First Edition (©2001) | 455 |
| 2005 Buick Rendezvous Owner’s Manual — P/N 05RENDEZVOUS A, First Edition | 480 |
| 2006 Buick Rendezvous Owner’s Manual — P/N 06RENDEZVOUS A, First Printing | 478 |
| 2007 Buick Rendezvous Owner’s Manual — P/N 15860822 A, First Printing | 528 |
The service articles cover workshop diagnosis and repair, while the owner's manuals explain vehicle controls, driving, maintenance schedules, and routine checks. Shared Aztek/Rendezvous articles distinguish vehicle-specific procedures where the designs differ.
Coverage varies by year and system. The 2004 LY7 engine publication is an introduction and diagnostic reference; the detailed LY7 repair procedures are in the five 2006 engine files. The 2007 material consists of an owner's manual and selected radio and exterior-lighting diagrams.
Text Search, Bookmarks, and Diagram Detail
Search and diagram labels: Searchable text is present in 85 PDFs, with some illustrations and opening pages outside the text layer; 59 PDFs do not support text search. Embedded bookmarks are available in the four owner's manuals. Dense wiring diagrams require zooming to read small terminal numbers and wire codes.
The ZIP contains 144 printable PDFs with 17,318 pages in total. That total includes the 2002 owner's manual's 12 opening pages and two ordering-information pages, plus 17 notes pages in the 2005–2007 owner's manuals. Both copies of the 121-page 2005 automatic-HVAC article are included in the total.
V6 Overhaul and 4T65-E Fault Diagnosis
The overview highlights selected workshop content. Other documented topics include sunroof track timing and synchronization, as well as cabin air-filter replacement.
-
Engine repair: Step-by-step disassembly, inspection, and reassembly for LA1, LX9, and LY7 engines, including cylinder-head work and timing-drive service.
-
Transmission and AWD: 4T65-E overhaul, line-pressure and cooler-flow testing, Steyr transfer-case service, and rear differential inspection and assembly.
-
Brake systems: Rotor and drum inspection, caliper overhaul, hydraulic fault diagnosis, ABS automated bleeding, and EBCM/BPMV replacement procedures.
-
Suspension and steering: Power-steering testing and bleeding, rack-bearing preload adjustment, wheel-bearing replacement, and automatic level-control diagnosis and component replacement.
-
Heating and air conditioning: Manual and automatic climate-control diagnosis, actuator recalibration, A/C performance testing, and compressor, evaporator, and heater-core replacement.
-
Electrical troubleshooting: Starting and charging tests, system wiring diagrams, connector end views, and fault charts for lighting, doors, windows, and body electronics.
-
Seats and restraints: Memory and heated-seat diagnosis, seat-mechanism repair, SIR fault charts, passenger-presence-system rezeroing, and post-collision inspection requirements.
The workshop articles are suited to experienced mechanics with scan-tool access and engine or transmission measuring equipment; the owner's manuals address vehicle operation and routine checks.
Engine Teardown and Camshaft Timing
Mechanical diagnosis separates misfire accompanied by coolant consumption, valvetrain noise, and lubrication concerns. The associated compression, cylinder-leakage, and oil-pressure tests support planning the inspections before teardown.
Fuel-system material adds crank/no-start charts, injector coil and balance tests, and fuel-pump circuit diagnosis. Cooling chapters cover overheating, coolant loss, thermostat testing, and water-pump replacement for the LA1 and LY7 engines.
The LY7 material treats primary and secondary timing chains and camshaft-position actuators separately. A Camshaft Timing Drive Chain Alignment Diagram accompanies the timing information, and the repair chapters identify tools such as the EN 46108 Timing Chain Retention Tool.
4T65-E and AWD Driveline Details
Expanded control-valve-body views and fluid-passage diagrams support internal transmission work. Cooler flushing and flow testing include procedures for J 35944-A and J 45096 equipment; clutch functional air checks and selective-washer data extend the overhaul coverage beyond fluid service.
The overhaul cautions identify an incorrectly aligned oil dam as a cause of blocked lubrication and transmission damage. AWD articles also distinguish transfer-case, torque-tube, and rear differential concerns instead of treating every driveline noise as a transaxle fault.
Brake, Steering, and Suspension Diagnosis
Differential Lock Schematics connect axle-control circuits with scan-tool information. The ABS diagram covering Brake Pressure Modulation, Ground, Power and Stop Lamp Switch shows the electrical connections around the brake pressure modulator.
Rear hub and suspension procedures distinguish FWD and AWD configurations. Off-vehicle steering procedures include CB-series pump reservoir and flow-control-valve replacement; automatic level-control chapters cover compressor, air-line, dryer, and height-sensor work.
Climate Control and Body Electrical Systems
Automatic A/C Circuit and VIN L Engine Performance Circuit diagrams identify module terminals, circuit numbers, and wire colors. The LX9 diagram marks early- and late-production connections.
HVAC sensor-resistance tables, connector views, and actuator information support fault tracing alongside the mechanical A/C procedures for refrigerant recovery, compressor-oil balancing, and leak testing.
The programming reference identifies module setup requirements, but directs the actual SPS programming workflow to a TIS terminal. It does not provide that terminal or its software.
Seat Operation and Restraint Service
The owner's manuals explain four-way manual and six-way power-seat controls, lumbar adjustment, head restraints, reclining seatbacks, and memory settings linked to the outside mirrors. Instructions for removing, reinstalling, and latching split-bench sections, captain's chairs, and stowable seats provide a factory reference for restoring the seating configuration.
PASS-Key III transponder-key operation and LATCH child-restraint information sit alongside the owner-level restraint guidance. Workshop material adds SDM replacement and setup requirements.
The steering-column procedures warn that loss of SIR-coil centering during shaft disconnection can damage the coil; airbag and column work requires the specified SIR disabling and enabling precautions.
Examples of Crankshaft and Ring Inspection Data
For the 2006 LX9 engine, the mechanical specifications list crankshaft endplay of 0.060–0.210 mm and first compression-ring end gap of 0.18–0.39 mm alongside the internal inspection data.
The 2006 LY7 specifications give crankshaft endplay as 0.100–0.330 mm. Its repair chapters cover endplay measurement and bearing inspection within the LY7 teardown and assembly material.
