1996–1999 Buick LeSabre Shop Manual (P/N C4085-91017)

• 2,101 PDF pages across 41 files: 1,461 pages of 1999 Bonneville/Eighty Eight/LeSabre (VIN C/H) service sections; 60 pages of 1998 C/H cooling and exhaust material; 77 pages of 1998–99 engine and automatic-transmission references; 456 pages of 1996 4T60-E repair, specification, and component-location data; and 47 pages of generic and GM trouble-code lists.
• 3.8L V6 engine repair: identifies C/F/G/H/W body applications and distinguishes the VIN K/L36 naturally aspirated engine from the VIN 1/L67 supercharged version, with body-specific engine removal and service for the intake system, cylinder heads, front cover, timing chain, balance shaft, camshaft, rear seal, oil pan, water pump, and internal components.
• Automatic transmission coverage: application and oil-pan identification, fluid service, shift/park-lock/TV cable work, and park-neutral switch adjustment for 1998–99 GM automatics, plus a separate full 4T60-E teardown and overhaul covering the pump, valve body, solenoids, servos, clutches, sprags, bands, differential, seals, and end-play checks.
• Brake, suspension, and steering procedures: ABS/TCS schematics and automated bleeding, EBCM/BPMV replacement, hydraulic/disc/drum/parking-brake repair, automatic level-control adjustment, RTD components, struts and control arms, steering-gear preload, power-steering bleeding, and variable-effort steering centering/programming.
• HVAC and body service: automatic and manual climate-control systems, refrigerant recovery/recharging, compressor and clutch repair, leak testing, evaporator/heater-core and actuator replacement, plus doors, glass, sunroof, seats, trim, bumpers, instrument panel, and body hardware.
• Electrical and restraint information: wiring diagrams, connector end views, component locators, SIR disabling/enabling and module replacement, PASS-Key II and content-theft circuits, keyless-entry synchronization/programming, lighting, HUD/instrument cluster, wiper/washer, audio, and rear-defogger systems.
• Repair and assembly reference data: component torque tables, capacities, line-pressure and resistance data, clutch clearances, end-play and wear specifications, exploded views, fluid-passage diagrams, special-tool callouts, and separate generic/GM DTC references.

Section-Specific Coverage

This is a multi-file service-information set, not one continuous vehicle manual. The core body, brake, suspension, steering, restraint, HVAC, and electrical PDFs carry the 1999 Bonneville, Eighty Eight, LeSabre (VIN C/H) Service Manual heading, with many Buick-specific procedures. The cooling and exhaust PDFs use the 1998 version of that platform manual. The 3.8L engine and 1998–99 transmission-servicing PDFs are Mitchell Repair reference sections.

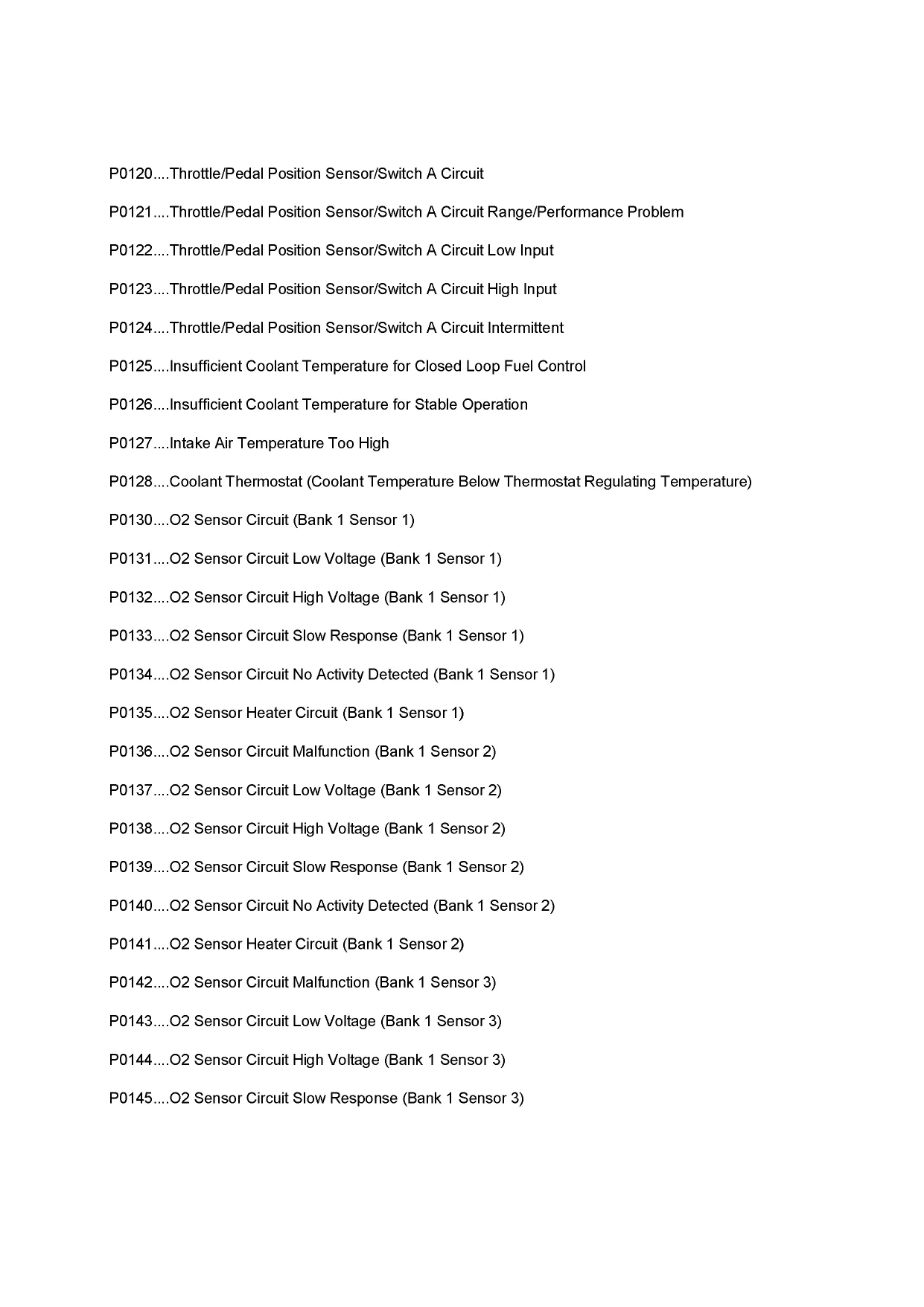

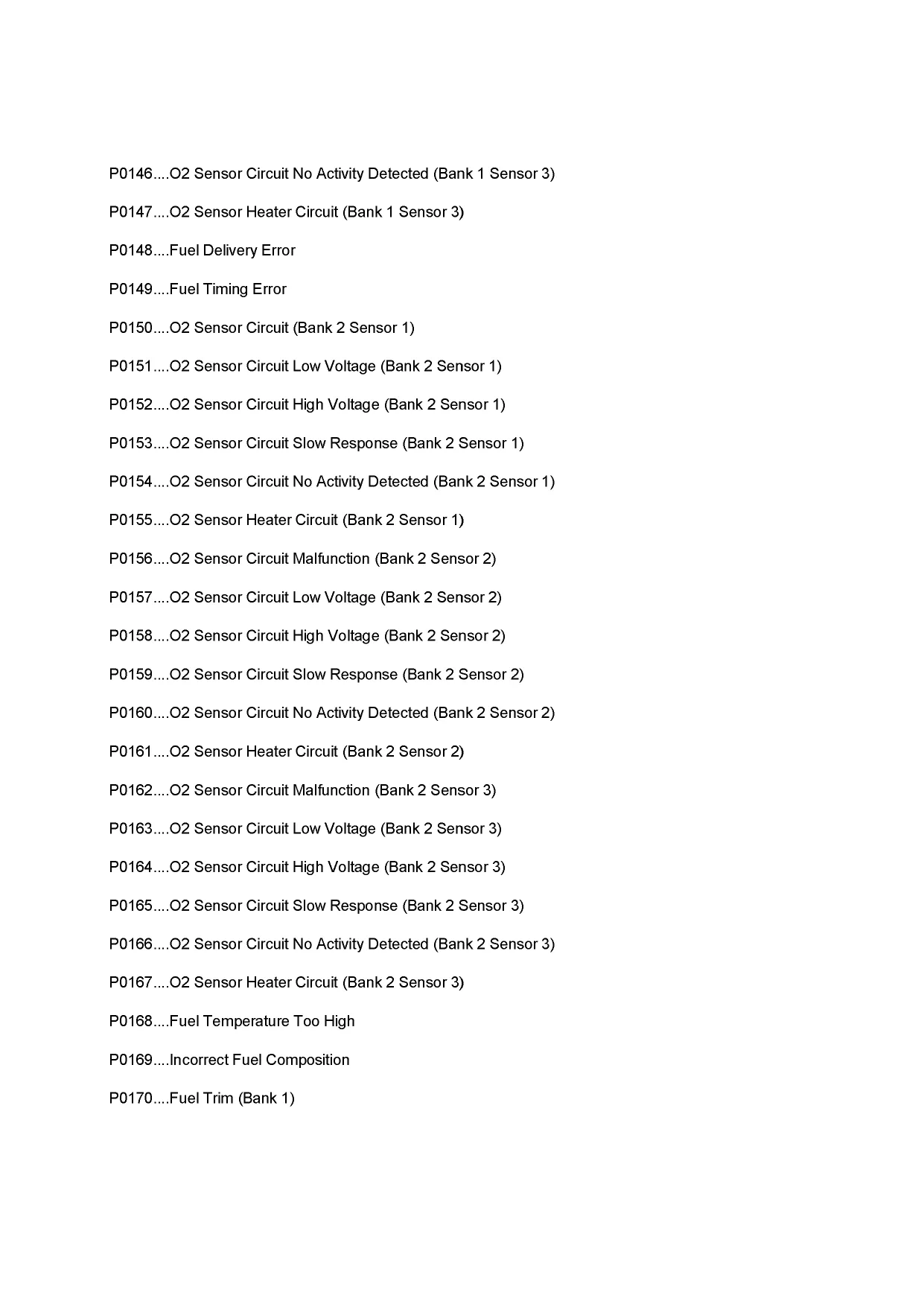

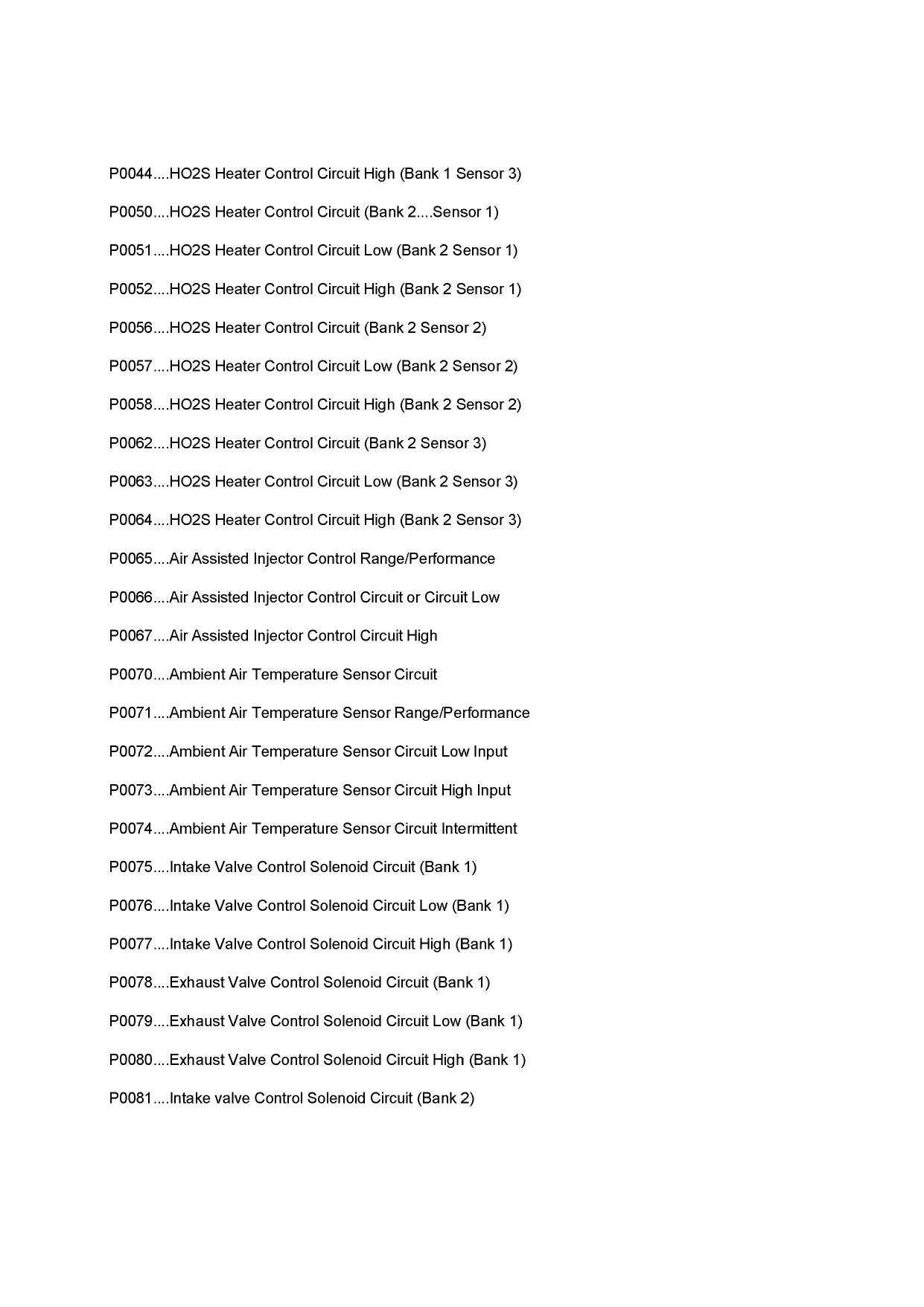

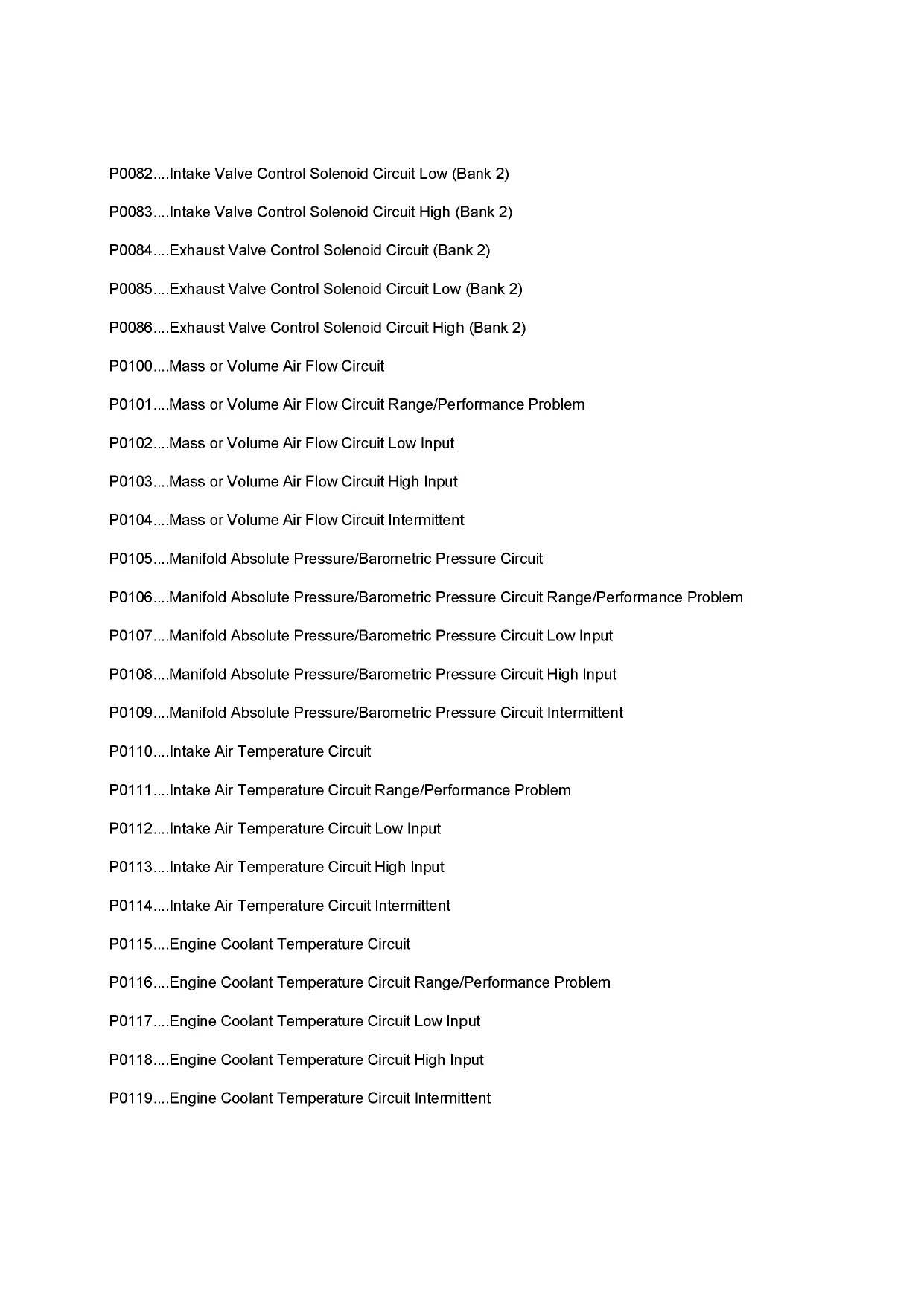

Coverage must be read by section. Park Avenue appears in the 1998–99 engine and transmission references, but not as blanket coverage for every body or electrical chapter. The complete 4T60-E internal repair material comes from the 1996 Achieva, Grand Am, Skylark (VIN N) Service Manual. No manual-transmission repair chapter is included. The two trouble-code PDFs are code-definition lists rather than full code-by-code diagnostic trees.

3.8L Engine and Automatic Transmission Repair

The 3.8L engine section covers 1998–99 C, F, G, H, and W body applications. It identifies the VIN K L36 SFI engine and VIN 1 L67 supercharged engine, including the supercharger’s role as the upper intake assembly. Engine removal is separated by body platform, followed by intake and exhaust manifold work, cylinder-head service, front-cover and timing-system repair, balance-shaft and camshaft procedures, crankshaft rear-seal replacement, oil-pan and water-pump service, internal inspection, lubrication-system checks, and torque-sequence data.

The automatic-transmission material has two distinct levels. The 29-page 1998–99 servicing reference covers unit and oil-pan identification, fluid checks and maintenance, and cable/switch adjustments across units including the 4T40-E/4T45-E, 4T60-E, 4T65-E, 4T80-E, and 4L60-E. The 456-page 4T60-E section follows the transaxle through removal, holding-fixture setup, complete disassembly, component inspection, clutch and sprag functional checks, selective end-play measurement, fluid-passage inspection, reassembly, and torque-converter checks. The 4T65-E material is servicing information, not a full internal overhaul chapter.

Special-tool references include J-36995/J-36996 for balance-shaft work, J-38196 for rear crankshaft seal installation, J-36660-A for angle-tightened fasteners, the J 28664-B transmission holding fixture, J 33381-A final-drive tool, and J 23327 clutch spring compressor. The repair notes also identify real failure points. Incorrect balance-shaft bearing orientation or tool use can damage the shaft and bearing bores. Nicking the crankshaft sealing surface can cause a repeat rear-seal leak. Substituting another product for the specified J 36850 transmission assembly lubricant can change fluid behavior, produce poor shifts, or restrict the filter. The torque-converter seal must be loaded onto its dedicated installer before entering the case to avoid seal damage.

Brake, Suspension, HVAC, Body, and Electrical Repair

Brake coverage includes master-cylinder bench bleeding, hydraulic-system bleeding and flushing, caliper overhaul, rotor refinishing, drum adjustment, ABS automated bleeding, and EBCM, BPMV, and wheel-speed-sensor replacement. Suspension and steering chapters cover hubs, control arms, struts and springs, automatic level control, RTD electronics, power-steering pump and gear repair, rack-bearing preload, and variable-effort steering sensor centering and programming.

The automatic and manual HVAC chapters document refrigerant recovery/recharging, V5 compressor clutch, bearing, coil, shaft-seal and control-valve service, leak testing, condenser, accumulator, evaporator, heater core, blower, programmer, control head, and air-mix/mode actuator replacement. Body repair extends to hood and deck-lid alignment, door modules and glass adjustment, windshield and back-glass replacement, sunroof track-and-motor synchronization, seats, instrument-panel removal, trim, mirrors, lighting, audio, and wiper systems.

Named electrical references include Cell 44: ABS/TCS Switch, UART, PCM, and Traction Control, Cell 68: Heater and A/C Programmer – Buick, Cell 47: AIR BAG Indicator, Cell 133: PASS-Key II System, Cell 100: Headlamps and High Beam Indicator, and the pulse wiper/washer schematic. Connector views and component-location pages support circuit tracing throughout the set. SIR, hydraulic-brake, refrigerant, fuel-system, and heavy powertrain work requires the disabling, pressure-relief, recovery, and support precautions specified in the PDFs.
