Buick LeSabre 2000–2005 & Pontiac Bonneville 2000 Repair Manual Set (P/N 19020)
8,344 Pages • ZIP Download: 94 Printable PDFs • 571.96 MB
Buick Models Covered & Key Technical Specifications
Models & Model Codes: LeSabre (body code H; VIN position 4), Pontiac Bonneville (body code H; VIN position 4)
Sub-models / Variants: Custom, SE
Model Years: 2000–2005 (2000, 2001, 2002, 2003, 2004, 2005)
-
Engine variants (VIN position 8): LeSabre — 3.8L SFI V6 (L36; K); Pontiac Bonneville — 3.8L SFI V6 (L36; K) or 3.8L supercharged SFI V6 (L67; 1)
-
Automatic transaxle variants: LeSabre — Hydra-Matic 4T65-E (MN3 or M15); Pontiac Bonneville — Hydra-Matic 4T65-E (MN3, MN7 or M15)
-
Passenger/side air bag module and SDM fastener torque: 80 inch-lbs (9 N.m)
-
Steering wheel nut torque: 30 ft-lbs (41 N.m)
-
Seat anchor bolt torque: 22 ft-lbs (30 N.m)
-
Generator output (AD230): 105 amps
-
Generator output (AD237): 125 amps
-
Charging-system DTC test voltage (B1513/B1514; IPC VOLTS, engine running): 10.5–16.2 volts

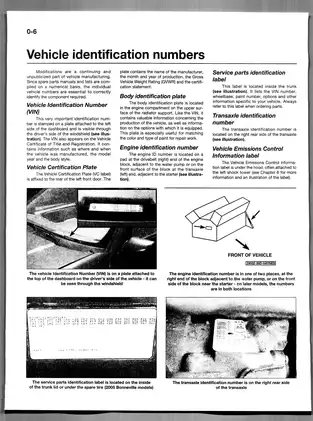

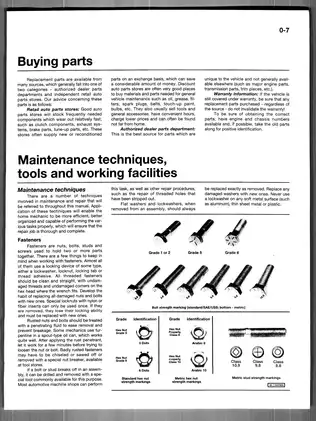

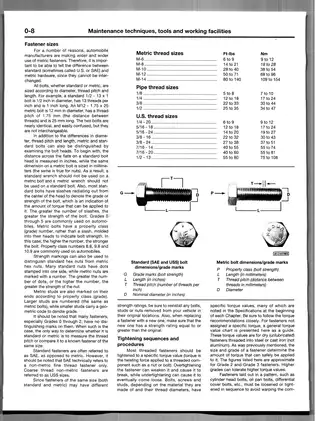

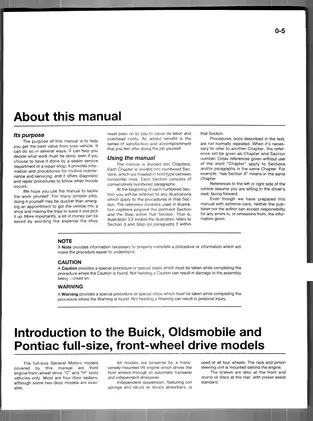

Buick Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|
| Haynes Buick, Oldsmobile & Pontiac full-size FWD V6 repair manual, 1985–2005 — P/N 19020 | 239 |
| 2001 Buick LeSabre Owner’s Manual, First Edition — P/N 25711390 A | 389 |
| 2004 Buick LeSabre Owner Manual, First Edition — P/N 25755773 A | 392 |
| 2005 Buick LeSabre Owner Manual, First Edition — P/N 05LESABRE A | 392 |
| 2000 LeSabre — Air Bag Restraint Systems | 76 |
| 2000 Bonneville/LeSabre — Generators & Regulators | 10 |
| 2000 GM — Computer Relearn Procedures | 58 |
| 2000 Bonneville/LeSabre — Electrical Component Locations | 20 |
| 2000 Bonneville/LeSabre/Park Avenue — Starters | 17 |
| 2000–2001 C/G/H/K-body — Bosch 5.3 ABS/TCS | 107 |
| 2000–2001 C/G/H-body — FWD Axle Shafts | 11 |
| 2000–2001 GM — Electric Cooling Fans | 128 |
| 2000–2001 C/G/H-body — Disc Brakes | 13 |
| 2000–2001 — 3.8L Serpentine Belt Routing | 1 |
| 2000–2001 Bonneville/LeSabre — Fuses & Circuit Breakers | 9 |
| 2000–2001 GM — A/C Compressor Clutch Controls | 214 |
| 2000–2001 Bonneville — Automatic A/C-Heater Systems | 62 |
| 2000–2001 Bonneville — Manual A/C-Heater Systems | 36 |
| 2000–2001 GM — Power Rack & Pinion Steering | 27 |
| 2000–2001 GM — Steering Columns | 34 |
| 2000–2001 — 3.8L V6 Engine Service | 40 |
| 2000–2001 Bonneville/LeSabre/Park Avenue — Automatic Transaxle Service | 93 |
| 2000 — Hydra-Matic 4T65-E Overhaul | 109 |
| 2000 Bonneville/LeSabre — Cruise Control | 21 |
| 2000 Bonneville/LeSabre — Rear Window & Mirror Defoggers | 16 |
| 2000 Bonneville/LeSabre — Power Door Locks | 14 |
| 2000–2001 G/H-body — Electronic Level Control (32-page version) | 32 |
| 2000 GM — On-Vehicle Engine Adjustments | 4 |
| 2000 GM — Engine-Performance Component Removal, Overhaul & Installation | 149 |
| 2000–2001 Bonneville/LeSabre — Front Suspension (9-page version) | 9 |
| 2000 — 3.8L SFI VIN 1 Vacuum Diagram | 1 |
| 2000 Bonneville — Analog Instrument Panel | 50 |
| 2000 Bonneville/LeSabre — Remote Keyless Entry | 11 |
| 2000–2001 G/H-body — Electronic Level Control (30-page version) | 30 |
| 2000 Bonneville/LeSabre — Power Mirrors | 14 |
| 2000 Bonneville/LeSabre — Power Seats | 73 |
| 2000–2001 C/G/H-body — Rear Suspension | 7 |
| 2000 Bonneville/LeSabre — Steering Column Switches | 17 |
| 2000 Bonneville/LeSabre — Power Sunroof | 15 |
| 2000 Bonneville/LeSabre — Diagnostic Trouble Code Index | 12 |
| 2000 Bonneville/LeSabre — Power Windows | 15 |
| 2000 Bonneville/DeVille/LeSabre — Wiper/Washer Systems | 17 |
| 2000 Pontiac Bonneville — System Wiring Diagrams | 141 |
| 2002–2003 Bonneville/LeSabre — Starters | 18 |
| 2002–2004 LeSabre — Fuses & Circuit Breakers | 10 |
| 2003 GM — Computer Relearn Procedures | 32 |
| 2003 LeSabre/Bonneville H-body — Axle Shafts (first supplied copy) | 34 |
| 2003 Bonneville/LeSabre — Electric Cooling Fans | 23 |
| 2003 LeSabre — Electrical Component Locations | 14 |
| 2003 LeSabre — Engine Cooling | 86 |
| 2003 LeSabre — Engine Exhaust | 52 |
| 2003 Buick LeSabre — System Wiring Diagrams | 62 |
| 2003 LeSabre — Specifications & Drive Belt Routing | 3 |
| 2003 LeSabre — Engine Mechanical, 3.8L | 507 |
| 2003 LeSabre — Generators & Regulators | 19 |
| 2003 LeSabre — Antilock Brake System | 171 |
| 2003 LeSabre/Bonneville H-body — Axle Shafts (second supplied copy) | 34 |
| 2003 Bonneville/LeSabre — Disc Brakes | 74 |
| 2005 LeSabre — Engine Cooling | 86 |
| 2005 LeSabre — Parking Brake | 41 |
| 2005 LeSabre — Engine Mechanical, 3.8L | 483 |
| 2005 LeSabre — SIR/Airbag System | 223 |
| 2005 LeSabre — Anti-Lock Brake System | 196 |
| 2005 LeSabre — 4T65-E Automatic Transaxle Troubleshooting | 101 |
| 2005 LeSabre — Automatic Level Control | 73 |
| General Car-Care and Basic Repair Guide | 27 |
| 2000 Bonneville/LeSabre — Passenger Compartment Air Filter | 2 |
| 2005 LeSabre — Cruise Control | 42 |
| 2005 LeSabre — Stationary Windows, Defogger & Inside Mirror | 84 |
| 2005 LeSabre — Disc Brakes | 119 |
| 2005 LeSabre — Doors | 381 |
| 2005 LeSabre — Electrical Component Locations | 102 |
| 2005 LeSabre — Engine Electrical | 99 |
| 2005 LeSabre — Entertainment/Audio Systems | 100 |
| 2005 LeSabre — Lighting Systems | 254 |
| 2005 LeSabre — Frame and Underbody | 27 |
| 2005 LeSabre — Front Suspension | 55 |
| 2000–2001 Bonneville/LeSabre — Front Suspension (10-page version) | 10 |
| 2005 LeSabre — Garage Door Opener | 13 |
| Generic OBD-II Trouble Code Reference | 33 |
| GM Trouble Code Reference | 14 |
| 2005 LeSabre — Horns | 17 |
| 2005 LeSabre — Automatic HVAC Systems | 214 |
| 2005 LeSabre — Heating, Ventilation & Air Conditioning | 270 |
| 2005 LeSabre — Instrument Panel, Gages & Console | 218 |
| 2005 LeSabre — Interior Trim | 48 |
| 2005 LeSabre — Keyless Entry | 26 |
| 2005 LeSabre — Power Steering | 127 |
| 2005 LeSabre — Rear Suspension | 55 |
| 2005 LeSabre — Roof/Sunroof | 80 |
| 2005 LeSabre — Seats | 277 |
| 2005 LeSabre — Wheel Drive Shafts | 37 |
| 2005 LeSabre — Wipers/Washer Systems | 85 |
| 2005 Buick LeSabre — System Wiring Diagrams | 61 |
The owner’s manuals cover operation and scheduled maintenance, while the Haynes volume provides broader repair reference. Separate articles add internal 4T65-E overhaul beyond the Haynes transaxle chapter’s external service and removal/installation coverage, plus year/model-specific wiring sets alongside the Haynes volume’s representative circuits.
The system articles apply only to the models, years, options, and assemblies named in each document. This is a collection of service-information extracts and owner literature, rather than a complete factory service manual for every year.
PDF Search, Bookmarks, and Diagram Limitations
Text search and bookmarks: The Haynes volume has an OCR text layer, but 39 PDFs lack useful searchable text. Only the three owner’s manuals have bookmarks; one 2004 bookmark lands one page early.
Illustration limitations: Small wiring labels require zooming, and some 2003 ABS drawings carry watermarks. Several early ABS/TCS, cooling-fan, A/C-clutch, level-control, power-window, and sunroof articles show captions with missing illustrations or diagrams.
The ZIP contains 94 printable PDFs totaling 8,344 pages, including repeated coverage and header-only pages. This includes one catalog page in the Haynes volume and four cover, service-information, and ordering pages in the 2001 owner’s manual. The Haynes PDF begins at its contents page.
Engine, Transaxle, Chassis, and Body-System Coverage
The following are selected repair and diagnostic topics. Other material includes cruise-control diagnosis, rear-window defogger repair, and sunroof adjustment.
-
Engine mechanical: Step-by-step procedures for engine removal, cylinder-head work, timing-chain and balance-shaft service, internal inspection, and reassembly.
-
4T65-E transaxle: Internal overhaul, clutch and band inspection, hydraulic pressure testing, solenoid checks, and transmission-cooler flushing and flow testing.
-
Brakes and stability control: Disc-brake and caliper repair, parking-brake service, ABS/TCS fault diagnosis, automated bleeding, and stability-control circuit checks.
-
Steering and driveline: Rack and pump service, pressure-and-flow testing, vacuum bleeding, axle-shaft and CV-joint overhaul, suspension repair, and electronic level-control diagnosis.
-
Starting, charging, and SIR: Starter and generator testing, parasitic-load diagnosis, restraint-system DTC charts, airbag component replacement, and module-related relearn information.
-
Doors, seats, and body electrical: Power-window and lock diagnosis, memory and heated seats, mirror systems, lighting faults, headlamp aiming, and wiper/washer repair.
-
HVAC systems: Automatic-control diagnosis, actuator recalibration, afterblow setup, refrigerant-system testing, compressor service, and heater-core and evaporator replacement.
The repair material is suited to experienced DIY owners and technicians who can read wiring diagrams, use a scan tool, and identify option codes before choosing a test or repair path.
Engine Diagnosis and Internal Repair
The LeSabre engine articles address compression and cylinder-leakage testing, base-engine misfires, internal noises, oil consumption, coolant entering the oil or combustion chamber, and drive-belt complaints.
Repair coverage reaches the crankshaft, pistons and rods, camshaft and balance shaft, cylinder heads, valve train, oil pump, seals, manifolds, EGR pipe, water pump, and thermostat. Exploded views, component-location drawings, and torque and inspection tables support those procedures.
Tool references include the J 28467-B engine support fixture, J 33049 camshaft bearing remover/installer, J 36995 balance-shaft bearing remover/installer, and J 45299 engine preluber. Cooling-system material adds scan-tool fan commands, leak and thermostat tests, connector views, and the Cooling Fans & Relays schematic.
Transaxle, Axle-Shaft, and Steering Work
The overhaul article follows the 4T65-E into the valve body, pump, clutch assemblies, bands, differential, and geartrain, with assembly checks and specifications. The later troubleshooting article adds torque-converter diagnosis, line-pressure checks, clutch-plate assessment, and cooler-flow testing.
The axle articles distinguish the tripot inner joint from the outer CV joint and support clicking, clunking, and acceleration-shudder diagnosis before removal or overhaul. Their boot-handling cautions explain how damage from sharp tools can allow grease loss and water entry, eventually damaging the joint.
Steering coverage separates MagnaSteer and Quiet Valve racks, CB-series pump work, and male/female rack designs. Procedures also cover flushing, pulley service, rack boots, cylinder lines, preload adjustment, and inner tie rods.
Steering test references include the J 44721 analyzer and J 43485 vacuum-bleeding adapter. Rack-service cautions address pinion and gear damage from changing preload before inner-tie-rod removal, along with the different thread-locking and staking requirements.
Body Modules, Seats, and Comfort Systems
Door diagnosis follows the Driver Door Module, Passenger Door Module, rear integration functions, and Class 2 communication. The Driver Door schematic and module output tests help distinguish a switch, motor, wiring, or control-module fault before parts are replaced. Mechanical coverage includes latches, hinges, strikers, weatherstrips, water deflectors, glass, regulators, and door alignment.
Mirror coverage includes power and memory operation, reverse tilt, heated mirrors, and automatic day/night units.
Seat material separates A45 memory systems from non-memory seats, KA1 heated seats, lumbar systems, bucket and split-bench hardware, and Custom/Limited heater-element procedures. It includes memory-seat calibration, trim and cushion work, and Driver Seat Switch & Motors schematics for AG1 and AG1/A80 configurations.
HVAC references include A/C Compressor Control with CJ2, while lighting and wiper sections provide DRL, High-Beam Headlamps & Dimmer Switch and Wiper/Washer Motor & Outside Moisture Sensor schematics. The associated procedures cover compressor-control faults, Twilight Sentinel operation, rain-sensing wipers, connector end views, and scan-tool output controls.
Computer-relearn articles also include applicable PASS-Key III and crankshaft-position variation learn procedures.
Disable the SIR system where specified before seat or trim work, and reserve refrigerant recovery and charging for properly equipped personnel.
Valve-Guide and Oil-Pressure Specification Preview
For cylinder-head inspection on the 2003 L36 engine, the manual gives intake valve stem-to-guide clearance of 0.031–0.071 mm and exhaust clearance of 0.036–0.074 mm.
The oil-pressure test specifies approximately 414 kPa (60 psi) at 1,850 rpm with the engine at operating temperature and 10W30 oil.
