Buick Models Covered & Key Technical Specifications

Model: OUTLOOK

Sub-models / Variants: CX, CXL-1, CXL-2, 3.6L, XE (2007 service sections: LY7 engine; 6T70/6T75 automatic transmission diagnostics; Getrag 790 AWD transfer case), XR (2007 electrical component locations)

Model Years: 2007–2009 (2007, 2008, 2009)


  • Engine displacement: 3.6 L

  • Engine identification — eighth VIN character: 7 = 3.6L V6 in the 2007–2008 owner manuals; D = 3.6L V6 in the 2009 owner manual

  • Remote Keyless Entry (RKE) operating range: up to 195 feet (60 m)

  • Reflective warning triangle placement: about 300 feet behind the vehicle

  • Cruise control minimum operating speed: about 25 mph

  • Ultrasonic Rear Parking Assist (URPA) operating speed: below 5 mph

  • Brake lining break-in distance: 200 miles

Buick Manual Features & Selected Content Preview

Publication Pages
2007 Saturn OUTLOOK Owner Manual — P/N 15861569 B; Second Printing, ©2006 538
2008 Saturn OUTLOOK Owner Manual — P/N 15861573 B; Second Printing, ©2007 488
2009 Saturn OUTLOOK Owner Manual — P/N 15919281 B; Second Printing, ©2008 432
2007 Outlook — Supplemental Inflatable Restraints 235
2007 Outlook — Antilock Brake System 133
2007 Outlook — Automatic Transmission Shift Lock Control 19
2007 Outlook — Automatic Transmission, 6T70/6T75 61
2007 Outlook — Wheel Drive Shafts 80
General Troubleshooting — Basic Procedures, Outlook-labeled reference 77
2007 Outlook — Vibration Diagnosis and Correction 180
2007 Outlook — Cruise Control 28
2007 Outlook — Disc Brakes 67
2007 Outlook — Vehicle Access and Door Locks 246
2007 Outlook — Propeller Shaft 7
2007 Acadia/Outlook — Electrical Component Locations, Outlook XR heading 103
2007 Outlook — Engine Cooling 85
2007 Outlook — Engine Electrical 165
2007 Outlook — Engine Exhaust 52
2007 Outlook — Cellular, Entertainment and Navigation 299
2007 Outlook — Lighting 312
2007 Outlook — Frame and Underbody 175
2007 Outlook — Front Suspension 65
2007 Outlook — Heating, Ventilation and Air Conditioning 158
2007 Outlook — Horns 19
2007 Outlook — HVAC, Manual Controls 149
2007 Outlook — Hydraulic Brakes 134
2007 Outlook — Displays and Gages 113
2007 Outlook — Interior Trim and Paneling 34
2007 Outlook — Maintenance and Lubrication 2
2007 Outlook — Mirrors 58
2007 Outlook — Parking Brake 56
2007 Outlook — Power Steering 54
2007 Outlook — Rear Drive Axle 85
2007 Outlook — Rear Suspension 64
2007 Outlook — Seat Heating and Cooling 62
2007 Outlook — Power Seats 114
2007 Outlook — Steering Wheel and Column 33
2007 Outlook — Sunroof 60
2007 Outlook — Transfer Case, Getrag 790 54
2007 Outlook — Variable Effort Steering 9
2007 Outlook — Fixed and Moveable Windows 209
2007 Outlook — Wipers and Washers 78
2007 Outlook — System Wiring Diagrams 177
2008 Acadia/Enclave/Outlook — Propeller Shaft 6
2008 Acadia/Enclave/Outlook — Electrical Component Locations 96
2008 Acadia/Enclave/Outlook — Front Suspension 61
2008 Acadia/Enclave/Outlook — Rear Suspension 70
2008 GMC Acadia — System Wiring Diagrams, SLT heading 201
2009 GM Navigation Supplement, including OUTLOOK — P/N 15910137 B; Second Printing, ©2008 88
2005 Cadillac CTS — 3.6L Engine Mechanical, Part 1 245
2005 Cadillac CTS — 3.6L Engine Mechanical, Part 2 226
2005 Cadillac CTS — 3.6L Engine Mechanical, Part 3 255
2005 Cadillac CTS — 3.6L Engine Mechanical, Part 4 377
2005 Cadillac CTS — 3.6L Engine Mechanical, Part 5 84

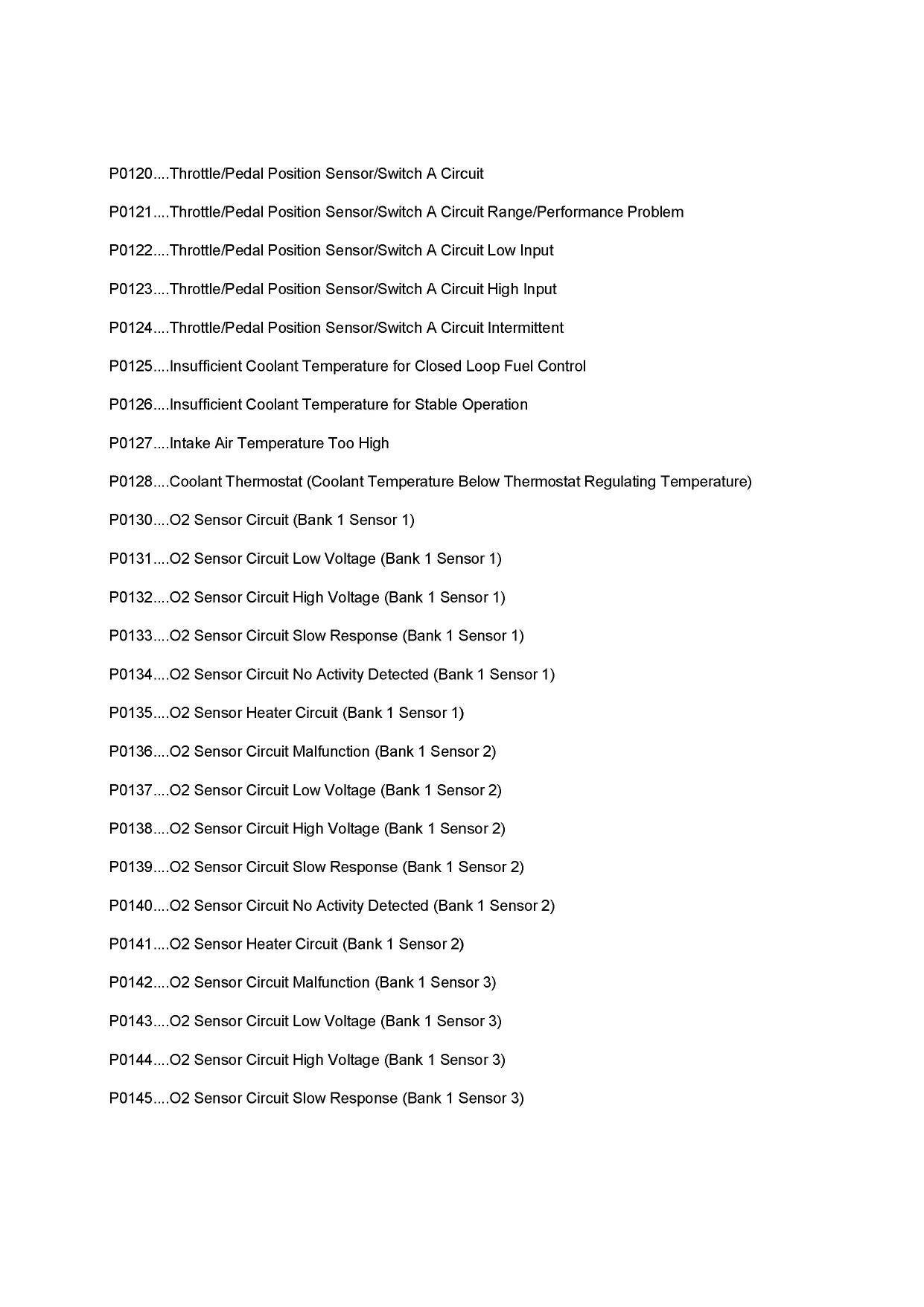

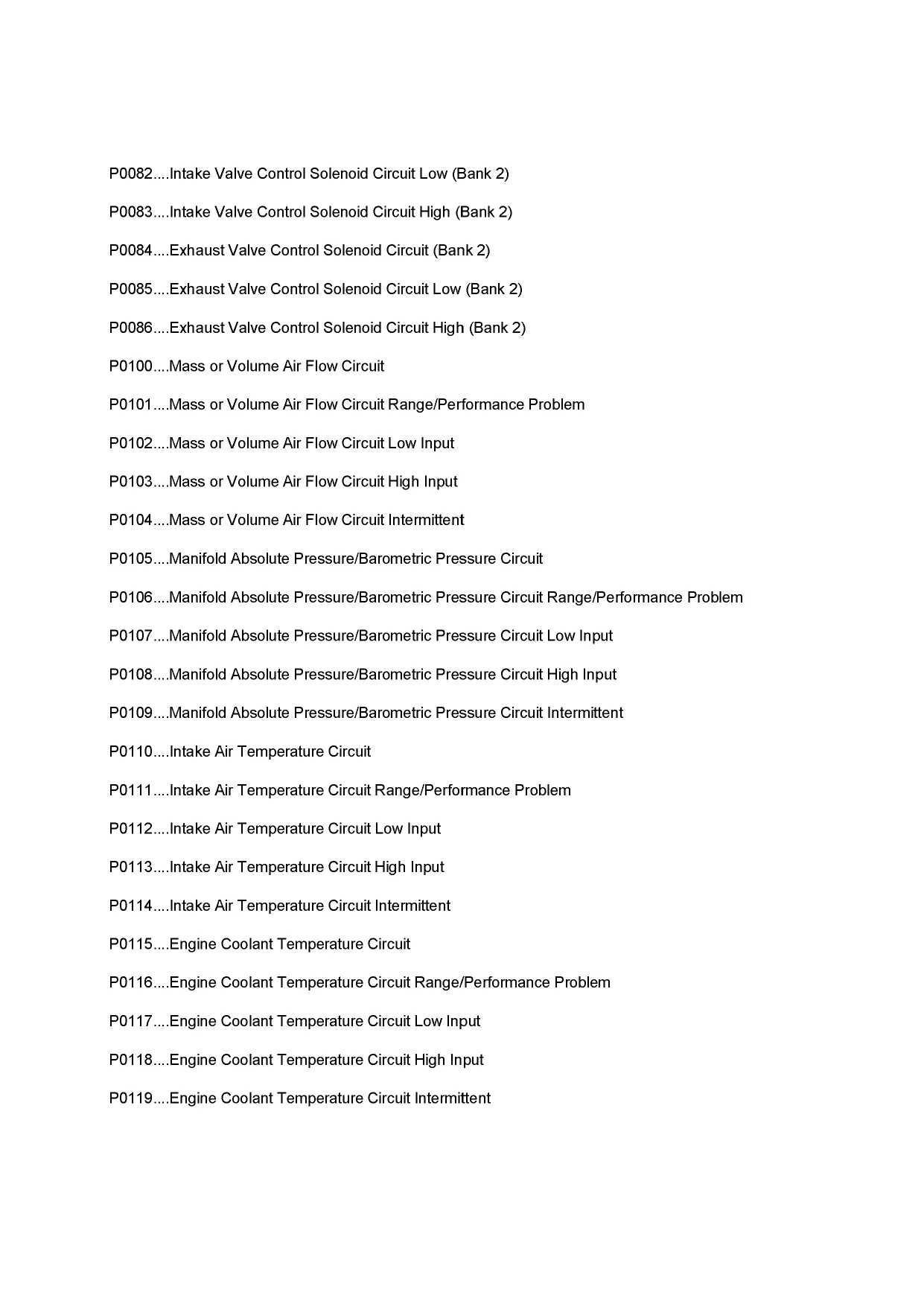

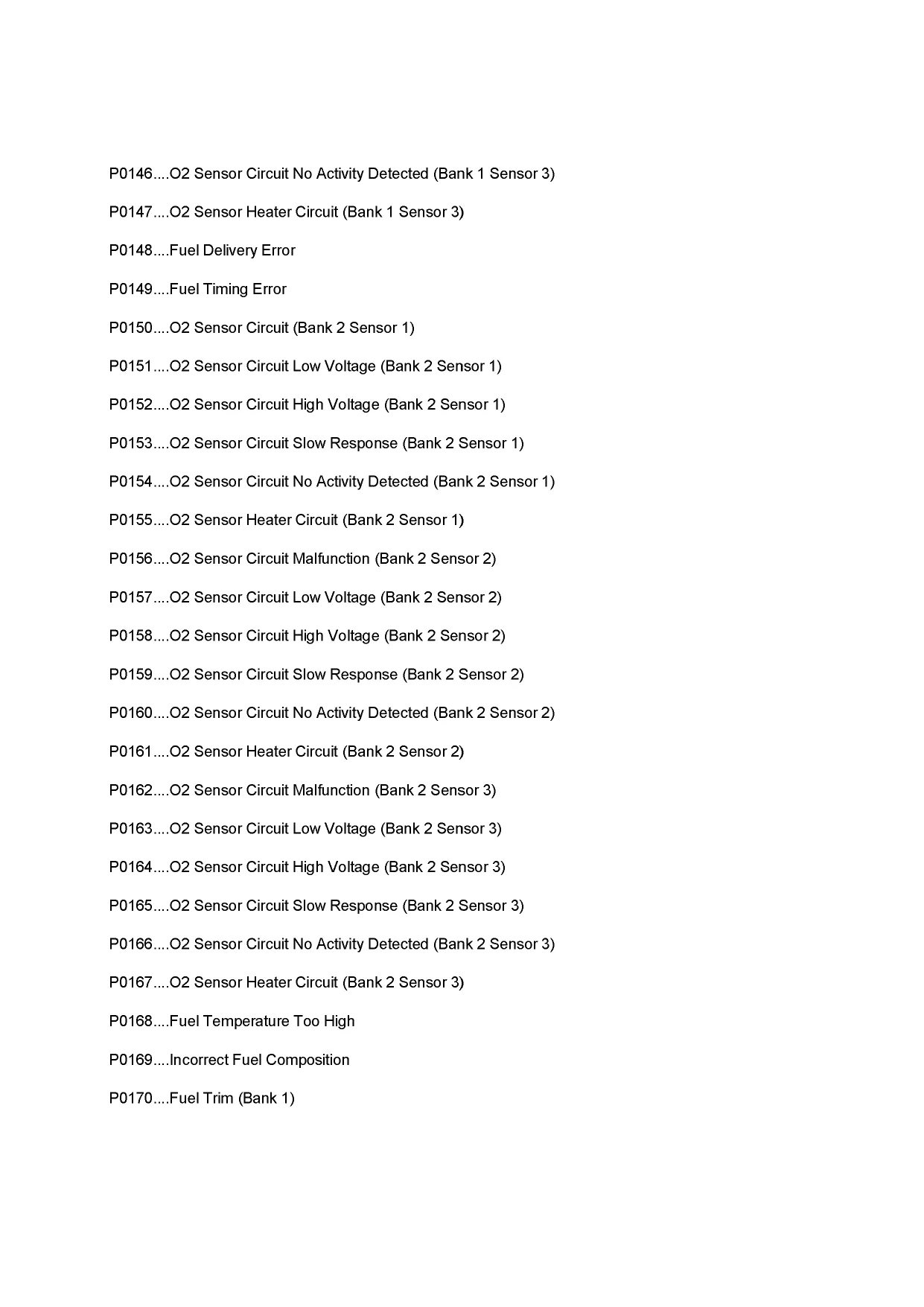

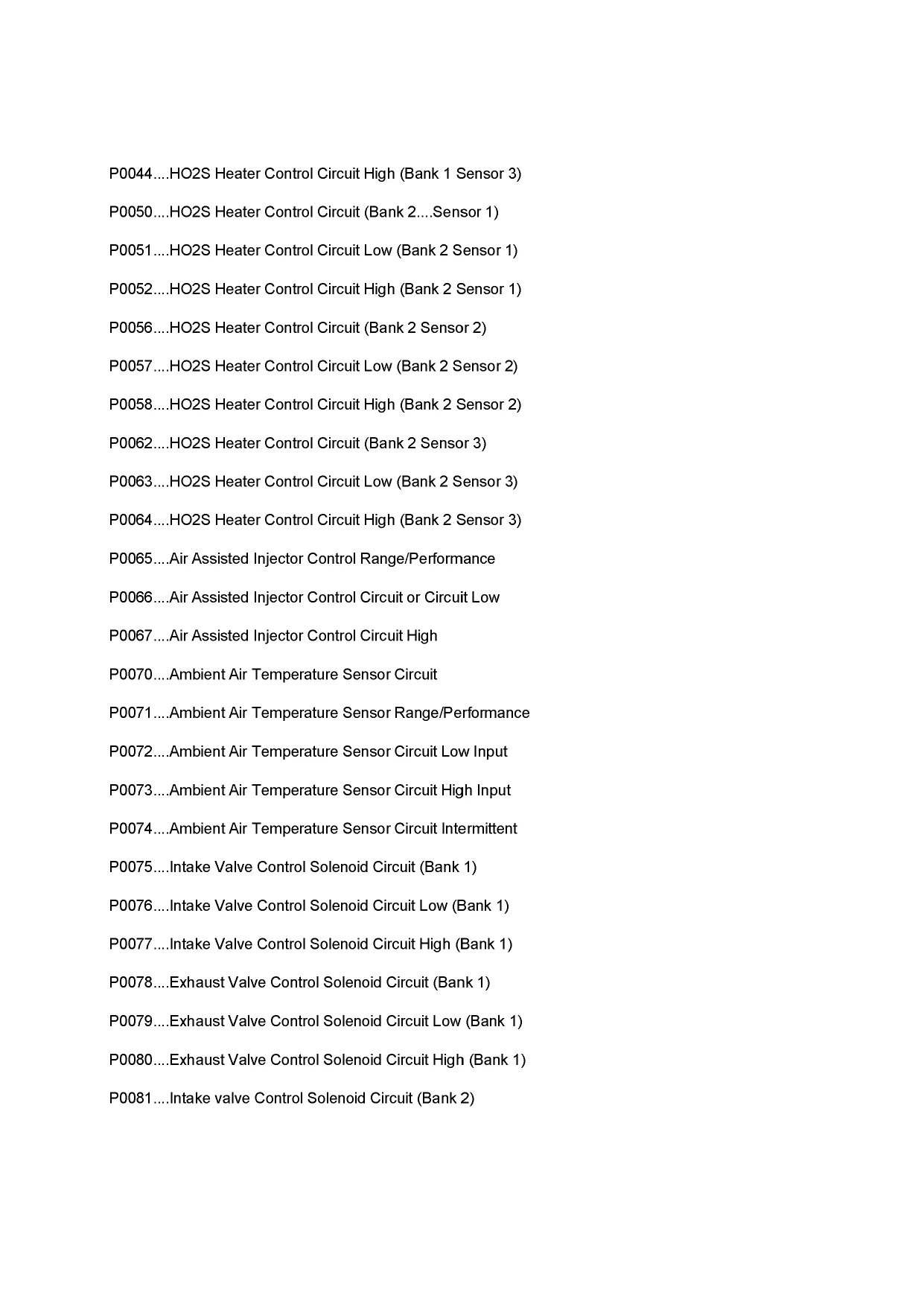

Generic OBD-II Trouble Codes 33
GM Trouble Codes 14

The service maintenance extract directs scheduled maintenance and fluid recommendations to the owner manual. The navigation supplement adds factory navigation-system operation to the 2009 owner guide.

Repair coverage is concentrated on 2007 Outlook XE, with XR component-location material. The Cadillac engine sections and Acadia wiring diagrams are separate references, not Outlook-specific repair volumes; the 2009-specific publications are the owner manual and navigation supplement.

PDF Search, Bookmarks, and Diagram Detail

Search and navigation: The three owner manuals and navigation supplement have searchable text and embedded bookmarks. The 45 Outlook/shared-platform service PDFs have searchable headings or narrative text but no bookmarks; many diagram labels are images. The five Cadillac engine PDFs and both DTC lists have neither text search nor bookmarks. Small wiring labels require zooming.

The ZIP contains 56 printable PDFs totaling 7,325 pages in English, including 66 blank pages in the engine files and 10 notes pages in the owner/navigation manuals. Front matter and indexes are also included in the total.


Drivetrain Repairs and Body-Electrical Diagnostics

These selected topics illustrate the contents rather than reproduce the complete contents list. Additional sections address cruise-control faults and horn-circuit diagnosis.

  • Drivetrain: Wheel-drive shafts, propeller shafts, rear differential and torque-tube service, AWD clutch-control calibration, and Getrag 790 disassembly and assembly.

  • Transmission: 6T70/6T75 fluid and leak diagnosis, line-pressure checks, solenoid/TCM testing, torque-converter diagnosis, cooler flushing and flow testing, and Service Fast Learn Adapts.

  • Brakes and suspension: Disc, hydraulic, parking-brake and ABS repair, automated bleeding, wheel-speed sensor diagnosis, EBCM replacement, and front/rear suspension service.

  • Body and restraints: SIR airbags, passenger presence, pretensioners, power/memory/heated/cooled seats, liftgate calibration, window-motor calibration, and sunroof motor initialization and track synchronization.

  • HVAC and cooling: Refrigerant leak detection and recovery/recharging, front and auxiliary HVAC diagnosis, cooling-system pressure tests, thermostat checks, and Vac-N-Fill.

  • Electrical systems: Starting/charging tests, HID/non-HID lighting, wipers, gauges, audio/navigation and OnStar, with connector views, DTC indexes, scan-tool controls, and module setup/programming references.

  • Steering and vibration: Power-steering service, NV7 variable-effort steering diagnosis, steering-column repairs, and tire/wheel and driveline vibration analysis.

The service sections suit technicians and experienced owners with scan-tool and automotive electrical-testing skills; the owner manuals address everyday operation and scheduled maintenance.

Owner Operation and Scheduled Maintenance

The owner guides explain manual and power seating, memory functions, rear-seat and third-row operation, LATCH installation, and passenger-sensing airbags.

Operating guidance covers remote start, power liftgate features, climate controls, the Driver Information Center, and audio/navigation equipment. AWD operation, towing, tire care, fuses, bulb service, capacities, and maintenance schedules support routine ownership.

Transmission, AWD, and Brake Repair Depth

The transmission file is diagnostic and control-system oriented, rather than a complete internal overhaul chapter. Its electrical-function checks and scan-tool data support investigation of shift complaints without treating every symptom as an internal mechanical failure.

Step-by-step procedures cover Getrag housing and seal service, plus wheel-drive-shaft joint and boot replacement. The 2008 propeller-shaft supplement specifies flange reference marks and new bolts and washers rather than reused hardware.

Hydraulic brake coverage adds master-cylinder bench bleeding, manual and pressure bleeding, external and internal leak checks, pedal-travel inspection, and brake-system road tests. The ABS section includes hydraulic brake-booster calibration.

Body Repairs and Option-Specific Circuits

Body sections include windshield and stationary-glass adhesive installation, window-regulator replacement, and module-controlled door-lock diagnosis. Radio, rear-seat entertainment, GPS navigation, and OnStar repairs include related setup or programming references.

Circuit selection distinguishes AXA from AXC/AXE door and window systems, A45 seat configurations, HID versus non-HID lighting, and WDA/Z88 restraint connector variants.

Schematics, Component Views, and Special Tools

SIR diagrams include “Module Power, Ground, Indicators, Rollover/Passenger Presence Sensors.” ABS diagrams include “Sensors” and “TCS Control & Indicators,” with connector pin views and component locations for circuit tracing.

The “Front Moveable Window Schematic (AXC/AXE)” and NV7 variable-effort-steering wiring schematic address option-dependent circuits. The “Transfer Case Disassembled View” identifies the Getrag components.

Testing references the J 35616 terminal test kit and DT-47825 control-solenoid test plate. Other specified tools include the J 24460-01 cooling-system pressure tester, J 39400-A halogen leak detector, J 42640 steering-column anti-rotation pin, and DT-48074 shaft-seal installer.

The SIR material requires system disabling before work around airbags, pretensioners, sensors, or related wiring. Incorrect steering-wheel SIR-coil centering can damage the coil and cause restraint-system malfunction; the Getrag section warns that prying out input-shaft seals with a screwdriver or punch can damage the aluminum sealing surface.

Separate Cadillac Engine Repair Sections

The five CTS engine sections cover timing chains and camshaft timing, cylinder-head work, piston and crankshaft inspection, oil-pump service, and engine disassembly/reassembly. Their vehicle-specific removal and installation instructions belong to the Cadillac application.

The repair sections are Mitchell Repair Information printouts with figures credited to General Motors, rather than one GM-issued service publication. The generic troubleshooting and DTC references do not replace Outlook-specific diagnostic routines.

A Preview of Disc-Brake Inspection Limits

For the 2007 Outlook disc-brake section, minimum rotor thickness is 27.5 mm at the front and 18.4 mm at the rear. Maximum allowable rotor thickness variation is 0.025 mm for both. The inspection material pairs these limits with thickness-measurement and lateral-runout correction procedures.
