GMC Acadia Service & Owner Manual Set, 2007–2010 (P/N 25851640 B)

The repair extracts address mechanical and electrical work, while the owner and navigation manuals explain vehicle features and operating controls. Together, they let a shop check feature operation and reset requirements alongside the relevant component procedures.

Coverage varies by document. Much of the earlier service material carries Saturn Outlook headings. Later exports use a shared-platform service manual headed 2009 Chevrolet Traverse and include Acadia-specific procedures alongside other vehicle variants. The 2010 publication is the owner manual; this collection is not four complete, year-specific Acadia workshop manuals.

PDF Search, Bookmarks, and File Organization

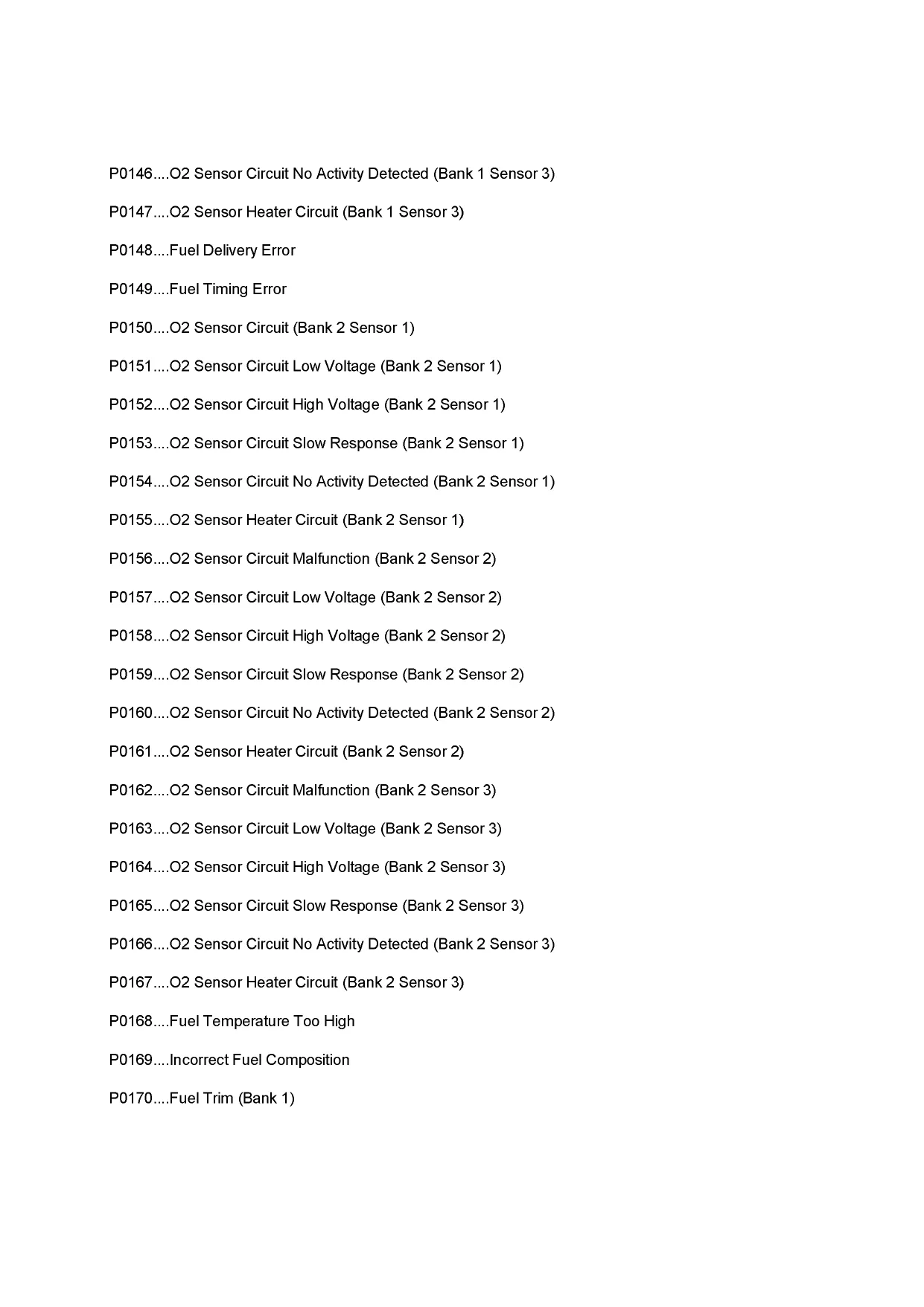

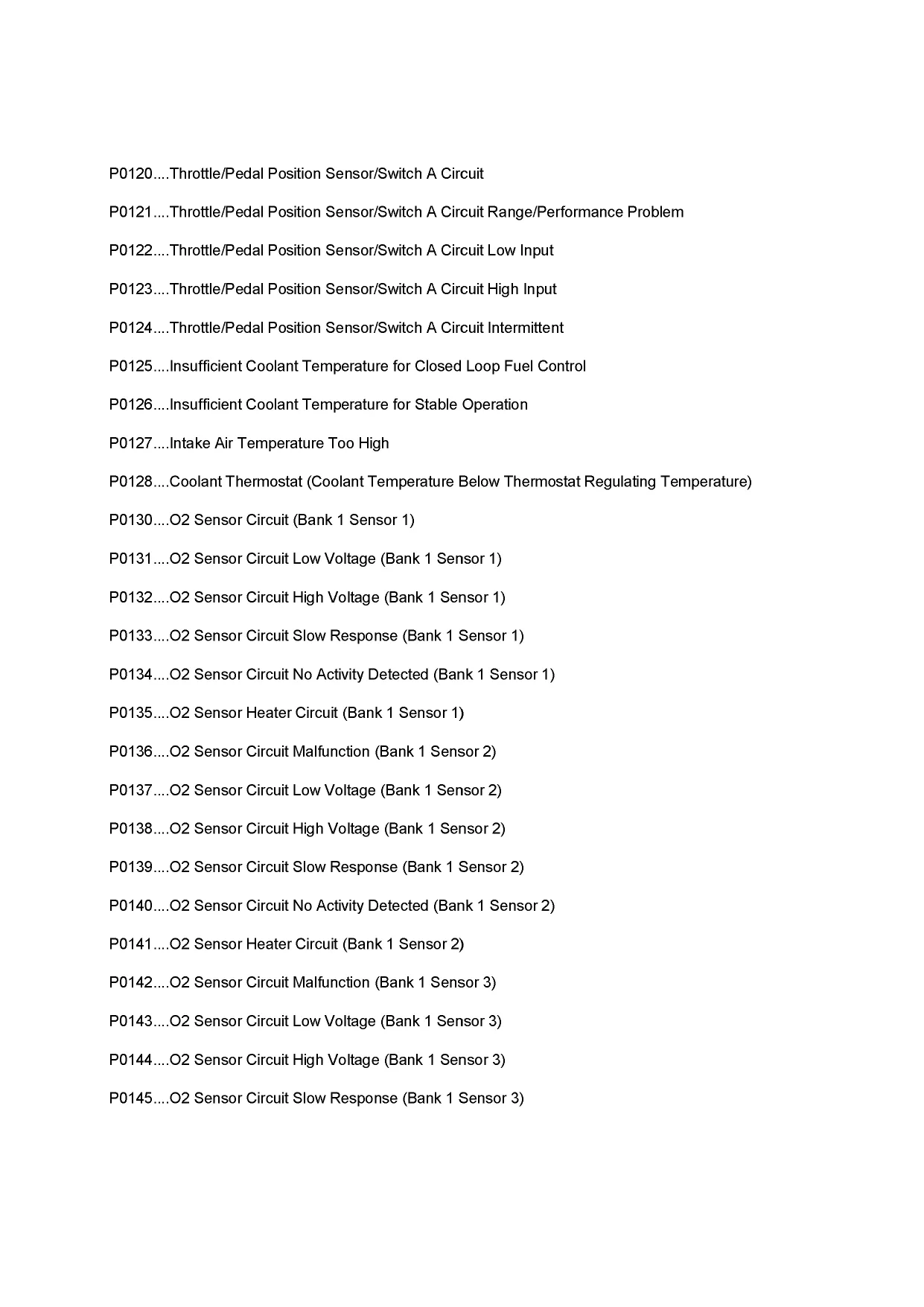

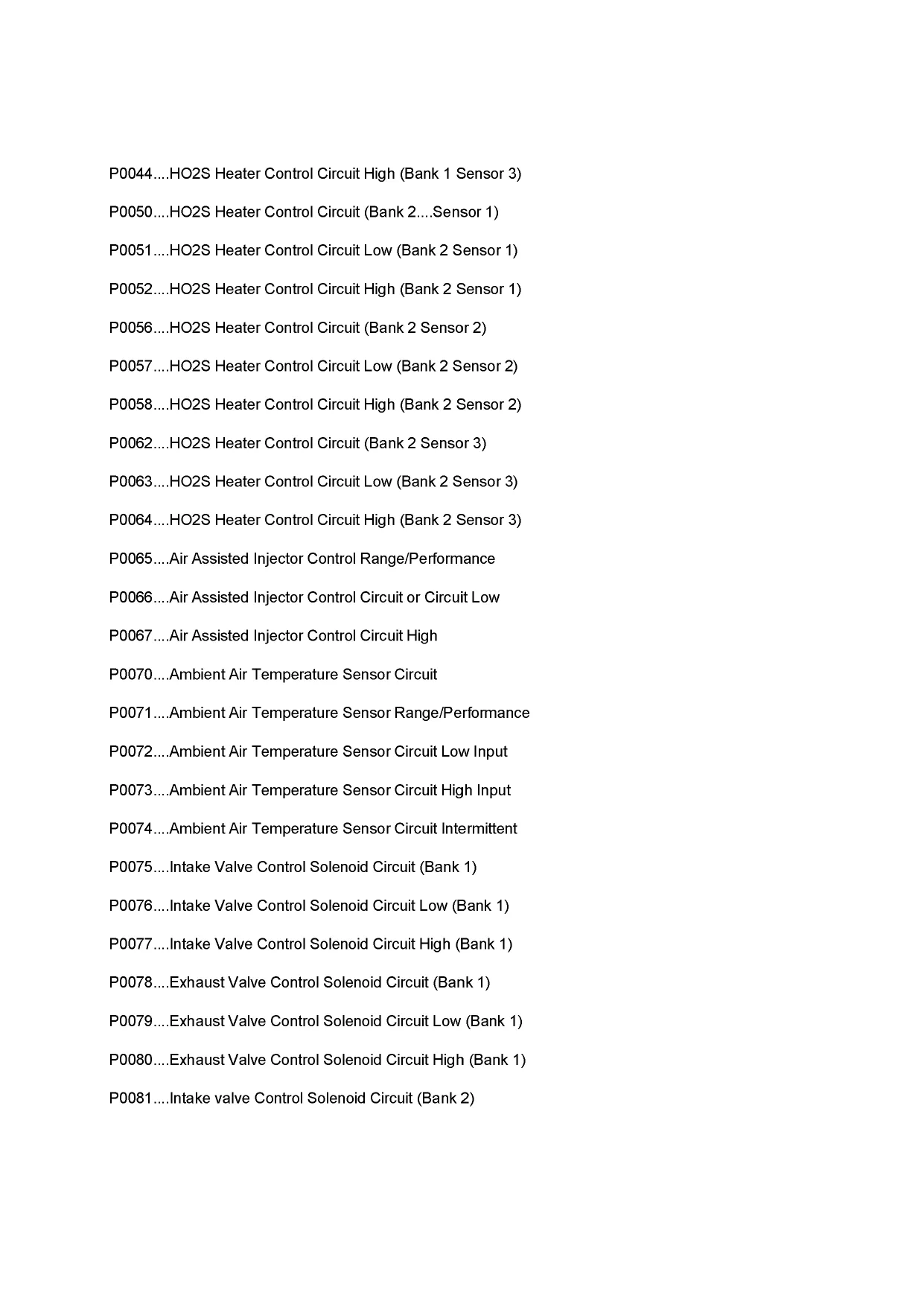

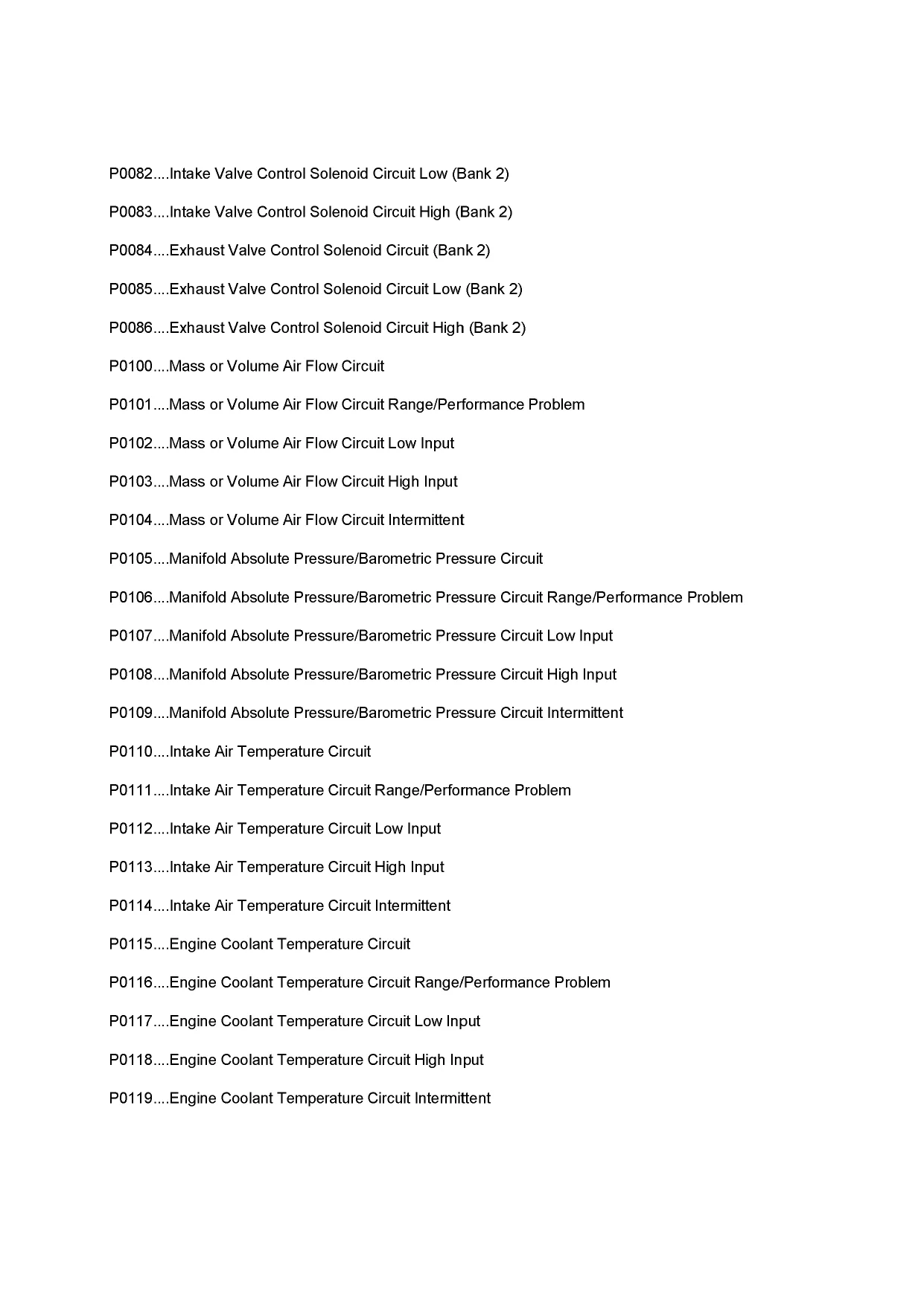

Text search and navigation: The five early engine volumes and both trouble-code references have no embedded searchable text. Other files contain searchable text, although many diagram labels remain image-based. The owner and navigation manuals have named chapter bookmarks; 83 service PDFs have numbered bookmarks, while 80 PDFs have none. Small wiring labels require zooming.

The ZIP contains 165 printable PDFs totaling 9,283 pages, including introductory material, indexes, and eight notes pages within the owner and navigation manuals. The table above includes all supplied PDF pages, including overlapping service information and parallel vehicle variants.

Engine, Drivetrain, Electrical, and Vehicle Systems

The following selected contents show the main areas covered. Additional topics include cruise-control troubleshooting and sunroof initialization.

• Engine mechanical: Step-by-step removal, disassembly, inspection, and reassembly procedures, including cylinder heads, pistons, bearings, oil pumps, and camshaft timing chains.

• Transmission and AWD: Automatic-transmission testing, valve-body and clutch work, FWD/AWD removal procedures, and Getrag transfer-case disassembly and assembly.

• Brakes and chassis: Disc-brake inspection and replacement, hydraulic bleeding, ABS procedures, steering service, suspension work, and wheel-bearing replacement.

• Electrical diagnosis: Circuit schematics, connector views, component locations, starting and charging tests, and system-specific diagnostic charts in the earlier service references.

• Climate control: Manual and automatic HVAC references, compressor and evaporator replacement, heater-core work, and auxiliary blower and air-distribution components.

• Body and restraints: Power-seat components, door locks, liftgate mechanisms, window systems, passenger-presence components, and post-collision restraint inspections.

• Operating and maintenance information: Oil-life reset instructions, tire-pressure monitoring, StabiliTrak operation, infotainment controls, child restraints, and scheduled maintenance.

The repair sections suit technicians and experienced mechanics with scan tools, measuring equipment, and the specified engine and transmission service tools; the owner literature covers routine operation and maintenance.

Engine Overhaul and Timing-Chain Work

The LLT material extends to cylinder-head disassembly, valve-seat inspection, crankshaft and bearing checks, and piston-to-cylinder measurements. Timing-chain sections distinguish primary and secondary drives and identify tools such as the EN-48383 camshaft retainers.

Alignment views and tool references help identify the setup required before timing work begins. The LLT chain instructions warn that an improperly released tensioner can cause serious engine damage.

Transmission Testing and Driveline Repair

The Outlook-labeled transmission reference contains control-solenoid performance tests, input/output speed-signal tests, line-pressure checks, and Service Fast Learn Adapts. These sections provide checks for investigating shift and control complaints rather than relying on a trouble-code definition alone.

Later 6T70/6T75 extracts cover internal assemblies and on-vehicle repairs, with separate FWD and AWD transmission-removal procedures. Transfer-case and rear-drive-axle material includes seals, inspection, lubricant service, and component replacement.

The ABS instructions also warn that connecting or disconnecting the electronic brake control module with the ignition on can damage the module. Brake, restraint, and fuel-system work requires the precautions and equipment specified for the individual procedure.

Circuit References, HVAC, and Body Equipment

Diagram examples include Module Power, Ground, Serial Data, and MIL, Pressure Controls and Shift Controls, and Antilock Brake System Schematics. Headlights/Daytime Running Lights (DRL) Schematics and Radio/Navigation System Schematics extend the electrical coverage to lighting and entertainment equipment.

Equipment-specific diagrams distinguish door-lock configurations and heated/cooled seat options. HVAC repair extracts separate manual and automatic controls and include rear heating and ventilation components. Body sections address memory-seat modules, liftgate actuators, window mechanisms, and restraint components.

Owner Controls, Resets, and Navigation

The owner manual explains remote keyless entry, seat configurations, passenger sensing, airbag operation, climate and lighting controls, and Driver Information Center messages. It also describes the engine oil-life system and tire-pressure-monitor relearning requirements.

The separate navigation manual covers destination entry, route guidance, map DVDs, audio functions, and voice recognition. Its operating information complements the service references for infotainment components.

Selected LLT Engine Inspection Dimensions

The LLT specification tables list camshaft end play of 0.045–0.215 mm and piston-to-bore clearance of 0.026–0.052 mm. These dimensions accompany the shared-platform engine inspection and overhaul material.
