GMC Savana 2003–2010 Repair & Owner Manual Set (P/N X 2314 A)
9,718 Pages • ZIP Download: 94 Printable PDFs • 230.75 MB
GMC Models Covered & Key Technical Specifications
Models: Savana, Passenger Van, Cargo Van, Cab and Chassis
Sub-models / Variants: G 15/25/35 Series engines listed in the steering specifications: 4.3L (LU3), 4.8L (LR4), 5.3L (LM7), 6.0L (LQ4), 6.6L diesel (LLY); AWD (BW 4473-NP3 transfer case)
Model Years: 2003–2010 (2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010
-
Vehicle identification: Includes VIN, key codes, and certification labeling
-
Safety systems: Frontal air bags, dual-stage vs. single-stage system criteria
-
Child restraint compatibility: LATCH system, top tether anchors, seat positions
-
Security features: Passlock system, remote keyless entry, lockout protection
-
Door operation: Manual and power locks, rear door security locks, check strap assembly
-
Cooling procedure variants: Water-pump replacement (LU3, LMF/LY2, LY6, LMM); thermostat-housing crossover replacement (LLY/LBZ)
-
Automatic transmission references: Four-speed 4L60-E and 4L80-E, including standard/heavy-duty 4L80-E; 2003 engine/transmission codes: 4.3L and 5.3L (M30), 4.8L and 6.0L (MT1)
-
VIN engine identifiers: Eighth character, 2009 owner manual: 4.3L V6 (X), 4.8L V8 (C), 5.3L V8 (4), 6.0L V8 (K)
GMC Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|
| 2009 Express/Savana (VIN G/H), Express AWD — service extracts and associated schematics, 69 PDFs | 3,000 |
| 2003 Express/Savana — Instrument Panel, Gages, and Console | 53 |
| 2003 Express/Savana — Interior Trim | 50 |

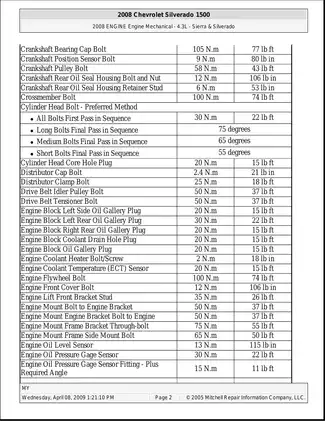

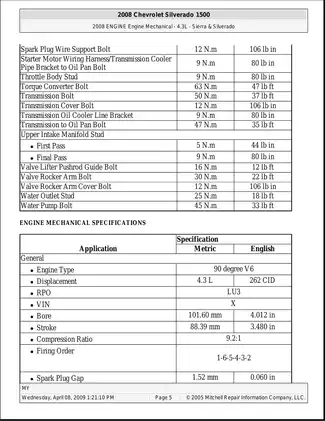

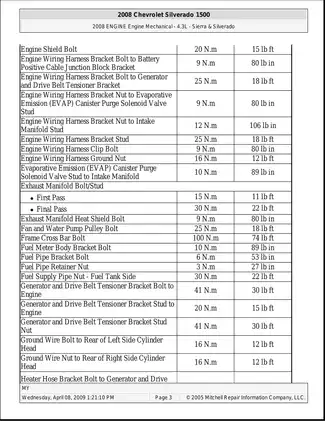

| 2008 Silverado/Sierra — Engine Mechanical, 4.3L | 889 |
| 2008 Silverado/Sierra — Automatic Transmission, 4L60-E/4L65-E/4L70-E | 759 |
| 2009 Silverado/Sierra 4WD — 4.8L/5.3L/6.0L engine-control and mechanical extracts — 6 PDFs | 1,140 |
| 2009 Silverado/Sierra 4WD — 6.6L engine-control and mechanical extracts — 6 PDFs | 944 |
| 2003 GMC Savana Owner Manual — First Edition, P/N X 2314 A | 400 |
| 2004 GMC Savana Owner Manual — First Edition, P/N X2414 A | 398 |
| 2005 GMC Savana Owner Manual — First Edition, P/N 05SAVANA A | 384 |
| 2006 GMC Savana Owner Manual — First Printing, P/N 06 SAVANA A | 394 |
| 2007 GMC Savana Owner Manual — First Printing, P/N 15861875 A | 452 |
| 2008 GMC Savana Owner Manual — First Printing, P/N 15861877 A | 402 |
| 2009 GMC Savana Owner Manual — Second Printing, P/N 25776481 B | 406 |
| Generic OBD-II trouble-code definitions | 33 |
| GM OBD-II trouble-code definitions | 14 |
The owner manuals explain vehicle operation and routine care; the repair extracts provide component procedures, setup data, and schematics. Match the document's vehicle, engine, RPO, axle, and brake configuration to the planned work.
Coverage limits: The Silverado/Sierra files are cross-application references, not confirmation of Savana repair fit. No 2010 Savana Owner Manual is included. Duramax-equipped vehicles require the separate diesel supplement referenced by the owner books; that supplement is not included.
Text Search, Bookmarks, and Wiring Detail
Search and diagram access: Repair and owner-manual text is searchable, with some image-based pages in the 2003 owner book. The two code lists and image-based wiring labels are not searchable. Owner manuals have descriptive bookmarks; bookmarked repair extracts mostly use numbered filenames, and some PDFs have none. Small labels in the reviewed wiring diagrams are readable when enlarged.
ZIP download containing 94 printable PDFs totaling 9,718 pages. The total includes 26 notes pages across the owner manuals and the 2003 book's front and back covers.
Driveline, Brake, Electrical, and Owner Coverage
These selected content highlights outline the main repair areas. Other included procedures cover remote-transmitter programming and tire-pressure sensor learning.
-
AWD driveline: Front and rear axle service, wheel drive shafts, propeller shafts, BW 4473-NP3 transfer-case disassembly, differential overhaul, and gear setup.
-
Brake service: Scan-tool ABS automated bleeding, EBCM/BPMV and wheel-speed sensor replacement, hydraulic bleeding, master-cylinder service, caliper overhaul, and parking-brake adjustment.
-
Steering and suspension: Power-steering bleeding and flushing, pump and gear replacement, tie-rod inspection, steering-gear preload adjustment, and front/rear suspension service.
-
Engine controls and cooling: Express/Savana 4.3L fuel and ignition work, ECM replacement, crankshaft-variation and throttle learning, plus multi-engine cooling and starting/charging procedures.
-
Front and auxiliary HVAC: Compressor, evaporator, heater-core, expansion-device, blower, and control service, with refrigerant recovery and recharging procedures.
-
Electrical, body, and restraints: Electrical-center identification, connector views, terminal repair, SIR component replacement and collision inspection, door/latch/window service, lighting, instruments, seats, and trim.
-
Owner guidance: Restraint systems, warning lights, Driver Information Center messages, towing, routine checks, fluid/capacity references, and maintenance schedules.
The owner books are written for vehicle owners. The repair extracts suit technicians and experienced DIY owners who can identify the applicable vehicle configuration and use the required scan equipment and special tools.
Axle Setup and Component Repair
The rear-axle file distinguishes 8.6-, 9.5-, 9.75-, 10.5-, and 10.75-inch configurations; brake procedures separate single- and dual-rear-wheel hardware. Step-by-step procedures extend to locking-differential clutch-disc and cam-unit work, with pinion-depth, bearing-preload, backlash, and gear-contact checks. These distinctions help match the setup data and repair procedures to the axle being serviced.
Special-equipment references include the J 8001 dial indicator, J 25033-C/J 25034-C steering-pump pulley tools, and the J 45759 fixture and J 45358 spreader for transfer-case work. ABS bleeding calls for a scan tool and pressure bleeder, while A/C procedures identify refrigerant recovery equipment.
The rear-axle procedures explain the consequences of excessive pinion rotating torque for the collapsible spacer and distinguish non-reusable production shims. The SIR section warns that incorrect steering-shaft disconnection can uncenter and damage the SIR coil.
Brake, fuel, refrigerant, SIR, and raised-vehicle work should be performed with the pressure-relief, disabling, recovery, and support precautions specified in the applicable section.
Schematics and Workshop Reference Data
The 24 dedicated schematic PDFs include Power, Ground, Serial Data and Indicators (JL9), Headlamp and Daytime Running Lamp Controls, and Lock/Unlock Control. Further examples include the SIR diagram for module power, ground, serial data, the vehicle rollover sensor and disable switch, plus Starting System Gas and Charging System Diesel.
Wiring Systems and Power Management adds component and inline connector end views, splice-pack views, harness routing, and terminal-repair information. Related repair sections supply fastener tables, fluid capacities, pressure-test data, electrical specifications, axle setup data, and collision body-dimension charts.
The trouble-code PDFs provide generic and GM-specific OBD-II definitions rather than guided Savana diagnostic routines.
Sample Gasoline-Generator Output Specifications
For gasoline applications, the P4 (K68) generator is rated at 105 amps with a load-test output of 85 amps. The DR44G (K63) is rated at 145 amps with a load-test output of 105 amps.
