Cadillac Escalade 2007 Service & Repair Manual Collection
8,011 Pages • ZIP Download: 97 Printable PDFs • 168.41 MB
GMC Models Covered & Key Technical Specifications
Model: Escalade
Sub-models / Variants: Escalade, Avalanche, Suburban, Tahoe, Yukon
Model Year: 2007
Engine variants in platform chapters: 4.8L V8 (LY2); 5.3L V8 (LC9, LY5, LMG); 6.0L V8 (LY6, L76); 6.2L V8 (L92)
Automatic-transmission chapter: 6L50/6L80/6L90 — diagnosis and service
Transfer case variants in platform chapters: Full-time AWD (BW 4485-NR3); electronically controlled 4WD (NVG 246-NP8)
-
Electronic adjustable pedal (EAP) bracket bolt torque: 25 N.m (18 lb ft)
-
Accelerator pedal bracket nut torque: 9 N.m (80 lb in)
-
ABS brake pipe fitting torque: 18 N.m (13 lb ft)
-
Master cylinder nut torque: 33 N.m (24 lb ft)
-
Wheel speed sensor supply voltage: Below 7.6 V is a DTC-setting condition
-
Yaw rate sensor circuit voltage: 2.5 V (ignition ON, zero yaw rate, no sensor bias)
-
Twisted-pair wire specification: 9 turns per 31 cm (12 in) minimum
GMC Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|
| 2007 platform repair articles — Cadillac Escalade, Chevrolet Avalanche, Suburban and Tahoe, and GMC Yukon (67 PDFs) | 7,298 |
| 2007 System Wiring Diagrams — Cadillac Escalade (23 PDFs) | 203 |
| 2008 Power Distribution wiring diagrams — Cadillac Escalade | 17 |
| 2009 Displays and Gages — Escalade and related platform models | 91 |
| 2009 Electronic Suspension Control — Escalade and related platform models | 27 |
| 2009 Cellular, Entertainment, and Navigation — Escalade and related platform models | 196 |
| 2009 Object Detection — Escalade and related platform models | 60 |
| 2009 Steering Wheel and Column — Escalade and related platform models | 118 |
| MY08/MY09 feature-change note | 1 |
The repair articles provide mechanical service procedures and system diagnostics, while the dedicated Cadillac wiring files supply circuit drawings. Many illustrations are credited to General Motors Corp.
Later-model coverage: The later material contains selected articles and a feature-change note, not a full 2008-2009 repair manual.
Transmission and HVAC limits: The automatic-transmission article covers diagnosis and service rather than a complete internal teardown and rebuild. HVAC coverage consists of automatic/manual A/C wiring, rather than refrigerant, heater-case, or compressor repair.
Several articles reference separate general-information documents, including Diagnostic System Check - Vehicle, control-module references, and wheel-alignment data. These are not supplied as standalone PDFs.
Text Search, Wiring Detail and File Breakdown
Search and diagram detail: Text search works in the repair articles; the separate wiring PDFs mainly provide searchable headings and captions. There are no embedded PDF bookmarks. Small pin numbers and wire-color codes on dense diagrams require zooming.
The ZIP download contains 97 printable PDFs totaling 8,011 pages: 91 files and 7,518 pages in the main folder, plus six files and 493 pages of later material. The one-page MY08/MY09 feature-change note is already included in that total.
Engine, Drivetrain and Vehicle-System Service
This selection of contents highlights major repair areas. Additional articles address cruise-control faults and wiper/washer diagnosis.
-
Engine repair: Step-by-step procedures for engine removal, timing-system service, cylinder-head and valvetrain work, internal inspection, thread repair, and reassembly.
-
Powertrain and axles: Automatic-transmission pressure and shift diagnosis, transfer-case disassembly and assembly, differential overhaul, pinion depth, bearing preload, backlash, and gear-contact checks.
-
Brake systems: Disc, hydraulic, parking-brake, and ABS diagnosis; automated ABS bleeding; manual and pressure bleeding; hydraulic brake booster calibration; and BPMV testing.
-
Steering and suspension: Power-steering testing and bleeding, suspension-position calibration, electronic suspension diagnosis, and automatic level-control service.
-
Restraints and body controls: SIR fault isolation, disabling and enabling procedures, passenger-presence diagnostics, and system-specific body-electronics testing.
-
Engine support systems: Fuel-system and ignition diagnosis, cooling-system leak and thermostat tests, battery parasitic-load testing, and charging-system checks.
-
Electrical references: Cadillac Escalade wiring diagrams, DTC indexes, circuit fault tables, scan-tool data, component locations, connector end views, and fastener-tightening specifications.
This material suits technicians and experienced DIY owners who can read wiring diagrams and use electrical test equipment; scan-tool routines require suitable diagnostic equipment.
RPO-Specific Engine Repair
Five engine-mechanical PDFs document crankshaft and bearing installation, piston and connecting-rod work, camshaft service, oil-pump procedures, and final assembly.
Timing procedures separate LC9/LMG/LY2/LY5 configurations from LY6/L76/L92. Engine-mount and water-pump procedures also distinguish RPO applications, helping readers select the procedure that matches the engine before planning the work.
Tool callouts include EN 46330, J 41478, J 41558, and J 41665. The timing-service text warns that turning the crankshaft after timing-chain removal can damage the pistons or valves.
Fuel, Cooling and Engine Electrical
Fuel-system repair distinguishes 1500/2500 series, short- and long-wheelbase tanks, E85 versions, and front/rear tank layouts. Injector and fuel-pump circuit diagnosis is accompanied by fuel-pressure testing, crankshaft-position variation learn, and throttle-learn procedures.
Cooling coverage adds radiator, thermostat, and water-pump replacement, plus draining and filling procedures. Engine-electrical articles include starter and generator replacement alongside the electrical tests.
Transmission, Transfer Cases and Axles
The 6L50/6L80/6L90 article adds road testing, torque-converter and clutch diagnosis, cooler flushing and flow testing, and Service Fast Learn Adapts.
Electronic transfer-case diagnosis applies to the NVG 246-NP8 material. The BW 4485-NR3 article covers the full-time AWD unit’s mechanical service, including seals, unit replacement, disassembly, inspection, and assembly.
Front- and rear-axle chapters distinguish axle configurations and include locking-differential service. Axle-tool references include J 36598 and J 45858.
Brake and Chassis Configurations
Brake procedures distinguish 1500/2500-series hardware, JL4 and non-JL4 configurations, vacuum and hydraulic boosters, and JD9/JH6 master-cylinder applications. These distinctions matter when selecting bleeding, calibration, and component-service procedures.
Restraints, Seats and Body Equipment
SIR coverage addresses the SDM, rollover and side-impact sensors, roof-rail and frontal modules, pretensioners, deployment-loop DTCs, and post-replacement setup references.

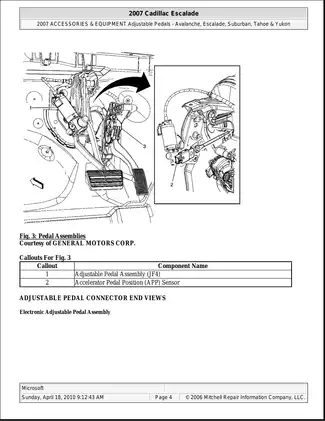

Body-system articles cover adjustable pedals, memory and climate-controlled seats, liftgate calibration, sunroof initialization, TPMS learn, immobilizer relearn, lighting, windows, locks, mirrors, object detection, navigation, and instrument-cluster systems.
Circuit Drawings and Diagnostic References
The 24 dedicated wiring PDFs cover automatic/manual A/C, ABS, SIR, BCM, 6.2L VIN 8 engine performance, power and ground distribution, lighting, radio, seats, windows, and other body circuits. These system-wiring files are Escalade-specific.

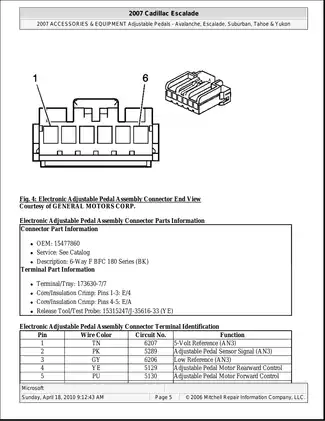

The 122-page electrical component locator contains 100 location figures and also names Escalade ESV, Escalade EXT, and Yukon XL. Across the repair articles, more than 300 connector-end-view figures and 51 fastener-tightening tables provide additional reference detail.
Component locations, terminal views, circuit fault tables, and GMLAN testing help connect a diagnostic procedure to the circuit and connector being investigated.

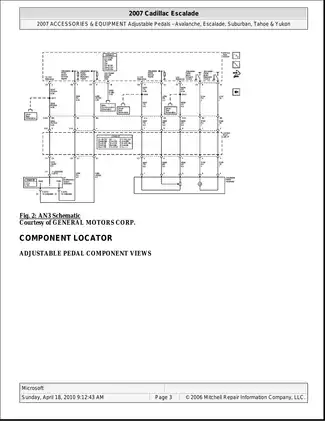

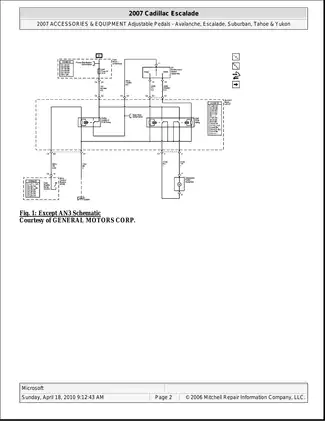

Illustration examples include Module Power, Ground, & Serial Data, Pump Motor & Brake Switch Schematic, Passenger Presence System - 1 of 2 Schematic, and 6.2L VIN 8 Engine Performance Circuit.
Other examples are Encoder Motor Control & Serial Data Schematic, Case Half Components Disassembled View, and Rear Chassis (Long Wheel Base).
Scan-Tool Requirements and Service Precautions
Automated bleeding, Fast Learn, module setup, and several sensor-learn routines assume access to an appropriate bidirectional scan tool.
SIR service requires the system to be disabled. ABS/SIR wiring repairs must preserve the specified twisted-pair construction and shielding to prevent electrical interference or unintended restraint-system operation.
Brake, fuel, pressurized hydraulic, and electrical work should be handled by technicians with the required service equipment and safety training.
Selected Transfer-Case Fluid Specifications
The BW 4485-NR3 capacity table lists approximately 1.4 liters (1.5 quarts) of Manual Transmission Fluid.
For the NVG 246-NP8, the corresponding table lists approximately 1.9 liters (2.0 quarts) of Auto Trac II fluid. The separate entries distinguish the fluid type and approximate capacity for each transfer-case configuration.
